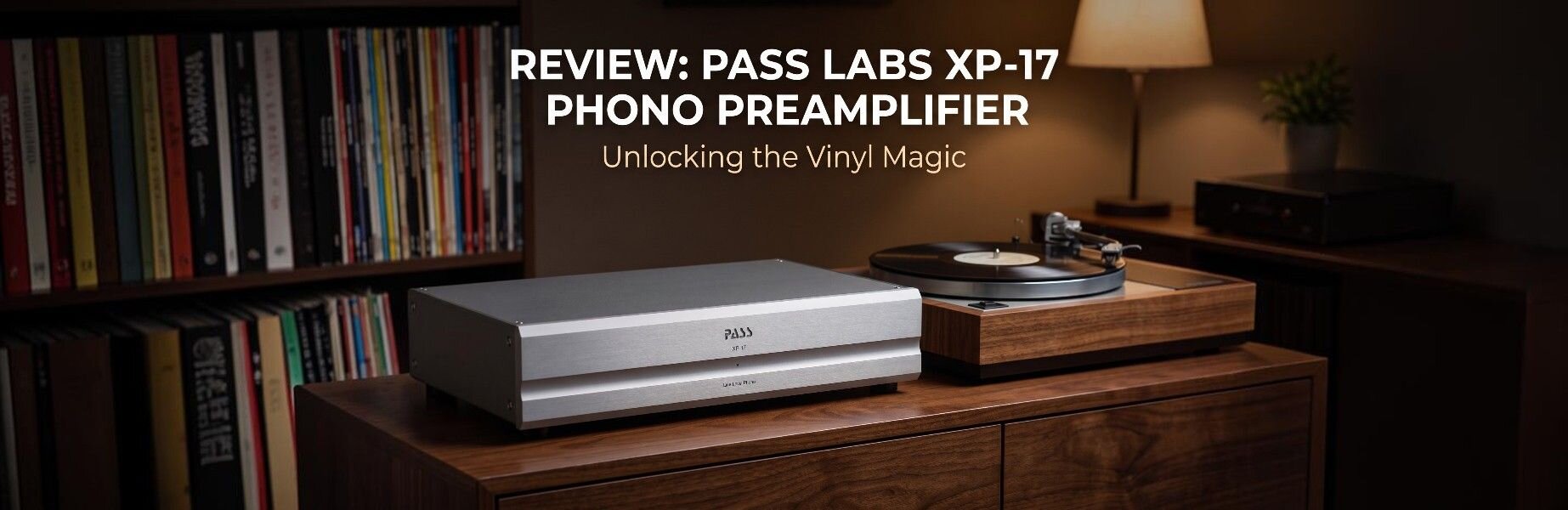

Pass Labs XP-17 Phono Preamplifier Review: Reference-Level Precision and Silence
Read Time: Approx. 10 min.
TL;DR:
- The phono stage — not the turntable — is the component that most determines your vinyl system's sound quality.
- The XP-17 amplifies signals up to ~100,000 times while keeping noise essentially inaudible (0.004% THD+N).
- Its split EQ network delivers RIAA correction accurate to within 0.1 dB across ten octaves, regardless of cartridge or gain setting.
- Over 200 loading combinations — plus a hidden 10K-ohm switch — let it handle Moving Magnet, Moving Coil, and Moving Iron cartridges, including tricky ones like the Grado Statement v2.
- Reviewers across multiple systems and cartridges consistently describe the sound as warm, dynamic, and dead silent in the background.
Why Your Phono Stage Matters More Than Your Turntable
Here's an uncomfortable truth for vinyl lovers: your turntable is not the most important part of your vinyl setup. Yep. I'll say that again–your turntable is not the most important part of your setup. There's a small, unassuming box that sits between your phono cartridge and your amplifier called a phono preamplifier, and that single component decides almost everything about how your records actually sound.

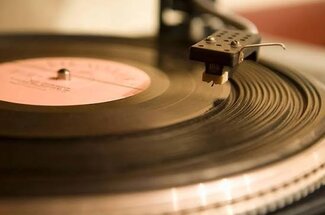

When a stylus tracks a groove, that needle is picking up impossibly tiny vibrations. Those vibrations have to be turned into an electrical signal, boosted up thousands of times, and shaped correctly before your speakers can do anything useful with them. If you've ever plugged a turntable straight into a regular stereo input and it sounded thin, quiet, or just wrong–that's because you skipped this step.
The Absolute Sound's Neil Gader frames the whole signal chain as a relay race: the stylus picks up the vibration (the baton), the cartridge converts it to current, and the phono stage runs the anchor leg, carrying that signal clearly to the finish line. Drop it there, and no amount of turntable or speaker quality saves you.
Today's contender for anchor leg: the Pass Labs XP-17 Phono Preamplifier.
This SILENT Box Rewrites the Vinyl Rulebook! Pass Labs XP-17 Phono Review
"I had very similar experiences as all the others, either on my setup at home utilizing the Grado Sonata on my Technics SL-1200, or here at the office with our Technics SL-1210GME with the Ortofon Cadenza Bronze. Two very different cartridges and sounds, but a singular result: the XP-17 is the Swiss Army Knife of phono preamplifiers. It sounds good with any combination that any of us analog nuts have tried."
PROS
- Exceptionally low noise floor
- Near-perfect RIAA correction
- Great cartridge flexibility
CONS
- Premium price for a phono-only component may deter some
Design
The Pass Labs XP-17 doesn't need a display screen or flashy design cues to prove itself as a worthy component. Display screens add electrical noise. Unnecessary features mean unnecessary problems you can avoid. No remote control is included, because once you've dialed in your settings, the whole point is to sit back and just listen. Its entire purpose is to be invisible: take that fragile musical signal from your cartridge, shield it from every possible source of noise, and carry it flawlessly across the finish line.
The XP-17's back panel is a playground for cartridge collectors. You've got dual-mono banks of eight-pole DIP switches that let you select from over 200 resistive and capacitive loading combinations. Loading refers to how the phono stage electrically "matches" itself to your specific cartridge, the same way you'd match the right size wrench to a bolt. Get it wrong and you lose detail or add harshness; get it right and everything clicks into place. The XP-17 handles all three major cartridge types: Moving Magnet, Moving Coil, and the rarer Moving Iron design.
If you take a closer look at the resistive loading switches, you'll see they range from 10 ohms up to 1,000 ohms. This is standard territory for moving coil cartridges. Moving magnet cartridges default to the standard 47k-ohm load when all the switches are down. Moving Magnet cartridges default to the standard 47k-ohm load when all the switches are down. But moving iron cartridges, like the famous Grado Labs Statement v2, are unique. They require high gain, at least 56 decibels, and they need a very specific, high-impedance resistive load, typically around 10,000 ohms.
If you try to run a cartridge like that on most high-end phono stages, you’re out of luck. Some boutique tube-amp builders have admitted they’d have to custom-modify their physical circuit boards just to make a Grado Statement work properly. But that’s not something you have to worry about with the XP-17. Wayne Colburn wanted the XP-17 to handle this cartridge right out of the box. Only problem though: he literally ran out of room on the back panel for one more switch. So he got creative. He hid the 10,000-ohm switch inside a different switch bank, tucked in as switch number four of the capacitance and gain section, doing double duty.
And let me tell you, when you flip that hidden switch, the results are pure, unadulterated magic. Karl Sigman, Managing Editor at Audiophilia, paired his Grado Statement v2 with the XP-17 using the exact 10K setting. He described stringed instruments sounding "divine", with a rich, lifelike tone and a massive, deep soundstage rising out of a dead-silent background.
Sound
In real-world listening, the XP-17 backs up its spec sheet. Positive Feedback's Jeff Day spent an extended stretch cartridge-rolling through his Tannoy Westminster Royal Speakers, running everything from classic Ortofon SPUs to the exotic Audio Note Io I–a cartridge with a punishing 1-ohm impedance and just 0.4 millivolts of output. The XP-17 handled it without added noise, retrieving fine detail and dynamics with a strong sense of acoustic space. Day was impressed enough to compare the $4,950 XP-17 setup favorably to a $40,000-plus system he'd reviewed previously.
Neil Gader's listening sessions with big-band recordings and Metallica's "Nothing Else Matters" led him to describe the sound as carrying warmth, liquidity, and midrange bloom — the physical weight of a real room rather than a dry, hyper-detailed, clinical presentation. As he put it, true musicality is "the cozy warmth of a room with a fireplace, not the icy cold of an igloo."
That consistency shows up across very different setups: a Grado Sonata on a Technics SL-1300G, and a Technics SL-1210GME paired with an Ortofon Cadenza Bronze in-office. Different cartridges, different sonic personalities, same result — the XP-17 adapts cleanly to whatever's plugged into it.
Features
Now, to understand why the XP-17 is such an engineering achievement, you need to understand just how hard its job actually is.
I recently read an interview with Wayne Colburn, the veteran designer who's been building preamps alongside Nelson Pass since 1994. Wayne pointed out something mind-boggling. When you're dealing with ultra-low-output Moving Coil cartridges–the kind of high-end cartridges that audiophiles drool over–the signal coming off the vinyl is microscopic. For comparison, a single AA battery puts out roughly 1,500 millivolts. This is a signal thousands of times fainter than that. We are talking about tenths or even hundredths of a single millivolt. To turn that whisper into something your amplifier can use, the phono stage has to apply up to 76 decibels of gain. In plain terms, it's amplifying that signal almost 100,000 times.
Here's why that matters so much. Wayne said that at this level of amplification, literally one billionth of a volt makes a difference at your speakers. So if your phono stage has even the tiniest amount of electrical hum, transistor hiss, or power supply buzz, that noise gets multiplied a hundred thousand times too! It buries the delicate stuff, the shimmer of a cymbal, the natural decay of a piano note, under a wash of static.

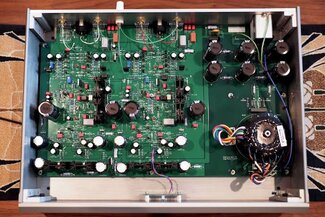

So how does Pass Labs fight this noise? They redesigned the XP-17 from the ground up. They built an all-new symmetrical input circuit using quad-matched, low-noise JFETs. Think of this as hand-picking four identical, extra-quiet transistors and wiring them in a perfectly balanced, mirror-image layout, so any noise that sneaks in one side gets cancelled out by its twin on the other. They borrowed the double-shielded, low-noise toroidal power supply and input filter module from their flagship XP-12 linestage preamp, which is essentially a donut-shaped transformer wrapped in extra metal armor to keep electrical hum from radiating into the sensitive circuits nearby.
And then they added an extra stage of RC filtering in the power supply. That’s one more cleanup pass to strain out any last bit of electrical grime before it can reach the music signal. The payoff: a total harmonic distortion and noise figure of just 0.004% —a measurement of how much unwanted noise or distortion the unit adds to your music, and 0.004% is about as close to "none at all" as electronics get. Reviewers consistently describe the background, even at high volume, as pitch black — no buzz, no ticks, no hiss. Just music, emerging out of true silence.
But fighting noise is only half the battle here. The other job of a phono stage is implementing the RIAA equalization curve, and don't worry, this one's actually simple once you see it.
When a record is pressed, the bass frequencies are heavily cut, and the treble frequencies are boosted so the physical grooves can actually fit on the vinyl disc. Bass notes create huge, wide grooves and if they were left at full strength, a single album side won't physically fit on the vinyl. So engineers squash the bass and boost the trebe at mastering time, and the phono stage's job is to precisely correct that. It reverses the EQ curve, boosting the bass and taming the treble back down to restore the natural tonal balance of the recording.
Most budget phono stages treat this as an afterthought, but Wayne Colburn didn't. He built what's called a split EQ network–instead of correcting the whole curve in one circuit stage, he splits the job across multiple stages, borrowing the approach directly from Pass Labs' top-tier reference gear: the XP-25 and the wildly exotic, $45,000 XS Phono.
By splitting the equalization duties across different stages of the circuit, the XP-17 can handle significantly greater signal levels without overloading, keeping distortion at an absolute minimum. The result is startlingly precise: the XP-17's RIAA correction is accurate to better than one-tenth of a decibel across ten octaves — in other words, essentially mathematically perfect tonal balance, and it barely wavers by an amount no human ear could detect. And here's the kicker: that accuracy holds steady even when you change gain settings or switch cartridges. Your tonal balance stays locked in place no matter what you plug in.
Dragon Cables
[Silver Dragon Premium Phono Cable]
There are a lot of reasons why you need to make sure your audio cables are not afterthoughts.
Our HiFi Audio Dragon Cables bring out more of what you love in your music and audio gear. If you love your headphones but wish they had a bit more top-end sparkle - a Silver Dragon Headphone Cable would be a great option. If your USB cables keep dying - as many stock cables do - then check out our quality USB Audio Cables. We say time and time again that materials matter, and our audio cables and custom geometries actually help to bring out those desired properties in your gear and music. We make tons of custom options for our customers so that you can get the right HiFi Audio cable for your exact needs. If you have any questions feel free to Contact Us and we'll be more than happy to help.
Generally, stock audio cables are manufactured with subpar materials, metals with impurities, poor geometries, and an overabundance of layers to make them look and feel like a fire hose. Inconsistency and lack of quality control in stock cables can lead to poor sound quality and a veiled sound vs. what the musician intended for you to hear and feel from the music. Dragon Audio Cables are handcrafted with the highest standards and made to order according to your specific needs. At Moon Audio, we create a custom cable for you using the highest quality UP-OCC silver or copper conductors that can be manufactured. UP-OCC metals are void of impurities and are optimized for signal transfer and sound quality. We have one of the largest collections of audio and headphone connection options available online and we create limitless audio cable options depending on your specific gear and needs.
Why Dragon Cables?
You’ve heard the saying that a chain is only as strong as its weakest link, right? Well, the same applies to your brand new audiophile-grade headphone or other audio components. The weakest link, in this case, is your stock audio cable or the cheap interconnects the manufacturer threw in the box just to get you up and running. Why is the audio cable always an afterthought, when it’s just as important as the rest of your system? At Moon Audio, we use the purest and best raw materials in our cables to unveil your music. We believe that materials matter and your audio cables should have the same care and craftsmanship that manufacturers put into their audio components and headphones. Audio cables are ultimately the connection to your music. The fact remains that cabling is often considered the last priority to that of the main product and a means to cut down the overall production costs. It’s as simple as that. Dragon Cables elevate every note - as if you were hearing your favorite music for the very first time.
Verdict
The Pass Labs XP-17 is the Swiss Army Knife of phono preamplifiers. The turntable gets the glory, but the phono stage does the hard work, taking a whisper-quiet signal, amplifying it 100,000 times, stripping out noise, and correcting tonal balance with mathematical precision. The Pass Labs XP-17 Phono Preamplifier does all three about as close to flawlessly as a $4,950 component can: quiet enough to disappear into the background, accurate enough to trust across cartridges and gain settings, and flexible enough to handle nearly anything you throw at it.
Hats off to Wayne Colburn and Nelson Pass for achieving such a feat. If you're serious about vinyl and haven't gotten your phono stage the attention you gave your turntable, the XP-17 is a strong argument that you've been solving the wrong problem.
Featured Products
Related Videos
This SILENT Box Rewrites the Vinyl Rulebook! Pass Labs XP-17 Phono Review
Beginner's Guide for Turntables: Where to Start?
Amps vs. Preamps: What's the Difference?
What's in the Box
- XP-17 Preamplifier
- Power Cable
- Manual and Warranty
Specifications
Dimensions: 17" W x 12.5" D x 3.5" H
Weight: 19.5 lbs
Gain (Balanced): 56dB / 66dB / 76dB
Gain (Unbalanced): 50dB / 60dB / 70dB
RIAA Curve Accuracy: +/- 0.1dB (20 Hz to 20 kHz)
Input Impedance: 10 ohms to 47k ohms (over 200 user-selectable values)
Capacitive Loading: 100 pF to 750 pF
Distortion + Noise: 0.004%
Input Circuitry: Quad-matched, low-noise symmetrical JFET input stage
Power Supply: Double-shielded low-noise toroidal transformer with extra RC filtering
Power Consumption: 40 watts
