Silver Dragon Digital Cable V1

$200.00

Moon Audio Best Seller Badge

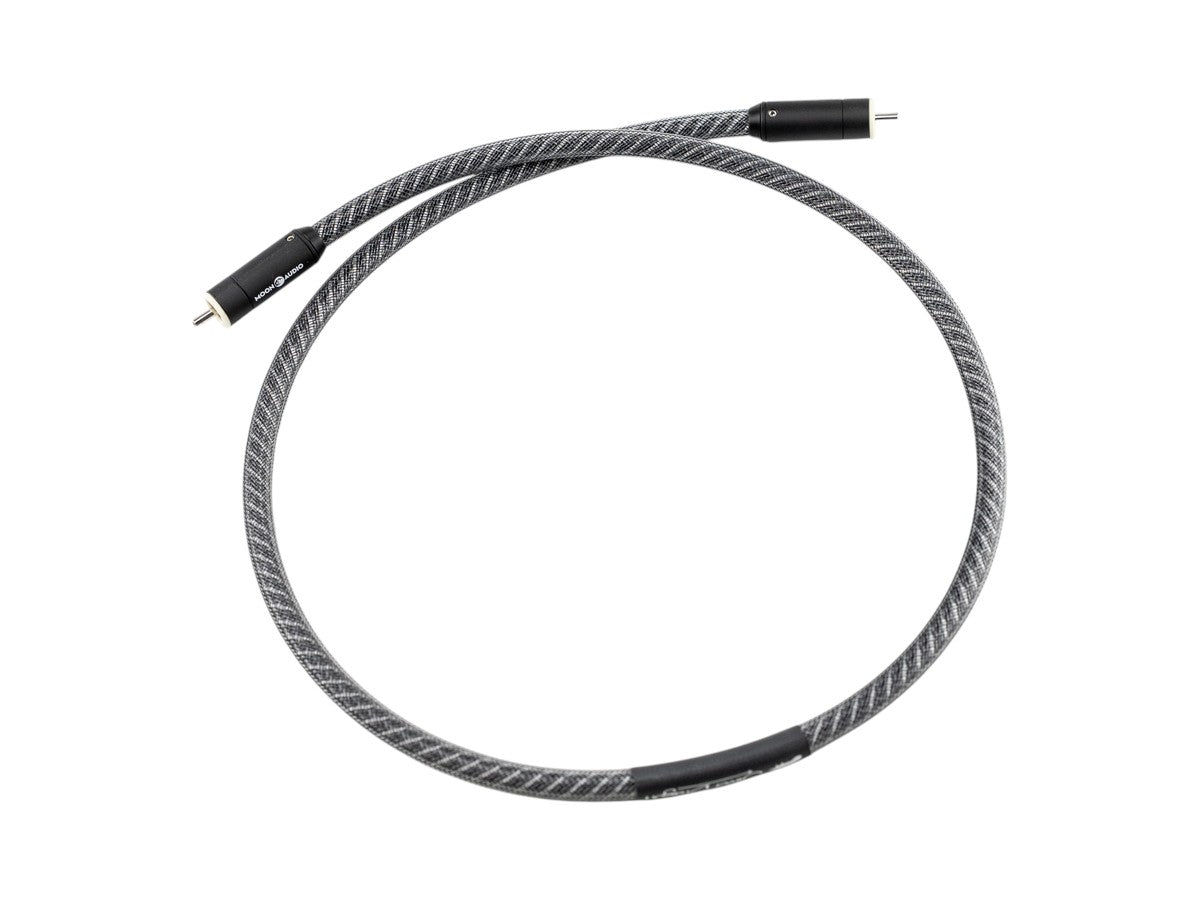

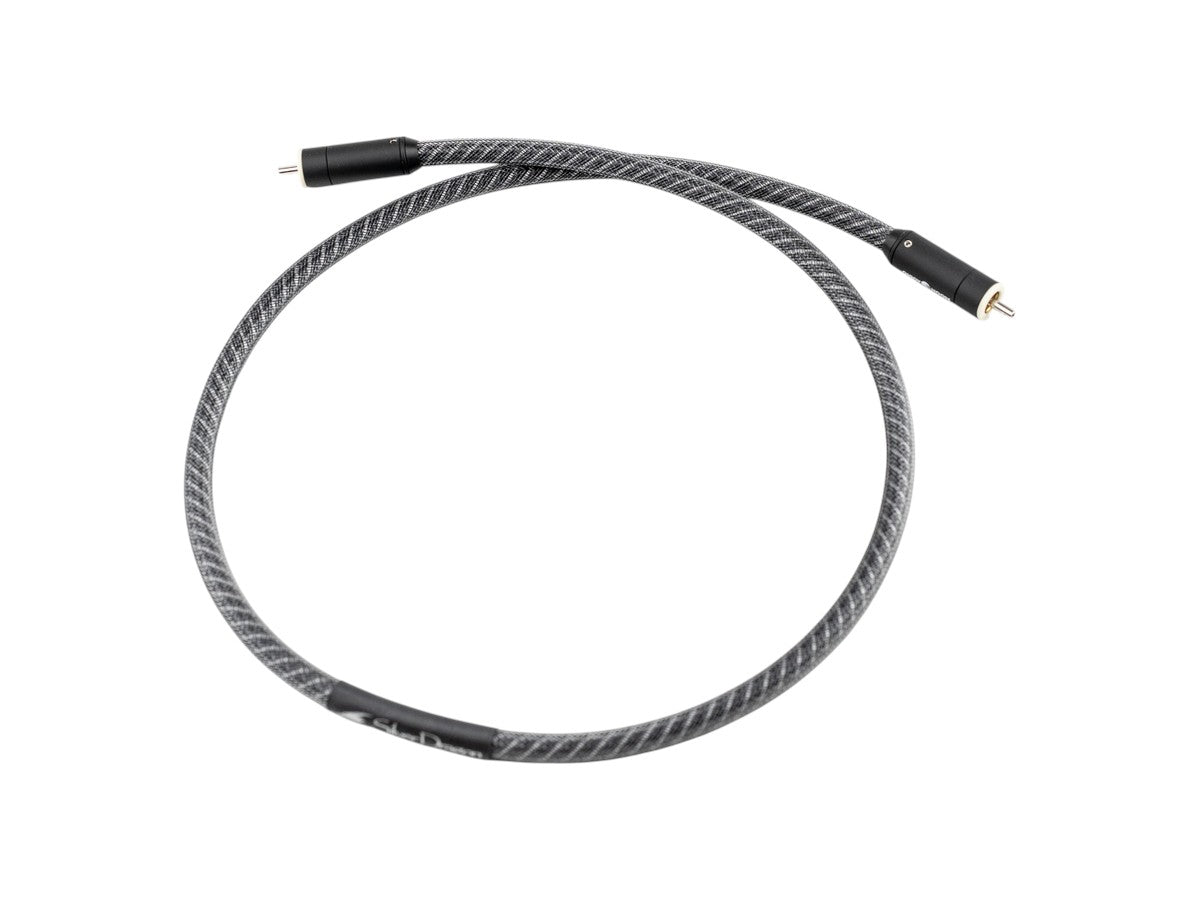

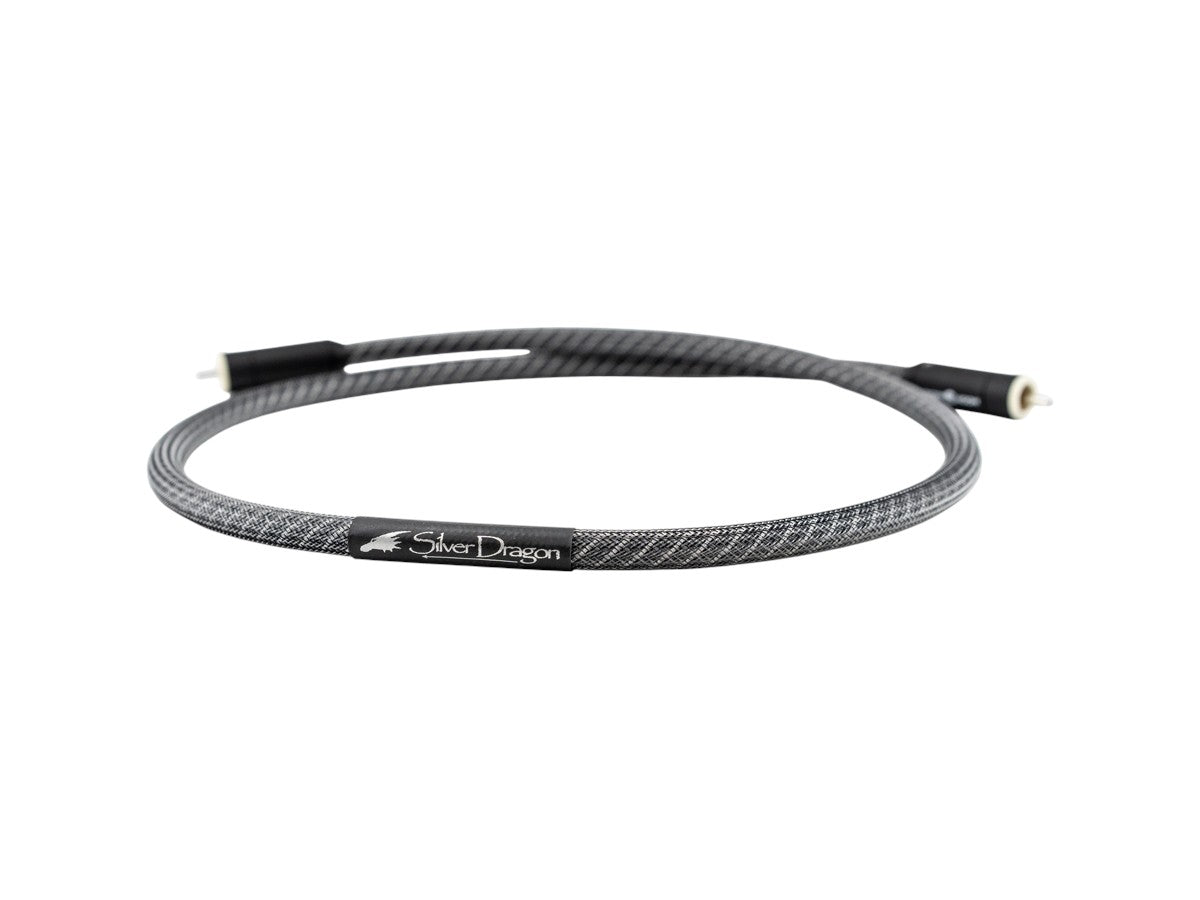

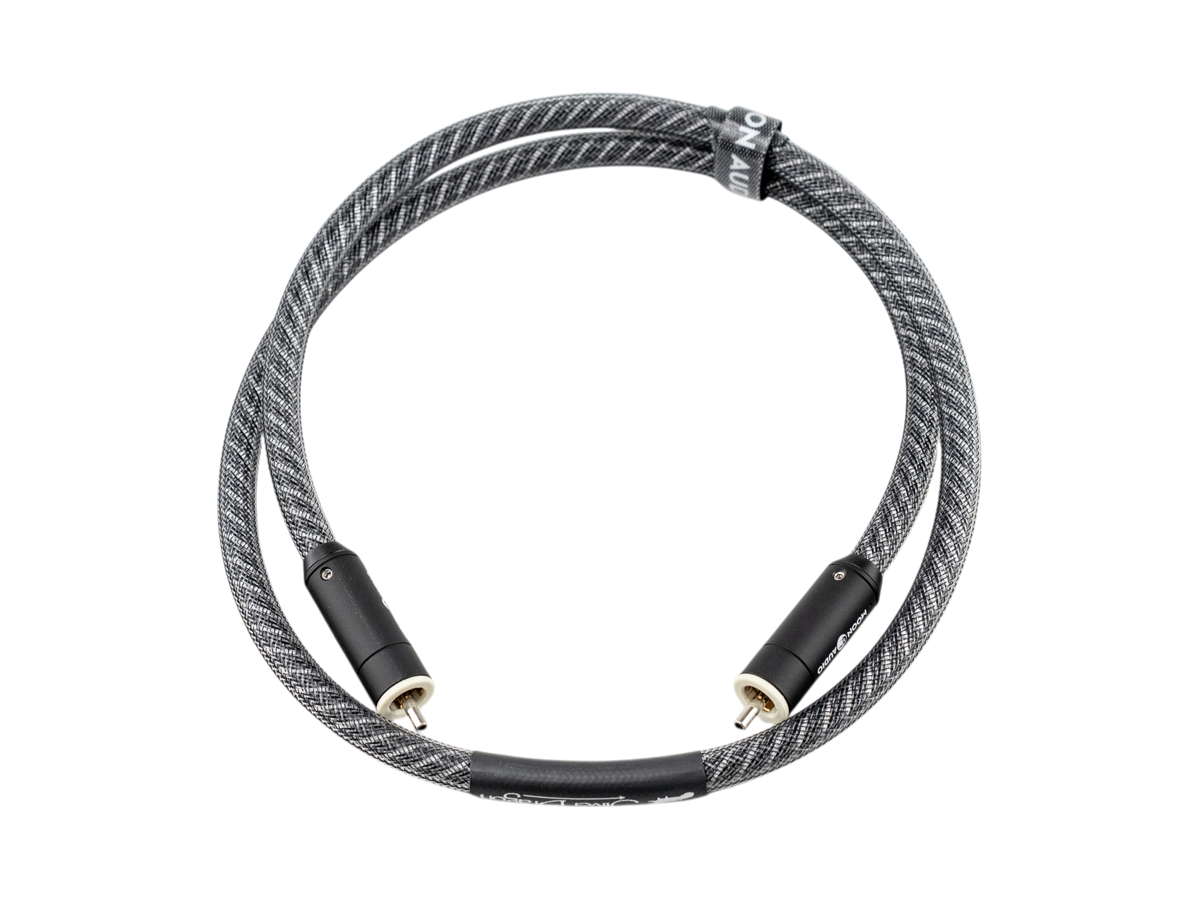

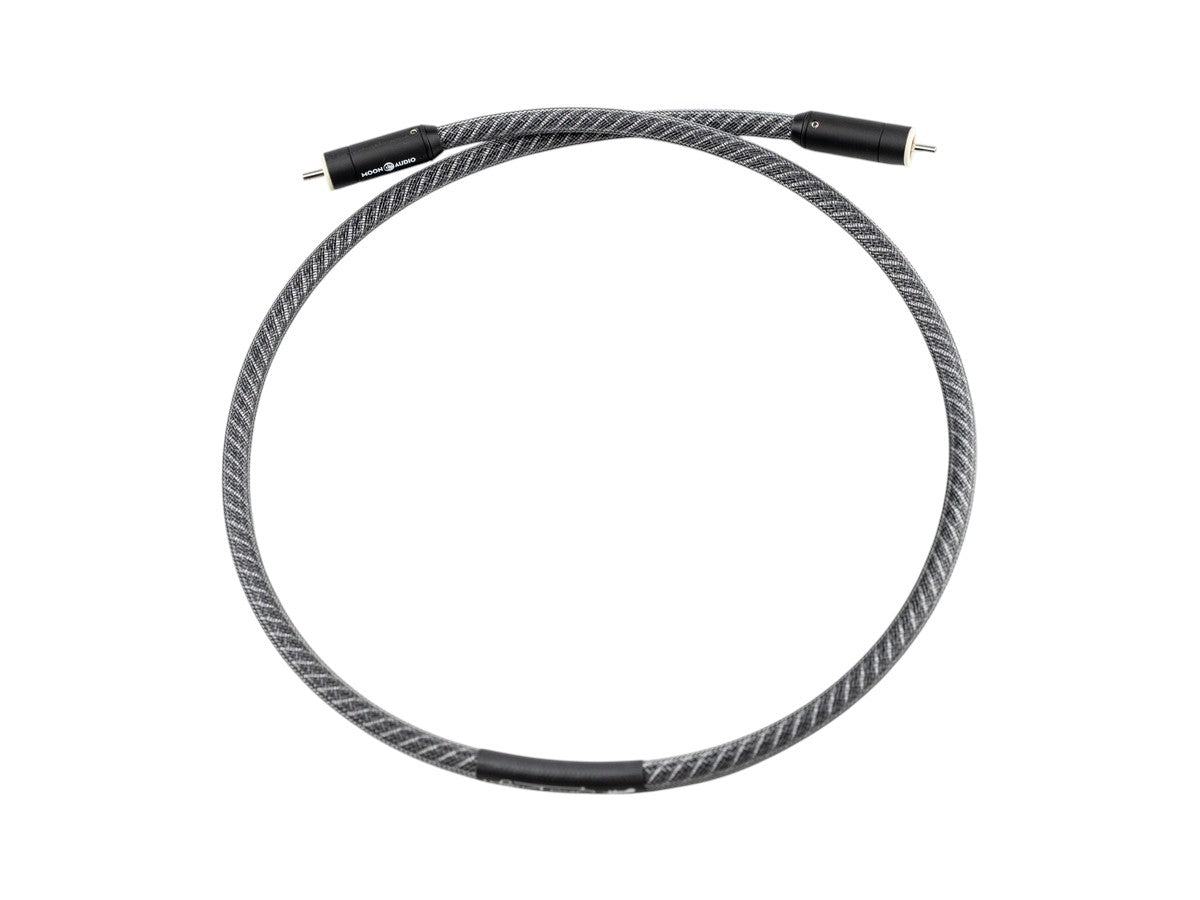

The Silver Dragon V1 Digital Cable is a pure silver 75ohm digital cable perfect for both audio and video applications.

It is an all silver designed 75ohm digital cable.  A characteristic impedance of 75 ohms makes this a perfect match for digital audio and video.

The Silver Dragon Digital cable will provide plenty of detail and an open presentation. It will provide a more cohesive sound with very fast attack and tight bass. This cable is by no means bright but also not warm. It will provide you with the best digital transmission possible for your digital gear.

The Silver Dragon is fairly flexible and makes bends fairly easily. Make sure to never kink a digital cable as it will introduce jitter.  It is always recommended with digital cables to use 1.5m or 4.5ft as a min length, but if shorter length is required it can be done.

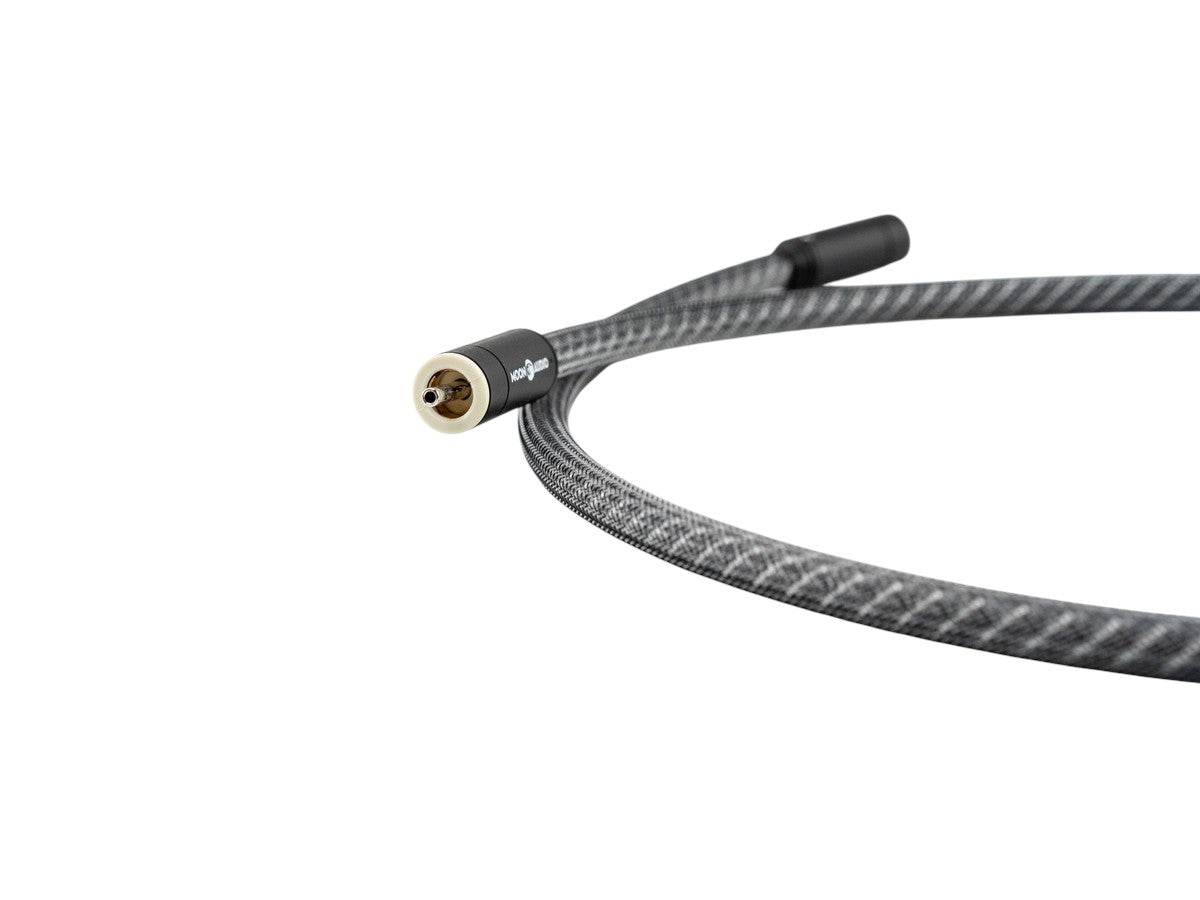

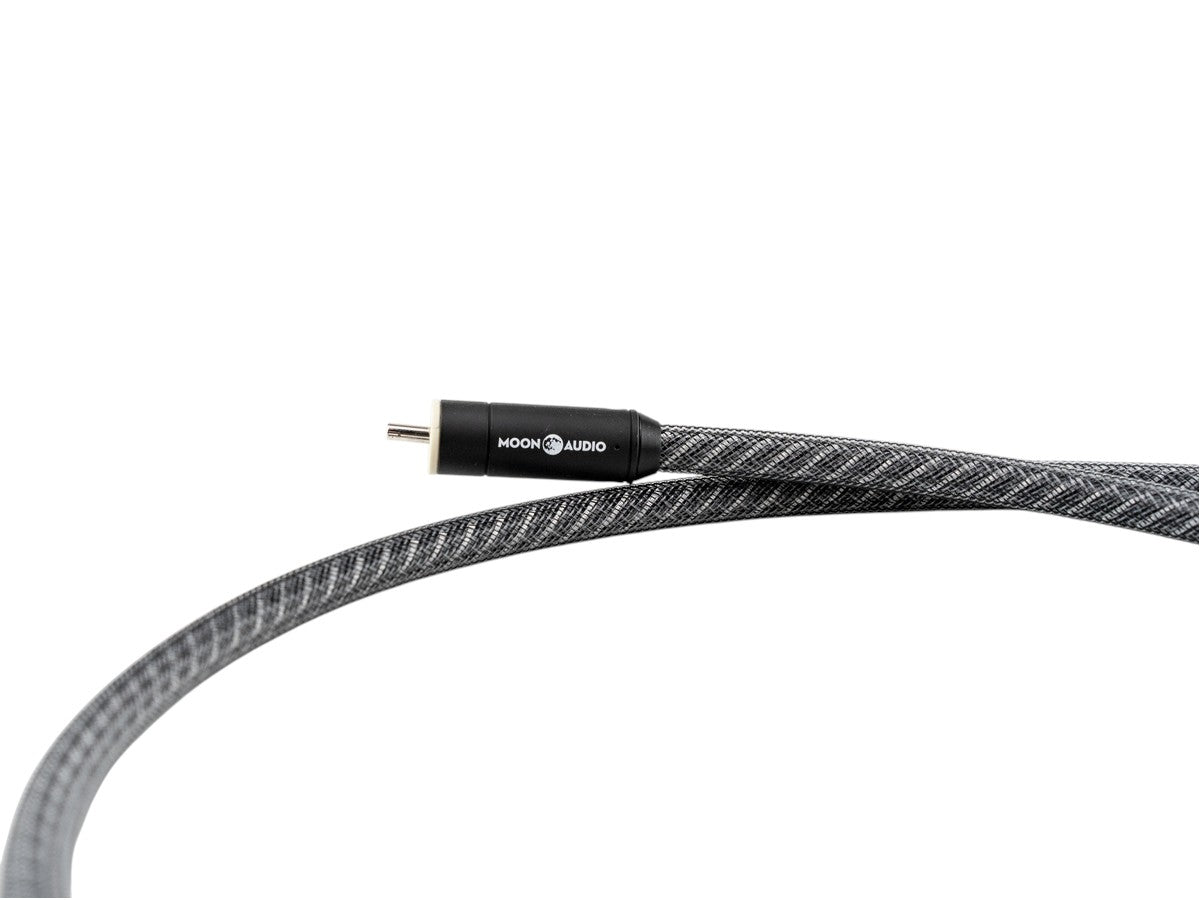

We are using the WBT Nextgen Pure Silver 0102AG connector. Contacts utilize passivated pure fine silver. The body is constructed with brass and then platinum plated to give a nice asthetic appeal. The central contact assembly is made of Ultramid® and the negative contact uses Dyneon™. The barrel is comprised of brass with a shiny black piano lacquer finish.The Silver Dragon can also be fitted with Furutech BNC Rhodium over Silver plate BNCs.

The center conductor is a 99.998% Ultra Pure Silver 22 AWG Solid Core conductor. Wrapped around the center conductor is a solid FPE center core, this is one of the best dielectrics used. For shielding, the core is first wrapped in a 100% Pure copper foil shield, followed by a silver plated copper 100% coverage braided jacket. Then a layer of Teflon tape followed by a secondary silver plated copper 100% coverage braided jacket. Finally, an outer jacket is then covered in Techflex for good looks.

The connector is treated with Caig Labs ProGold Conditioning Treatment to keep the silver from oxidizing and providing the best contact possible. I recommend cleaning your connectors once a year no matter what the plating of the connector is.  It will help keep the sound quality at optimum.

More Information
Drew's Recommendations Yes

Product Reviews

Terminations include RCA, BNC and any other custom 75ohm requirement.

The center conductor is a 99.998% Ultra Pure Silver 22 AWG Solid Core conductor.  Wrapped around the center conductor is a solid FPE center core, this is one of the best dielectrics used.

For shielding, the core is first wrapped in a 100% Pure copper foil shield, followed by a silver plated copper 100% coverage braided jacket. Then a layer of Teflon tape is followed by a secondary silver plated copper 100% coverage braided jacket.

Finally, an outer jacket is then covered in Techflex for good looks.
