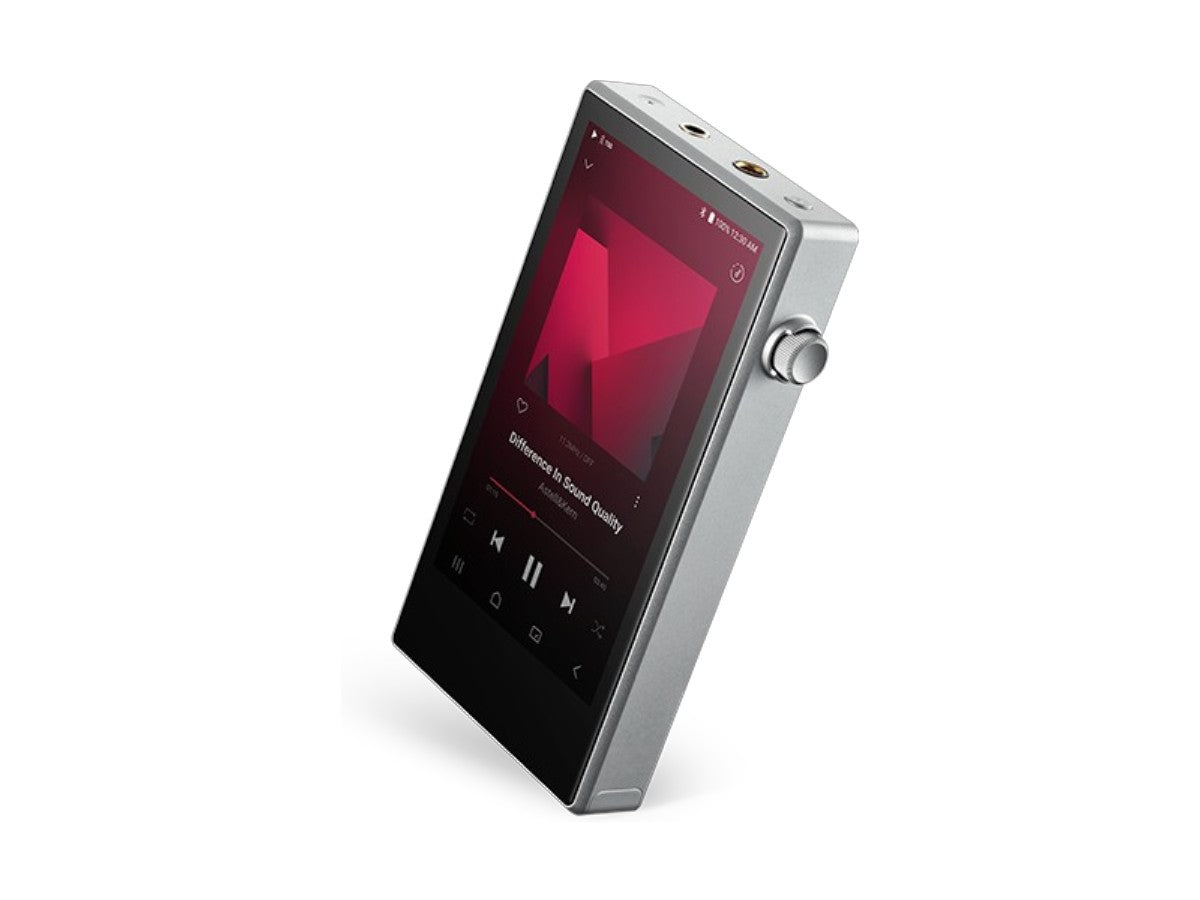

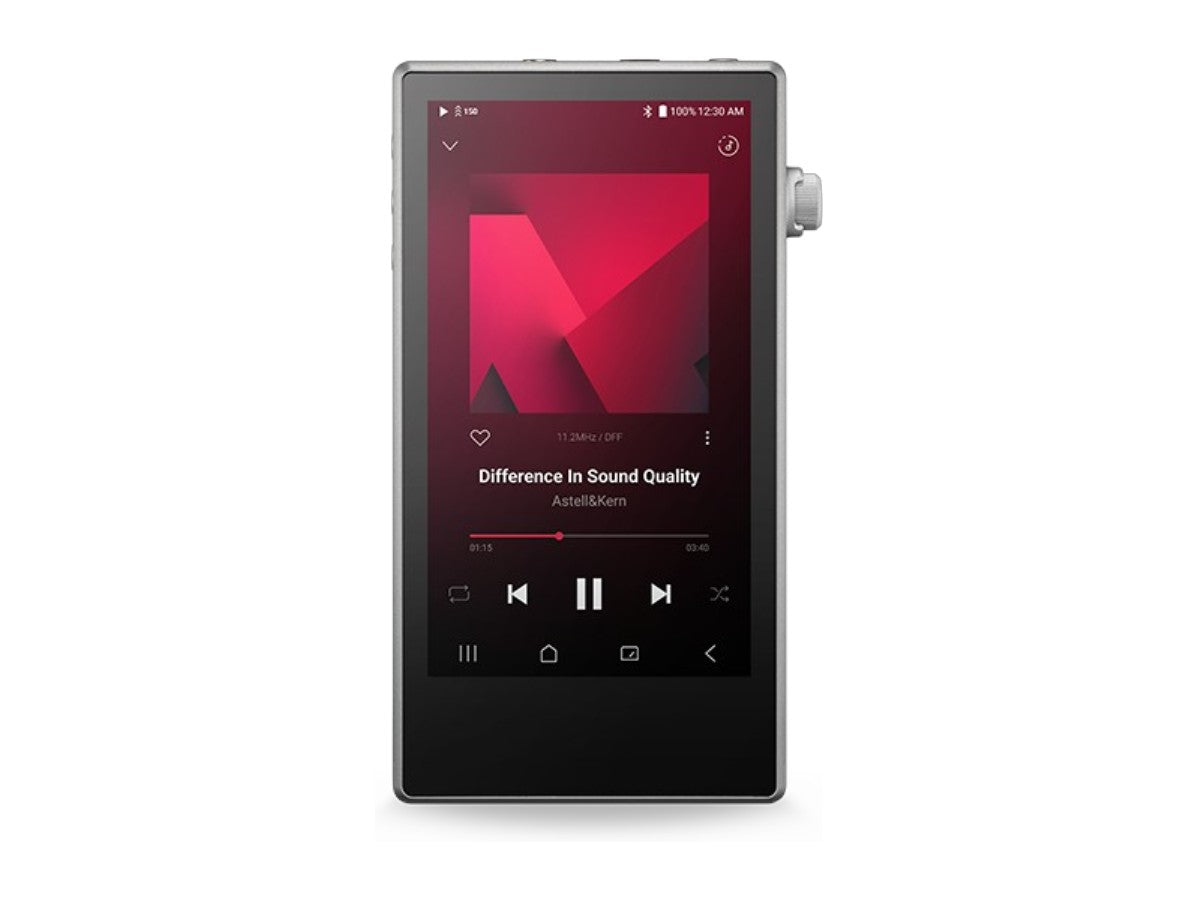

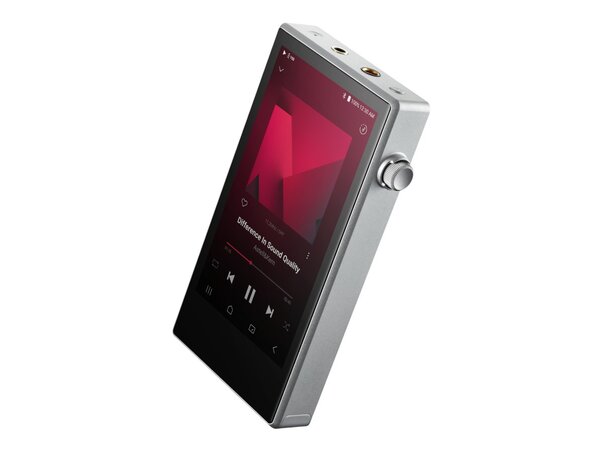

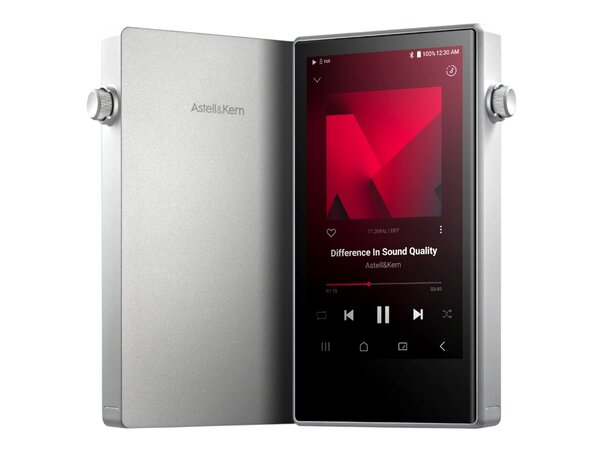

Astell&Kern PD5 Digital Audio Player
$1,049.00 USDFeatures
Dual Drive Mode (Quad/Octa-DAC Switching) – Choose between Balanced Sound (6Vrms, 28 hrs) or Ultimate Sound (8Vrms, 15 hrs) to match your listening needs
Up to 28 Hours of Continuous Playback – All-day battery life in a compact, one-hand-friendly design
EnviroTune – Real-time ambient noise analysis that automatically compensates masked frequencies, preserving musical detail without raising volume
ESA (Enhanced Signal Alignment) – Proprietary technology that minimizes group delay for clearer, more pristine sound
TERATON ALPHA – Astell&Kern's proprietary audio solution for noise removal, efficient power use, and stable amplification
Digital Audio Remaster (DAR) – Upsamples PCM to up to 384kHz and DSD to DSD128 for richer, more analog-like reproduction
4 Selectable DAC Filters – Low Latency Fast/Slow and Phase Compensated Fast/Slow for custom sound signatures
Crossfeed Technology – Speaker-like soundstage through headphones with adjustable Shelf Cutoff, Shelf Gain, and Mixer Level
ReplayGain – Automatic volume normalization across tracks (up to 24-bit/192kHz)
Dual-Band Wi-Fi (2.4/5GHz) – Reliable high-resolution streaming and Roon Ready support
Bluetooth Sink (BT Sink) – Stream high-fidelity audio wirelessly from external devices
Roon Ready & Qobuz Connect Certified – Seamless integration with premium streaming ecosystems
Compact, Ergonomic Design – ~200g weight, curved 4.1" display, "Grip Control" design philosophy for comfortable extended use
Video
What's in the Box?
Warranty
Engineered for effortless portability, the Astell&Kern PD5 Digital Audio Player delivers music with total freedom and comfort, without ever compromising on performance or sound quality. Designed to fit comfortably in one hand, the PD5 combines a compact form factor with all-day battery life, going far beyond the physical limits of its size to deliver Astell&Kern's signature sound: deep, detailed, and rich. It's the perfect harmony of portability and high performance, bringing the ultimate audio experience into your everyday life.
Why the PD5?
For years, the A&ultima SR35 was the go-to entry-level DAP for audiophiles–small, easy to use, and unmistakably Astell&Kern in sound. But it had real limitations: sluggish performance, restrictive software, and limited driving power. When it was retired, a clear gap opened in AK's lineup for a truly pocket-sized player with real power and real battery life.
The PD5 fills that gap. While it's technically part of the PD series, it's closer in size and portability to the SR35 than to its larger PD10 and P20 siblings. Whether you call it the spiritual successor to the SR35 or simply the next step forward, the PD5 doesn't just fill the SR35's shoes; it fixes what held it back, with fast and consistent performance, a refined and comfortable redesign, and technology that pushes well past what the SR35 could offer.
Determined to avoid the sluggish, laggy performance that plagued the SR35, we put the PD5 through repeated stress testing: quickly opening and closing apps, pressing play, pause, and skipping tracks in rapid succession, and more. Despite these efforts, the PD5 remained fast and consistent throughout. What was once a point of failure for the SR35 is now a genuine strength of the PD5.
Sonically, the PD5 echoes the same signature sound as the SR35, but does so at a notably higher level, thanks in part to its four additional DAC chips. Compared to the PD10's surprisingly warm, lush signature, the PD5 leans natural and authentic. It doesn't include the PD20's Personal Sound Studio, but between Dual Drive Mode and its inherently natural tuning, it doesn't need to.
Octa-DAC, Uncompromised Sound
At the core of the PD5 is an Octa-DAC architecture, delivering extraordinary audio fidelity without sacrificing power or precision. Eight Cirrus Logic CS43198 DAC chips–the same chip used in the SR35, now doubled from a quad to an octa configuration–achieve an expansive dynamic range with exceptional channel separation, going far beyond conventional signal processing. The result is an ultra-pure sound, capturing even the most subtle musical nuances. With up to 8Vrms of output, it can effortlessly drive any headphone, bringing Astell&Kern's true signature sound to life. Select from four distinct DAC filters to tailor your personal listening preferences, taking full control of your sound characteristics with custom signal shaping.
To deliver the ultimate DAP experience, the PD5 incorporates the latest DACs and upgrade specifications alongside a further-advanced version of TERATON ALPHA. Perfected through relentless research, this proprietary audio technology delivers sound closer to the original source through effective power noise removal, efficient power consumption, unwavering amplification, and a seamlessly converted audio output interface.
Dual Drive Mode: Tailored to Every Listening Environment
Dual Drive Mode lets you select the optimal DAC configuration for any listening environment or preference, striking the ideal balance between performance and power efficiency.
QUAD-DAC
Balanced Sound (Natural & Smooth)
Efficient Power
6Vrms
28 Hours of Playback
Octa-DAC
Ultimate Sound (Greater Detail)
Maximum Performance
8Vrms
15 Hours of Playback

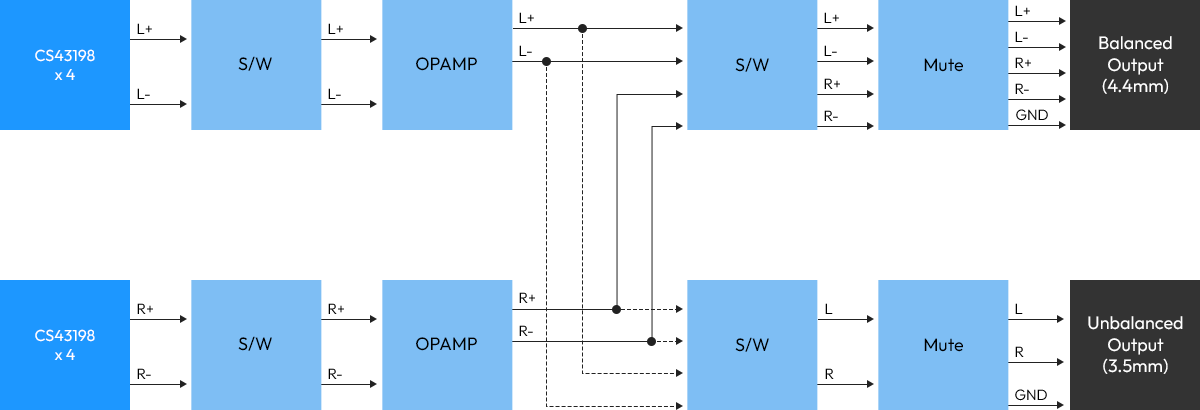

- Quad DAC: Astell&Kern's signature sound with a natural and smooth sonic character, optimized for efficient power consumption and extended playback time.
- Octa-DAC: Delivers extraordinary audio fidelity with an expansive dynamic range and exceptional channel separation
Longer, More Convenient Listening: Up to 28 Hours of Continuous Playback
With up to 28 hours of continuous playback in Quad-DAC mode, the PD5 lets you stay immersed in your music without worrying about battery life. From long commutes to travel, and all the way until bedtime, the PD5's built for all-day listening. And that's a notable jump over the SR35's 20-hour playback time, despite the PD5 housing twice the DAC count. Switching to Octa-DAC mode brings that down to approximately 15 hours, reflecting the added power draw of running all eight DACs.
Weighing approximately 200g with a curved 4.1-inch display that fits naturally in one hand, the PD5 delivers exceptional portability and a comfortable grip for effortless listening over extended periods.
Smart Sound that Understands Your Environment, EnviroTune
A blend of "Environment" and "Tune," EnviroTune is an intelligent, first-of-its-kind sound-tuning technology for a DAP that analyzes your listening surroundings in real time to restore musical details easily lost to ambient noise. The built-in microphone–positioned at the top of the device–detects changes in ambient noise in real time, analyzing input sound by frequency band to automatically compensate for frequencies masked by noise. Rather than simply raising the volume, the sound continuously adapts to your environment, allowing complete immersion in the original detail of your music, anywhere, anytime. If it's not a feature you want to use, EnviroTune's microphone can be turned on or off directly in the device's settings.

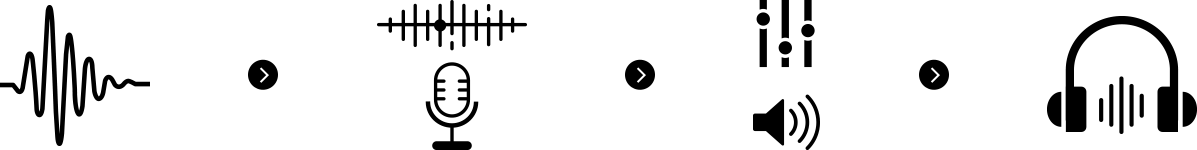

Ambient Noise
Noise Analysis
Compensation
Sound Optimzation
Minimizing Group Delay with Proprietary ESA (Enhanced Signal Alignment) Technology
The PD5 drastically improves group delay, a chronic issue in audio systems, through its proprietary ESA technology. By aligning frequency signals to arrive more uniformly, ESA minimizes frequency distortion and elevates sound quality to be clearer and more pristine.

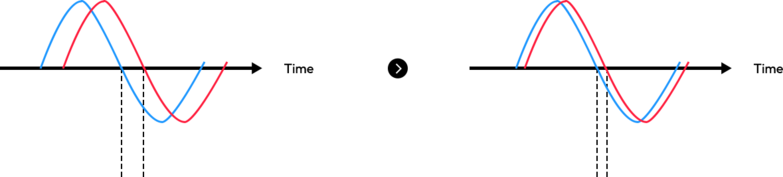

Without vs. With ESA
What is Group Delay? It refers to the time difference required for various frequencies to pass through an audio system, causing sound signals across different frequencies to arrive at slightly different times rather than simultaneously.
Vivid Original Sound: Digital Audio Remaster Technology
DAR technology upsamples the sample rate of played audio tracks to transcend the physical limitation of the source format. Higher sample rates enable more delicate and precise playback, bringing sound closer to true analog expression and vividly reproducing original recordings, so you can experience subtle musical nuances and rich sound at an elevated level.
Crossfeed blends a portion of the original signal from one channel and sends it to the opposite channel with a slight time delay, centering the soundstage. This recreates the natural spatial presentation of listening through loudspeakers while reducing ear fatigue during extended listening. Tailor the sound to your preference with detailed settings including Shelf Cutoff, Shelf Gain, and Mixer Level.

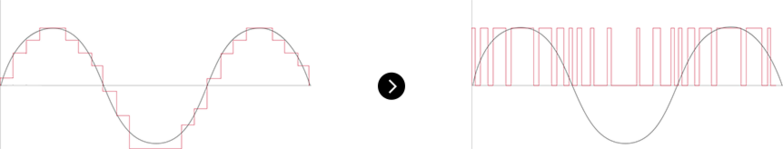

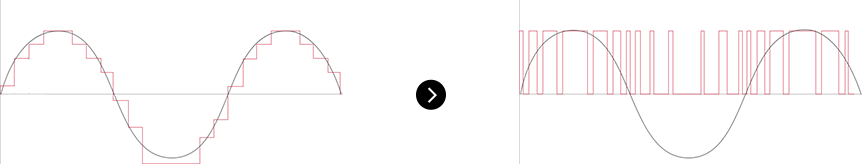

PCM vs. DSD
Automatic Volume Adjustment with ReplayGain
ReplayGain automatically normalizes track volumes across different music files, ensuring a consistent playback level throughout your playlist without manual adjustments. ReplayGain supports audio tracks up to 24-bit/192kHz.
Roon Ready network players
Roon Ready network players from our partners have Roon’s high-resolution streaming technology built right in. They combine simple setup, daily reliability, and support for the highest level of digital audio performance in the industry. Every Roon Ready player is certified by Roon to guarantee the same stellar experience, regardless of its manufacturer, its price, or its features.
Qobuz Connect support
With Qobuz Connect, seamlessly enjoy the full Qobuz experience. This feature offers the ability to control your Hi-Fi music directly from the Qobuz app, switch between devices while your music continues from the exact moment you left off, and control various Qobuz applications with each other. Simply launch Qobuz, press play, and enjoy the highest sound quality and an unmatched listening experience with CD/lossless and Hi-Res quality up to 24-bit/192 kHz—it’s that simple.

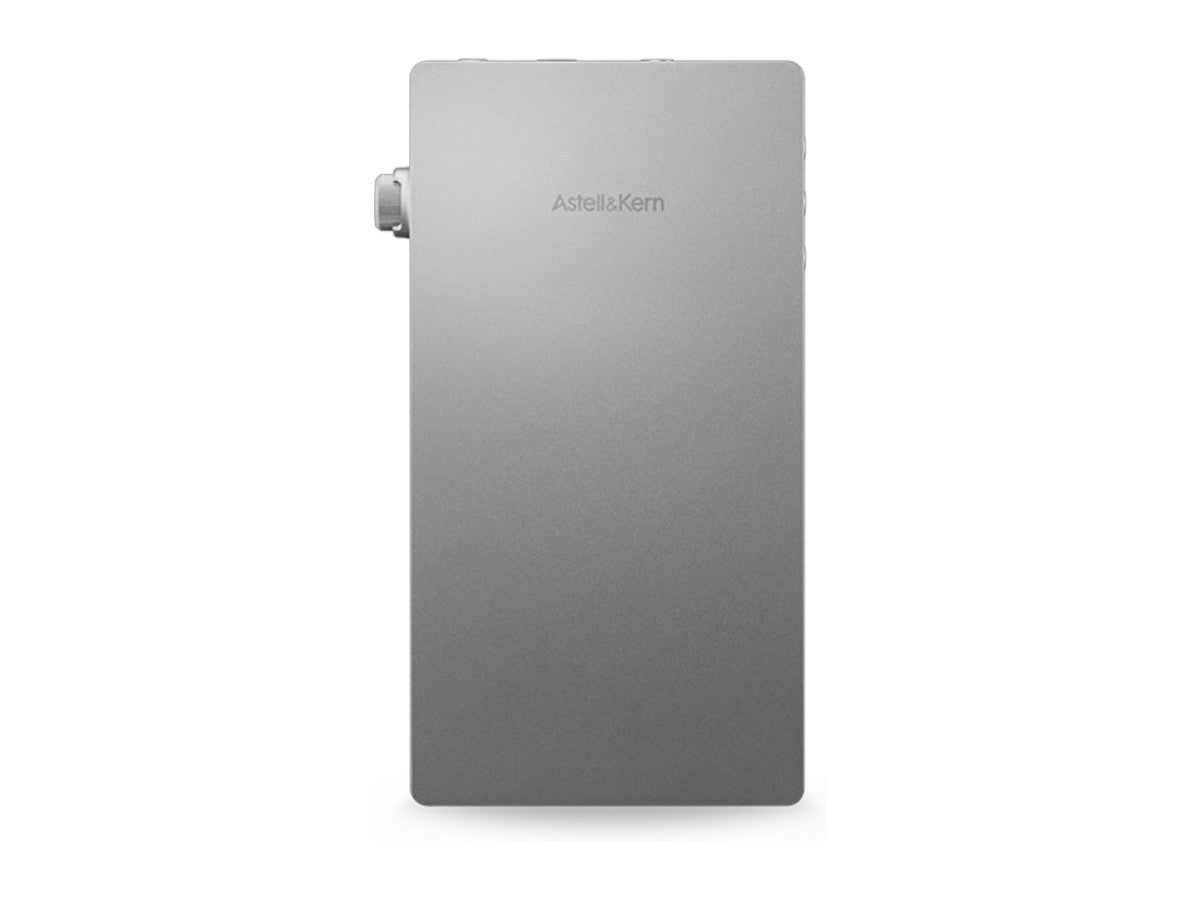

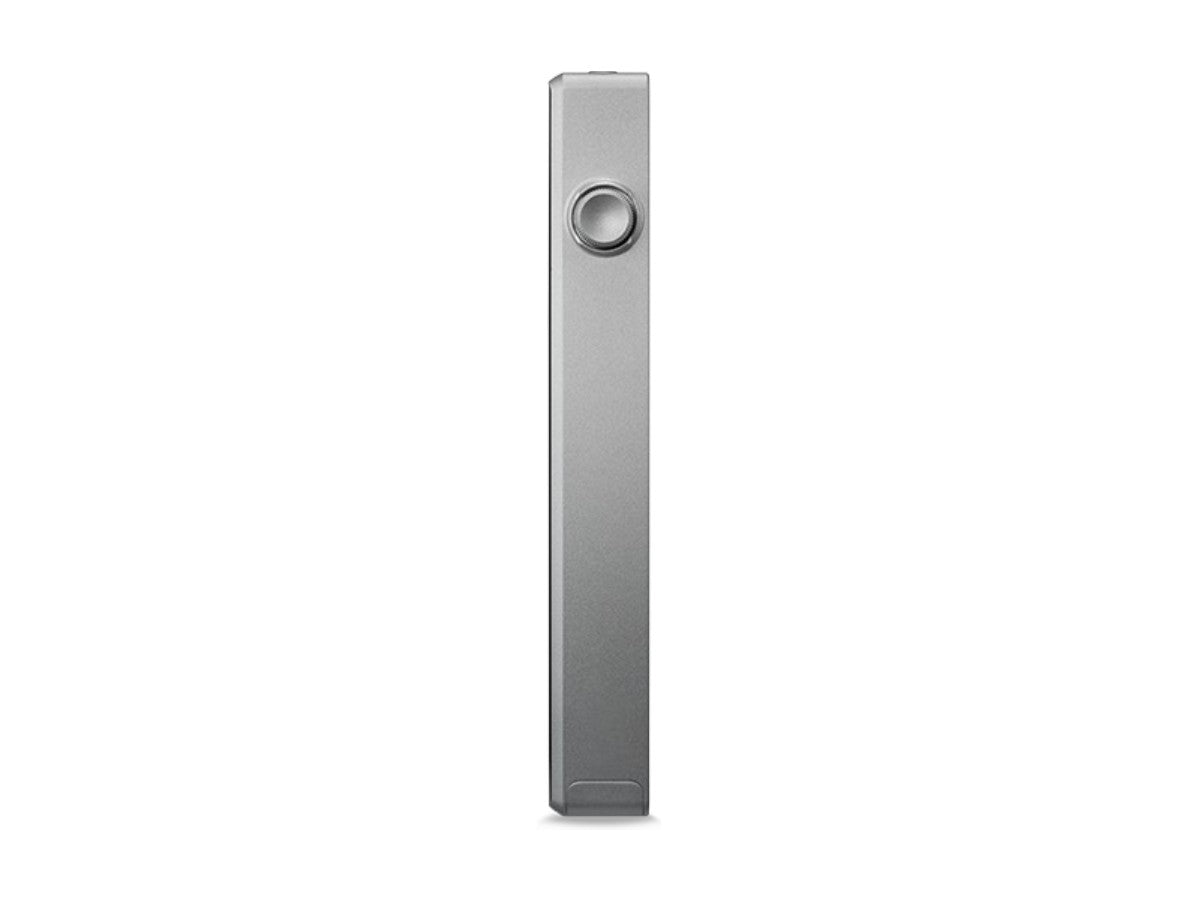

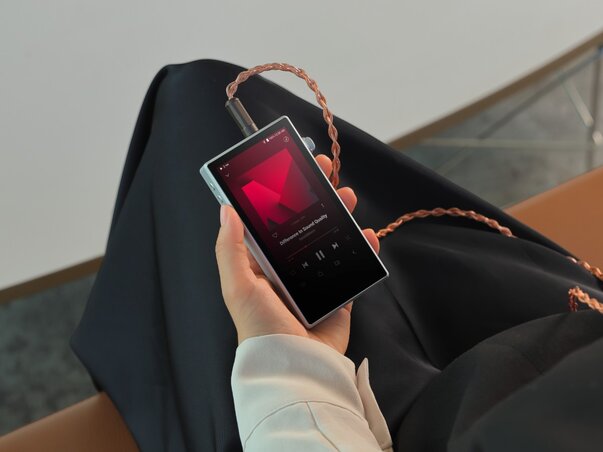

Perfect Fit, Natural Feel: The PD5's Effortless Design
The design concept of the PD5 is "Grip Control"–lightweight portability paired with the sleek, minimalist identity that defines the PD lineup. Its squarer, more structured shape (reminiscent of early AK models like the AK100) trades the sharp, beveled edges of the A&ultima series for a genuinely pocketable build–only about 1/4" larger than the SR35 and a clear step down from the bulkier PD10 and PD20. The compact form factor and curved 4.1-inch display deliver exceptional grip and effortless readability, even during long listening sessions.
All physical controls are laid out around the light heather-gray aluminum chassis: USB-C and microSD on the bottom, volume wheel on the right, playback buttons on the left, and the 3.5mm/4.4mm jacks, power button, and EnviroTune mic on top. There's no physical volume lock, but it's available in software via the drop-down menu or settings.

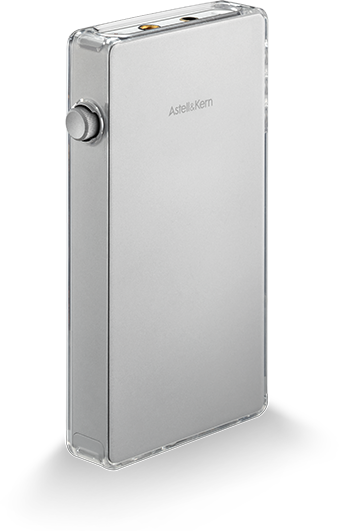

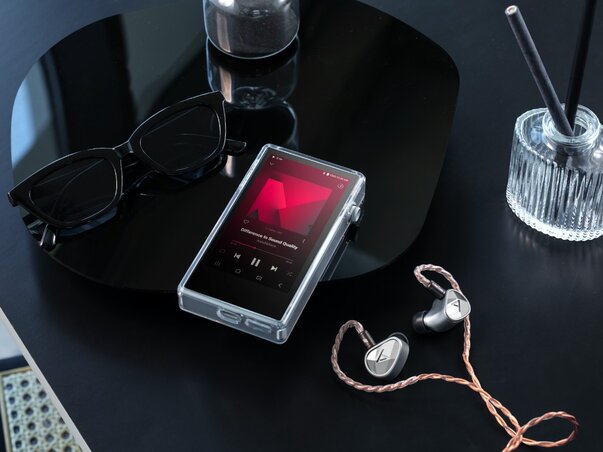

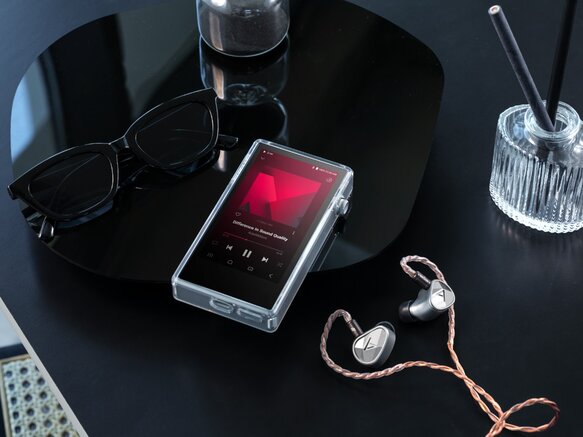

The PD5 ships with an included clear TPU case, crafted in South Korea from premium Covestro raw materials for a snug, seamless fit with reliable protection and high transparency that preserves the device's design. A UV stabilizer helps slow the natural discoloration TPU is prone to over time. A leather case is also available separately as an aftermarket accessory.
FAQs
Is the PD5 the successor to the SR35?
Astell&Kern hasn't officially named the PD5 as the SR35's direct replacement, but there are several similarities between the two models. It uses the same Cirrus Logic CS43198 DAC chip (now doubled from four to eight), is nearly identical in size, and fixes the SR35's biggest weaknesses: sluggish performance and limited driving power.
What's the difference between Quad-DAC and Octa-DAC Mode?
Quad-DAC mode runs four of the PD5's eight DAC chips for a natural, smooth, and power-efficient sound with up to 28 hours of playback on a single charge. Octa-DAC mode runs all eight DAC chips for a bigger, bolder, more dynamic sound quality with faster transient response, but battery life drops to around 15 hours. You can switch between the two from the side panel under "DAC Filters" or the drop-down menu.
Does the PD5 really provide 28 hours of battery life?
Yes, but the 28-hour figure applies specifically to Quad-DAC mode under controlled conditions. Depending on the DAC mode, file formats, volume level, and whether you're listening wired or wirelessly, that number can change. Astell&Kern rates Octa-DAC mode at approximately 15 hours.
Is the PD5's software fast enough?
Yes, early testing suggests that it is. We put the PD5 through its paces, quickly opening and closing apps, pressing play, pause, and skipping tracks in rapid succession, and more. Despite our best efforts to rattle the PD5's system, it remained fast and consistent. This is significant because sluggish software was one of the commonly noted weaknesses of the SR35.
Astell&Kern PD5 DAP Review: The SR35's Long-Awaited Redemption
Read Time: Approx. 6 min.
TL;DR
- Octa-DAC architecture with eight Cirrus Logic CS43198 chips and a dual-drive mode that lets you toggle between Quad (efficient, natural) and Octa (powerful, dynamic) sound.
- Up to 28 hours of playback in Quad-DAC mode; a notable jump from the SR35's 20-hour playback, despite housing twice the DAC count
- EnviroTune, a first-of-its-kind real-time ambient noise compensation feature for a DAP
- Compact, ergonomic redesign that's closer in size to the SR35 than the PD10/PD20, with a standard clear TPU case
- Full Android OS with Roon Ready and Qobuz Connect certification, plus fast, lag-free performance that addresses the SR35's biggest weakness
AK's Newest DAP Turning the SR35's Shortcomings Into Strengths
For the longest time, the A&ultima SR35 DAP was the ultimate entry-level player for audiophiles. It was small and compact, easy to use, and delivered that signature Astell&Kern sound. But underneath the praise, the SR35 had a host of problems: sluggish, laggy performance, limiting software, and limited driving power, and those cracks eventually caught up with it. Once the SR35 was relegated to legacy status, a clear gap emerged in Astell&Kern's product catalog. It's rare to find a truly pocket-sized DAP with good power and good battery life, and for years, nothing in AK's lineup quite filled that gap.
Enter the Astell&Kern PD5 Digital Audio Player, the ultra-portable entry-level DAP we've all been missing. While it's technically part of the PD series, it's closer to the SR35 in size and portability than its PD10 and PD20 siblings. It brings an Octa-DAC architecture built on eight CS43198 chips, a dual drive mode that puts you in control of your listening experience, and EnviroTune, a first-of-its-kind feature for a DAP. With 28 hours of playback on a single charge, the PD5 was built for all-day listening.
Call it the SR45, the SR35 MKII, or whatever you want; the internet certainly has. Dubbed by fans and industry alike as the successor to the SR35, the PD5 had a lot to live up to before it ever reached my desk. But despite all the outside noise, the PD5 stands tall on its own. It's not just filling the SR35's shoes; it's fixing what held it back, and in doing so, makes the SR35 feel like old news.
PROS
- Fast, consistent performance that held up under repeated stress testing, unlike the sluggish SR35
- Quad and Octa-DAC modes let you tailor sound signature and battery life to your gear and genre
- Compact, comfortable design with a premium build and a clear case included
CONS
- Octa-DAC mode's superior sound comes at a steep battery life cost (15 hours vs. 28)
- No physical volume lock control on the chassis (software-only)
- Long-term durability of the clear TPU case is uncertain

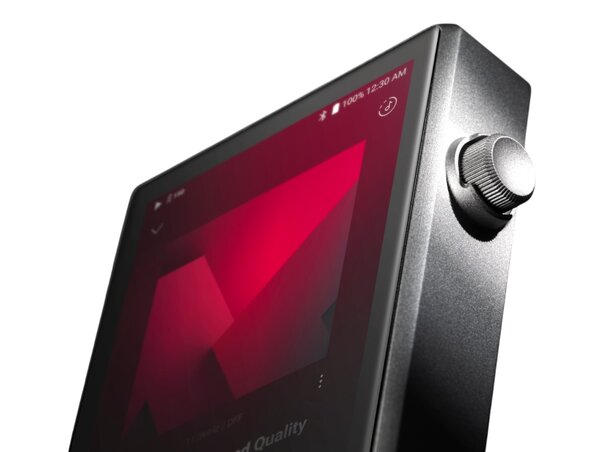

Design
Move over SP3000M, there's a new pocket-sized king in town! While the PD5 is technically the same size as the SP3000M, it's lighter and easier to hold and carry. The beveled edges and unique shapes of Astell&Kern's A&Ultima series DAPs have become a trademark, but the PD series moves in a different direction. Square, structured shapes with precise corners make up the PD series components–a design reminiscent of early models like the AK100 DAP. When the PD10 and PD20 were released, many audiophiles found the shape and overall size hard to manage. They were larger models that didn't scream "portable," but the PD5 changes that. It's only 1/4" larger than the SR35's dimensions--miniscule differences--but the overall design and user experience couldn't be more opposite.
Those sharp corners that would nick you if you weren't careful are gone. Sure, the volume wheel isn't as recessed as it was before, but that's only because there are no triangular edges to cover it. I've seen many comments and concerns over the volume wheel's placement. Some feel it sits too far out and that it might get snagged and damaged, but I'm here to set the record straight and dispel any worry you may have. It's no bigger than a Smarties candy. It practically feels like one with the recessed center, and I honestly forgot it was even there when I was using it. I think we get so used to a certain design, sound, or experience, that when things change we turn into skeptics, quick to voice any and all possible flaws. I'm the same way, so that's why it's important I address the things I see online as a reviewer. Call it my civic duty or just me looking out for my fellow audiophiles, but the PD5 is a welcome change. I wouldn't want it to replace the SR35 verbatim and steal its thunder, but we have to move forward as an industry and be receptive to new ideas. Astell&Kern has rarely led us astray.
The overall build of the PD5 is awesome. It's small, lightweight, and incredibly easy to hold comfortably in one hand, and that's something I can't say about every AK DAP. The light, almost heather gray finish is beautiful. It's simple enough without feeling bland, and the TPU clear case only elevates the look further. Yes, you read that right. The PD5 comes with a clear TPU case that fits the DAP like a glove. After the years of leather and faux leather cases, I'm happy to see something new. Not that I don't love a leather case, but after wrestling with the PD10's case every time I tried to take it on and off, I'm relieved. You can still purchase a leather case as an aftermarket accessory through Astell&Kern, but all units ship with the clear TPU case. My only qualm is how it may look after a year of use. I have a clear Speck case on my Apple iPhone 13 Mini and after about a year of use, the rubber border that hugs the phone begins to yellow. While a quick Google search confirmed that Speck case uses thermoplastic polyurethane (TPU) like the PD5's case, only time will tell how it withstands wear.
As for functionality, you'll find all the basic physical controls placed around the chassis: a USB-C port and microSD slot on the bottom, the volume wheel on the right side, three playback buttons on the left, and 3.5mm and 4.4mm headphone jacks, a power button, and the built-in microphone for EnviroTune on the top. The only thing I didn't see on the chassis is a physical volume lock control, which is a feature many of us use. It's not a complete oversight on Astell&Kern's part though, because it's included in the software and can be turned on/off through the dropdown menu on the top of the display screen or in the settings.
The User Experience
The PD5 boasts approximately 28 hours of playback on a single charge, which is a noble amount for a DAP of this size. The SR35 was rated at 20 hours of playback on a single charge and had a host of problems that dulled the user experience. Slow, laggy performance became the SR35's Achilles heel, especially when you were using streaming services. Determined to ensure the PD5 wouldn't fall victim to a similar fate, a few of my colleagues and I put the PD5 through its paces, quickly opening and closing apps, pressing play, pause, and skipping tracks after just a few seconds, and so on. Yet, despite our best efforts to find a flaw, the PD5 remained fast and consistent. What was a point of failure in the SR35 is a strength in the PD5.
Sound
Historically, Astell&Kern has done a good job creating products that get out of the way and let the gear you pair it with truly shine. I can think of a few models in their lineup that stray from this, with slightly more warmth and weight, but across the board, their signature sound has been consistent. The SR35 was praised for its smooth, slightly rich, full-bodied sound that never lacked musicality. It supported the low-end impact of a pair of bass-centric IEMs while reproducing the fine details in your favorite pair of planar magnetic headphones. The PD5 echoes the same sound signature as the SR35, partly due to its matching DAC chips, but with four more chips than its predecessor, it does so at a much higher level.
With the PD5's dual drive mode being one of its most enticing sonic features, I knew that's exactly where I needed to start my listening session. I jumped right into A/B testing the Octa and Quad-DAC modes against each other, and the differences aren't subtle; they're night and day. On paper, the Quad-DAC mode is the more efficient option, using significantly less power than Octa mode, and delivers what Astell&Kern's dubbed a balanced, natural, and smooth sound. The Octa-DAC mode maximizes performance, drawing more power than the Quad mode, which in turn significantly reduces the playback time you get. One of the first things I noticed when A/B testing an EDM remix of Ty Dolla $ign's track "Blase" was its efficiency.
Quad-DAC mode is modest. It reproduced the track with enough musicality and dynamic range to do the synth-heavy parts justice, but it's smooth, just like Astell&Kern said. Octa -DAC mode makes its presence immediately known, reproducing the track with fervor and lightning-fast speed. It had more impressive speed and decay than the Quad mode, which was perfect for a fast-paced EDM track like this one. Everything became bigger, bolder, and more immediate. It's fair to say that Octa-DAC mode is the sonically superior choice here, but that level of performance comes at a price. It demands much more from the entire system than the Quad mode does, bumping you down from 28-hour playback to a mere 15 hours.
While the Octa-DAC mode may have been the sonic winner, that doesn't make it inherently better than the Quad-DAC mode. What I realized is that there are clear times when one mode outperforms the other. Throughout my listening session, I found myself switching modes depending on the genre and gear I paired with it. Quad-DAC mode complemented the low-end extension and dynamic range of the Meze Audio ASTRU IEMs better than Octa, which felt almost too powerful at times.
When the PD5 first arrived at my desk, I looked at the dual drive modes as nothing more than a way to save battery life, but in reality, it's a sound-shaping tool–just not in the way you'd think. Regardless of which mode you're using, you're getting Astell&Kern's signature sound. That's evident from the start. But the real gift here is the ability to perfectly match your gear and music to the PD5–much better than any DAC filter can do.
The PD5 stands out as the entry-level DAP that disappears during your listening session. It enhances the sonic strengths of your favorite IEMs and over-ear headphones, while accurately reproducing the fine details and nuances of songs–all the parts you don't know you're missing until you hear them through a high-quality DAP like the PD5.
Compared to previous PD series DAPs, like the PD10 with its surprisingly warm, lush sound signature, the PD5 is natural and authentic. The PD10 stood out in AK's lineup because it strayed so far from the company's signature sound. While it wasn't the first time Astell&Kern released a DAP with warmth and richness, it had certainly been a while, so when the PD20 was debuted shortly after, Astell&Kern put us in control of our sound. The PD20's Personal Sound Studio made us the architects of our listening experience, and the PD5 carries on a similar purpose. There's no Personal Sound Studio, but there's dual drive mode and a natural sound signature–and that's all it needs.
Big Feelings
By Ariana Grande
(Petal)
I Only Have Eyes for You
By The Flamingos
(Flamingo Serenade)
Hang On to Your Love (Long Version)
By Sade
(Diamond Life)
About You
By The 1975
(Being Funny in a Foreign Language)
Features
- Octa-DAC Architecture: Eight CS43198 DACs for wide dynamic range and channel separation
- Dual Drive Mode: Switch between balanced and ultimate sound
- Up to 28 hours of playback
- EnviroTune: Auto-compensates for ambient noise without raising volume
- ESA (Enhanced Signal Alignment): Minimizes group delay for clearer sound
- TERATON ALPHA: AK's tech for noise removal and stable amplification
- Digital Audio Remaster (DAR): Upsamples PCM to 384kHz and DSD to DSD128
- 4 Selectable DAC Filters
- Crossfeed Technology: Speaker-like soundstage with adjustable settings
- ReplayGain: Automatic volume normalization
- Dual-Band Wi-Fi: High-res streaming with Roon Ready support
- Bluetooth Sink: Stream audio wirelessly from external devices
- Roon Ready & Qobuz Connect Certified
- Compact, Ergonomic Design: ~200g, curved 4.1" display, "Grip Control" build
Cirrus CS43198 DAC: The SR35's Legacy Lives On
While Astell&Kern hasn't explicitly said the PD5 is the direct successor to the SR35 DAP, the invisible strings linking the two together are clearer than ever, and it all starts with the Cirrus Logic DAC chip. The PD5 sports the same Cirrus Logic CS43198 DAC chip used in the SR35, but in a slightly different configuration. The PD5 takes the SR35's quad DAC configuration and doubles it to an Octa DAC configuration. The top questions on everyone's mind: How does this impact the sound? Will it still sound similar to the SR35? Why eight Cirrus Logic chips instead of two or four AKM chips? These are all very valid questions that also crossed my mind, and as it turns out, Astell&Kern had already thought them through when designing the PD5.
The PD5 implements a dual drive mode, letting you run all eight DAC chips or scale down to just four. In Quad-DAC mode, you get AK's signature sound: natural and smooth. In Octa-DAC mode, you get the full sonic potential here: expansive dynamic range and exceptional channel separation. Access this mode in the PD5's side panel under "DAC Filters" or in the drop-down menu.
EnviroTune: Astell&Kern's Latest Innovative Feature
EnviroTune is Astell&Kern's latest feature, debuted in the PD5, that makes listening just better. It's an intelligent sound-tuning technology that uses the built-in microphone on the DAP's top panel to detect changes in ambient noise in real time, then analyzes the input sound by frequency band to automatically compensate for frequencies masked by noise.
Sony has a similar feature they've been using in their wireless noise-canceling headphones for years, but this is the first time I've seen anything like it in a DAP. Skeptics have wasted no time voicing their opinions and concerns, questioning whether this is even a necessary feature in a DAP or just another component slowing the system down, and while I don't have all the answers, I will tell you this: If it's not a feature you're interested in using, you can turn the microphone on/off in the device's settings. Don't let this minuscule feature be what holds you back from owning the PD5.
Other notable features include ESA (Enhanced Signal Alignment) technology, DAR (Digital Audio Remaster) technology, four distinct DAC filters, crossfeed, and ReplayGain.
Dragon Cables
There are a lot of reasons why you need to make sure your audio cables are not afterthoughts.
Our HiFi Audio Dragon Cables bring out more of what you love in your music and audio gear. If you love your headphones but wish they had a bit more top-end sparkle - a Silver Dragon Headphone Cable would be a great option. If your USB cables keep dying - as many stock cables do - then check out our quality USB Audio Cables. We say time and time again that materials matter, and our audio cables and custom geometries actually help to bring out those desired properties in your gear and music. We make tons of custom options for our customers so that you can get the right HiFi Audio cable for your exact needs. If you have any questions feel free to Contact Us and we'll be more than happy to help.
Generally, stock audio cables are manufactured with subpar materials, metals with impurities, poor geometries, and an overabundance of layers to make them look and feel like a fire hose. Inconsistency and lack of quality control in stock cables can lead to poor sound quality and a veiled sound vs. what the musician intended for you to hear and feel from the music. Dragon Audio Cables are handcrafted with the highest standards and made to order according to your specific needs. At Moon Audio, we create a custom cable for you using the highest quality UP-OCC silver or copper conductors that can be manufactured. UP-OCC metals are void of impurities and are optimized for signal transfer and sound quality. We have one of the largest collections of audio and headphone connection options available online and we create limitless audio cable options depending on your specific gear and needs.
Why Dragon Cables?
You’ve heard the saying that a chain is only as strong as its weakest link, right? Well, the same applies to your brand new audiophile-grade headphone or other audio components. The weakest link, in this case, is your stock audio cable or the cheap interconnects the manufacturer threw in the box just to get you up and running. Why is the audio cable always an afterthought, when it’s just as important as the rest of your system? At Moon Audio, we use the purest and best raw materials in our cables to unveil your music. We believe that materials matter and your audio cables should have the same care and craftsmanship that manufacturers put into their audio components and headphones. Audio cables are ultimately the connection to your music. The fact remains that cabling is often considered the last priority to that of the main product and a means to cut down the overall production costs. It’s as simple as that. Dragon Cables elevate every note - as if you were hearing your favorite music for the very first time.
Verdict
Over the last few years, Astell&Kern has made huge strides in product development, breaking out of what once felt like a statement of marginal, back-to-back upgrades. The SP3000 DAP marked the turning point, debuting a new UI alongside industry firsts like a stainless steel body. Momentum built quickly from there: the SP3000T DAP combined tube and solid-state amplification in one chassis, while the SP3000M brought a compact, pocket-friendly size reminiscent of AK's legacy models. Then came the SP4000 DAP, and the industry shook once more. It was Astell&Kern's first DAP to run a full Android OS–a feature audiophiles wanted for years, and one that had left AK trailing behind competitors.
A few more releases later, we arrive at the PD5: a pocket-sized music player blending heritage and innovation into an affordable entry point for audiophiles and music lovers alike. The Astell&Kern PD5 Digital Audio Player isn't trying to be everything to everyone, and that's never been AK's goal. In a way, they've answered years of fans asking for an SR45–just on their own terms. Whether it's the SR35's de facto successor or not, what matters is what's inside, not the product name: a full Android OS, Octa-DAC architecture built on eight CS43198 chips, EnviroTune's real-time noise compensation, and the battery life that outlasts the SR35 despite doubling its DAC count. The PD5 doesn't need a new name to prove itself; it just needs you to press play.
Featured Products
Related Videos
AK FINALLY Built the DAP Fans Never Stopped Asking For! Astell&Kern PD5 Review
Astell&Kern BT Sink Tutorial & Review
Astell&Kern AK File Drop Tutorial & Review
What's in the Box
- PD5 Digital Audio Player
- USB-C Charging Cable
- Warranty and Manual
Specifications
Model: PD5
Body Color: Silver
Body Material: Aluminum
Supported OS: Windows 8, 10, 11 (32/64-bit) MAC OS
Dimensions: 2.74" (69.7mm) [W] x 4.71" (119.7mm) [H], 0.63" (16.1mm) [D]
Weight: about 6.98 oz (198g)
Display: 4.1-inch 720 x 1280 touchscreen
Built-In Memory: 64GB [NAND]
External Memory: microSD x1 (Max. 1.5TB)
Battery: 4,000mAh 3.8V Li-Polymer
Charging Time: Approximately 2.5 hours (PD3.0 charging)
Continuous Playback Time: Approx. 28 hours (Standard: FLAC, 16-bit, 44.1kHz, Vol.50, Quad-DAC, LCD Off)
CPU: Octa-core
Wi-Fi: 802.11 a/b/g/n/ac (2.4/5GHz)
Bluetooth: V5.3 (A2DP, AVRCP, Qualcomm® aptX™ HD, LDAC, LHDC, SBC, AAC)
Operating Temperature: 0℃ ~ + 40℃ (32℉~ 104℉)
Feature Enhancements: Firmware upgrade supported (OTA)
DAC: Cirrus Logic CS43198 x8 (Octa-DAC)
Input: USB Type-C Input (for charging, PC & MAC)
Outputs: Unbalanced Out (3.5mm), Balanced Out (4.4mm, only 5-pole supported)
Supported Audio Formats: WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF
Sample Rate:
- PCM: 8kHz ~ 384kHz (8/16/24/32-bits per sample)
- DSD Native: DSD64 (1-bit 2.8MHz), Stereo / DSD128 (1-bit 5.6MHz), Stereo, DSD256 (1-bit 11.2MHz), Stereo
Output Level:
- [Quad] Unbalanced 3Vrms │ Balanced 6Vrms (Condition No Load)
- [Octa] Unbalanced 4Vrms │ Balanced 8Vrms (Condition No Load)
Decoding: Support up to 32-bit/384kHz Bit to Bit playback
Frequency Response:
- ±0.011dB (Condition: 20Hz~20kHz) Unbalanced │ ±0.011dB (Condition: 20Hz~20kHz) Balanced
- ±0.130dB (Condition: 20Hz~70kHz) Unbalanced │ ±0.143dB (Condition: 20Hz~70kHz) Balanced
S/N: 125dB @ 1kHz, Unbalanced │ 129dB @ 1kHz, Balanced
Crosstalk: -145dB @ 1kHz, Unbalanced │ -147dB @ 1kHz, Balanced
THD+N: 0.0006% @ 1kHz, Unbalanced │ 0.0006% @ 1kHz, Balanced
IMD SMPTE: 0.0003% 800Hz 10kHz (4:1) Unbalanced │0.0001% 800Hz 10kHz (4:1) Balanced
Output Impedance: Unbalanced Out 3.5mm (0.6 ohm) | Balanced Out 4.4mm (1.2 ohm)
Clock Jitter: 25pS (Typ.)
Reference Clock Jitter: 250 Femto Seconds
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Model | PD5 |
| Body Color | Silver |
| Body Material | Aluminum |
| Display | 4.1" 720 x 1280 Touch screen |
| Dimensions | 2.74" (69.7mm) [W] x 4.71" (119.7mm) [H] x 0.63" (16.1mm) [D] |
| Weight | about 6.98oz (198g) |
| Operating Temperature | 0℃ ~ +40℃ (32℉ ~ 104℉) |
| Feature Enhancements | Firmware upgrade supported (OTA) |
| Technical Specifications | |
| CPU | Octa-Core |
| DAC | Cirrus Logic CS43198 x8 (Octa-DAC) |
| Decoding | Support up to 32bit / 384kHz Bit to Bit playback |
| Supported Audio Formats | WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF |
| Sample Rate | PCM: 8kHz ~ 384kHz (8/16/24/32bits per Sample) DSD Native: DSD64 (1bit 2.8MHz), Stereo / DSD128 (1bit 5.6MHz), Stereo / DSD256 (1bit 11.2MHz), Stereo |
| Output Level | [Quad] Unbalanced 3Vrms │ Balanced 6Vrms (No Load) [Octa] Unbalanced 4Vrms │ Balanced 8Vrms (No Load) |
| Frequency Response | ±0.011dB (20Hz~20kHz) Unbalanced │ ±0.011dB (20Hz~20kHz) Balanced ±0.130dB (20Hz~70kHz) Unbalanced │ ±0.143dB (20Hz~70kHz) Balanced |
| S/N | 125dB @ 1kHz, Unbalanced │ 129dB @ 1kHz, Balanced |
| Crosstalk | -145dB @ 1kHz, Unbalanced │ -147dB @ 1kHz, Balanced |
| THD+N | 0.0006% @ 1kHz, Unbalanced │ 0.0006% @ 1kHz, Balanced |
| IMD SMPTE | 0.0003% 800Hz/10kHz (4:1) Unbalanced │ 0.0001% 800Hz/10kHz (4:1) Balanced |
| Output Impedance | Unbalanced Out 3.5mm (0.6ohm) │ Balanced Out 4.4mm (1.2ohm) |
| Clock Jitter | 25pS (Typ) |
| Reference Clock Jitter | 250 Femto Seconds |
| Input | USB Type-C input (for Charging & PC & MAC) |
| Outputs | Unbalanced Out (3.5mm), Balanced Out (4.4mm, only 5-pole supported) |
| Wi-Fi | 802.11 a/b/g/n/ac (2.4/5GHz) |
| Bluetooth | V5.3 (A2DP, AVRCP, Qualcomm® aptX™ HD, LDAC, LHDC, SBC, AAC) |
| Power Specifications | |
| Battery Capacity | 4,000mAh 3.8V Li-Polymer |
| Charge Time | about 2.5 hours (PD3.0 Charging) |
| Playback Time | about 28 hours (Standard: FLAC, 16bit, 44.1kHz, Vol.50, Quad-DAC, LCD Off) |
| Additional Information | |
| Built-in Memory | 64GB [NAND] |
| External Memory | microSD x1 (Max. 1.5TB) |
| Supported OS | Windows 8, 10, 11 (32/64bit); MAC OS X 10.7+ |
