Black Dragon IEM Headphone Adapter Cable V1

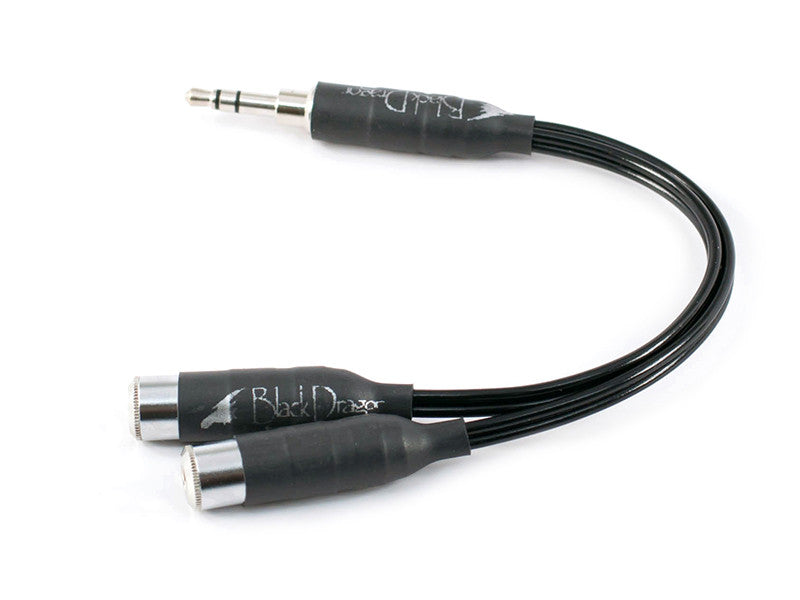

The Black Dragon IEM Adapter Cable is an extension or adapter cable to go with your main Black Dragon IEM Headphone cable if extra length is needed or you need to change terminations on the amplifier end.
Adapter cables make it more versatile to do quick changes from one connection type to another. More and more connection types are becoming available, thus making this a great solution for hifi enthusiasts or "on the go" portable listening.
The shortest we can make an XLR based cable is 1.5ft.
The shortest we can make an 1/4" based cable is 1.0ft.

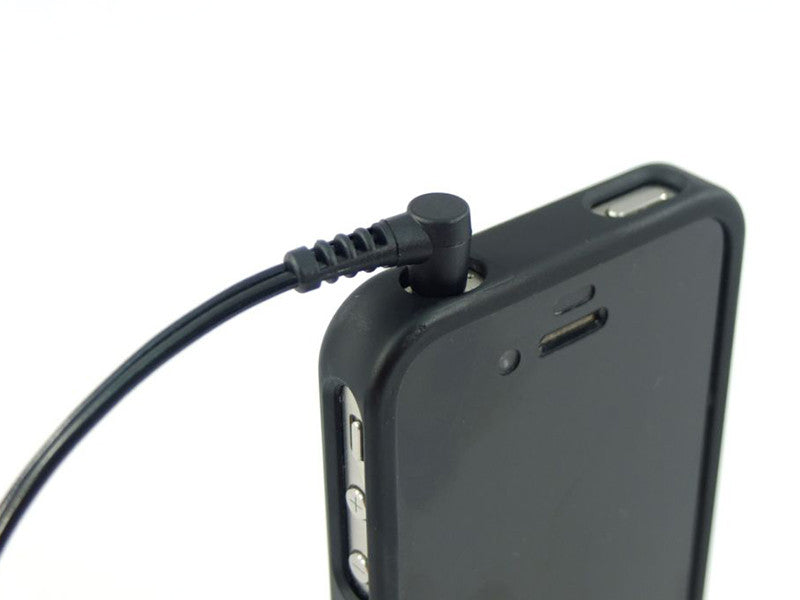

2.5mm TRRS Balanced Gold RT Angle Mini Premolded for AK Players, RAL, ALO, etc. is only available in 6inch lengths
Please choose accordingly.
The Black Dragon IEM is a coaxial design using a 7N purity 99.99998% UP-OCC Stranded copper 26AWG center conductor for the positive leg. The center conductor uses the same Kevlar reinforcing as the other Dragon cables. The center conductor is wrapped concentrically by a 99.99998% UP-OCC pure copper stranded 26AWG gauge conductor with 7N purity 99.99998%.
The left and right signal cables run parallel to each other resulting in a very low inductance. Both signal jackets are polyethylene and the cable is extremely flexible yet very resilient and resistant to flex failure.

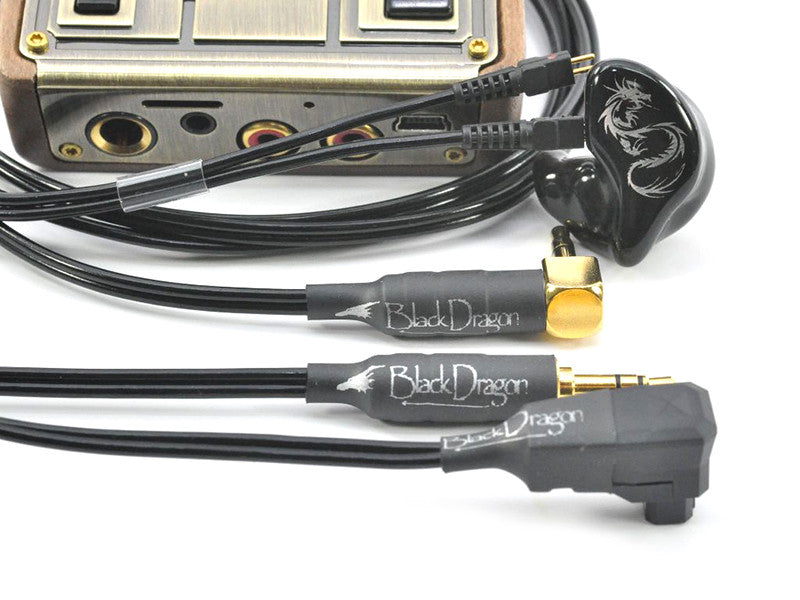

A variety of connection options are available for your downstream connection such as the mini plug, RSA/ALO, 1/4" , XLR and many others.
We custom build these in house to your connection specification. The cable can be used in either a single ended or balanced design. The wire is soldered to a connector using high quality Cardas silver solder.
My only negative comment is that the wire used for the modular cable and the adapters are rather stiff. I would prefer a more flexible and supple cable. The concept of a modular cable system is a great idea and well implemented by Moon-Audio
