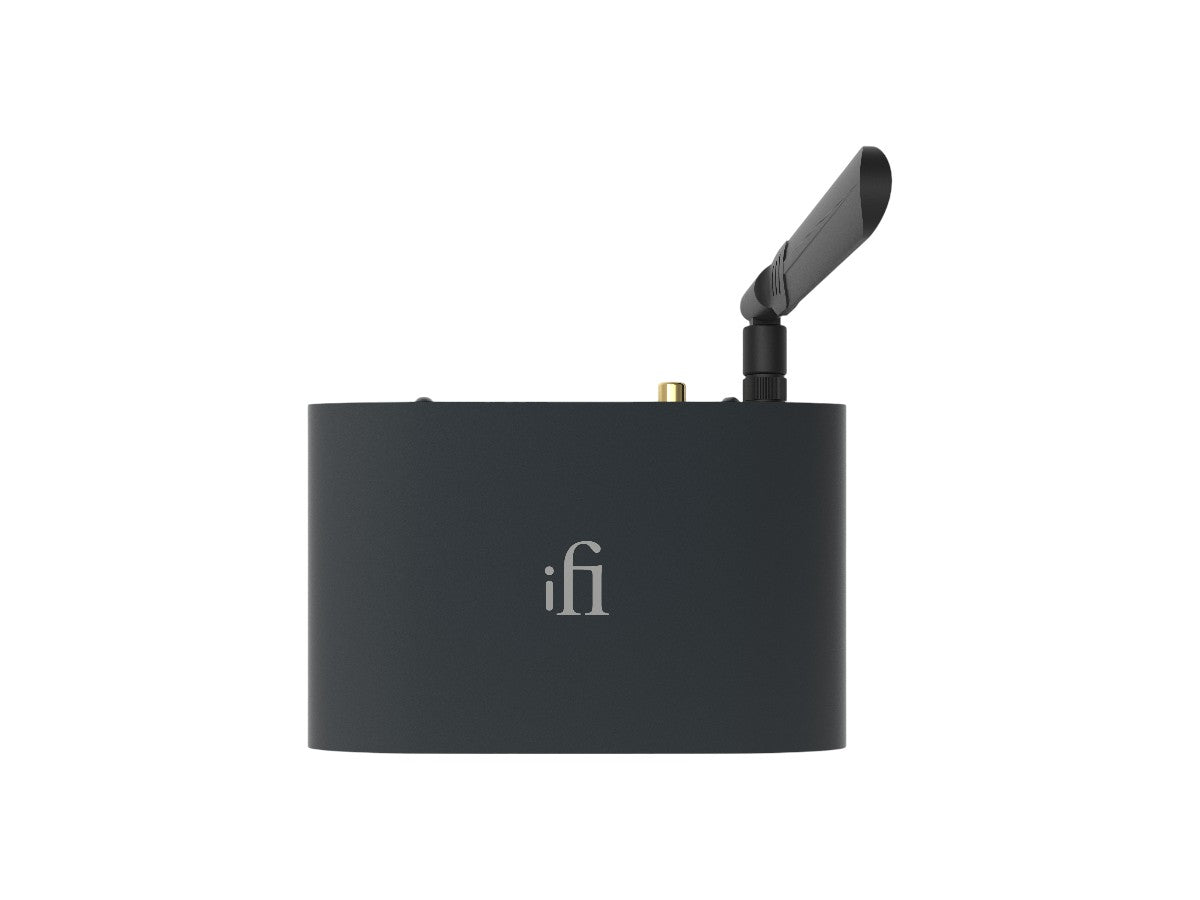

Zen Stream

Warp speed tech

ZEN Stream is a true ground-up design by iFi — the hardware and software implementation is quite exceptional:

• Two SuperSpeed USB3.0 ports with Active Noise Cancellation II
• S/PDIF out with the iPurifier built-in
• iFi software developed with Volumio open-source as the starting point, then coded and optimised by us to achieve the purest streaming software bar none

These are some of the factors behind why the ZEN Stream is at the cutting-edge handling PCM384/DSD256 on LAN and WiFi (802.11n, with 100Mbps on 5Ghz).

Set-up your Wi-Fi connection using the our Stream-iFi app. Scan the QR code to download the app today. The QR code will take you straight to our Stream-iFi app in the correct store for your phone or tablet.

This is a true hi-res device. It uniquely supports PCM up to 32-bit/384kHz over Wi-Fi as well as Ethernet cable, plus DSD up to 11.2MHz (DSD256). Highly unusual in a Wi-Fi streamer.

Our ‘exclusive modes’ give you individual settings dedicated to specific modes of operation to deliver the purest possible performance. All-in-one
This non-specific mode is great for all platforms, audio formats and devices. DLNA streaming
Select this mode to optimise performance when using the ZEN Stream with DLNA-compatible apps and devices. NAA streaming
Select this mode when using the ZEN Stream as a Network Audio Adapter in conjunction with Signalyst HQPlayer software. Roon Ready
Select this mode when integrating the ZEN Stream into a ROON environment. Tidal streaming
If you are a subscriber to Tidal’s Masters Tier, this is the mode for you.

Use the ‘hotspot’ button on the front to join a Wi-Fi network. Dual-band Wi-Fi reception supports 802.11a/b/g/n/ac for a fast, reliable wireless connection.

The circuit design has been painstakingly engineered to deliver superb sound, with processing muscle supplied by a 64-bit, quad-core ARM Cortex microprocessor.

The USB ports – both input and output – support the SuperSpeed USB3.0 standard and benefit from iFi’s Active Noise Cancelling technology to remove distortion from the audio signal. Similarly, the coaxial S/PDIF output incorporates iFi’s iPurifier signal purifying technology.

Both of the two digital outputs – asynchronous USB and coaxial S/PDIF – that provide connectivity to an external DAC or an amp with digital inputs are regulated by iFi’s femto-precision GMT (Global Master Timing) circuitry to eradicate jitter from the digital audio signal.

Intelligent Ethernet. The device uses a high-performance Ethernet switch with a low-power integrated 5-Port Giga-PHY.

We’ve utilised high-PSRR, low idle current, low-dropout voltage regulators with soft start. This means maximised efficiency and minimised system noise.

Add to this, a synchronous 1.5MHz high-speed power supply controller for even great noise reduction and even less distortion.

Carefully chosen circuit components including discrete, high-grade surface-mounted devices such as TDK C0G multilayer ceramic capacitors and inductors from Taiyo Yuden and Murata add to the quality build of this product.
