Tronsmart 5V 3Amp USB Charger
Tronsmart 5V 3 Amp USB Charger
The importance of a high amperage USB charger cannot be underrated. Please see our detailed examples below of why this Tronsmart USB charger is important to your portable audio system. We have changed models to a unit that now uses a USB C and a USB A. As we have found more and more DAPs (Digital Audio Players) are switching to USB C as the charging connection. Like the Questyle QP2R And Astell & Kern SP1000. You can add on charging cables below.
The Cable package will comprise of 2m USB C to USB C & a 2m USB C to USB A charging cable.
The Tronsmart 5V 3 Amp USB Charger is perfect for charging portable audio devices.
Portable Audio Devices & USB charging
With the explosion of portable audio devices, Moon Audio has become more aware of the importance of higher rated USB charging devices. It is safe to assume that most people have drawers full of leftover USB chargers from all the phones and tablets we have purchased over the years. Most of these chargers that come with the purchase of your phone have low amperage ratings. While this might have been ok for charging your old flip phones, it is by no means good enough for your high-end portable DAP (digital audio player) or portable Amplifier/Dac combo.
A perfect example, is the Chord Mojo, one of the most successful portable DAC headphone amplifiers which has a trickle charger. A trickle charger always defaults the Amp/Dac circuit to DC power vs AC when plugged into the wall to charge. This provides a much cleaner, quieter sound and the unit will run off the battery until it gets to about 15% and then the charger kicks in to charge the unit again until it reaches some maximum percentage. If the unit gets below this minimum of 15% or whatever the minimum is, the unit will not operate even when plugged into the wall until it is above this minimum threshold.
DSD Audio Processing
When the Chord Mojo is processing DSD audio, the unit has a larger demand on the battery. If charging the unit while using the unit is done with a lower amperage charger the device will use power faster than it can recharge. Thus eventually shutting off. Thus a USB charger with a rating of at least 2amps is required. But really a 2.4 to 3.0 amperage charger is more ideal. We have found that the Tronsmart 3amp USB charger solves all these issues and thus why we are offering it to our customers
Computer USB Ports
Most computer USB ports are rated at 1 amp, so this is not an effective way to charge your portable audio device. The same can be said for USB hub strips. In many cases, the more devices you add to a USB hub, the lower rating each port gets and this depends on the strip. These hubs can be noisy animals as well and we have seen instances where a Chord Mojo had a whining sound when charging. In all cases, we found this was a result of an underpowered charger or hub being used. In addition, we recommend not to plug your USB charger into power strips. This can cause noise issues especially if a computer is on the same strip. Plug your USB charger directly into a wall AC outlet in conjunction with a proper rated USB charger as this often solves many charging issues.
The Tronsmart has smart charging technology so if you have a Quick Charge device, such as a newer generation Android phone, it will auto sense this function and Quick Charge the device. Most portable audio devices don't have Quick Charge, however thanks to the higher amperage in the Tronsmart, this will yield faster charges than lower rated devices.
We would have never thought that USB chargers could be so important to this audiophile passion of ours but as you can see, it is a critical part of the equation to keep your audio portables properly powered.
Astell & Kern CD Ripper
The Tronsmart has also solved issues with Astell & Kern CD Ripper. When ripping CD's, a lot of amperage is required to get the driver to work properly. Underrated chargers cause the ripper to stop half way through the ripping process. If you are using the

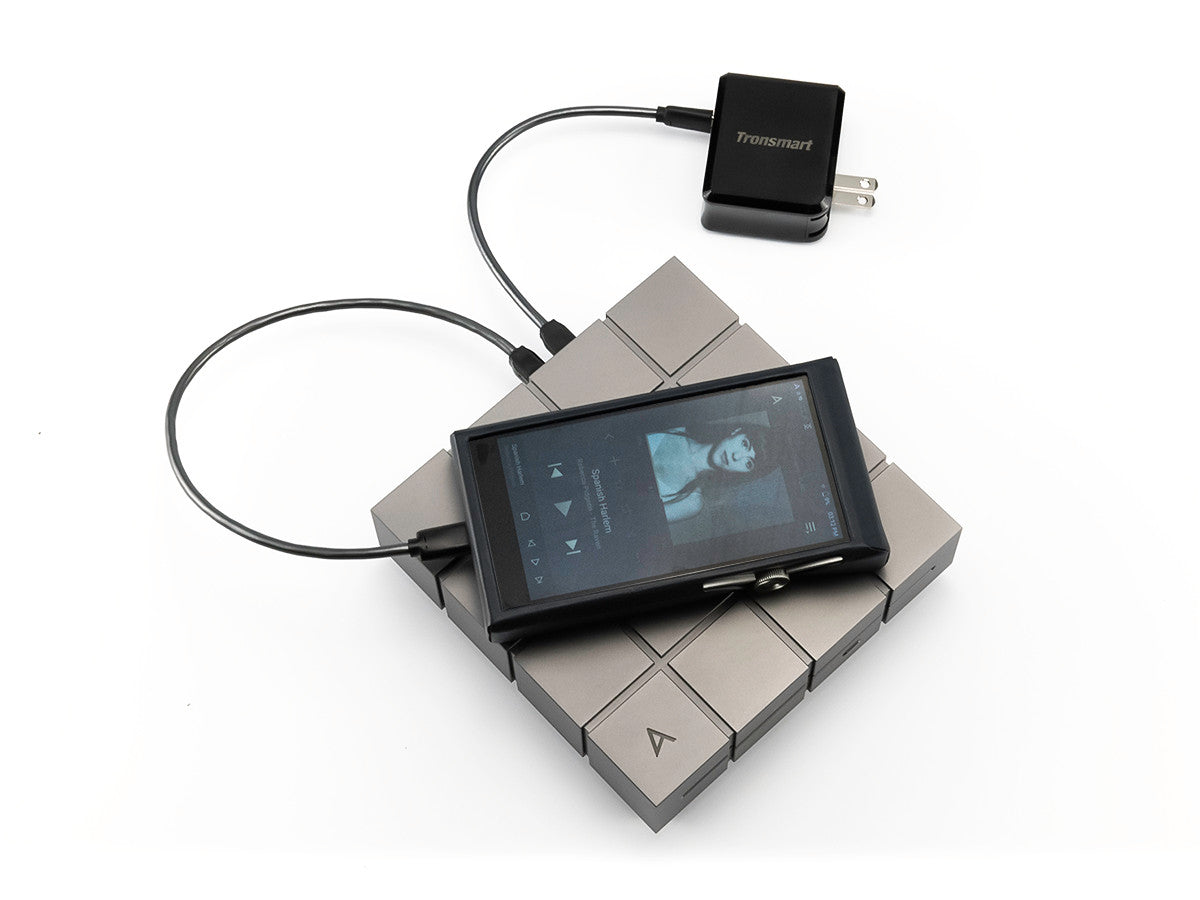

Astell & Kern CD Ripper directly connected to your Astell & Kern portable DAP, then just one charger is required. However, if you are using your Astell & Kern CD Ripper with the AK380 Dock, then we recommend a second charger or the Tronsmart which includes 2 ports for charging.

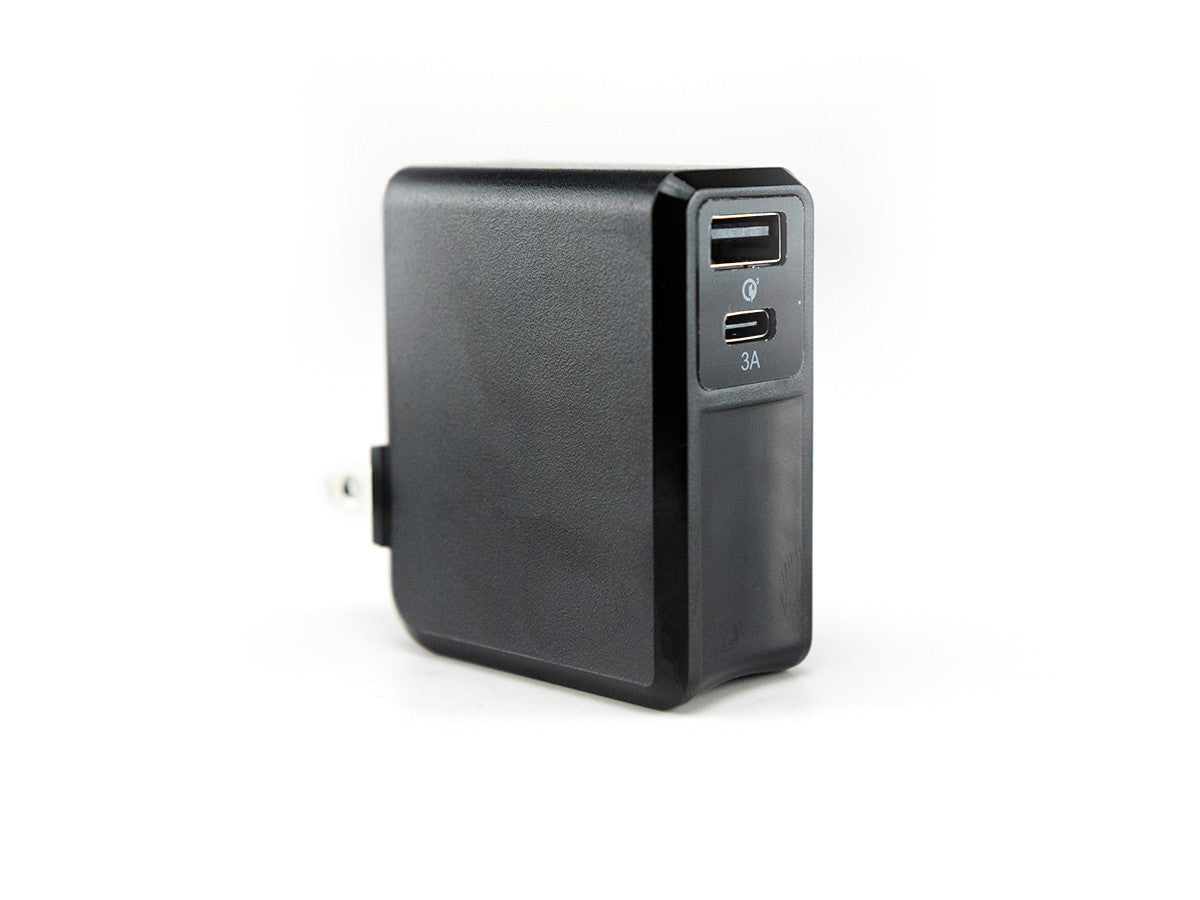

General Type: Quick Charge 3.0 & Type-C Dual Ports Wall Charger
Compatible:Quick Charge 3.0/2.0 devices and non-QC devices
Premium materials, ultra-compact design and precision crafting seamlessly combine for an essential, on the road travel companion.
Safety Guarantee: Built with Industry grade materials and premium circuitry, fully protect against over-current, overcharging and overheating for safe and fast charging.
- Input: AC 100V-240V
- USB-A Port (Quick Charge 3.0); Output: 5-6.5V/3.0A, 6.5-9V/2.0A, 12V/1.5A(Max)
- USB-C Port ; Output: 5V/3A (Max).Only Fast Charging (Device Must support fast charge)
Dimensions & Weight
- Dimensions: 69.6*50.5*25.5mm
- Weight: 100g
- 1 x Charger
- 1 x Card (VoltIQ & Warranty)
Tronsmart Qualcomm Quick Charge 3.0
Up to 4 times faster than standard chargers
Charge compatible devices to 80% in just 35 minutes.
27% faster charging speed compared with Quick Charge 2.0 Charger
USB Type-C Compatible models
Google Nexus 6P,Nexus 5X (5V/3A)
Microsoft Lumia 950,Lumia 950XL (5V/3A)
Meizu Pro 5
LeTV One Max, LeTV One Pro
Please Note,This charger doesn’t support USB PD, So You will just get standard 5V/3A when you use our charger in the following devices:
Google Chromebook Pixel 2015
Google Pixel C
Qualcomm Quick Charge 3.0 Compatible models(Backwards Compatible with Quick Charge 2.0)
HTC One A9
Samsung Galaxy S7,S7 Edge,S6 Edge Plus,Note 5,S6, S6 Edge, Note 4/Edge
LG G5,LG V10, LG G Flex2, LG G4
Sony Xperia Z5, Z4, Z4 Tablet,Xperia Z3+
HTC One M9, HTC One (M8), HTC One mini,Butterfly 2
Google Nexus 6
Asus Zenfone 2
Moto X Pure Edition, Moto X Style
