Features
Proprietary SERCE ARM module provides the shortest signal path possible, with built-in MQA decoder/renderer
Exclusive Dynamic Digital Filtering (DDF) with Signalyst/HQPlayer-designed filters for tailor-made sound
Truly balanced analog signal path from input to output for maximum transparency and channel separation
Ferrum-proprietary I/V converter — comparable to units many times its price
Fully balanced modified IC pre-amplifier, precision-tuned for the WANDLA
Six optimized digital inputs: USB, I2S, AES/EBU, coaxial S/PDIF, optical S/PDIF, and ARC (TV with CEC)
Hi-res touchscreen with intuitive UX and included remote control for effortless operation
Ferrum Power Link (FPL) connector for seamless HYPSOS pairing and elevated performance
Non-fatiguing, transparent sound signature designed for extended, immersive listening sessions
What's in the Box?
Warranty
With WANDLA, we are making a statement to the current and next generation of music lovers. WANDLA represents tomorrow’s standard of high-end digital-to-analog conversion. Think of WANDLA like a Formula 1 racing car. Like the F1 constructors’ team building the best racing car, Ferrum created the best engine for The Converter.
Tomorrow’s High End Audio Today
As The Converter WANDLA leads the way for tomorrow’s high-end offering, flagship audio quality at an unprecedented price.
Finely tuned DA conversion
WANDLA is the latest exemplar of Ferrum’s digital know-how and our in-house-developed analogue audio and electrical technology. The ESS Sabre ES9038PRO combined with Ferrum’s advanced new current-to-voltage (I/V) converter, compares to units many times its price.
SERCE
Digital audio system module - Our optimized ARM chip offers the shortest signal path possible, making 5 chips redundant. Includes MQA decoder/renderer and digital filter selection.
Ease of use

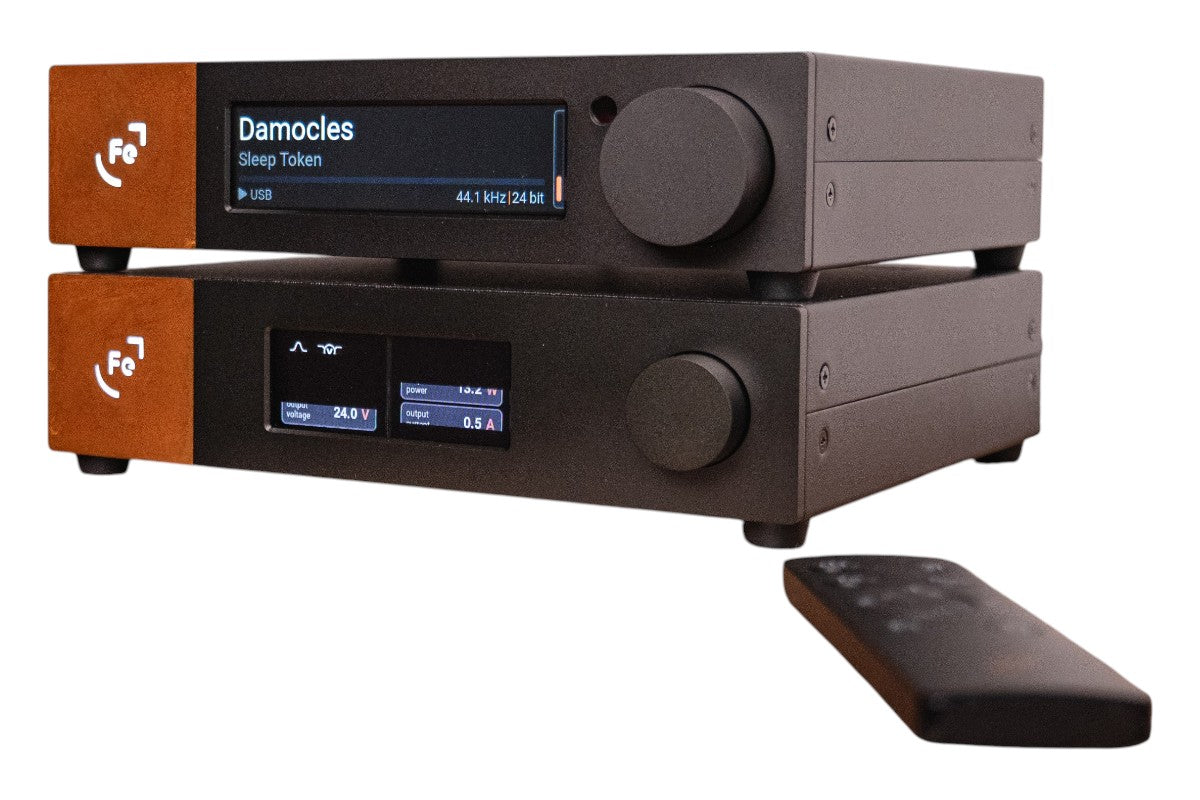

Newly developed hi-res touch screen with intuitive UX that is a dream to operate, including a remote control.
Enhanced transparency
The whole design is focused on a balanced and very transparent sound signature, making listening fatigue something of the past.
Dynamic Digital Filtering
WANDLA has selected the ESS digital filter, as a world first, four digital filters created for Ferrum by renowned filter-maker Signalyst, known for their HQPlayer app. More filters will follow after interacting with WANDLA users.
Optimized Digital inputs
Specially programmed USB, and tuned coaxial and optical S/PDIF, AES, ARC (TV) and I2S ports, optimized for audio.
Truly Balanced
The analog signal path is truly balanced. RCA inputs are converted to balanced at the first stage.
Proprietary amplification
Fully balanced modified IC pre-amplifier, fine tuned for WANDLA.

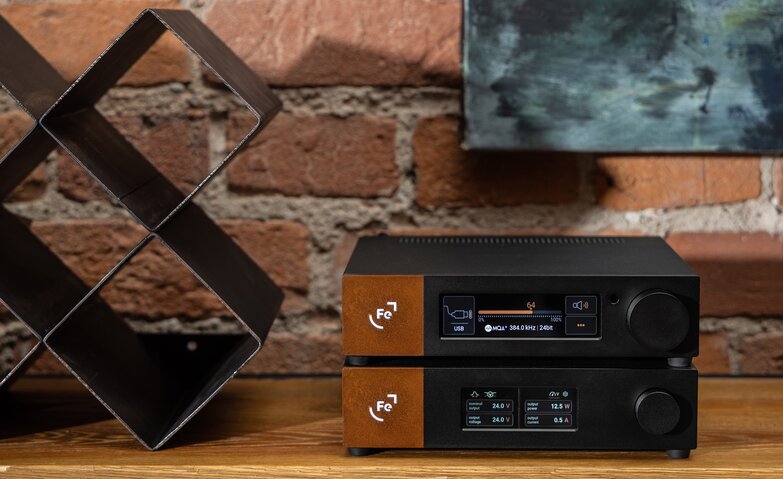

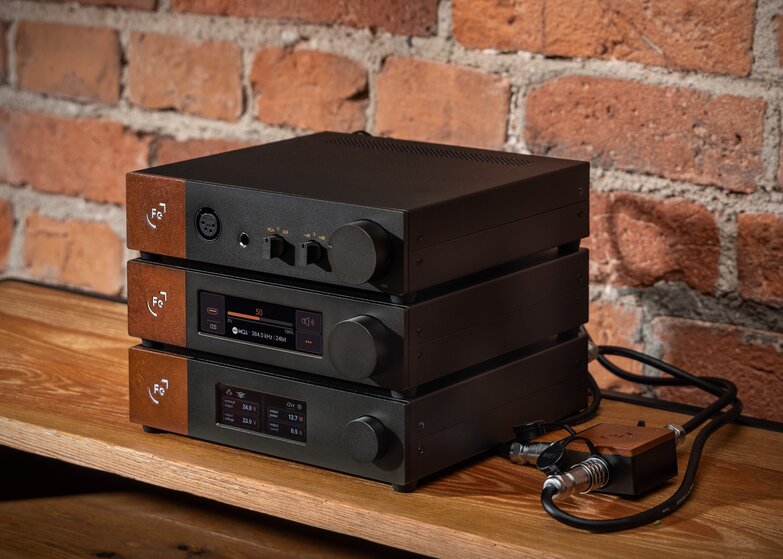

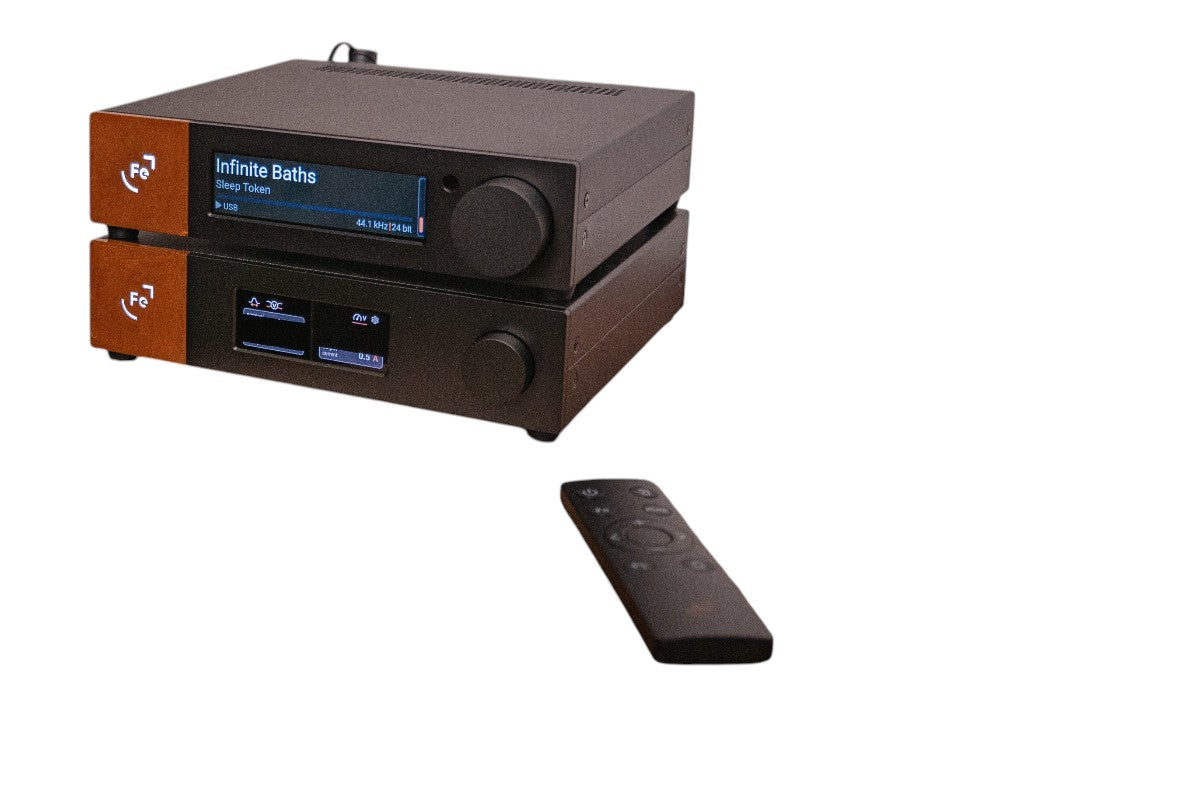

Made for HYPSOS
WANDLA performs beautifully right out of the box, but you can take its performance above and beyond when pairing it with HYPSOS. Using the proprietary Ferrum Power Link (FPL) connection with 4TSD voltage sensing, both components will perform to their absolute maximum, unleashing unheard-of musicality.
"With Dynamic Digital Filtering, DDF in short, digital filter maker Signalyst, famous for their HQPlayer app, created filters exclusively for Ferrum. At the introduction, WANDLA will feature two special filter options. We will engage with our community to make new filters available, one by one. Doing this, we create a new community of digital filter specialists by interaction with us and their WANDLA’s, in search of the best possible, tailor-made sound. This is truly unique to Ferrum, to the category of DA converters, and to the hifi community in general."
Marcin Hamerla
Founder and CEO HEM
Unique output cable design: two wires delivering the power and two wires providing the feedback to ensure flat voltage at every moment. We named this technique Ferrum Power Link (FPL), and it eliminates the harmful effects of the cable's resistance, effectively improving transient response. The current delivery speed at the powered device's input is significantly improved.
WANDLA comes with a carefully selected DC power adapter. To get the most out of WANDLA, you can connect it with HYPSOS using our proprietary Ferrum Power Link DC power cable. This FPL cable can be ordered separately.
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Dimensions | 21.7 cm x 20.6 cm x 5 cm / 8.6″ x 8.1″ x 2.0″ |
| Weight | 1.8 kg / 3.97 lb |
| Technical Specifications | |
| DAC Chip | ESS Sabre ES9038PRO |
| DAC Resolution | 768 kHz / 32-bit, DSD 512 |
| MQA® | Decoder and renderer (on all digital inputs) |
| Volume Control | Analogue with bypass option / digital for DAC operation only |
| Output Level | @0 dBFS, 1 kHz sine — 10 VRMS balanced, 5 VRMS unbalanced |
| Frequency Response | 10 Hz – 200 kHz ±0.1 dB |
| DAC THD | -121 dB (0.00009%); THD+N: -115 dB (unweighted) |
| Analog Input THD | -123 dB @ 2 VRMS output level |
| Dynamic Range (Analog) | 127 dB (A-weighted) |
| Dynamic Range (Digital) | 122 dB (A-weighted) |
| Crosstalk | -120 dB @ 1 kHz; better than -100 dB from 20 Hz – 20 kHz |
| Output Impedance (Unbalanced) | 22 Ω |
| Output Impedance (Balanced) | 44 Ω |

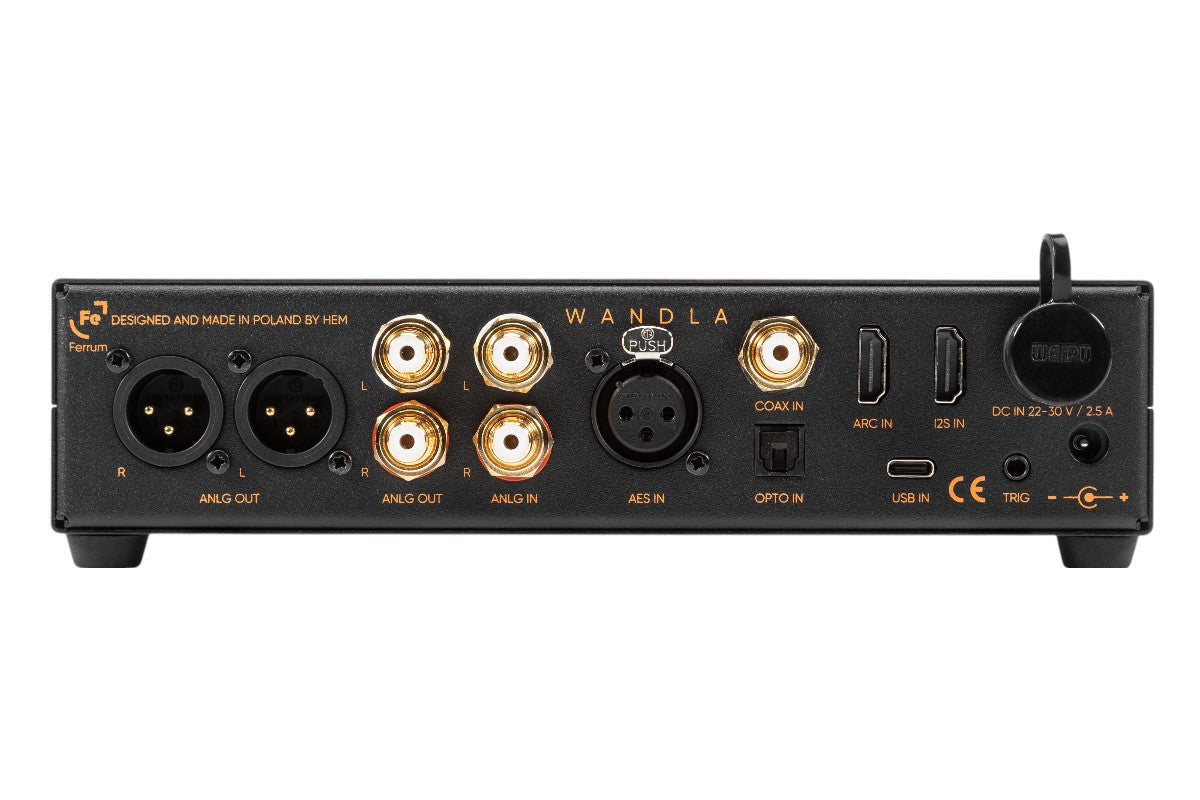

| Connectivity Specifications | |

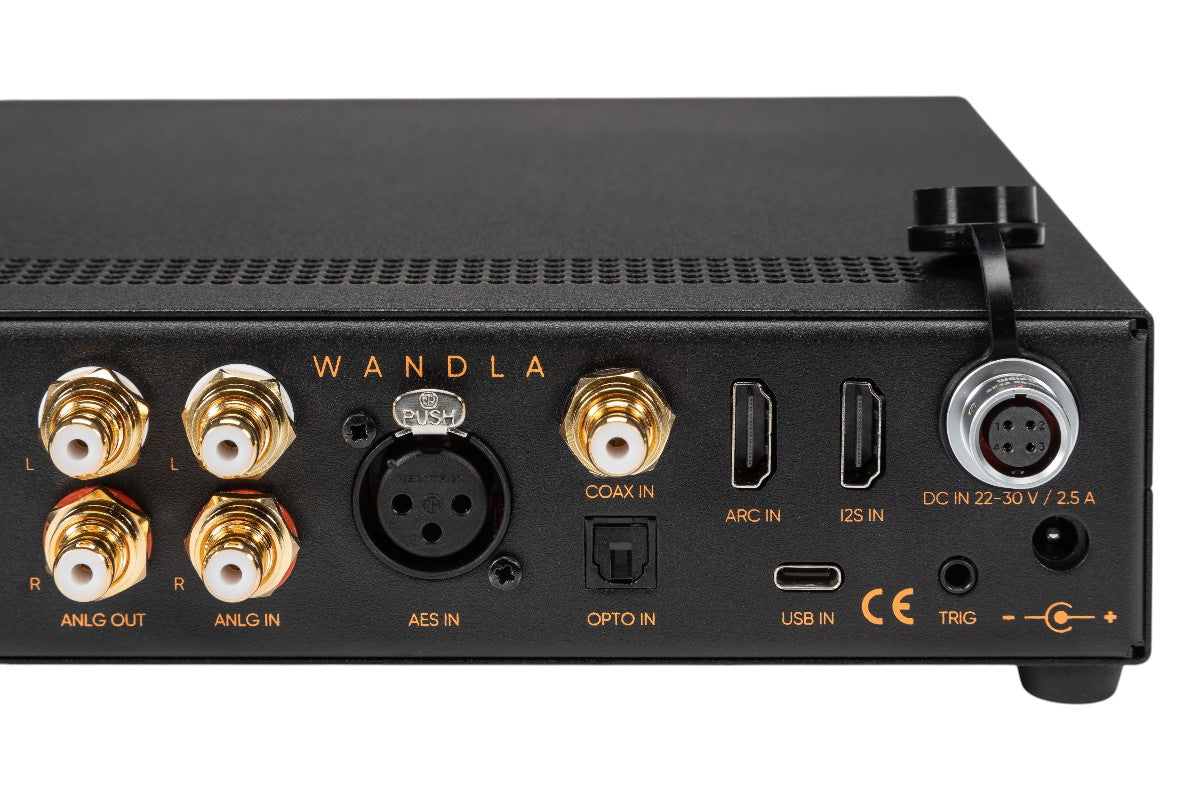

| Digital Inputs | • USB (up to PCM 768 kHz/32-bit, DSD 512, DoP 256) • I2S (up to PCM 768 kHz/32-bit, DSD 512, DoP 256) — PS Audio® compatible • ARC (up to PCM 192 kHz/24-bit) — TV input with CEC • AES/EBU (up to PCM 192 kHz/24-bit, DoP 64) • Optical S/PDIF (up to PCM 96 kHz/24-bit guaranteed; up to PCM 192 kHz/24-bit and DoP 64 depending on optical cable and transmitter) • Coaxial S/PDIF (up to PCM 192 kHz/24-bit, DoP 64) |
| Analog Inputs | RCA |
| Analog Input Vmax | 9.5 VRMS (2–3.5 VRMS recommended) |
| Analog Input Impedance | 47 kΩ |
| Line Outputs | Balanced XLR; Unbalanced RCA |
| Power Specifications | |
| Power Consumption | 10 W idle / 15 W max |
| Power Inputs | 22–30 VDC • Proprietary FPL 4-pin DC connector (FPL) • 5.5/2.5 mm DC connector, centre positive |
| Power Adapter | 100–240 VAC to 24 VDC |
