64 Audio
U18s Balanced Armature IEMs
$2,999.00 USDPay Over Time
Split your purchase into easy payments.
Fast approval with Klarna.
Select Klarna at checkout to split your purchase into smaller payments.
Features
LID technology and advanced 4-way passive crossover for exceptional detail retrieval
Handcrafted in USA from aerospace-grade aluminum with striking fractal design
Apex Technology modules for customizable isolation (-20dB, -15dB, -10dB)
Enveloping soundstage with direct, vibrant presentation and zero listening fatigue
Premium 8-braid silver-plated oxygen-free copper cable included
Wide 10Hz–20kHz frequency response reveals hidden musical details
What's in the Box?
Warranty
Housing an impressive 18 drivers per side, the 64 Audio U18S Balanced Armature IEM delivers world-class, reference-level sound quality in a universal housing. As the counterpart to the A18S Custom IEMs, the U18S combines proprietary drivers, LID technology, and a new electronic crossover network to deliver a uniquely exceptional listening experience. Handcrafted in the USA from aerospace-grade aluminum billet, CNC milled, sound blasted, fly cut, and twice anodized, the U18s is the daily driver you're missing in your busy life; the one up for the challenge.
Sound Quality Reimagined
Dive into your favorite tracks and rediscover them with a resolving lens where every note is reproduced authentically and accurately with precision. With 18 balanced armature drivers working in harmony, the U18s delivers direct, vibrant sound quality, revealing details that have gone unnoticed. The space between you and the performance is removed; the difference between hearing the best reproduction and experiencing it being played in real time. With an enveloping soundstage and a wide frequency response, the U18s IEMs place inside the music without fear of harshness or fatigue.
64 Audio's Key Proprietary Technologies
Designed and built by 64 Audio, the U18s leverages several of the company's proprietary technologies, including their tia (Tubeless In-Ear Audio) system, Apex (Air Pressure Exchange) system, and LID (Linear Impedance Design) circuit.
Tia–Tubeless In-Ear Audio
Tubeless In-Ear Audio (tia) reduces unwanted resonance and distortion for a transparent, lifelike sound signature. The Tia system is comprised of three elements: open-balanced armature tia drivers, the tia single-bore design, and tia acoustic chambers. The U18s features two major elements of the tia system: the tia driver and the tia single-bore design.
The tia driver is positioned at the mouth of the sound bore, allowing it to radiate directly into the ear canal. This open architecture allows the sound from all drivers to mix more naturally before reaching the ear, creating a more extended and natural high-frequency response. The Tia system is regarded for its ability to produce a more open, natural, and detailed sound compared to traditional tubed IEMs.
Apex–Air Pressure Exchange
Apex is 64 Audio's patented vent system that releases air pressure in a sealed ear canal, all while retaining standard IEM levels of isolation. This not only provides relief during long listening sessions, but also delivers a more realistic soundstage. Apex comes in three module variations for the U18s: mX, m15, and m20.
LID–Linear Impedance Design
LID is a patented circuit that corrects the non-linear electrical resistance of the multiple driver-sets compromising the U18s. Varying source amplifier output impedance in devices like smartphones, body packs, DAC/amps, and DAPs typically results in varying frequency response across them, depending on the increase in resistance. Restoring proper interaction with the source and preserving the desired sound signature enables a consistent, reliable sound.
To round out the U18s' impressive set of technologies is the electrical low-pass filter, a crossover circuit that replaces traditional acoustic dampers, which can introduce unwanted distortion through vibration and air turbulence. Rather than using acoustic dampers to filter unwanted frequencies after the driver produces them, the electrical low-pass filter lowers distortion by eliminating unwanted frequencies before they reach the driver.
8-Braid Silver Cable
- 8 Conductors
- 0.28 Ohms Total Impedance
- Pure Silver Plated Oxygen-Free Copper Wire
- 65 Strands of 44 AWG Wire
- Low Microphonics

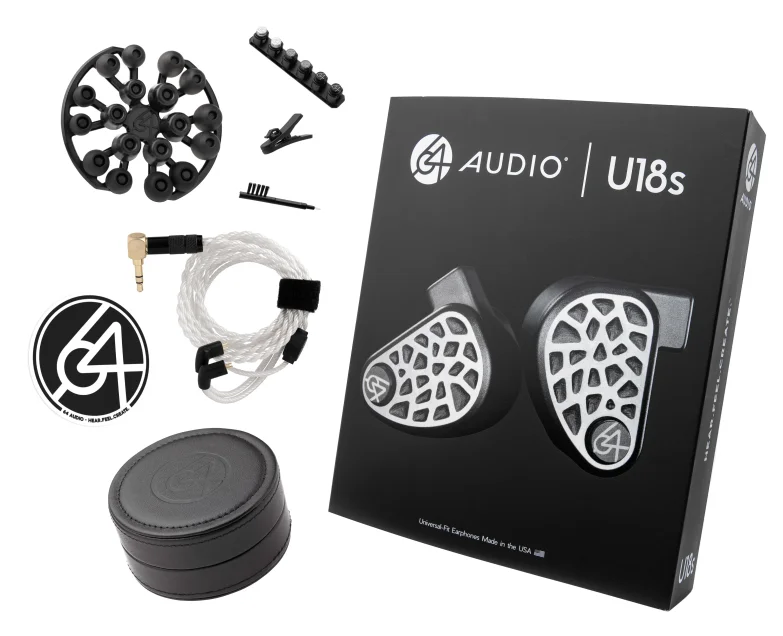

Included
- U18s Universal in-Ear Monitors
- 64 Audio Premium Leather Case
- TrueFidelity Foam Ear Tips (S, M, L)
- SpinFit Silicone Ear Tips (S, M, L)
- Silicone Ear Tips (S, M, L)
- 3.5mm 8-Braid Silver Cable
- Apex Modules: m20, m15, mX
- Round Sticker
| Parameter | Specification |
|---|---|
| Driver Configuration | |
| Driver Array | 1 tia High Driver 1 High-Mid Driver 8 Mid Drivers 8 Low Drivers |
| Technical Specifications | |
| Crossover | Integrated 4-way Passive Crossover |
| Apex Technology Isolation | -20dB, -15dB, -10dB |
| Audio Specifications | |
| Frequency Response | 10Hz - 20kHz |
| Sensitivity | 106 dB/mW @1kHz @ 1mW (84mV) |
| Impedance | 8Ω Nominal |
