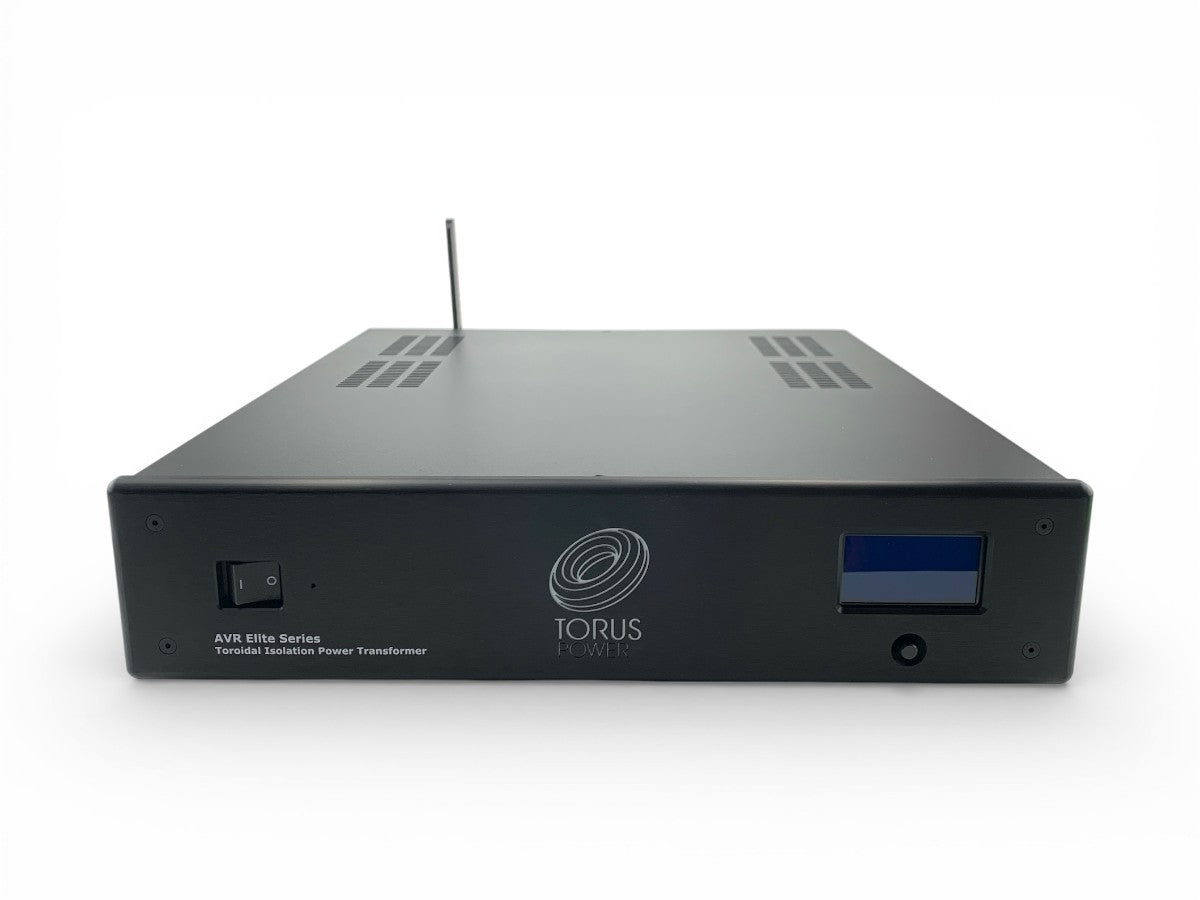

TOT AVR ELITE – Smart Isolation Power Conditioner
$5,999.00 USDFeatures
Automatic voltage regulation maintains a stable 116-124VAC output from 90-130VAC input
Series-mode surge suppression protects against severe power line surges
Microprocessor-controlled voltage monitoring and seamless switching
Front panel LCD shows input/output voltage, current, power consumption, THD, and fault conditions
Torus Power Connect is compatible with remote cloud-based power management
Automatic fault protection disconnects power during voltage extremes and restores it when safe
Three operation modes: Stand-alone (plug-and-play), Local Network (web browser control), Cloud Connection (WiFi-enabled)
Multiple faceplate options available: 19″ rack mount, 17″ silver, or 17″ black
What's in the Box?
Warranty
TOT AVR ELITE – Smart Isolation Power Conditioner
$5,999.00
All Torus Power AVR ELITE series models are full-feature state-of-the-art power transformers, isolating and protecting your system. Like all Torus Power products, the AVR ELITE series provides true isolation (using massive toroidal transformers) and protects all connected equipment from the risk of severe power line surges using series-mode surge suppression. Use Torus Power Connect to enable remote power management of the AVR ELITE.
In addition, Torus AVR ELITE provides stable voltage to keep equipment running in the optimal range of 116VAC to 124VAC (120V +/- 4V) for any input voltage from 90V to 130VAC. (International units operate within nominal input voltag,e such as 220V, 230V, 240V; Torus AVR ELITE keeps them operating within a range of +/- 8 V.)
Torus Power AVR ELITE technology uses microprocessoror to monitor and control the voltage, seamlessly switching the multi-tapped toroidal transformer to ensure the voltage powering your connected equipment remains in the optimal range. In the event of a high or low incoming mains voltage fault condition,n the unit automatically disconnects power to the connected equipment, adding another level of protection. When the input voltage restores to the proper range, the AVR ELITE will automatically restart normal operation to restore power to your connected equipment.

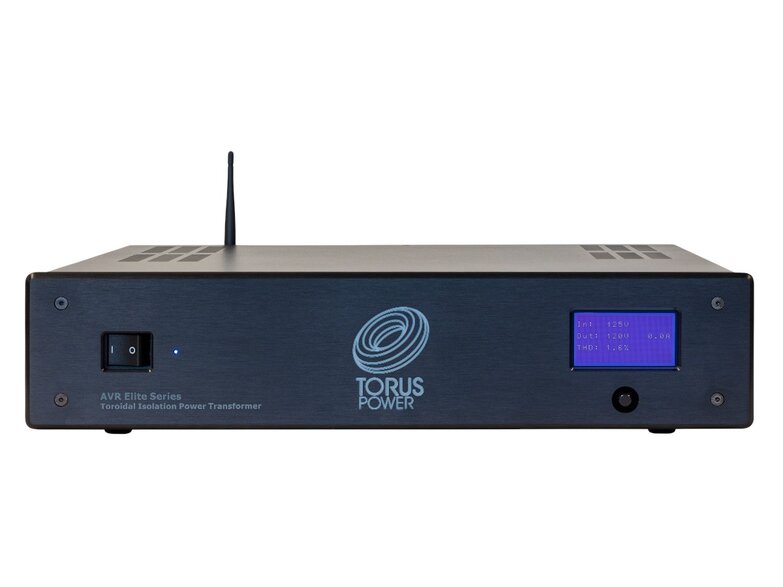

The Torus Power AVR ELITE includes an attractive front panel LCD to provide information regarding input and output voltages, output current, power consumption, total harmonic distortion, time and date, as well as displaying fault conditions.
Voltage sags, brownouts, and surges can stress components and shorten equipment life. Torus Power AVR deals with these problems effectively, providing stable voltages for your valuable equipment.
AVR ELITE Operation Modes
- Simplest: Stand-alone. Plug and play. No internet or internet connectivity required.
- Local Network: Web browser. Set up, monitor, and control on mobile devices, tablets, or computers on a local network using AVR's built-in web browser interface. Hard-wired network connection required.
- Cloud Connection: Torus Power Connect. Built-in WiFi allows connection to the Torus Power Connect cloud-based website for remote power management.
Full Features
- Torus Power Connect
- Toroidal Isolation provides ultimate clean power performance
- Voltage regulated to 120V (+/- 4V). For 220V-240V input models, the regulation is +/- 8V.
- Remote power management using Torus Power Connect
- All features of the AVR Series
- Powerful 32-bit processor
- Internal Flash Memory for 10,000 events to record data when offline to Torus Power Connect
- New separate high-reliability power supply module to further isolate the low voltage and high voltage paths
- Enhanced communication module including WiFi connectivity (used for Torus Power Connect operation and transparent update of firmware)
- Optical isolation between high voltage and low voltage to increase safety and compliance with new standards
- New circuit boards designed for high-resolution audio performance
- USB port for 3rd party connectivity, LED lighting, and charging
- Automatic shutdown of outlet power on low and high input fault conditions
- Series mode surge suppression protects against lightning, surges, spikes,s etc.
- Connect to the local network using a web browser
- Password control
- Email notification of fault conditions
- No programming or internet connection needed
- Larger LCD provides power data and fault condition details (configurable to turn off or dim on a timed basis)
AVR2 ELITE added/enhanced Features
- Individually addressable outlet zones for control and monitoring
- Power-up sequencing with selectable delay time between zones
- Scheduling features allow automatic control (on/off) of any outlet zone. Schedule remains active when the internet connection is lost, if the system power is maintained
- Schedule up to 6 events per day per zone
- The automatic reboot feature allows remote restart of routers and modems if the internet connection is lost
Torus Power Connect
Torus Power Connect is a powerful cloud-based website developed by Torus Power for control, configuration, data logging, and reporting.
Torus Power Connect provides Dealers and Installers with a customer dashboard to access each installation, enabling remote access, troubleshooting, and control via a browser interface on a smartphone, tablet, or computer.
The same features are available for Torus Power Connect users for their individual installation
Torus Power Connect features
- Enables installers or users to remotely manage an AVR ELITE and AVR-2 ELITE via a web browser on a computer, smartphone, or tablet.
- Installer Dashboard for power control management of single or multiple installations.
- Real-time power data.
- Historical power data reporting to verify and proactively address power source issues.
- Manually control the on/off state of each power outlet zone.
- Data logging and cloud storage
- Wi-Fi connectivity allows for transparent firmware updates and feature enhancements.
Narrow Bandwidth Technology
Torus Power Toroidal Isolation transformers restore incoming power to its clean original state using proprietary NBT transformer technology.
Torus Power’s design carefully balances the inherent inductance, capacitance, and resistance characteristics of the toroidal transformer, enabling the transformer to act as a very effective low-pass filter.
A Plitron NBT transformer powers Torus Products.
NBT removes line noise and outputs clean power.
Common and Differential Mode Noise Curves
Waveforms showing harmonics typical in switching devices.
The corner frequency for noise attenuation is 2 kHz with an attenuation rate of 12dB/decade to 500 kHz. Another important advantage of NBT technology is the elimination of external filters, such as capacitors, and other components that can fail over time. Torus Power attenuates both Differential Mode (L-N) and Common Mode (G-N) noise.

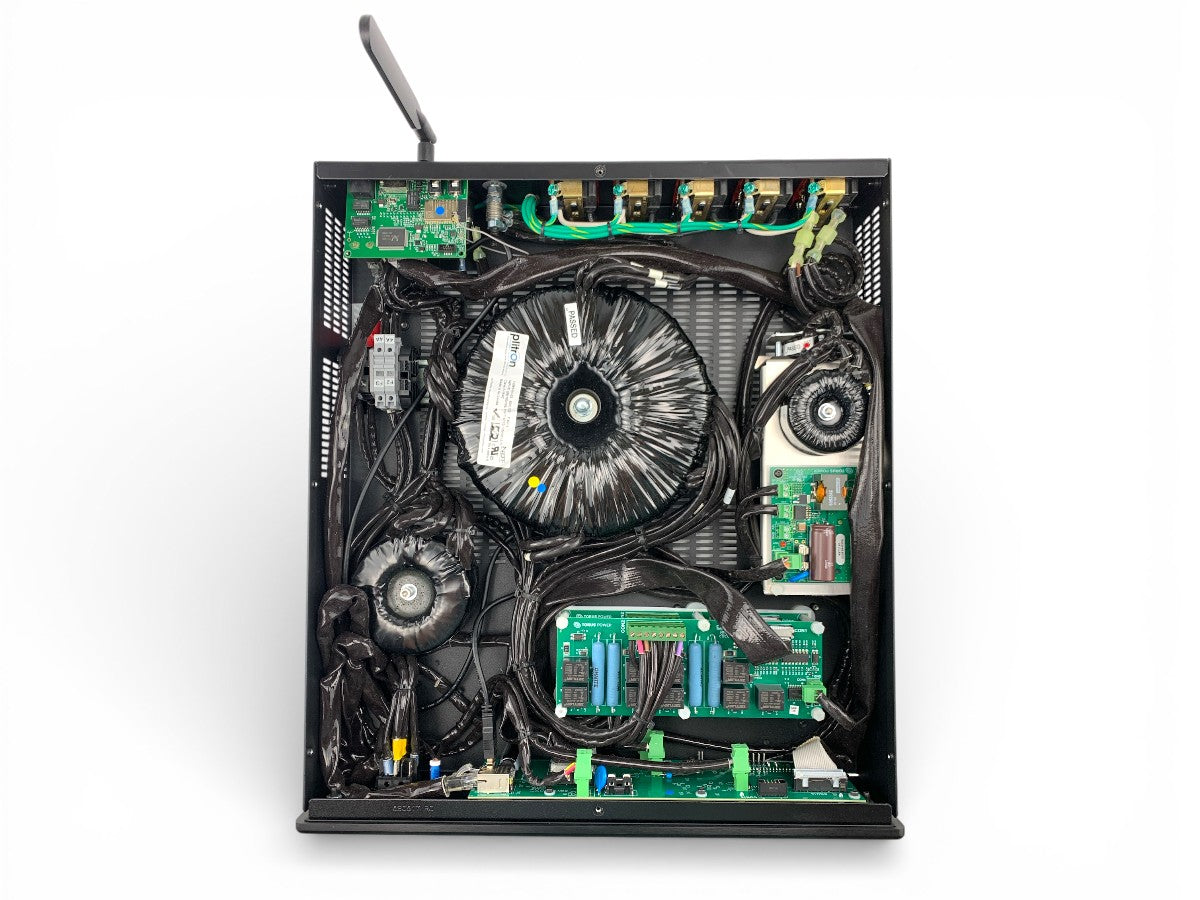

Toroidal Isolation
Torus Power transformers electrically isolate connected equipment from the incoming power. Torus Power Toroidal Isolation transformers feature triple shielding for ultimate noise attenuation and isolation from the increasingly noisy and polluted power lines.
LONO (Low Noise) technology eliminates audible noise in the Torus Power transformer regardless of line conditions, including DC offset and overvoltage. To ensure ultra-silent operation, a retaining band (for 3U, 4U, and 5U models) suspends the transformer inside the cabinet.
Torus Power meets the exacting NC10 acoustic noise standard, making it suitable for use in the quietest environments (including recording studio control rooms).
Series Mode Surge Suppression
Torus Power protects connected equipment through innovative series mode surge suppression that also pays attention to keeping the power clean. Most surge suppression circuits are shunt-mode. Excessive voltage surges are “shunted” to ground, which raises ground voltage and may contaminate audio and video signals.
Torus Power’s design absorbs surges more than 2V above peak line voltage, so the ground is not affected.
Torus Power surge suppression meets IEEE endurance standards of 6000 Volts, 3000 Amps, with 1000 repeats. Torus Power further innovates by using the Toroidal Isolation transformer to replace the series inductor typically used by other brands. This ensures extremely low stray magnetic fields within the chassis.
Automatic Voltage Regulation
Voltage sags, brownouts, and surges can stress components and shorten equipment life. Torus Power Automatic Voltage Regulation deals with these problems effectively, providing stable voltages for your valuable equipment.
Torus Power AVR functionality is preprogrammed to power off the system when voltage fault conditions occur, adding another level of protection. An attractive front panel LED displays power data, including the incoming mains voltage and the regulated output voltage. Hi-Ress Technology
Torus Power isolation transformers have a very low resistance to ground to keep the noise floor as low as possible while still providing ample, unrestricted current on demand.
This is the foundation enabling high-resolution audio systems to achieve a wide dynamic range with clean, distortion-free musical peaks even at high volume levels.
AVR technology continuously monitors incoming mains voltage to detect high and low voltage conditions, and seamlessly and instantaneously triggers compensating circuitry to ensure the voltages powering your equipment are always optimal.
Smart Ethernet
The AVR-2 and AVR-2 ELITE series extend the capabilities with individual IP addressable duplex outlet zones, scheduling, and automatic reboot features.

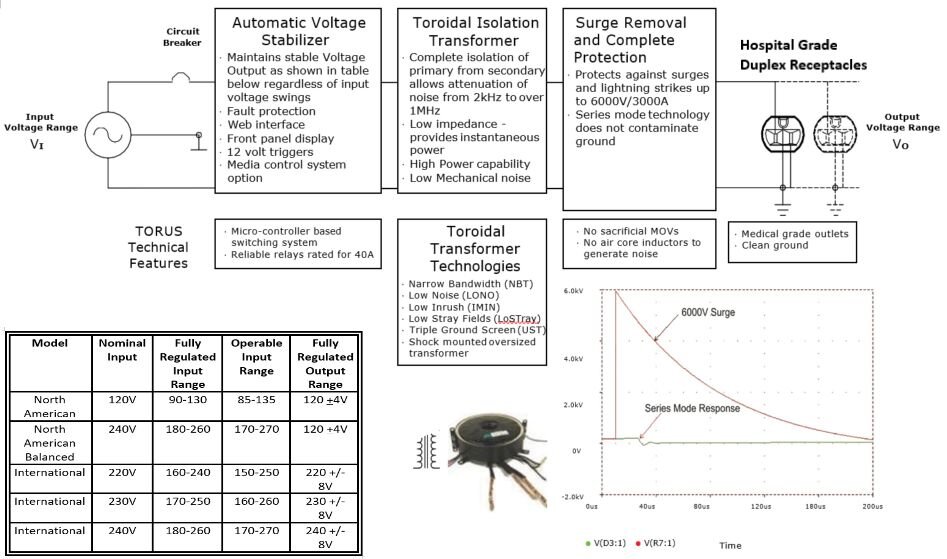

AVR ELITE Product Block Diagram

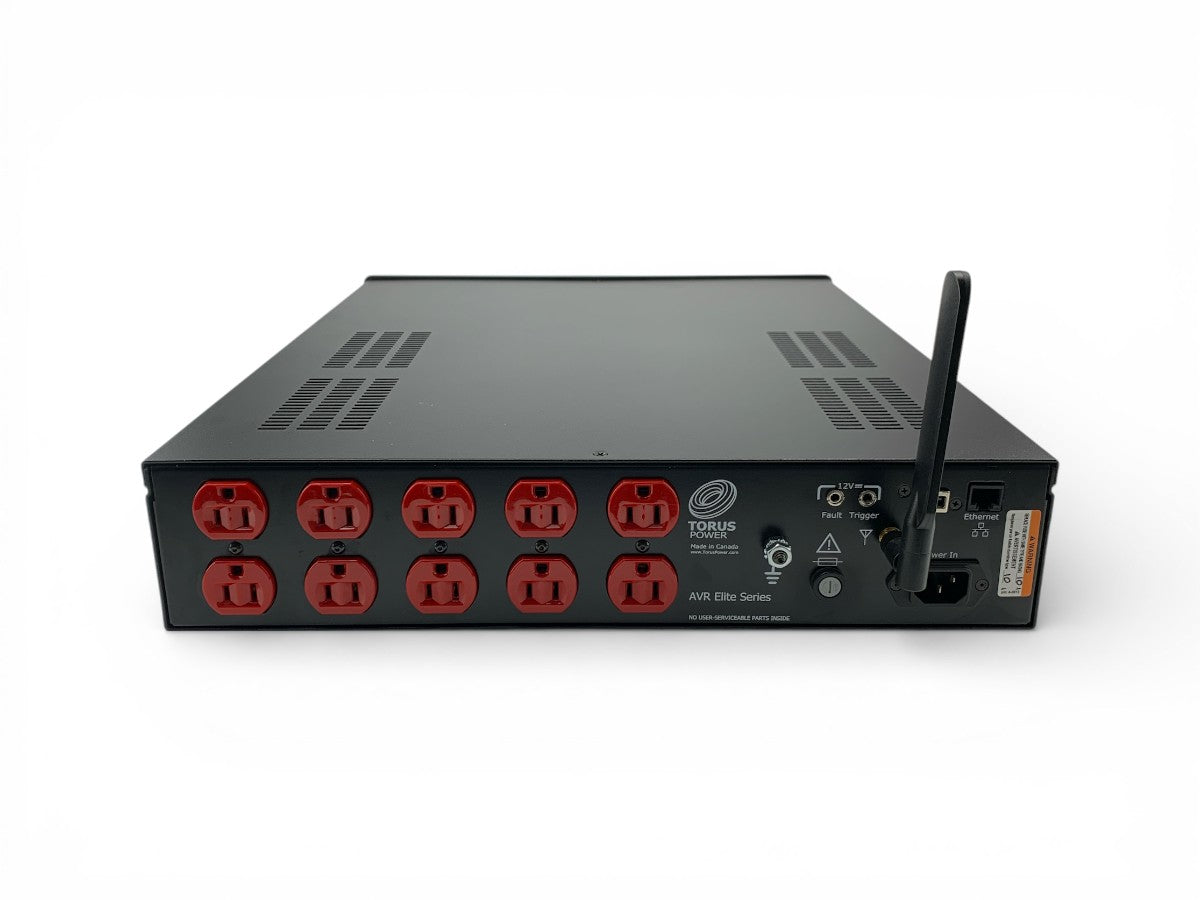

| Parameter | TOT AVR ELITE 10 | TOT AVR ELITE 10 SMSS |
|---|---|---|
| Physical Specifications | ||
| Faceplate | 19" Rack Mount (RK), 17" Silver (CS), 17" Black (CB) | |
| Chassis | 2U | |
| Size (cm) W × D × H | 43.2 × 48.9 × 10.2 | |
| Size (in) W × D × H | 17 × 19.3 × 4 | |
| Weight (lb) | 46.1 | 47.3 |
| Weight (kg) | 20.9 | 21.4 |
| Power Specifications | ||
| Input | 120 VAC, Range from 85 - 135 VAC | |
| Output | 120 VAC | |
| Input Fuse | 10A | |
| Output Current | 10A | |
| Power VA | 1200 | |
| Frequency | 60 Hz | |
| Electrical Specifications | ||
| Number of Outlets | 10 | |
| Output Style | NEMA 5-15R | |
| Surge Suppression | TVSS | TVSS & SMSS |
