Saros Audio Systems
Features
Five premium vacuum tubes: 2x 6H30P drivers, 2x 6922 preamp (or 6DJ8/ECC88/6N23P), 1x 6BW4 rectifier
Precision Swiss Elma 24-position stepped attenuator (48-position option available)
Ultra-precision VPG Z-Foil resistors in critical signal path locations
Premium German Mundorf capacitors throughout
Moon Audio Bronze Dragon wire in the signal path
User-replaceable tubes with professional biasing for sonic customization
Acoustic Sonic Barrier dampening in critical locations
Hand-assembled in Cary, North Carolina, USA
What's in the Box?
Warranty
For audio purists demanding more from their home audio system, the Saros Europa Fully Differential Tube Headphone Amplifier combines classic analog warmth with modern engineering precision. This two-stage tube amplifier serves dual purposes as both a reference-grade headphone amplifier and a high-fidelity preamplifier, making it an exceptional centerpiece for any audiophile system. With the ability to drive most headphones ranging from 16 Ohms to 300 Ohms, the Europa’s vacuum tube amplification is fit to handle even your toughest cans.
At its core, the Europa employs a sophisticated differential design–fully differential in balanced configurations with ground-lifted operation, and standard differential in single-ended or grounded modes–maintaining perfect signal balance from input to headphone drivers. This isn’t just technical elegance; it’s what allows you to hear space and depth that single-ended designs simply cannot deliver, eliminating noise while increasing dynamic range and revealing spatial information that brings your music to life.

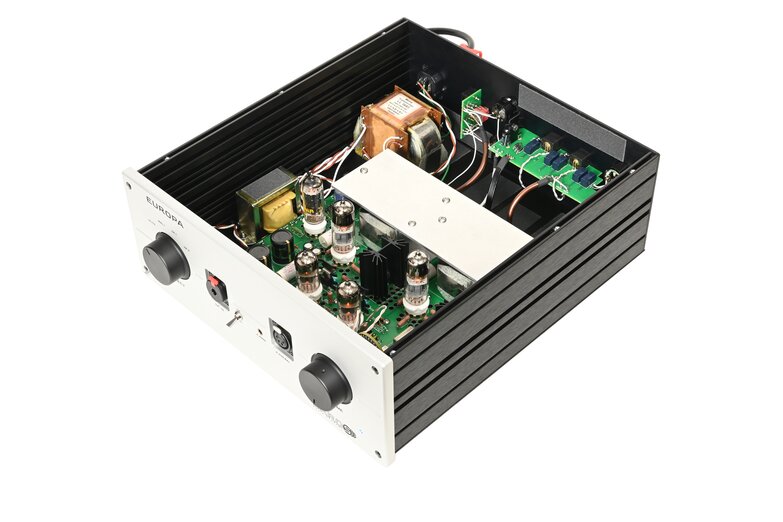

Every aspect of the Europa’s construction reflects an uncompromising commitment to sonic excellence. Hand-assembled with precision by skilled artisans, each amplifier represents a level of craftsmanship that mass production can’t achieve. From five premium Lundahl transformers and Elma stepped attenuators to audiophile-grade VPG Z-Foil resistors and Mundorf capacitors, every component is selected and placed with rigorous quality control. The integration of precision Constant Current Sources (CCS) for both triode stages delivers linearity typically unachievable in tube designs, while allowing fine-tuning of the push-pull configuration for optimal performance. Each unit undergoes a 40-hour burn-in period with meticulously matched CCS settings, ensuring that your Europa Amplifier arrives ready to deliver its full sonic potential from the first listening session.
The Saros Europa Fully Differential Headphone Tube Amplifier represents 20 years of obsessing over what actually makes music connect with your soul instead of just your brain. This isn’t just about analytical detail retrieval–it’s about emotional connection. It uncovers musical territories in familiar recordings you didn’t know existed. This is the revelation moment when you finally hear what's always been there in your music, experiencing what's been missing all along.
Maintained Signal Purity Through Every Stage
The Saros Europa’s signal path is engineered for maximum transparency and minimal distortion. Upon entering the amplifier via a relay-triggered Elma Electronic Inc. Selector Switch mounted on the front panel, the audio signal first encounters a high-line-level input transformer from Lundahl Transformers. This component serves multiple purposes: it steps down the input voltage while increasing current capacity, and effectively filters any DC offset that may be present from the source equipment, protecting downstream components and ensuring a pristine signal foundation.
From the input transformer, the signal passes through a precision Stepped Attenuator from Elma Electronic Inc., allowing for accurate volume control while tracking issues or noise common in potentiometer-based designs. The signal then enters the first gain stage, implemented with 6922 (or equivalent) preamp vacuum tubes configured in a push-pull topology–One triode handling the positive phase and one handling the negative phase of the differential signal. The preamp stage directly drives the powerful 6H30P vacuum tube, which is directly coupled to dedicated output transformers (one for each channel) from Lundahl Transformers. This provides a voltage gain of 15.6 dB, resulting in the ability to drive a variety of full-size headphones to adequate listening levels.
Power Supply

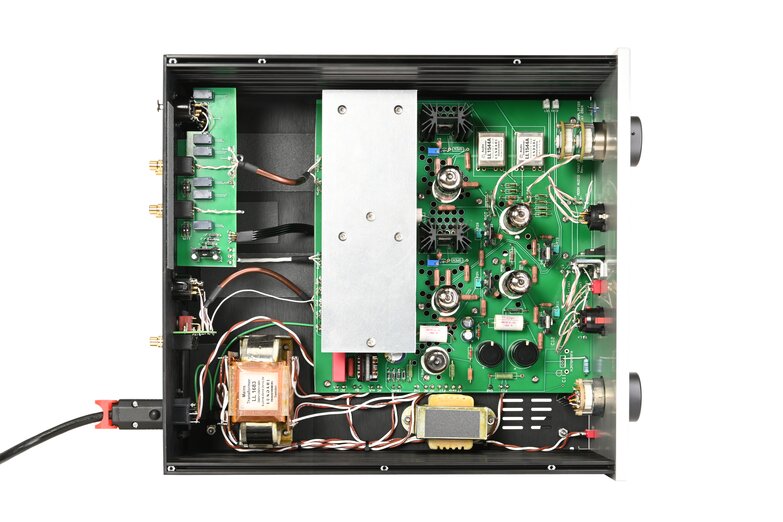

The Europa Tube Amplifier’s power supply is built to reference standards, recognizing that clean, stable power is fundamental to exceptional audio performance. A Lundahl Power Transformer provides high voltage, tube heater voltages, and logic level voltages.
High-voltage rectification is handled by the 6BW4 Vacuum Rectifier Tube, followed by extensive filtering with premium Mundorf Capacitors (both Electrolytic and MKP types). A Lundahl Transformers Choke provides additional filtering and regulation of the B+ power supply, effectively removing AC ripple while maintaining excellent transient response. Low-voltage DC rails are filtered using high-quality Panasonic capacitors. All critical signal level resistors are VPG Ultra High Precision, Z-Foil Audio Resistors, and all other Resistors are from DALE.
Vacuum Tubes
The Europa utilizes carefully selected vacuum tubes, each chosen for specific sonic and electrical characteristics. All tubes are user-replaceable, allowing you to explore different sonic signatures and maintain optimal performance throughout the amplifier's lifetime:
- 2 x 6922 Preamp Tubes
- 2 x 6H30P Driver Tubes
- 1 x 6BW4 Rectifier Tubes
6922 Preamp Tube Current Draw
4 mA (per triode)
6H30P Driver Tube Current Draw
19 mA (per triode)
Craftsmanship & Long-Term Partnership
The difference between the Saros Europa and mass-produced alternatives begins the moment skilled artisans first handle your amplifier's components. Each Europa Tube Amplifier is hand-assembled with astronomical precision—a level of care and attention that automated production lines can’t replicate. Every transformer is positioned for optimal magnetic coupling. Every connection is verified. Every tube socket is inspected. And after it’s all set and done, each Europa unit undergoes a 12-hour burn-in period before shipment. This handcrafted approach allows for rigorous quality control at every stage of construction, ensuring that your amplifier meets standards that simply aren't achievable in high-volume manufacturing.
Long-term serviceability is engineered into every aspect of the Europa’s design. User-replaceable tubes allow you to explore different sonic signatures and maintain peak performance over decades of use, while the modular construction and accessible layout ensure that service and upgrades remain straightforward throughout the amplifier's lifetime. We stand behind every Europa not just with a warranty, but with a commitment to supporting our customers for the long haul—answering questions, providing guidance on tube rolling, and ensuring your amplifier continues to deliver revelation-level performance for years to come.
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Finish | CNC finished front panel with black anodized aluminum chassis |
| Unit Dimensions | 14.25" x 13.5" x 6" (362 x 343 x 152.4 mm) |
| Unit Weight | Coming soon |
| Shipping Dimensions | 20" x 18" x 8" (508 x 457 x 203 mm) |
| Shipping Weight | Coming soon |
| Technical Specifications | |
| Vacuum Tubes | 2x 6922 Preamplifier tubes 2x Sovtek 6H30P Driver tubes 1x 6BW4 Full Wave High Vacuum Rectifier tube |
| Transformers | Five Lundahl Transformers (1676 Input, 1689AM/PP Output, 1683 Power, plus Choke) |
| Volume Control | Elma 24-position stepped attenuator (48-position available) |
| Resistors | VPG Z-Foil resistors in critical signal path locations Vishay wirewound resistors in other positions |
| Capacitors | Mundorf capacitors throughout |
| Signal Path Wire | Moon Audio Bronze Dragon wire |
| Audio Specifications | |
| Frequency Response | Coming soon |
| Compatible Headphones | 16-600 ohms impedance 74dB-120dB sensitivity range |
| Preamplifier Output Impedance | RCA: Coming soon XLR: Coming soon |
| Output Noise, Unweighted | Coming soon |
| Headphone Output Impedance | 16 Ω |
| Connectivity Specifications | |

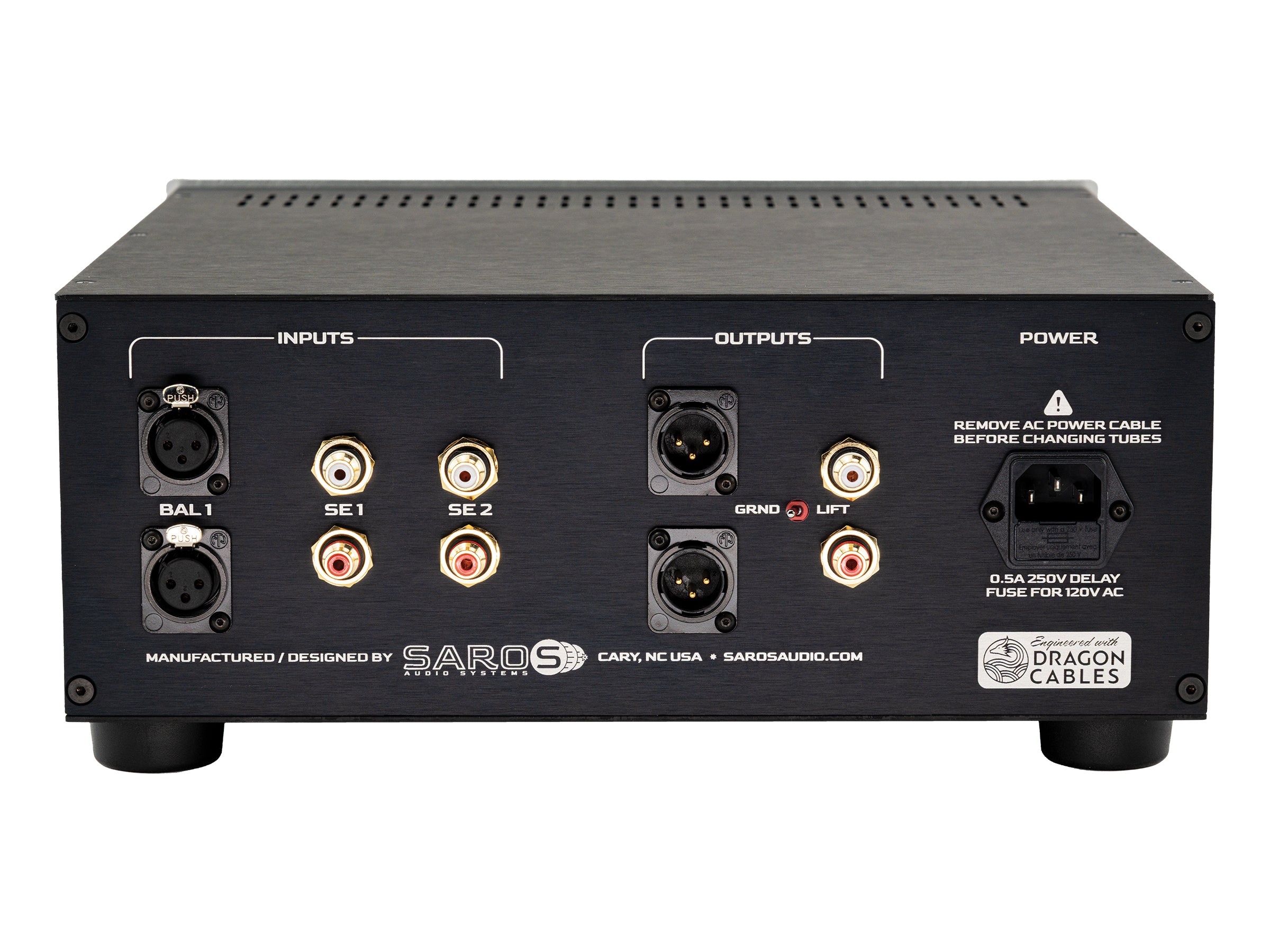

| Inputs | 1x XLR Balanced 2x RCA Single-Ended |
| Outputs (Preamplifier) | 1x XLR Balanced 1x RCA Single-Ended |

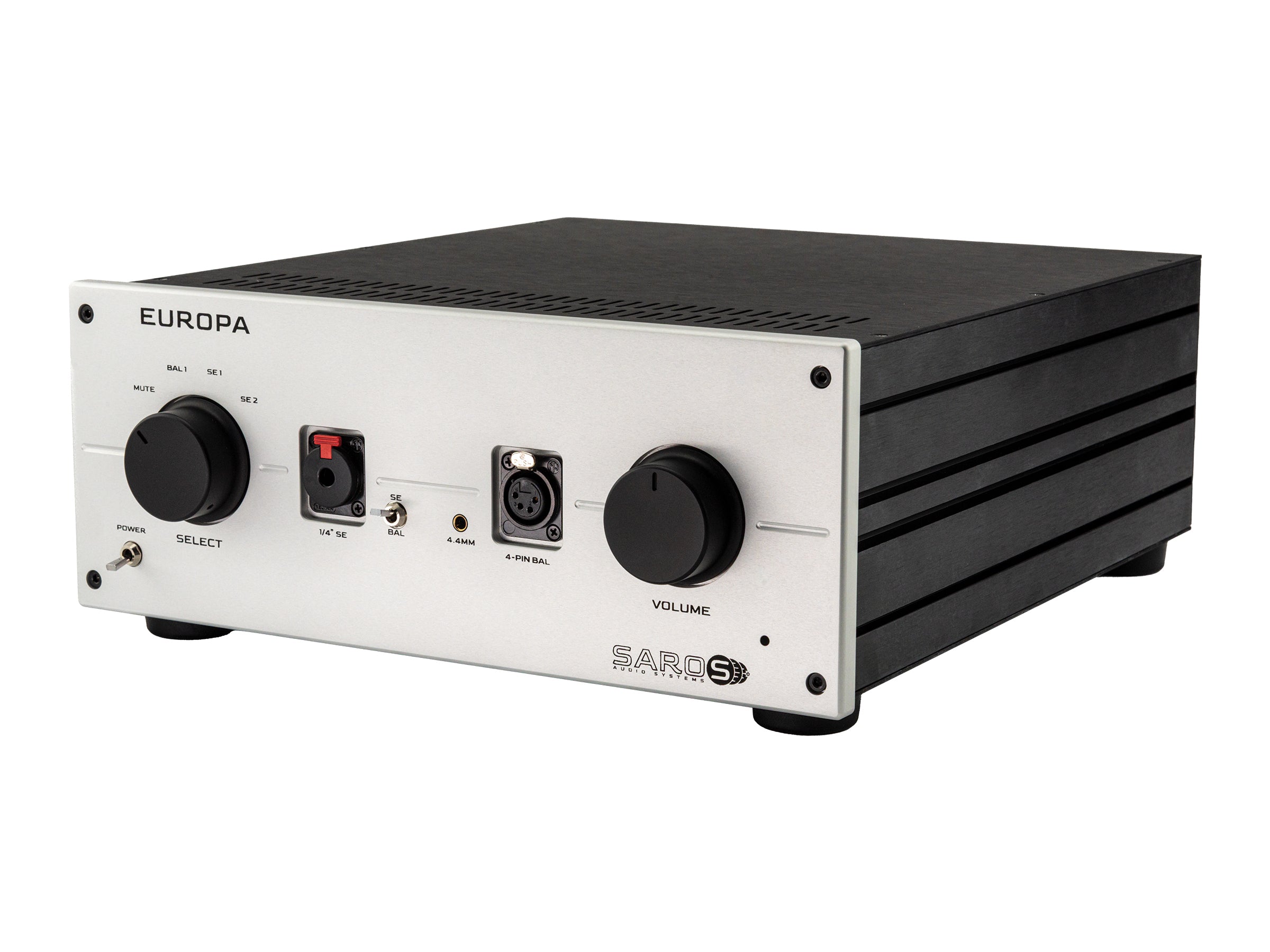

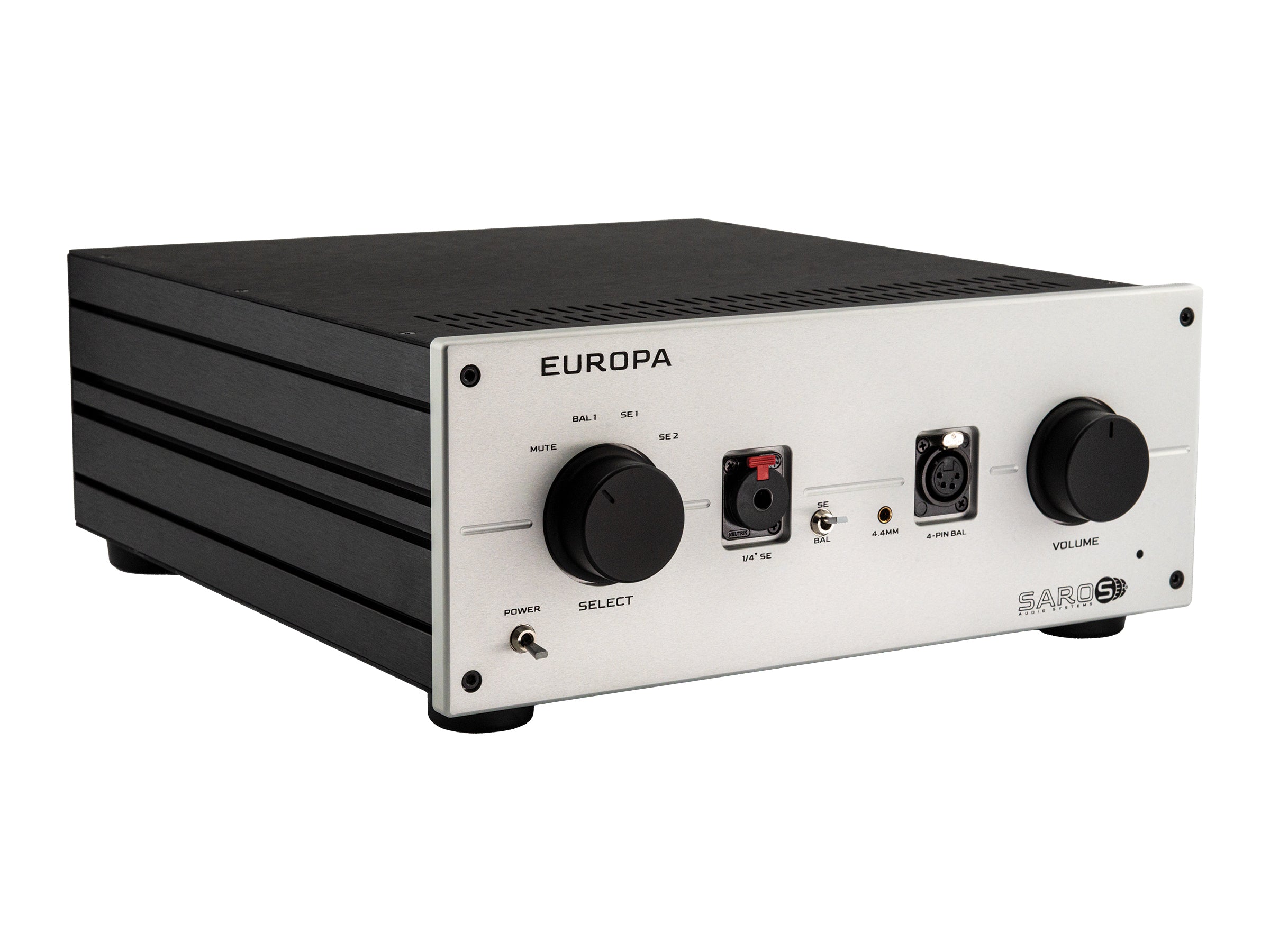

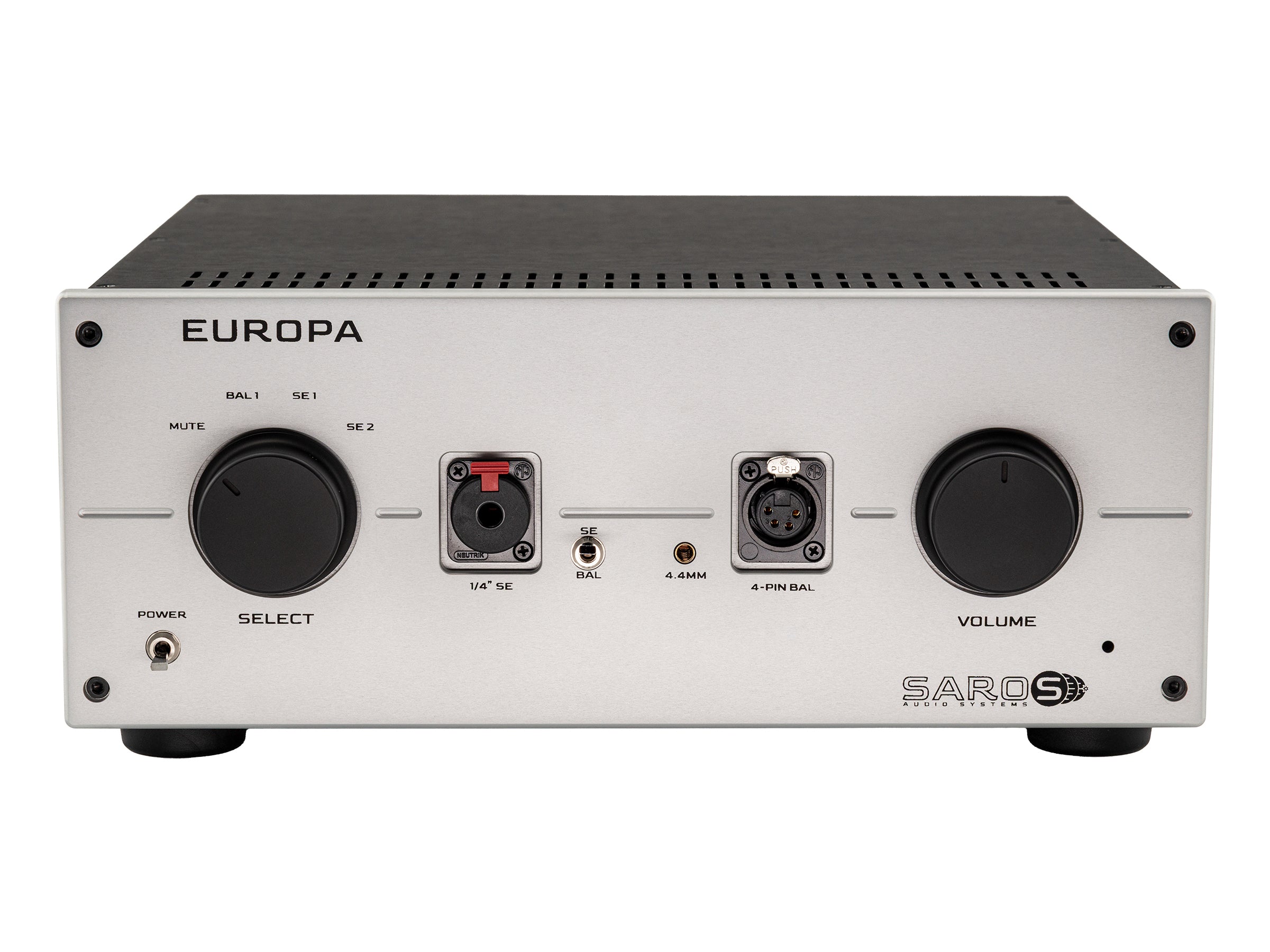

| Headphone Outputs | Balanced: 4-pin XLR and 4.4mm TRRRS Unbalanced: 6.3mm (¼") |
| Power Specifications | |
| Power Input | 115V AC |
| Power Consumption | Coming soon |
| Warranty & Support | |
| Warranty | 3 years |
