Grado

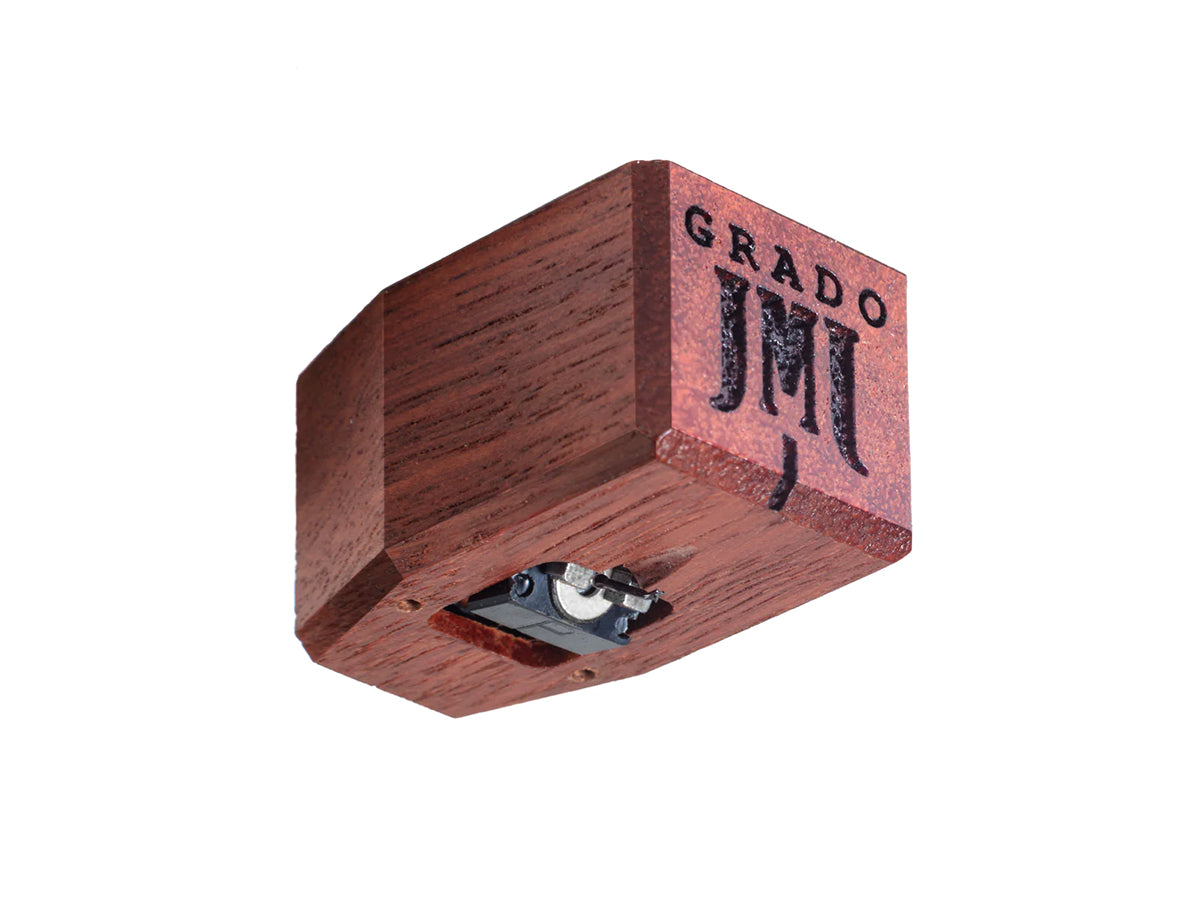

Reference3 Phono Cartridge
$1,500.00 USDFeatures
Specialized, longer curing process
Individually calibrated after being built
Cantilever: Machined Boron / True Ellipsoid Diamond
Choose high output, low output, or mono models
Non-sensitive to capacitive load

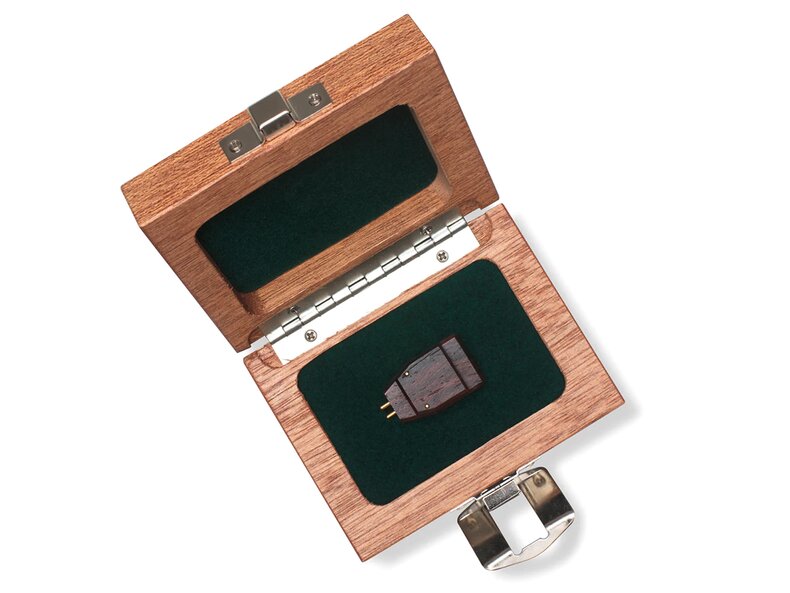

What's in the Box?
Warranty
The Master3 and Reference3 models use a five piece OTL cantilever technology achieving an additional 5% tip mass reduction over the Platinum3 and Sonata3 models. The coils are wound with ultra-high purity long crystal (UHPLC) oxygen free copper wire. The Master3 model is mounted with Grado's specially designed nude elliptical diamond, and the Reference3 model uses Grado's true ellipsoid design diamond. These cartridges are individually calibrated.
Fantastic Accuracy And Control From This Top-Of-The-Timbre-Series Cartridge
Built From Jarrah Wood
Achieving fantastic accuracy and control, the top-of-the-Timbre-line Reference3 phono cartridge from Grado Labs does everything the Master3 can do, but does it better. While similar to its younger sibling in some aspects, the Reference3 has a much longer build time since it undergoes extremely unique processes only a few Grado cartridges go through. This longer, more intricate practice produces a more colorful and deeper sound. The special curing process and individual calibration after manufacture results in the best cartridge in the Timbre Series.
To make the Grado Timbre Series work as a whole, Grado's engineers created a way for Jarrah wood, diamonds, and a twin magnet system to integrate with Grado's Flux-Bridge. Grado modified its four-piece OTL cantilever technology to achieve a 10% tip mass reduction over the Prestige Series and has ultra-high purity long crystal (UHPLC) oxygen free copper wire in the coils. The Reference3 uses a specially Grado designed true ellipsoid diamond.
After the Reference3 cartridge is crafted, it is placed inside an Australian Jarrah wood housing. Jarrah is relied upon for the majority of Timbre Series due to its ability to produce surgically precise clarity without losing any depth. Through a variation of thermal aging processes, the housing gains the ability to better dampen and control the resonant frequencies.
Extreme Precision
Hand Assembled In Brooklyn, USA
Grado has combined newly developed coil winding techniques with decades-old disciplines. A new two-step shielding process brings not only exact unison between the four coils but also an unobstructed path for a cleaner signal. The music is allowed to travel undistorted through the coils, greatly reducing mechanical noise. There is an extreme clarity over the full frequency range, with absolutely no stridency or shrillness. Precisely hand tipped with a diamond, each cartridge is the end product of a great amount of care.
Each Reference3 is hand assembled in Brooklyn, USA. Fine-tuned for everything from entry-level turntables up to the highest-end stereo systems, the solid mass of the wood helps keep the Reference3 steady and producing the Grado signature sound. started building cartridges on a kitchen table in 1953, and every experience since then has led to the creation of the Reference3.
Choose high output, low output, or mono models.
Specifications
- Body
- Australian Jarrah Wood
- Cantilever
- Machined Boron / Diamond Tip
- Output
-
- High Output
- 4.0mV @5 CMV (45)
- Low Output
- 1.0mV @5 CMV (45)
- Inductance
-
- High Output
- 55mH
- Low Output
- 6mH
- Resistance
-
- High Output
- 660 ohms
- Low Output
- 70 ohms
- Input Load
- 10k-47k ohms
- Cartridge Weight
- 10 grams
- Tracking Force
- 1.6-1.9 grams
- Compliance
- 20μm/mN
- Channel Separation
- Average 30db - 10-30k Hz
- Controlled Frequency Response
- 10-60 kHz
- Non-Sensitive to Capacitive Load
- Yes
- Builds
- High Output, Low Output, Mono
