Features
ESS Sabre Pro Conversion – Ultra-low noise design delivers –115 dB THD+N for transparent audio performance
Stereo 4-Way Active Crossovers – Complete HD-Active processing in a single chassis with digital outputs for all channels
Hexacore ARM Processor – Gen4 platform delivers superior time-domain and low-frequency phase resolution
5.5" AMOLED Touchscreen – Intuitive interface with LED volume control for effortless operation
What's in the Box?
The ultimate DEQX HD-Active™ preamp processor for active speakers. Now capable of stereo 4-way in a single chassis.
The Pre-8 has all of the Pre-4’s features but includes DEQX-HD-Active crossovers. It provides digital output options for all channels and can also be used with passive speakers.
Features
- Introducing the DEQX Cloud
The DEQX Gen4 processors interface over the network to the DEQX Cloud™. The result is intuitive, cross-platform, zero-install speaker calibration and room correction.
- Stunning audio performance
An ESS Sabre Pro ADC and DAC embedded in our custom circuitry and ultra-low noise power supplies deliver –115 dB THD+N (preliminary) from analog input to analog output. Our most transparent audio processor ever.
- Unlocking next-gen performance
DEQX Gen4 massively surpasses our previous models in processing horsepower. A powerful hexacore ARM processor delivers higher time-domain resolution and better low-frequency phase resolution.
- Unsurpassed usability

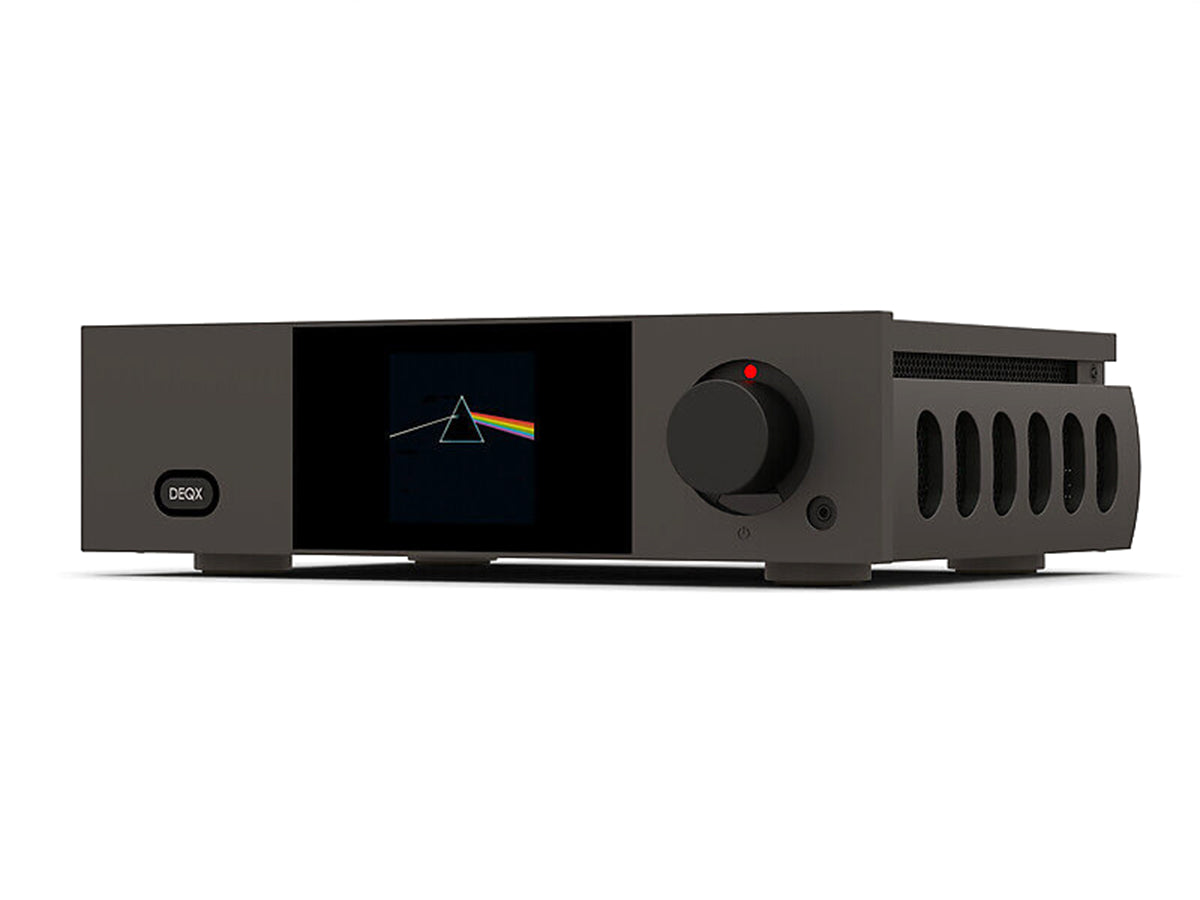

We've refocused on hardware usability, with a carefully selected set of features for each model, a large volume control with LED readout and 5.5-inch AMOLED touchscreen with customised glass front.
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Dimensions | W: 380mm, H: 110mm, D: 300mm |
| Display | 5.5" HD Touch Sensitive AMOLED |
| Power Consumption | 40VA |
| Mains Voltage Range | 100-240VAC 50-60Hz |
| Technical Specifications | |
| Digital Signals | 24-bit, 44.1kHz to 192kHz |
| Digital Processing | 44.1kHz to 192kHz (typically 96kHz) |
| Sample Rate Convert | Texas Instruments to 192kHz |
| WiFi | 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 |
| Trigger Out | 2 x 12V |
| Audio Specifications | |
| Frequency Response | +0/-0.8 dB, 10Hz - 40kHz +0/-0.9 dB, 10Hz - 36kHz |
| SNR | 120dBFS |
| THD | -116dBFS / 0.00015% -114dBFS / 0.0002% |
| IMD | -118dBFS / 0.00013% -120dBFS / 0.0001% |
| Dynavector Phono Preamp Specifications | |
| Frequency Response | RIAA ±0.2dB, 20Hz - 20kHz |
| THD | 0.001% (1kHz) |
| Input Impedance | 47kΩ // 220pF |

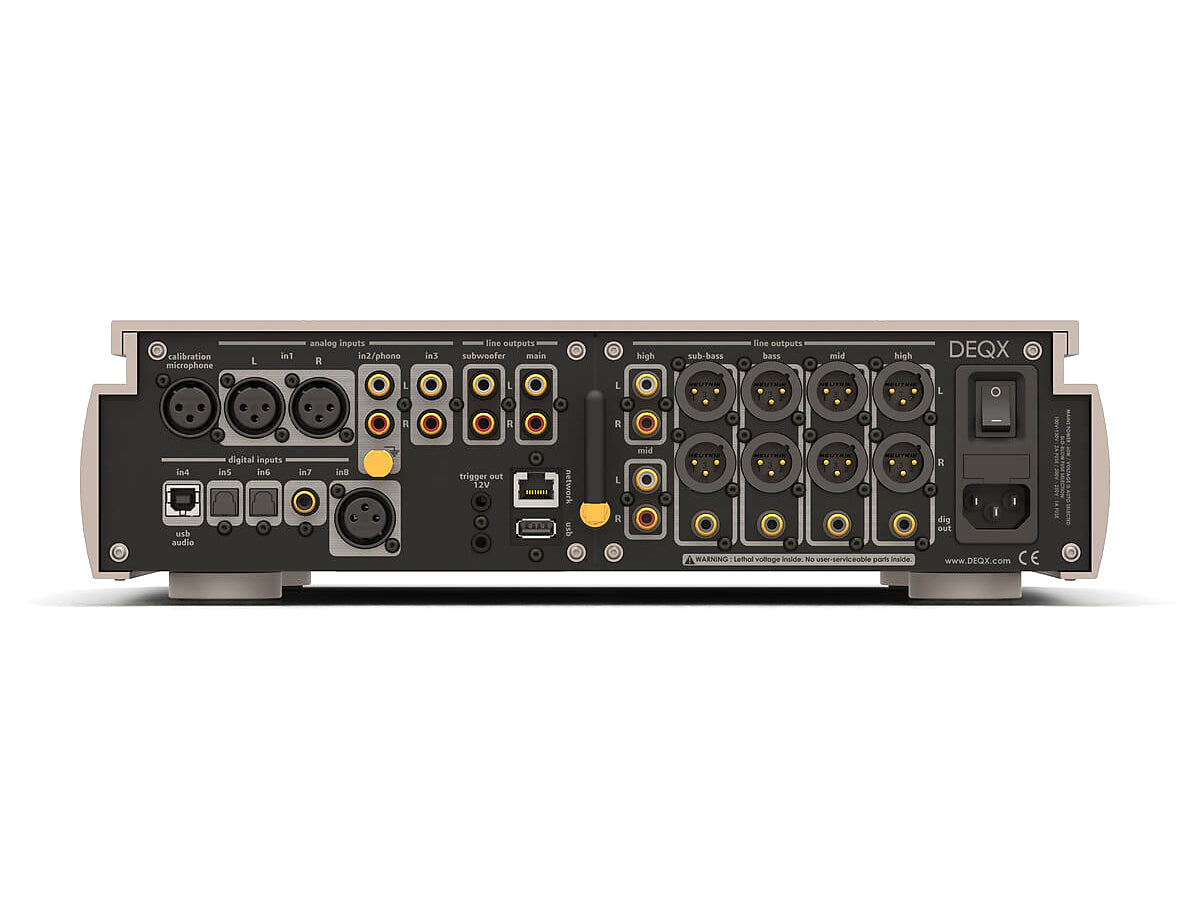

| Connectivity Specifications - Inputs | |
| Analog Inputs | Measurement Mic: XLR -48V Phantom Power Line Balanced: 2 x XLR Unbalanced Line: 2 x RCA Phono: 2 x RCA Phono (Optional) |
| Digital Inputs | USB: 1 x Type B USB 2.0 Optical: 2 x TOSLINK Coaxial: 1 x RCA AES-EBU: 1 x AES3 XLR |
| Connectivity Specifications - Outputs | |
| Analog Outputs | Sub Bass: RCA (unbalanced) and XLR (balanced) Bass: RCA (unbalanced) and XLR (balanced) Midrange: RCA (unbalanced) and XLR (balanced) High Freq: RCA (unbalanced) and XLR (balanced) |
| Digital Outputs | Sub Bass: S/PDIF RCA Bass: S/PDIF RCA Midrange: S/PDIF RCA High Freq: S/PDIF RCA |
| Streaming Specifications | |
| Streaming Services | Internet Radio Tidal (Native, Connect) Qobuz Attached (USB, NAS) UPnP / DLNA Roon (Certification pending) Bluetooth 5.0 AirPlay Compatible |
| Software & Processing Specifications | |
| Software | DEQX Cal-II Web Browser Based UI: PC/Tablet/Phone DEQX Cloud Processing |
| Active Crossover | Up to 4-way |
| Crossover Filters | Linear Phase, Linkwitz Riley, Butterworth |
| Slopes | Various from 6dB/octave to 200dB/octave |
| EQ Filter Types | FIR, IIR, DEQZ Low Latency FIR |
| ParaEQ | Separate L/R Speaker plus Global Multiband |
| Latency | Depends on filter, typically FIR 10ms (video sync) |
| TAPS | Typically 4K to 16K up to 8 channels |
