IsoAcoustics

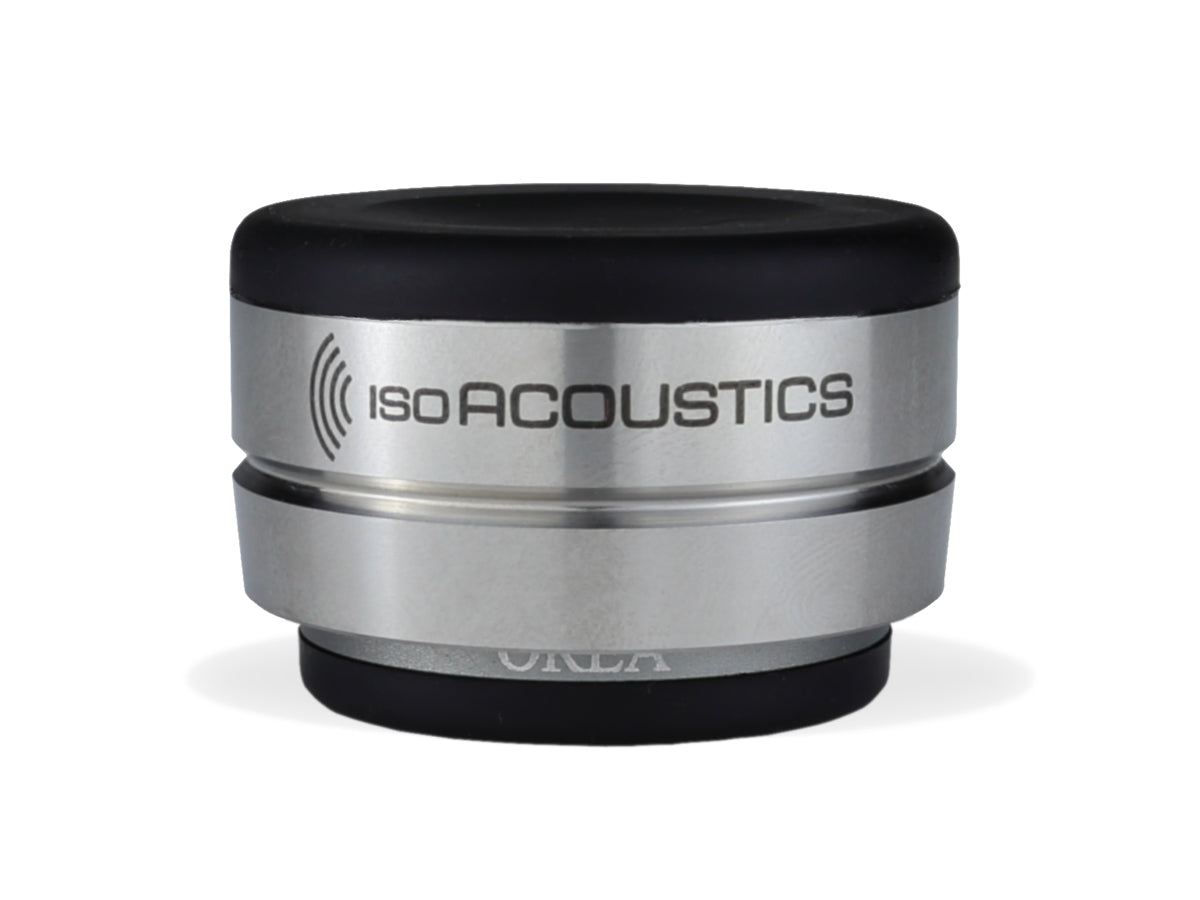

OREA Graphite Isolation Feet
$49.99 USDOREA Series: provides extraordinary levels of isolation for high-fidelity audio components and turntables.
The Fit
The upper flange of the OREA is designed to provide a suction cup-like effect and adhere to the underside of the component, while the lower flange adheres to the supporting surface. All the energy is managed within the core of the OREAs, which are tuned to work within specific weight ranges. This results in greater sound clarity and a more open soundstage, providing authentic, three-dimensional sound.
Your Choice of Feet or No Feet

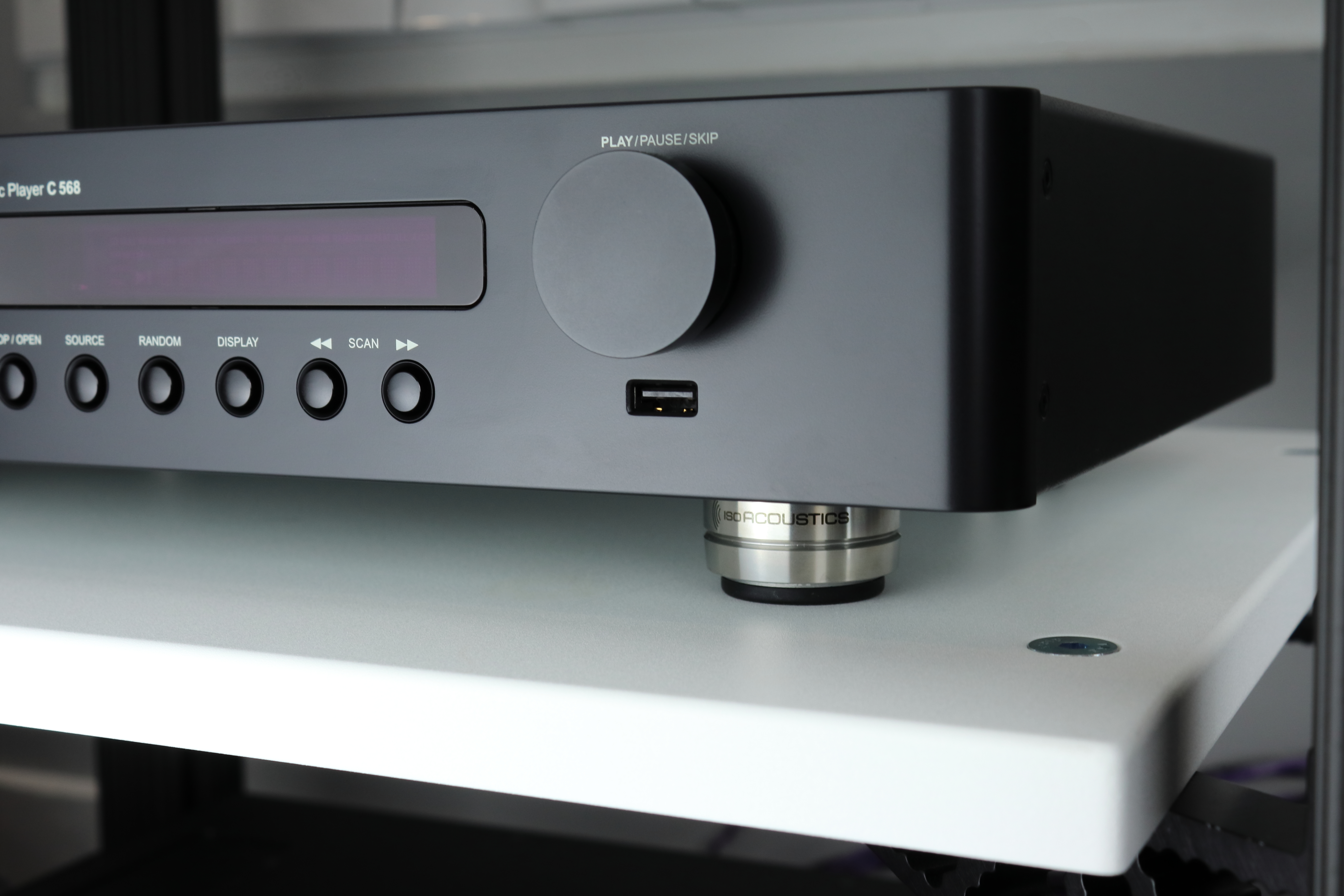

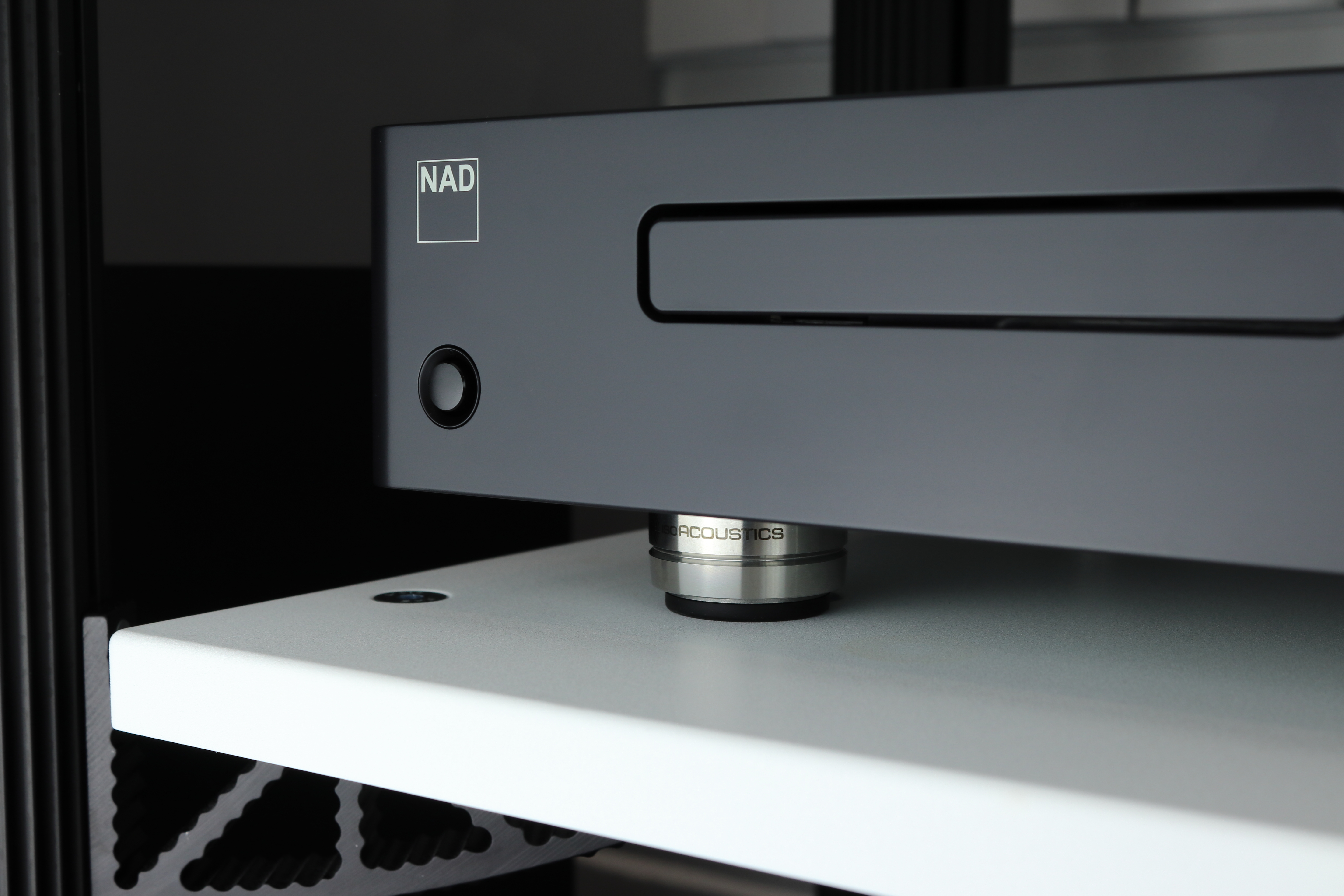

The existing feet on an audio component may connect well and fit nicely around the perimeter of the OREA isolator. Alternatively, you may get better performance by either removing the feet entirely or placing the OREAs beside the existing feet to have them connect directly to the chassis or base of the component.
Experience the Orea Series audio component isolation feet, designed to eliminate parasitic vibrations and provide greater sound clarity and focus. Ideal for electronic components such as Amplifiers, DACs, CD Players, Speakers, and Turntables, the OREA isolation feet are made of machined stainless steel and feature a low-profile design to minimize any increase in height.
Each OREA model is designed with a different weight capacity. They each have a coloured ring on the bottom isolator that denotes the model and weight capacity. The OREA series is packaged individually to allow greater flexibility when determining the number of units to use. We recommend a minimum of 3 units under each component, depending on weight.

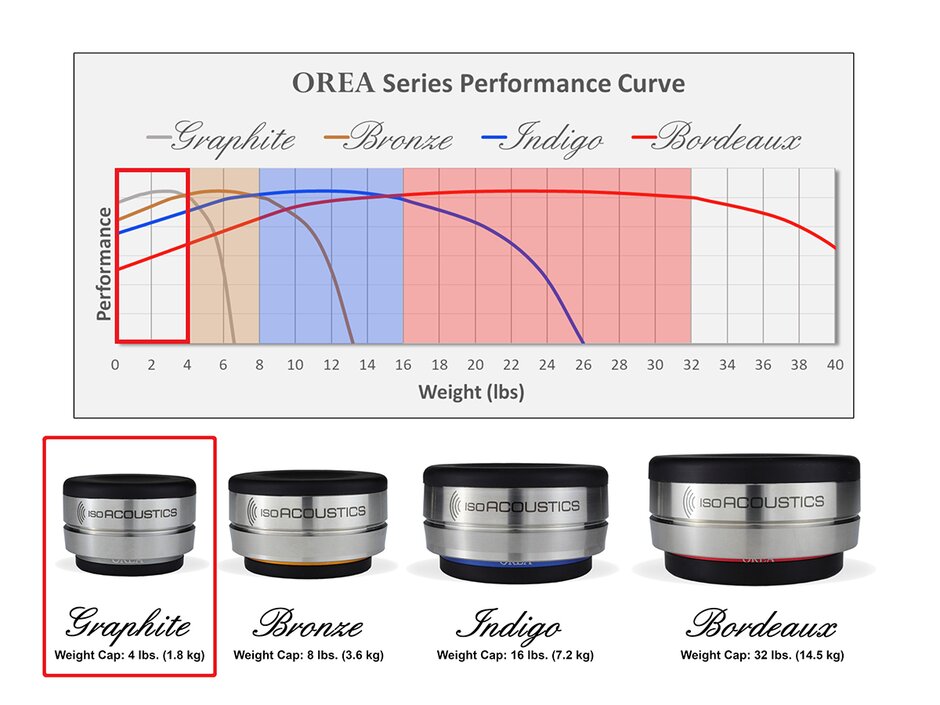

OREA Series Models and Performance Curve
Weight Capacity
The weight capacity for a single OREA Bronze isolator is 8 pounds (3.6 KG). The OREAs are designed to be used in multiples to match the weight of the component or speaker. The total weight capacity is calculated as follows:
Total Weight Capacity = [Weight cap. per isolator] x [Qty of Isolators]
The total weight capacity for the OREA Bronze is summarized in the table below:
4 lbs (1.8 kg)
per isolator
Quantity
3
4
5
6
Total weight Capacity
24 lbs (10.8 kg)
32 lbs (14.4 kg)
40 lbs (18 kg)
48 lbs (21.6 kg)
It is common to use 3 or 4 OREA isolators for each component or speaker, but keep in mind that it is most important to stay within the weight capacity of the OREA isolator.
The weight distribution of the component can also be taken into account. If, for example, the component is heaviest at the back, then it is common to use 3 isolators with 2 positioned at the back corners and 1 positioned front/center.
Benefits of Isolation Equipment
Equipment can be sensitive to vibrations and forces. Removing parasitic vibrations releases new levels of sound clarity and openness when used with amplifiers, DACs, CD Players, turntables, and more.
Applying patented IsoAcoustics design principles provides the highest degree of vibration isolation and energy management for high-fidelity audio components. Removing parasitic vibration releases new levels of sound clarity and openness when used with amplifiers, monoblock amplifiers, DACs, CD players, turntables, and more.
| Parameter | Specification |
|---|---|
| Physical Specifications | |

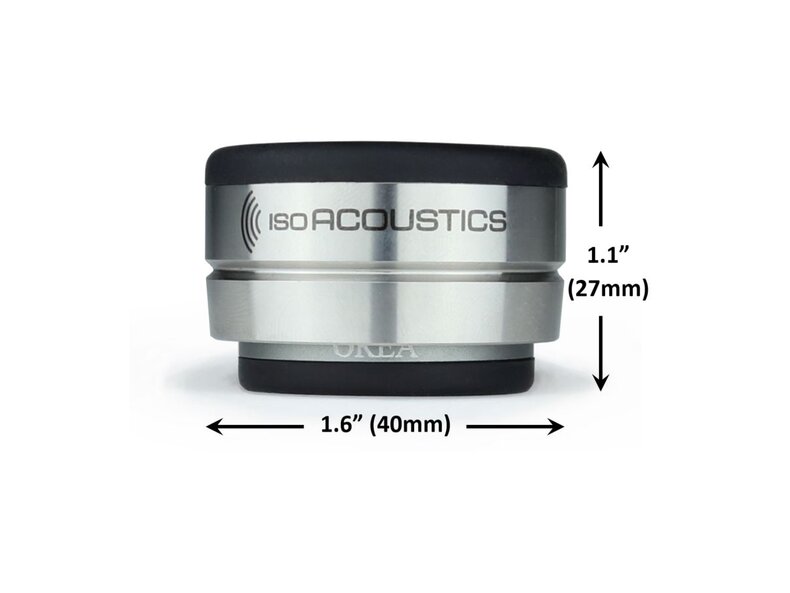

| Dimensions | 1.6" W x 1.1" H (40mm x 27mm) |
| Tilt | None |
| Technical Specifications | |
| Weight Capacity | 4 lbs (1.8kg) per OREA Graphite unit |
| Quantity | 1 unit |
