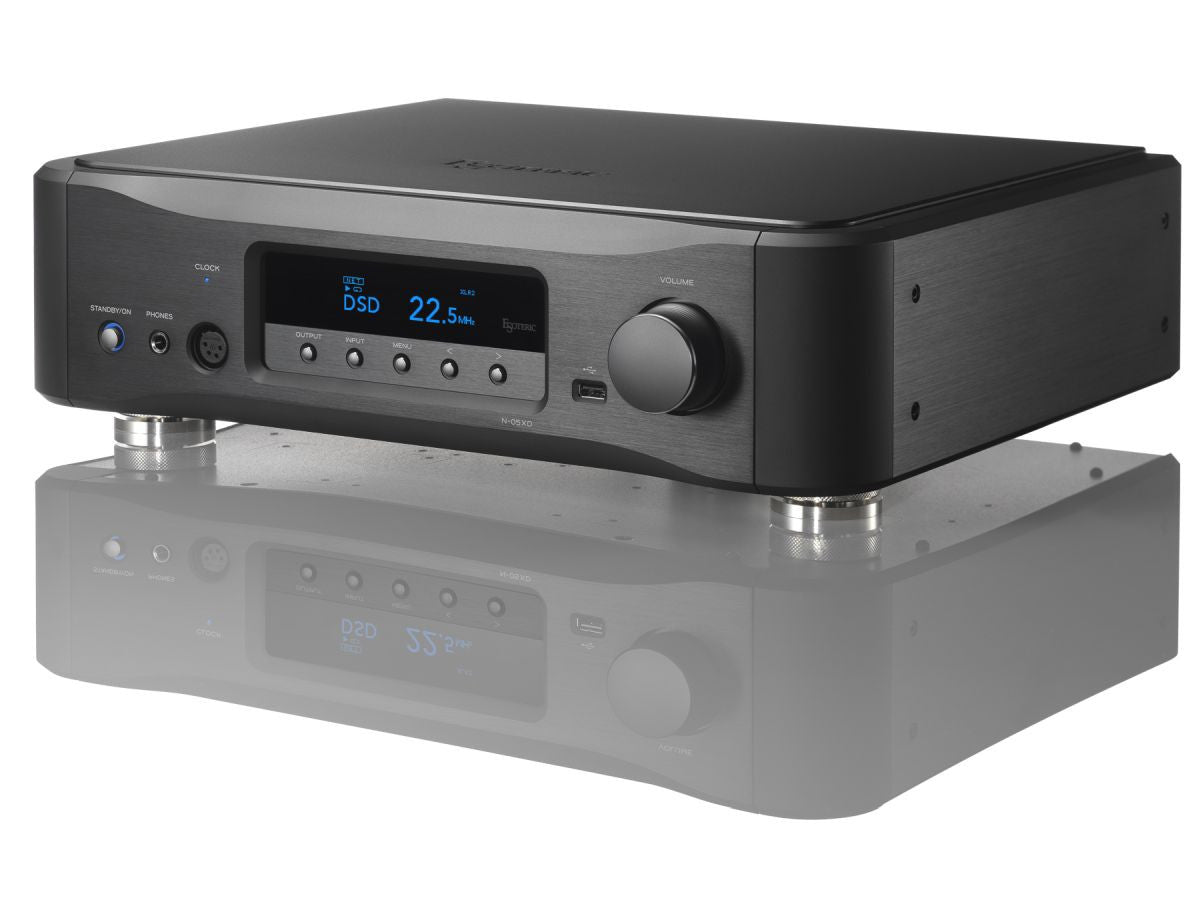

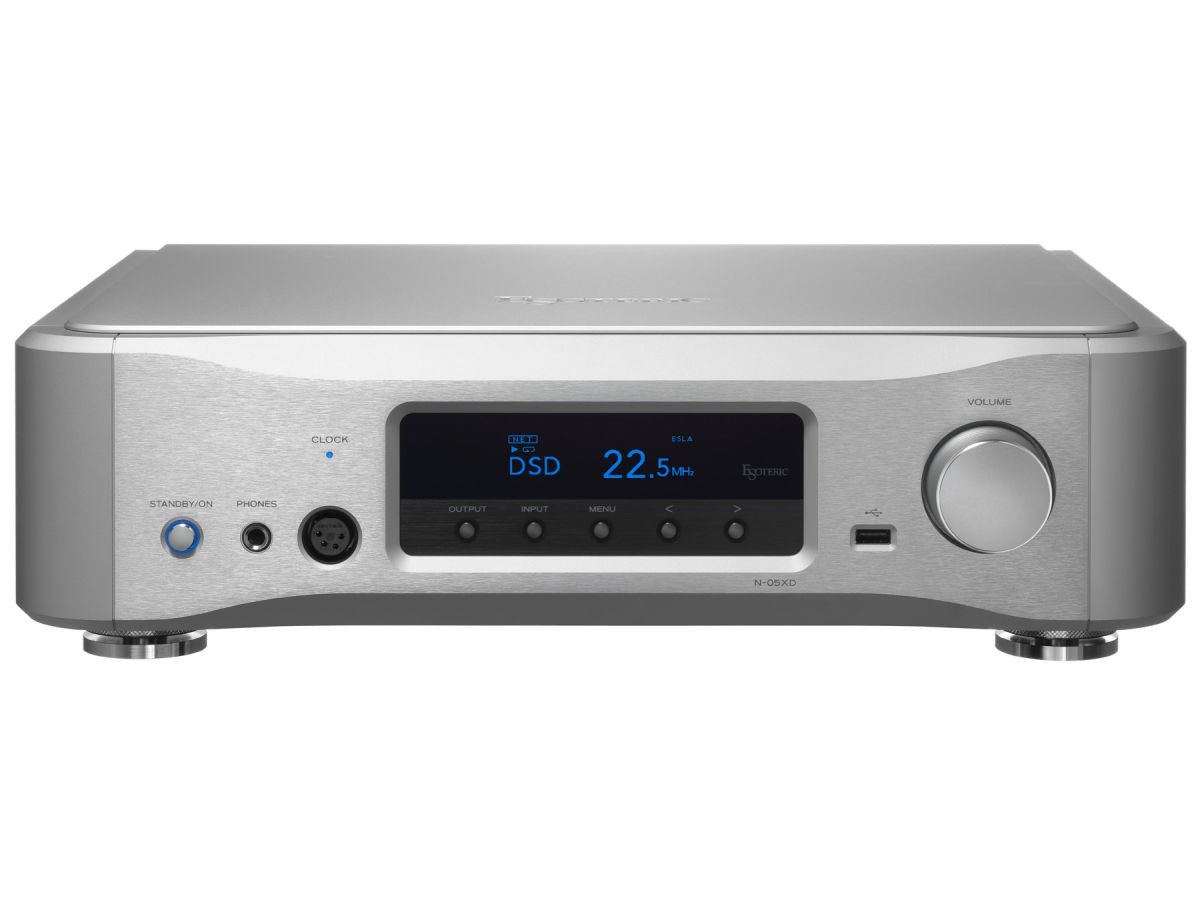

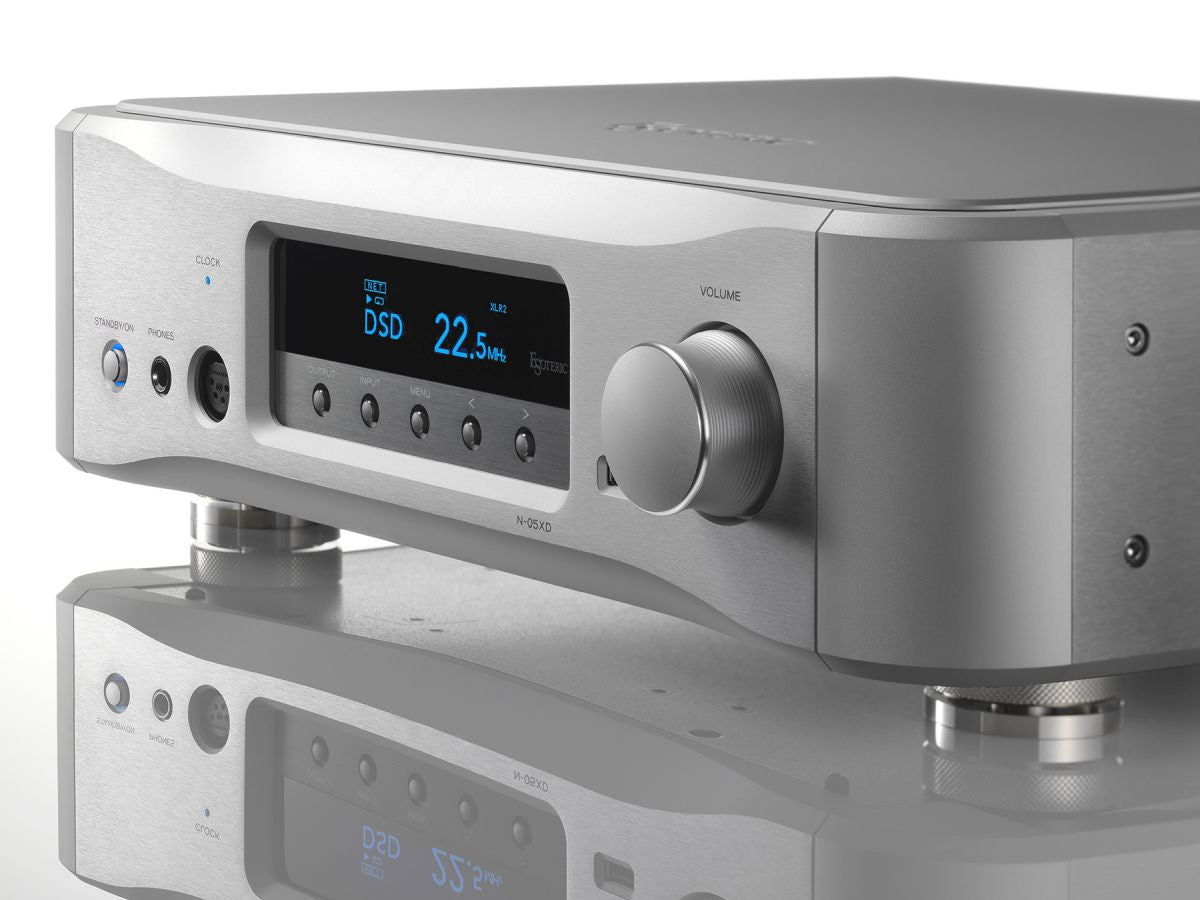

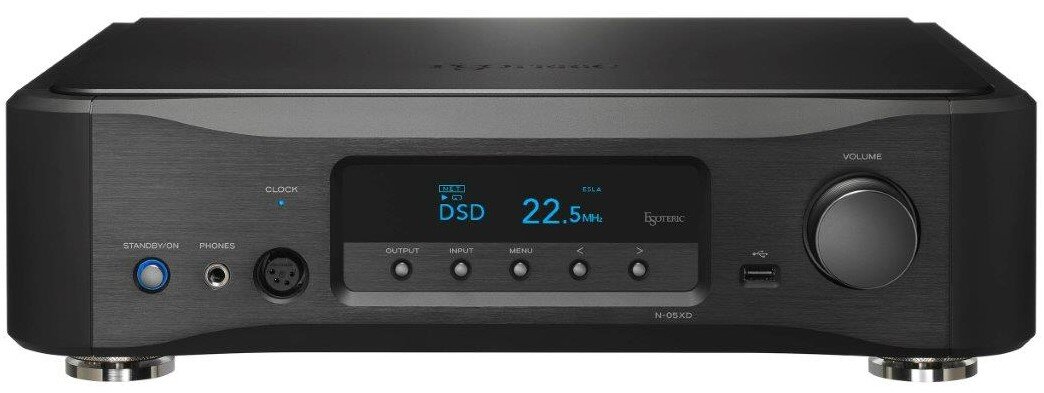

N-05XE Headphone Amplifier, USB DAC and Network Player
$13,000.00 USDPay Over Time
Split your purchase into easy payments.
Fast approval with Klarna.
Select Klarna at checkout to split your purchase into smaller payments.
Features
4th-generation Esoteric Network Engine G4 with SFP optical port for fiber-optic connectivity, isolating the signal from network-borne noise for unparalleled playback purity
Dual-mono, dual-balanced preamplifier derived from the flagship Grandioso line — 8 fully independent circuits for left/right and hot/cold signal paths with exceptional channel separation
Newly developed dual-mono, parallel single-ended headphone amplifier delivering 1,200 mW + 1,200 mW (32 Ω load) via 4-Pin XLR and 6.3mm stereo phone outputs
Native DSD 22.5 MHz playback support with independent FPGA algorithms optimized separately for PCM and DSD formats
Roon Ready with a dedicated RAAT mode that disables non-essential network functions for enhanced playback quality; also supports Tidal Connect, Qobuz Connect, and Spotify Connect
Built-in Bluetooth receiver supporting high-definition codecs: LDAC, LHDC, Qualcomm aptX HD, aptX, AAC, and SBC — with multipoint connectivity for seamless device switching
ES-Link Analog proprietary current signal transmission via HCLD buffer (slew rate: 2,000 V/μs) for pure, studio-monitor-grade signal integrity
10 MHz master clock input for synchronization with the Esoteric G-05 external clock generator for further sonic refinement
Patented Pinpoint isolation feet, semi-floating top panel, and precision laser-cut chassis slits for superior resonance control and a spacious, open soundstage
What's in the Box?
Warranty
Network DAC Preamplifier N-05XE
Condensing the appeal of an ultra-high-end system, this minimal and versatile, best-selling Esoteric system has evolved into the "XE" model, offering even richer musicality.
With the Network DAC Preamplifier N-05XE and Class A Power Amplifier S-05XE, all that remains is to choose the perfect speakers for your system.
The N-05XE network DAC preamplifier features next-generation discrete DAC and network engine technologies for even higher sound quality.
Designed to deliver the highest sound quality in the smallest possible system configuration, the N-05XE features an optical network-compatible G4 network engine and a next-generation G2 discrete DAC. It also has a dual balanced preamplifier derived directly from the Grandioso models, along with a high-quality built-in headphone amplifier.
The "XE" model retains its acclaimed functionality while meticulously refining every circuit component through a newly optimized design. Enjoy the refined Esoteric signature sound to your heart's content.

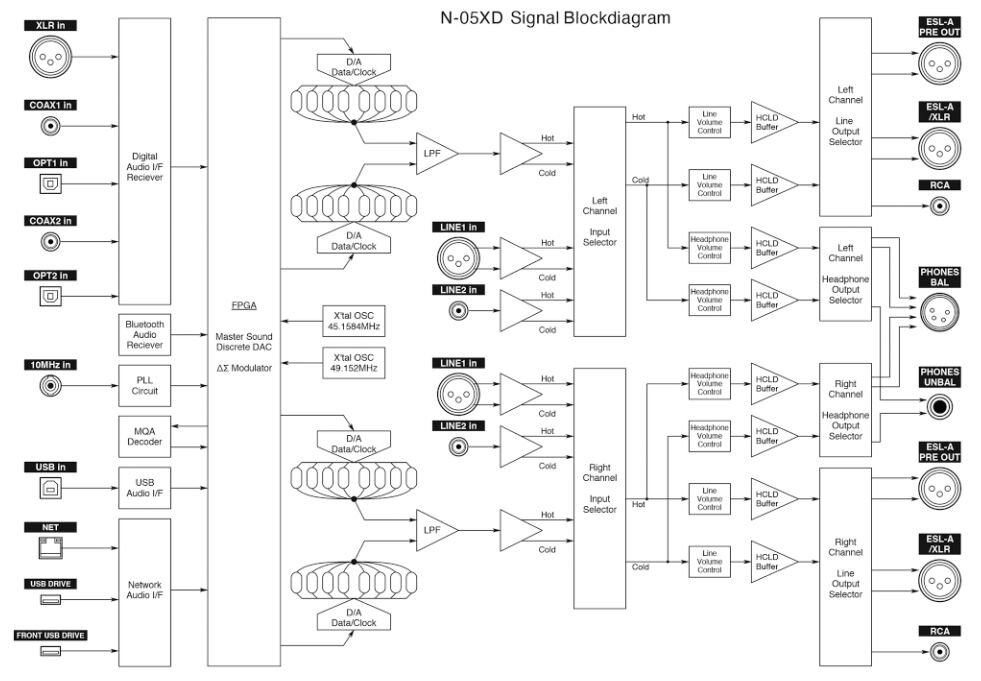

N-05XE System Configuration
- D/A Converter: Equipped with a wide range of digital inputs
- Network Streamer: Designed for streaming and music file playback
- Dual-Mono, Dual Balanced Preamplifier
- Dual-Mono, Parallel Single-Ended Headphone Amplifier
- Fully Dual-Mono Construction: All analog and power supply circuits are completely L/R independent
Master Sound Discrete DAC G2
- Next Generation “G2” DAC: With richer musicality, incorporating the Grandioso N1 technologies
- Highly Advanced Multilevel ΔΣ D/A Converter: Powered by 64-bit/512Fs ΔΣ modulator
- FPGA-Based Discrete Circuit Configuration: Without using an off-the-shelf DAC IC
- Two Independent FPGA Digital Processing Algorithms: Optimized separately for PCM and DSD formats
- Low-Noise New Register Network: Provides cleaner imaging and lower noise
- High Precision MELF Resistor Elements: Ensures ultra-high D to A conversion accuracy
- Fully Dual-Mono Configuration: Left/right independent analog and power supply circuits
- “Master Sound Discrete Clock for Digital Player”: Esoteric’s proprietary high-precision clock circuit
ESOTERIC Network Engine G4
- Next Generation Network Streaming Engine: Supports optical network connections via SFP port
- Dedicated Large Linear Power Supply: Contributes to smooth, vinyl-like, and richly detailed sound
- Native DSD 22.5 MHz Playback Support
- Music Server Function: Supports connection of up to two USB drives
- Wide Range of Supported File Formats: DSF, DSDIFF, FLAC, ALAC, WAV, AIFF, MQA, MP3, AAC
- Esoteric Sound Stream App: Provides extremely comfortable operation on smartphone/tablet
- OpenHome Compliant: Can be controlled using compatible OpenHome applications
- Support for Multiple Streaming Services: Tidal Connect, Qobuz Connect, Roon, Spotify Connect, QQ Music
Dual-Mono, Dual Balanced Preamplifier
- High-Fidelity Dual-Mono, Dual Balanced Circuit: Consists of 8 circuits (L/R, hot/cold independent)
- Dedicated Attenuator Power Supply: Contributes to pure volume control
- HCLD High-Current Buffer Amplifier: Powerfully drives downstream equipment with no sound quality difference regardless of preamp output, line output, or headphone output
- ES-Link Analog: Esoteric’s proprietary current signal link with amplifier, provides super authentic sound
- ES-Link Analog input ×1
Dual-Mono, Parallel Single-Ended Headphone Amplifier
- Completely New Circuit Design: Developed for even higher sound quality
- Dual-Mono Parallel Single-Ended Amplification: Provides excellent drive capability and control
- 1,200 mW + 1,200 mW Output (32 Ω Load)
- 4-Pin XLR and ¼ (6.3mm) Stereo Phone Headphone Outputs
Other Features
- Front USB Type-C Port: Functions as a DAC input for smartphones and DAPs
- ES-Link (XLR) Input: Provides digital connectivity to Esoteric SACD transport models
- 10 MHz Clock Input: Enables connection to the G-05 external master clock for further sound quality enhancement
- Bluetooth® Receiver: Supports various high definition codecs; LDAC, LHDC, Qualcomm®aptX ™ HD audio, Qualcomm®aptX ™ audio, AAC, SBC
- Fixed Line Output Mode / Signal Pass-Through Output Mode
- High-Rigidity Chassis Construction: Optimized for effective vibration control
- Semi-Floating Top Panel: Enhances sonic openness and spatial expression

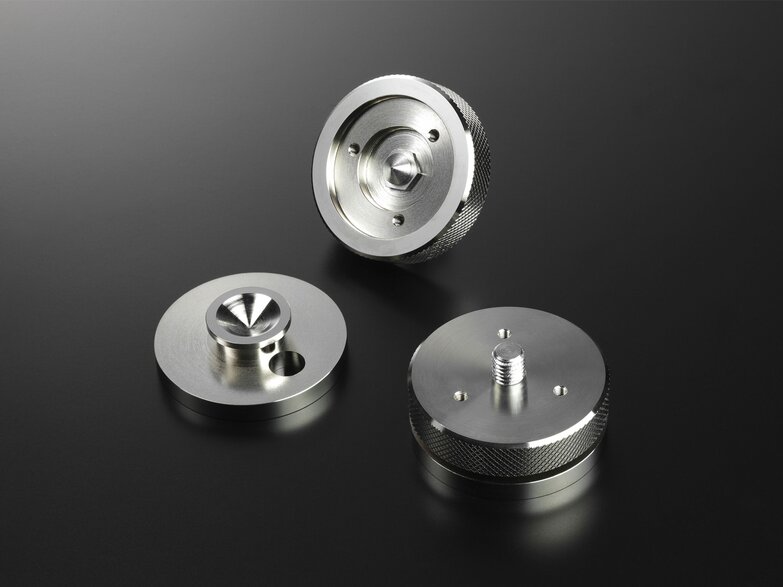

- Patented Pinpoint Isolation Feet: Deliver focused imaging and an open soundstage
- Proudly Made in Tokyo
- : New features of the N-05XE
Master Sound Discrete DAC G2
The Esoteric Master Sound Discrete DAC G2 is a fully in-house designed, FPGA-based, multi-level ΔΣ (delta-sigma) D/A converter built with meticulously selected discrete components. This unique architecture's ultimate goal is to effortlessly reproduce music's true dynamics and power, surpassing the limitations of conventional DAC IC chips. Its large-scale circuit design comprises 16 elements per channel, with all key components configured in complete independence.
In the XE model, the new G2 DAC features a completely redesigned resistor network—the first stage of the analog domain, achieving even purer signal processing. This breathtakingly powerful, dynamic, and musical architecture delivers an uncompromised, pure listening experience.
New Low-Noise Register Network
In a DAC, the resistor network is a critical circuit that converts the digital signal generated by the FPGA into an analog signal through precision resistor elements.
For the new G2 version of the DAC, Esoteric applied development achievements from our flagship network streamer, the Grandioso N1. This approach simplified and optimized the circuit responsible for switching the resistor elements on and off. In addition, capacitors placed in proximity to the resistor network improve current supply stability, enabling the generation of purer analog signals with significantly reduced noise.
Advanced Digital Processing Capabilities
The G2 DAC supports the latest formats, including native DSD 22.5 MHz playback. Independent FPGA-based digital processing algorithms, optimized separately for DSD and PCM formats, enable D/A conversion that maximizes the advantages of each format.
High-Precision MELF Resistors
Critical resistor elements within the DAC circuit employ high-precision MELF resistors to enhance computational accuracy. Additionally, the circuit’s carefully selected discrete components contribute to sound reproduction characterized by vivid live presence, superb dynamics, and an organic, natural texture.
Mater Sound Discrete Clock for Digital Player
The clock circuit, which is critical for high-quality digital playback, now features Esoteric's proprietary "Master Sound Discrete Clock for Digital Player." With its unique circuit design and carefully selected discrete components, the clock circuit achieves high sound quality, reflecting Esoteric's philosophy down to the finest detail— an approach that cannot be realized with generic clock modules.
The 4th Generation "Esoteric Network Engine G4"
The N-05XE features the fourth-generation "Esoteric Network Engine G4," which incorporates an SFP port for optical network connectivity. Equipped with large-capacity RAM and a powerful CPU, it delivers advanced processing performance. The network power supply section employs a large linear power supply that is completely separated from the audio power supply. Each network component is powered directly via its own independent power line, separated from the transformer windings. By eliminating noise-generating switching elements, the N-05XE achieves a smooth, vinyl-like sound with rich detail and natural musical flow.
The 4th Generation "Esoteric Network Engine G4"
The N-05XE features the fourth-generation "Esoteric Network Engine G4," which incorporates an SFP port for optical network connectivity. Equipped with large-capacity RAM and a powerful CPU, it delivers advanced processing performance. The network power supply section employs a large linear power supply that is completely separated from the audio power supply. Each network component is powered directly via its own independent power line, separated from the transformer windings. By eliminating noise-generating switching elements, the N-05XE achieves a smooth, vinyl-like sound with rich detail and natural musical flow.
SFP Port
The Esoteric Network Engine G4 is equipped with a built-in network switch function and has two network interfaces: an Ethernet RJ45 connector and an SFP port.
By connecting the N-05XE to an external network switch using an SFP module and fiber-optic cable, the signal can be isolated from network-borne noise, resulting in unparalleled playback purity. For maximum flexibility, both the RJ45 and SFP ports can be used simultaneously, tailoring the setup to your preferences and requirements.
Music Server Function
The N-05XE is equipped with USB ports (USB-A ×1, USB-C ×1) and can function as a music server / NAS by connecting up to two USB storage devices, such as flash drives or HDD/SSD units.

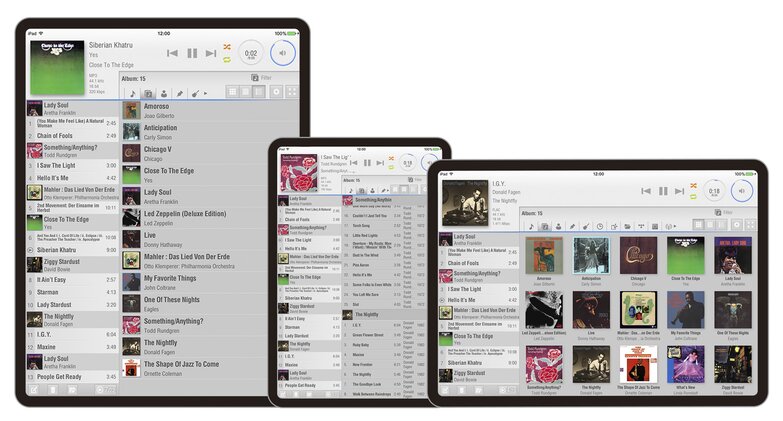

Esoteric Sound Stream – Intuitive Control Meets Audio Quality
The Esoteric Sound Stream app, available for both Apple iOS and Android devices, is designed to combine exceptional sound quality with effortless usability. Tailored for smartphones and tablets, this innovative app allows users to easily browse, manage, and customize their music playback experience with just a few taps.
With its intuitive interface, creating and managing playlists becomes seamless. All screens are thoughtfully designed for straightforward navigation, ensuring that music libraries and playlists are easily accessible to users of any experience level. At the same time, the app offers a suite of advanced features to satisfy even the most seasoned audiophiles.
Compatible with a Wide Selection of Audio Codecs and Streaming Services
Esoteric has partnered with a wide array of streaming services and audio codec providers, and preparations are currently underway to provide compatibility with newer services.
* Information on newly supported services will be released on Esoteric’s website.
* Please note that regional restrictions may be applied to some services.
TIDAL / TIDAL Connect
Begin your encounters with new music through TIDAL, a high-end music streaming service that has officially partnered with Esoteric. TIDAL’s lossless music distribution service operates on a fixed rate basis. Offering instant access to its enormous sound library, TIDAL enables users to enjoy their favorite music online with excellent sound quality. Esoteric also supports TIDAL Connect playback.
Learn more here: TIDAL
Qobuz / Qobuz Connect
Founded in 2007 and a pioneer of high-quality sound, Qobuz is the French music streaming and download platform for those who want to live and share their passion for music. Available in 26 countries (as of 2024) around the world, in Europe, the USA, Canada, Australia, New Zealand, Latin America, and Japan, Qobuz offers an exceptional range of exclusive editorial content written by a team of experts. With its catalog of more than 100 million tracks, Qobuz also has the richest choice of high-resolution (Hi-Res) titles. Esoteric also supports Qobuz Connect playback.
Learn more here: Qobuz
Roon Ready
Roon is the most engaging, enjoyable way to browse your music. Being Roon Ready means that Esoteric network players transparently discover and connect to Roon, with no network configuration, with bit-perfect delivery of audio to your DAC. Together, Roon and Esoteric deliver the power, flexibility, and performance benefits of networked audio, with the easiest setup and highest reliability available.
Learn more here: Roon Labs
RAAT (Roon Advanced Audio Transport) Dedicated Mode
The N-05XE is equipped with a dedicated RAAT mode that reduces the CPU processing load by disabling all network functions except those required for RAAT, thereby improving playback quality when using Roon.
Spotify
Spotify is an online music streaming service delivering over 40 million songs. Two types of services are provided: a basic service called “Spotify Free” for free, and a on-demand and high-quality sound subscription service called “Spotify Premium” at a flat rate.
Learn more here: Spotify
QQ Music
QQMusic is the largest music streaming service in mainland China and is a joint venture between Tencent and Spotify. It supports high-resolution music streaming if you are a paid VIP tier user. With support for QPlay, you can choose Esoteric as a playback device from within the QQMusic App.
Learn more here: QQ Music
MQA
MQA is an award-winning technology that delivers master quality audio in a file that's small enough to stream or download. Using pioneering scientific research into how people hear, MQA captures and authenticates the sound of the original studio performance.
Learn more here: MQA
Dual Balanced Preamplifier Parallel Single-Ended Headphone Amplifier
The Dual-Mono, Dual Balanced Preamplifier at the Heart of the System
The preamplifier forms the core of the system and defines the essence of its sound. The Grandioso's high fidelity and musical expression embody Esoteric's philosophy and technology. These qualities have been passed down to the N-05XE, which inherits its lineage. The acclaimed dual mono, dual balanced configuration delivers dynamic yet delicate sound, capturing the performer's sensibility.
A Total of 8 Circuits for L/R, Hot/Cold
The N-05XE uses an attenuator circuit with a high-fidelity, dual-mono, dual-balanced configuration. This configuration comprises eight independent circuits that separately handle left and right channels, as well as positive and negative signal paths. This configuration achieves clear sound quality with excellent channel separation and phase accuracy. In the XE model, the attenuator's power supply section is completely independent from the other power circuits, which further refines the purity of reproduction.

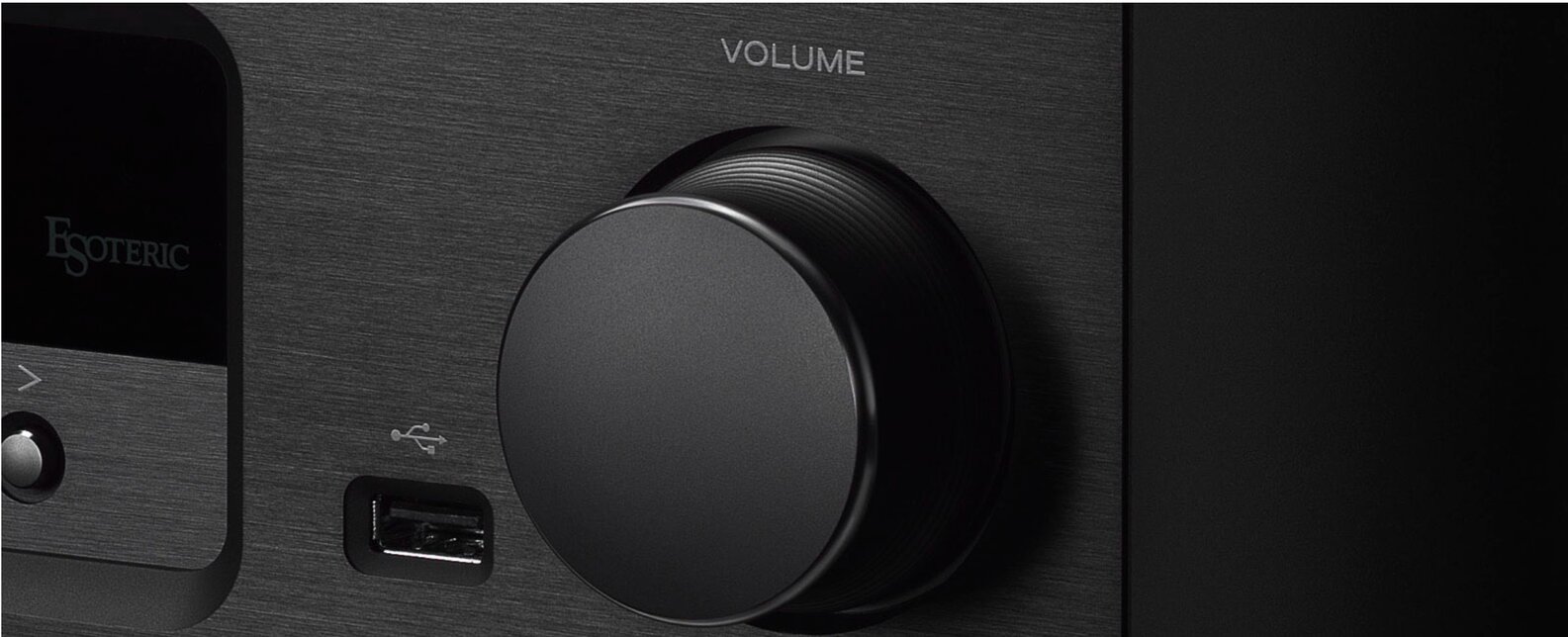

High-Precision Ball Bearing Volume Control Knob
Providing ultra-smooth analog operating feel, the N-05XE’s volume control utilizes the same Ball-Bearing support mechanism used in Esoteric’s flagship Grandioso line. The volume knob itself is precision-machined from solid aluminum, ensuring exceptional tactile quality and mechanical precision.
Unique Esoteric-HCLD Output Buffer Circuitry
The N-05XE’s Esoteric-HCLD (High Current Line Driver) circuit was developed in pursuit of ultimate current transmission capacity and speed, two factors that are critical to achieving uncompromised analog output performance. The buffer’s high-speed element features an exceptional slew rate, or response speed, of 2,000 V/μs, enabling the reproduction of musical dynamics with breathtaking realism.
ES-Link Analog – Esoteric's Proprietary Current Signal Transmission Technology
The N-05XE features Esoteric's "ES-Link Analog" input/output transmission method. This method leverages the high performance of the HCLD buffer circuit, which is renowned for its powerful current supply capability. ES-Link Analog minimizes the influence of signal path impedance, enabling pure, powerful signal transmission and playback brimming with realism, as if you were directly monitoring from an analog console in a recording studio.
In the XE model, a newly added ES-Link Analog input allows direct connection to compatible Esoteric components such as the K-05XD, an integrated Super Audio CD player with DAC functionality and the E-02, a dedicated high-performance phono preamplifier.

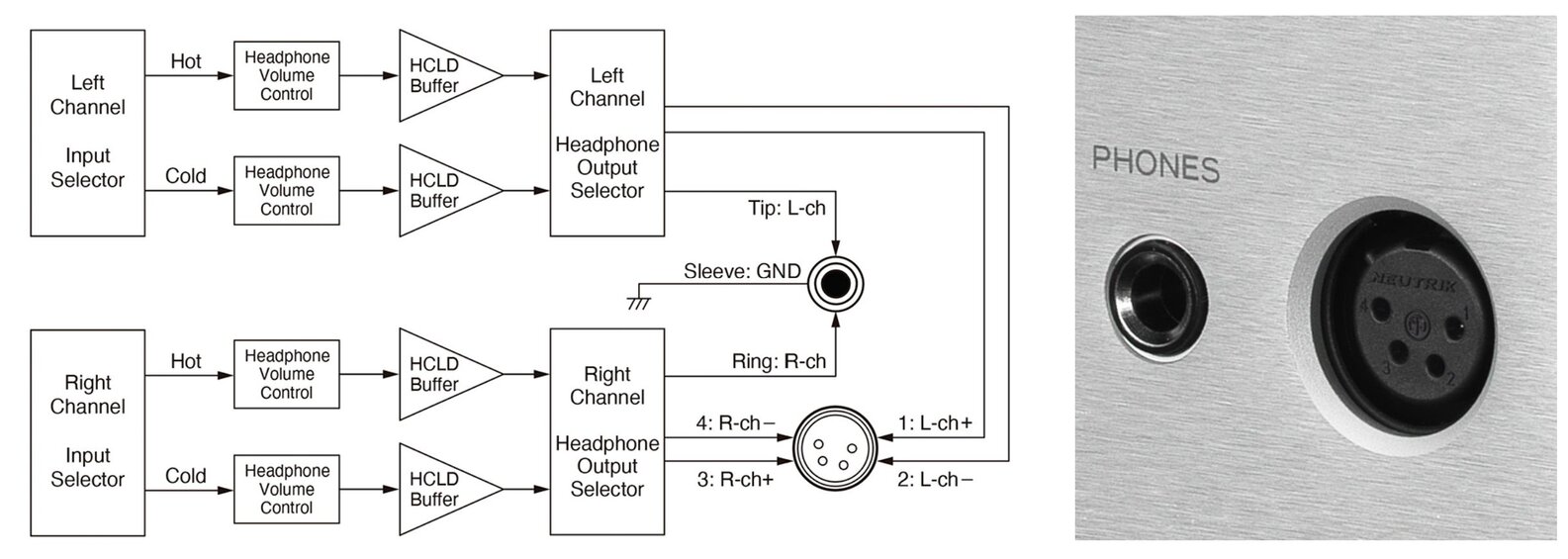

Dual-Mono Parallel Single-Ended Headphone Amplifier
Experience high-end headphone listening in your own space. The N-05XE features a newly developed dual-mono, parallel single-ended headphone amplifier. Esoteric’s accumulated expertise in analog amplifier design is brought together in this circuit, delivering exceptional sound quality for serious headphone listening.
Evolved for an Even More Open Sound
The circuit is engineered to eliminate differences in sound quality between speaker and headphone playback. This is achieved by employing the HCLD line-stage preamplifier, renowned for its high current output, as the headphone amplifier itself. The dual-mono architecture incorporates independent left and right power supply circuits.
During headphone operation, the two amplifier circuits switch to parallel single-ended operation, resulting in sound with even greater openness than previous models. The amplifier is equipped with two output formats: a 4-Pin XLR and a ¼ (6.3mm) stereo phone headphone output. With a high output power of 1,200 mW per channel (32 Ω load), it drives high-end headphones with ample authority, control, and musical vitality, delivering uncompromising performance and heightened musical expressiveness.

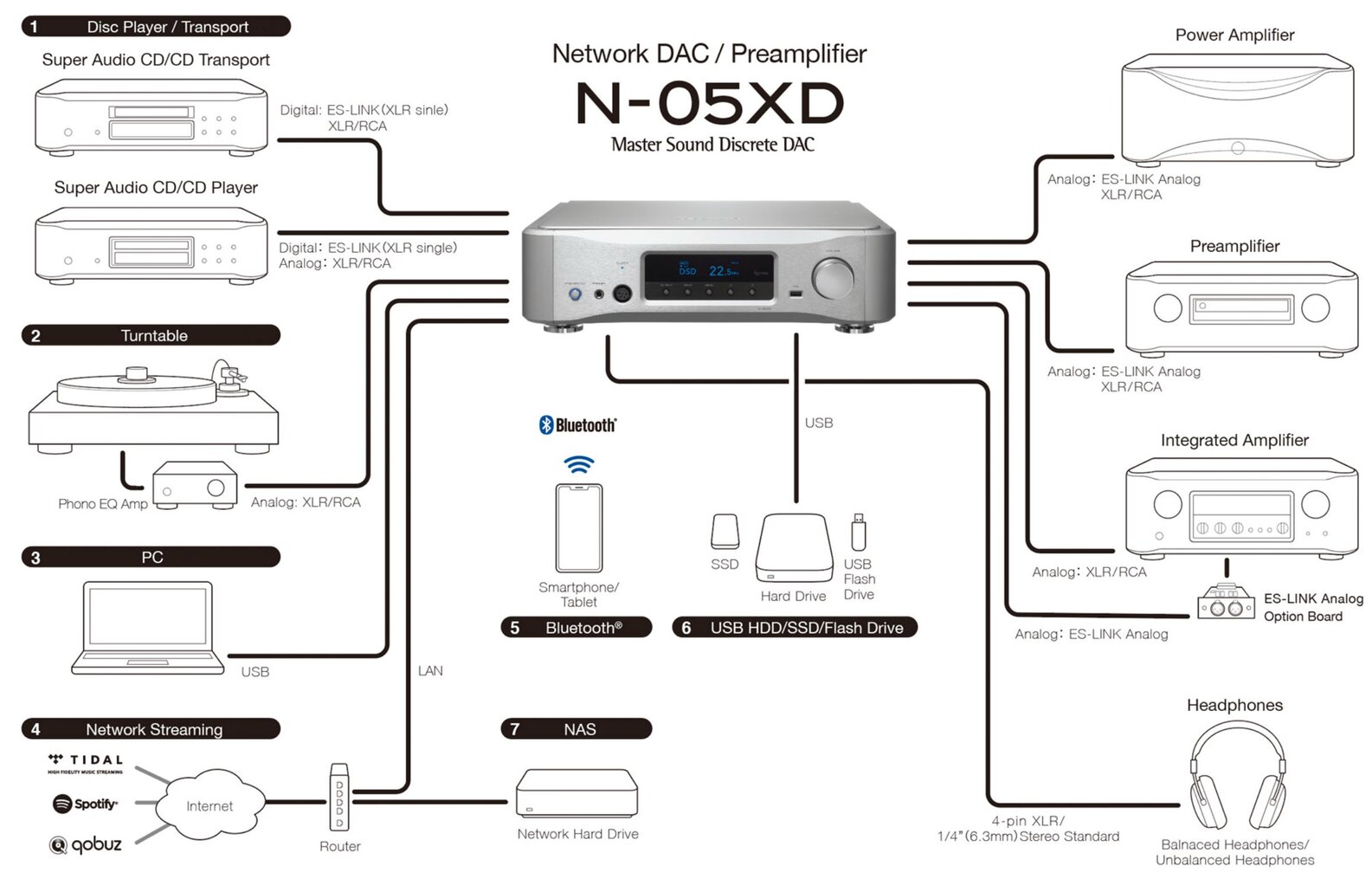

Flexible for a Wide Range of Uses
The N-05XE is a highly versatile high-end component that has been meticulously finished without any compromise, providing top-tier audio performance across a wide range of applications. When switched to fixed line level output, the N-05XD can be connected to an external preamp for operation as a standalone digital source or DAC. It also has a convenient pass-through output for use as a front-channel speaker preamp for an AV receiver. The XE model can additionally function as a DAC input, allowing direct connection of smartphones and DAPs.
The Dual-Mono, Dual Balanced Preamplifier at the Heart of the System
The preamplifier forms the core of the system and defines the essence of its sound. The Grandioso's high fidelity and musical expression embody Esoteric's philosophy and technology. These qualities have been passed down to the N-05XE, which inherits its lineage. The acclaimed dual mono, dual balanced configuration delivers dynamic yet delicate sound, capturing the performer's sensibility.
A Total of 8 Circuits for L/R, Hot/Cold
The N-05XE uses an attenuator circuit with a high-fidelity, dual-mono, dual-balanced configuration. This configuration comprises eight independent circuits that separately handle left and right channels, as well as positive and negative signal paths. This configuration achieves clear sound quality with excellent channel separation and phase accuracy. In the XE model, the attenuator's power supply section is completely independent from the other power circuits, which further refines the purity of reproduction.
High-Precision Ball Bearing Volume Control Knob
Providing ultra-smooth analog operating feel, the N-05XE’s volume control utilizes the same Ball-Bearing support mechanism used in Esoteric’s flagship Grandioso line. The volume knob itself is precision-machined from solid aluminum, ensuring exceptional tactile quality and mechanical precision.
Unique Esoteric-HCLD Output Buffer Circuitry
The N-05XE’s Esoteric-HCLD (High Current Line Driver) circuit was developed in pursuit of ultimate current transmission capacity and speed, two factors that are critical to achieving uncompromised analog output performance. The buffer’s high-speed element features an exceptional slew rate, or response speed, of 2,000 V/μs, enabling the reproduction of musical dynamics with breathtaking realism.
ES-Link Analog – Esoteric's Proprietary Current Signal Transmission Technology
The N-05XE features Esoteric's "ES-Link Analog" input/output transmission method. This method leverages the high performance of the HCLD buffer circuit, which is renowned for its powerful current supply capability. ES-Link Analog minimizes the influence of signal path impedance, enabling pure, powerful signal transmission and playback brimming with realism, as if you were directly monitoring from an analog console in a recording studio.
In the XE model, a newly added ES-Link Analog input allows direct connection to compatible Esoteric components such as the K-05XD, an integrated Super Audio CD player with DAC functionality and the E-02, a dedicated high-performance phono preamplifier.
Dual-Mono Parallel Single-Ended Headphone Amplifier
Experience high-end headphone listening in your own space. The N-05XE features a newly developed dual-mono, parallel single-ended headphone amplifier. Esoteric’s accumulated expertise in analog amplifier design is brought together in this circuit, delivering exceptional sound quality for serious headphone listening.
Evolved for an Even More Open Sound
The circuit is engineered to eliminate differences in sound quality between speaker and headphone playback. This is achieved by employing the HCLD line-stage preamplifier, renowned for its high current output, as the headphone amplifier itself. The dual-mono architecture incorporates independent left and right power supply circuits.
During headphone operation, the two amplifier circuits switch to parallel single-ended operation, resulting in sound with even greater openness than previous models. The amplifier is equipped with two output formats: a 4-Pin XLR and a ¼ (6.3mm) stereo phone headphone output. With a high output power of 1,200 mW per channel (32 Ω load), it drives high-end headphones with ample authority, control, and musical vitality, delivering uncompromising performance and heightened musical expressiveness.
Flexible for a Wide Range of Uses
The N-05XE is a highly versatile high-end component that has been meticulously finished without any compromise, providing top-tier audio performance across a wide range of applications. When switched to fixed line level output, the N-05XD can be connected to an external preamp for operation as a standalone digital source or DAC. It also has a convenient pass-through output for use as a front-channel speaker preamp for an AV receiver. The XE model can additionally function as a DAC input, allowing direct connection of smartphones and DAPs.
SACD Transport Connectivity
The N-05XE is equipped with Esoteric’s proprietary ES-Link digital input, enabling direct connection to Esoteric Super Audio CD transport models via a single XLR cable.
Built-in Bluetooth® Receiver
The N-05XE features a built-in Bluetooth® receiver supporting high-quality audio codecs, including LDAC, LHDC, Qualcomm® aptX™ HD audio, Qualcomm® aptX™ audio, AAC and SBC. This enables high-fidelity wireless playback from smartphones and other compatible devices. The N-05XE also supports multipoint connectivity, allowing simultaneous connection to multiple devices for seamless switching.
Clock Sync Function
The N-05XE is equipped with a high-precision 10 MHz master clock input. When used in combination with the external G-05 master clock generator, it enables further enhancement of overall sound quality.
Chassis Construction that Combines Rigidity and Flexibility for Resonance Control
The N-05XE features a semi-floating top panel that contributes to an open and spacious sound. The bottom chassis incorporates precision laser-cut slits around the power transformer mount for effective resonance control. Unwanted vibrations are efficiently dissipated externally through Esoteric’s patented Pinpoint isolation feet (patent nos. JP 4075477, JP 3778108, and JP 7413773).

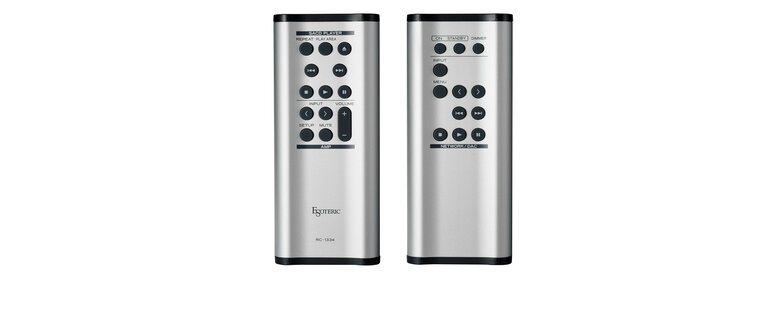

Remote Controller with Easy-Operation Buttons on Both Sides
The RC-1339 remote controller features an ergonomically designed aluminum body that fits naturally in the hand, with buttons positioned on both sides of the unit for intuitive and effortless operation from the comfort of the listening position.
In addition to providing straightforward control of preamplifier functions and network playback, this remote controller can also be used to operate compatible Esoteric Super Audio CD players and transports.
| Parameter | Specification |
|---|---|
| Network Specifications | |
| Supported File Formats | PCM Lossless: FLAC, ALAC, WAV, AIFF, MQA DSD Lossless: DSF, DSDIFF (DFF), DoP Compressed Audio: MP3, AAC |
| Ethernet Port | 1 (1000BASE-T) |
| SFP Port | 1 (1000BASE-T / -LX (Single Mode), 1000BASE-SX (Multi Mode)) |
| USB Drive Port | 1 (Type-A), 1 (Type-C) * USB 2.0 or higher recommended |
| Supported File System | FAT32, exFAT, NTFS, Single Partition |
| Maximum Current Supply | 0.5A Each |
| Supported Sampling Frequencies | PCM: 44.1 to 768kHz, 16bit / 24bit / 32bit DSD: 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz |
| Bluetooth Specifications | |
| Bluetooth Version | 4.2 |
| Output Class | Class 2 (Range: Approx. 10m) * Communication range is approximate and varies depending on surrounding environment and wave conditions. |
| Supported Profiles | A2DP, AVRCP |
| Supported A2DP Codec | LDAC, LHDC, Qualcomm® aptX™ HD, Qualcomm® aptX™, AAC, SBC |
| A2DP Contents Protection | SCMS-T |
| Number of Pairing Memory | Max. 8 |
| Number of Multipoint Connections | Max. 2 |
| Digital Audio Input Specifications | |
| XLR Input | 1 Input Level: 5.0Vp-p Input Impedance: 110Ω Input Signal Formats: Linear PCM: 32 to 192kHz, 16bit / 24bit (AES/EBU Format) DSD: 2.8MHz (ES-Link1, ES-Link2, DoP Format) |
| RCA Input | 2 Input Level: 0.5Vp-p Input Impedance: 75Ω Input Signal Formats: Linear PCM: 32 to 192kHz, 16bit / 24bit (IEC60958 Format) DSD: 2.8MHz (DoP Format) |
| Optical Input | 2 Input Level: –24.0 to –14.5 dBm peak Input Signal Formats: Linear PCM: 32 to 192kHz, 16bit / 24bit (IEC60958 Format) DSD: 2.8MHz (DoP Format) |
| USB Input | 2 (Type-B, Type-C), USB 2.0 Compliant Input Signal Formats: Linear PCM: 44.1 to 384kHz, 16bit / 24bit / 32bit DSD: 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (DoP Format) |
| Analog Audio Input Specifications | |
| XLR / ES-Link Analog Input | 1 (L/R) Input Impedance: 16kΩ (XLR) Input Voltage: 5Vrms (XLR) Maximum Input Voltage: 11Vrms (XLR, 1kHz, THD 0.1%) |
| RCA Analog Input | 1 (L/R) Input Impedance: 10kΩ Input Voltage: 2.5Vrms Maximum Input Voltage: 5.5Vrms (1kHz, THD 0.1%) |
| Analog Audio Output Specifications | |
| XLR / ES-Link Analog Output | 1 (L/R) Output Impedance: 40Ω (XLR) Rated Output Voltage: 5Vrms (XLR, at 0.0dB Volume, PCM Digital Input, Full Scale Signal) Maximum Output Voltage: 12Vrms (XLR, 1kHz, THD 1%) |
| RCA Analog Output | 1 (L/R) Output Impedance: 15Ω Rated Output Voltage: 2.5Vrms (at 0.0dB Volume, PCM Digital Input, Full Scale Signal) Maximum Output Voltage: 6Vrms (1kHz, THD 1%) |
| ES-Link Analog Pre-Out | 1 (L/R) |
| DAC Audio Performance | |
| Frequency Response | 5Hz to 30kHz (–3dB, DSD 2.8MHz 0dB, DSDF=8SFT, XLR Output) |
| S/N Ratio | 109dB (A-Weight, DSD 2.8MHz 0dB, DSDF=8SFT, XLR Output) |
| Distortion | 0.001% (1kHz, DSD 2.8MHz 0dB, DSDF=8SFT, XLR Output) |
| Headphone Output Specifications | |
| ¼" (6.3mm) Stereo Phone Jack | 1 |
| 4-Pin XLR | 1 |
| Maximum Output Power | 1,200mW + 1,200mW (32Ω Load) |
| Compatible Impedance | 16 to 600Ω |
| Clock Input Specifications | |
| BNC Clock Input | 1 Input Frequency: 10MHz (±10ppm) Input Impedance: 50Ω Input Level — Rectangular Wave: TTL Level or Equivalent Input Level — Sine Wave: 0.5 to 1.0Vrms |
| External Control Specifications | |
| Trigger In | 1 (3.5mm Monaural Mini Jack) Input Level: 12V, 1mA |
| Trigger Out | 1 (3.5mm Monaural Mini Jack) Output Level: 12V, 100mA Max |
| Power Specifications | |
| Power Supply | AC 220–240V, 50/60Hz (Europe) AC 120V, 60Hz (US/Canada) AC 220V, 60Hz (Korea) AC 230V, 50Hz (Hong Kong) |
| Power Consumption | 30W (Standby: 0.3W) |
| Physical Specifications | |
| External Dimensions (W × H × D) | 445 × 131 × 377mm (Including Protrusions) |
| Weight | 13.6kg |
| Additional Information | |
| Included Accessories | Power Cord × 1 Remote Control (RC-1339) × 1 AA Batteries × 2 Owner's Manual × 1 Warranty Card × 1 |
