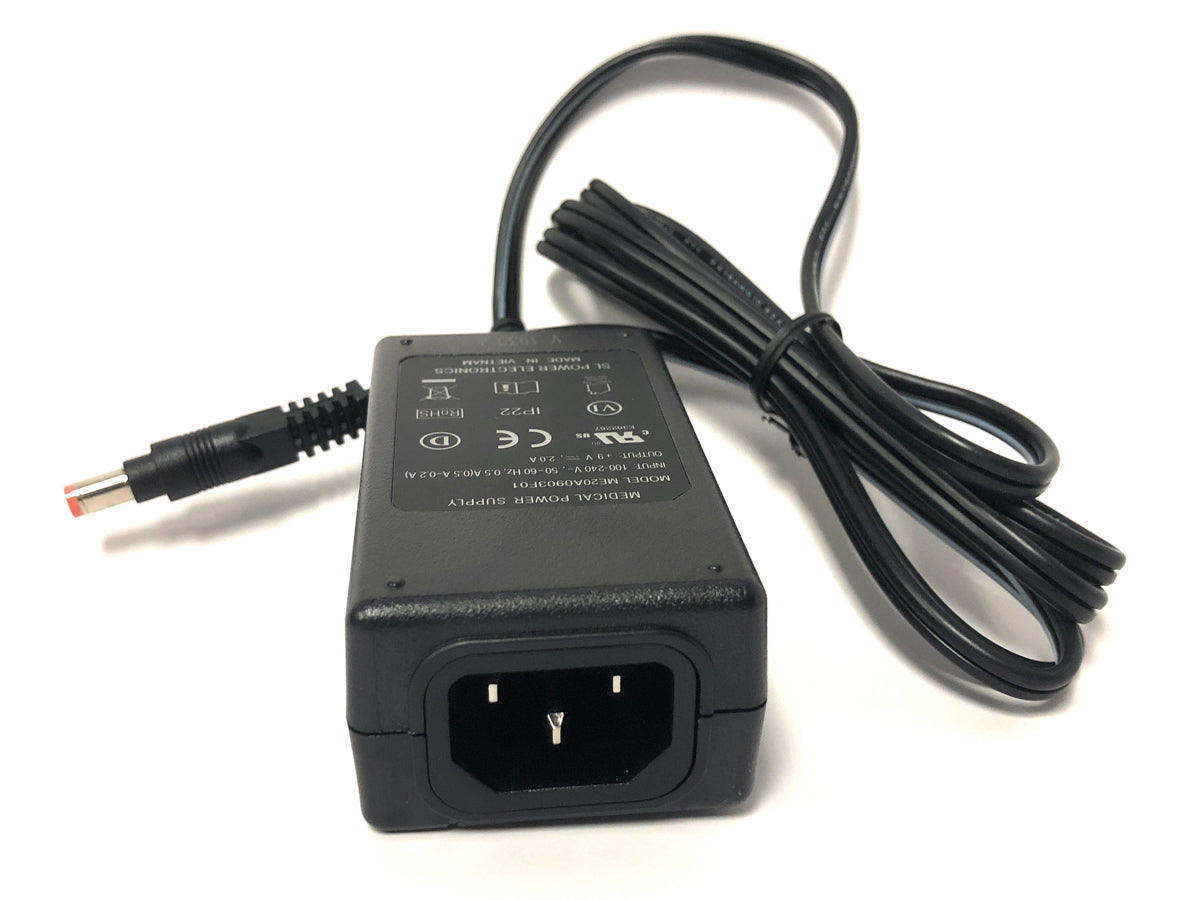

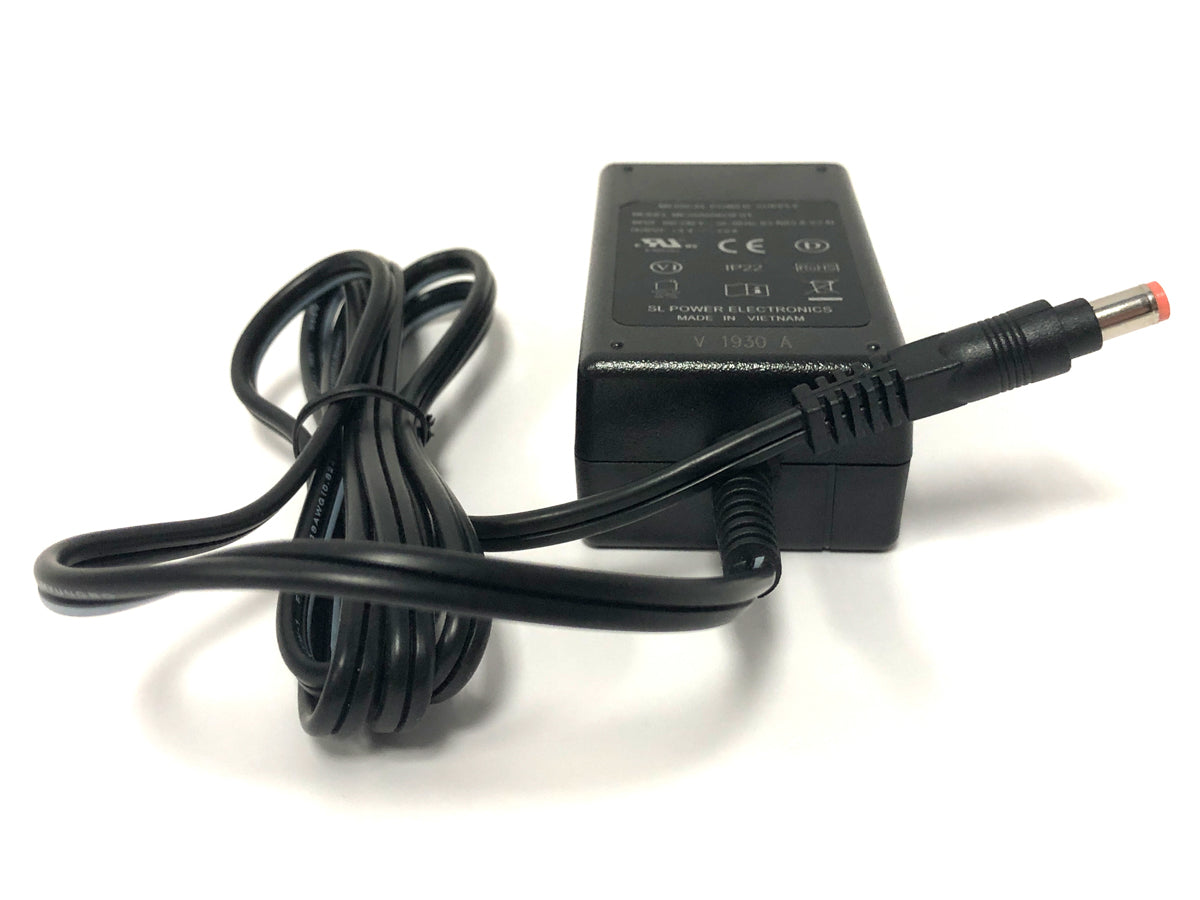

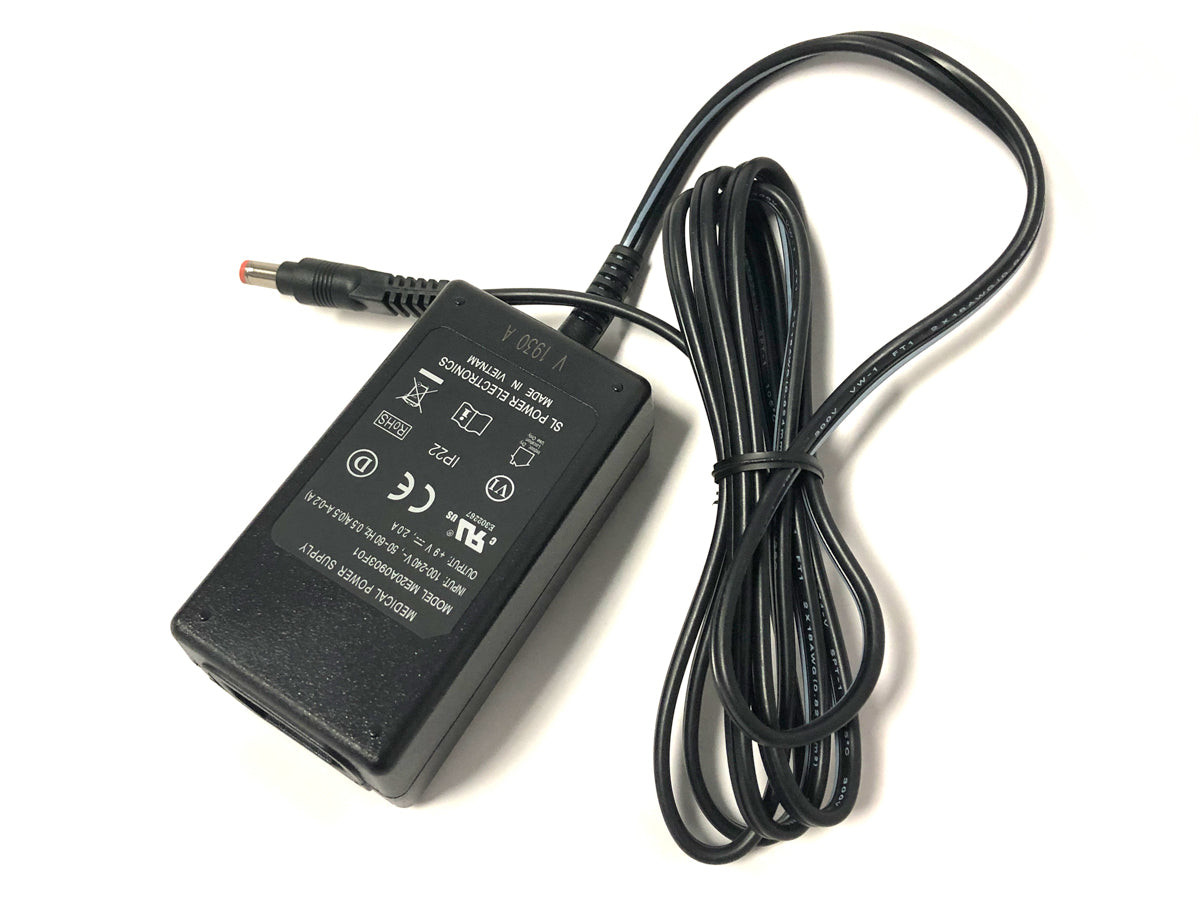

Optional Power Supply for Matrix Audio Products
$45.00 USDAC-DC power adapter for the Matrix Audio Element H and X-SPDIF 3 USB Interfaces. This supply is not produced for Matrix Audio but provides a better power solution than using your onboard USB Bus power supply to power the Matrix Audio Element H USB 3.0 Interface and Matrix Audio X-SPDIF 3 USB Interface. It is a switching power supply that is more cost-effective than a Linear Power Supply. A Linear Power Supply will hopefully be available in the future. This power supply will not work on the previous generation X-SPDIF 2.
*Not Pictured: Standard AC power cable (included)
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Dimensions | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) |
| Cord Length | 59" (1.50m) |
| Input Connector | IEC 320-C14 |
| Output Connector | Barrel Plug 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Technical Specifications | |
| Voltage Input | 90 ~ 264 VAC |
| Voltage Output | 12V DC |
| Current Output (Maximum) | 1.5A |
| Power Output | 20W |
| Polarization | Positive Center |
| Efficiency Rating | Level VI |
| No Load Power Consumption | 100mW (Maximum) |
| Operating Specifications | |
| Operating Temperature | -20°C ~ 50°C |
