Features
23kHz Free-Field Frequency Response
140dB SPL Max Acoustic Input
Omnidirectional polar pattern
Ideal for SMAART™, MLSSA™, Spectrafoo™, TEF™, RTA and all “Audio Band” Measurements
Operating Temp Range: -20 deg C to +60 deg C ( -4 deg. F to 140 deg. F)
Storage Temp Range: -40 deg C to +80 deg C ( -40 deg. F to 176 deg. F)
Humidity: Up to 90%
What's in the Box?
Warranty
Unmatched Accuracy for Live Sound and Home Studios
The precision reference for everything from system tuning to SPL measurement and monitoring.
Earthworks microphones provide me with more accurate data…I can rely on the information I receive from my traces.
Jose Lopez
Trusted by Professionals
Earthworks M-Series microphones have been the reference for engineers across the audio world since 1995.
Built for Live Sound
Career-spanning reliability with solid stainless steel construction, hardened electronics and tour-tested design.

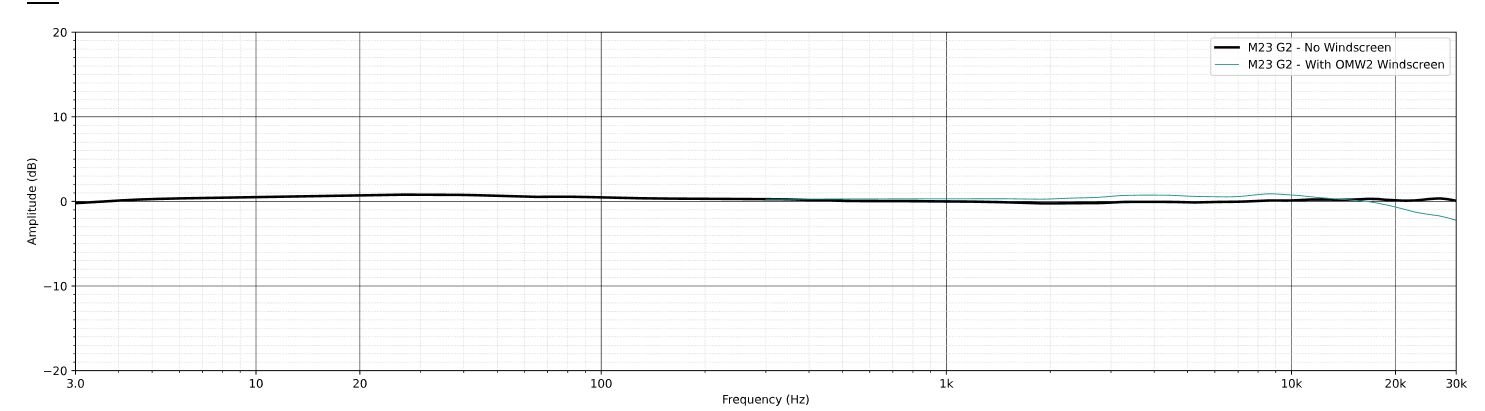

FREQUENCY RESPONSE

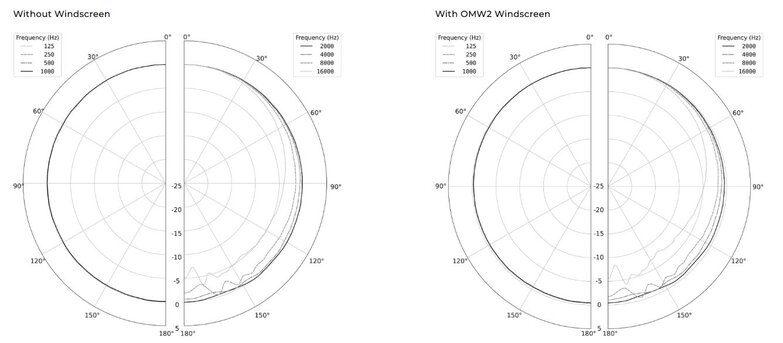

POLAR PATTERN

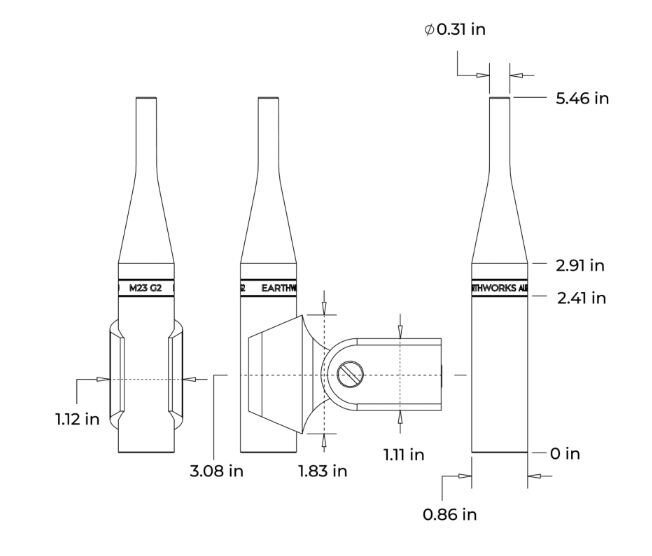

PHYSICAL DIAGRAM
Immune to most temperature and atmospheric fluctuations, the M23 delivers reliable and repeatable results in any environment.
Consistent Measurements in Any Location
Precision With Your Favorite Measurement Software
The M23 works with any high-quality FFT-based real-time audio system measurement software, like SMAART™, SIM™, REW™, Electroacoustics Toolbox™, FuzzMeasure™ and others, as well as for use in PA system alignment and loudspeaker design.
Electronic Calibration File
Every M23 is individually hand-tuned and tested and is delivered with its own printed frequency response chart. An Electronic Calibration File (ECF) is generated for each microphone during final testing, and can be downloaded free of charge after product registration.
Professional products designed with professionals in mind
In audio, our perception of what feels real and natural is incredibly sensitive to resolution in the time domain. In particular, the level of detail present in the initial transient is responsible for much of our sense of content, meaning, and frequency balance. This includes defining attributes like “timbre”, “texture”, and “air”. Earthworks’ blazingly fast technology ensures that every performance sounds like life
| Parameter | Specification |
|---|---|
| Capture Type | |
| Microphone Type | Pre-polarized condenser |
| Polar Pattern | Omnidirectional |
| Diaphragm Size | 6 mm |
| Audio Performance | |
| Flat Frequency Range (+/- 1dB) | 5 Hz to 23 kHz |
| 1 kHz Sensitivity | -40 dBV/Pa (10 mV/Pa) +/- 2dB |
| Low Frequency Cutoff (-3dB) | ≤ 3 Hz |
| High Frequency Cutoff (-3dB) | ≥ 30 kHz |
| A-weighted Self-noise | 23 dBA |
| Maximum SPL (3% THD) | P48: 140 dBSPL P12: 133 dBSPL |
| Minimum Load Impedance | 1 kΩ |
| Power Requirements | |
| P48 (48V Phantom Power) | 7.2 mA |
| P12 (12V Phantom Power) | 4.8 mA |
| Physical Characteristics | |
| Construction | Machined Stainless Steel |
| Dimensions (L x W) | 5.5 x 0.86 Inches (138.6 x 21.8 mm) |
| Weight | 0.3 lbs (0.14 kg) |
| Color | Silver |
| IP Rating | IP54 |
| Included Accessories | |
| Accessories | Carrying Case Calibration Chart MC1 Microphone Clip OMW2 Windscreen ADP1 Calibrator Adapter Mic Stand Thread Adapter |
