Features

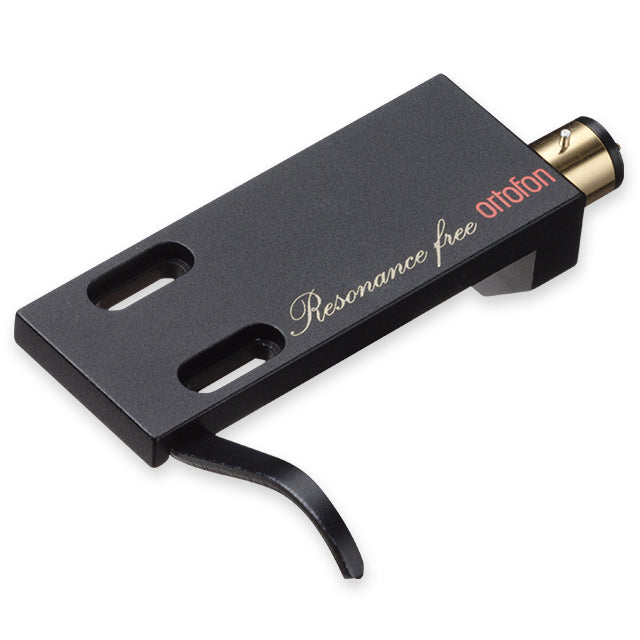

Lightweight magnesium body reinforced with carbon fiber for rigidity without added mass
Adjustable mounting distance (38.1–44.9mm) accommodates precise cartridge and tonearm alignment
Compatible with a range of high-end Ortofon cartridges, including the Cadenza Series, MC A95, MC Diamond, and MC Windfeld Ti
Includes color-coded leadwires for easy, convenient cartridge connection
Compact 52.0mm x 20.0mm profile fits a wide variety of tonearms
Weighs just 16.8g (without screws), keeping effective tonearm mass in check
What's in the Box?
Warranty

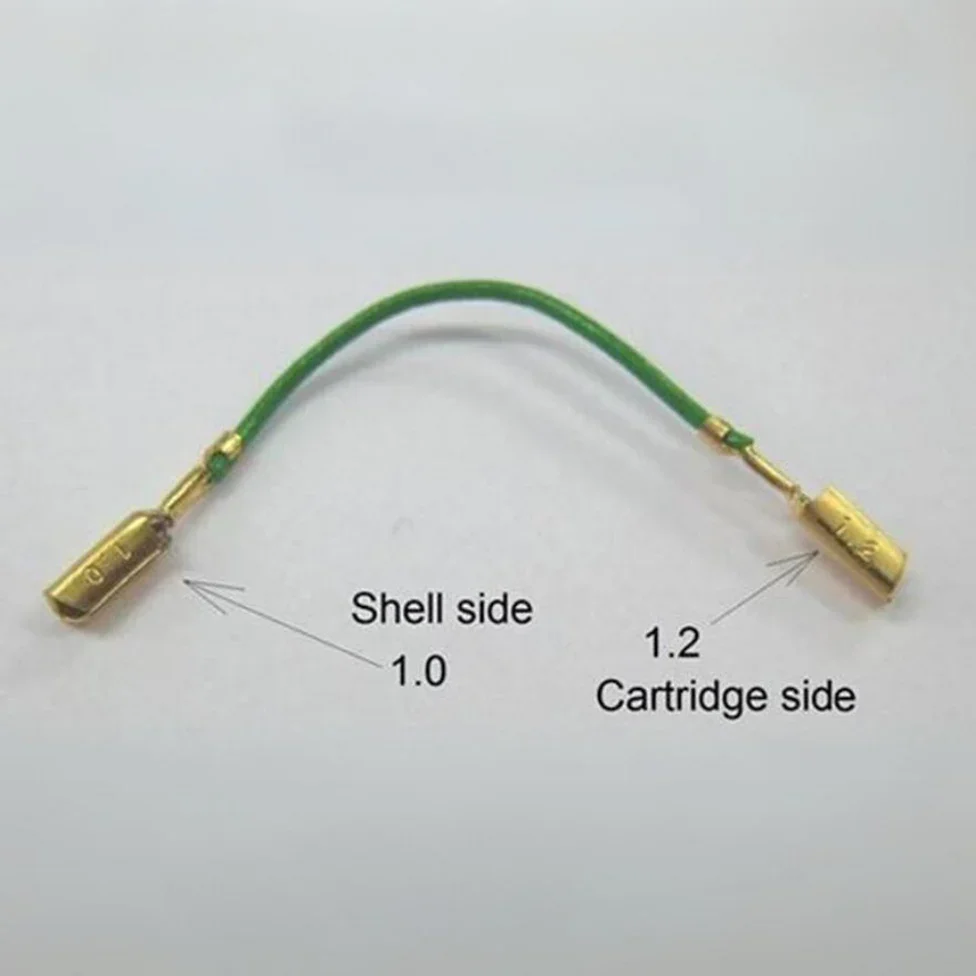

The LH-9000 comes with leadwires for easy and convenient connection.
All Ortofon cartridges have a color coding of the terminals, indicating red and green for the right channel, respectively, the hot and ground terminals. White and blue for the left channel, respectively, the hot and ground terminal. The green terminal will always be used for grounding the cartridge housings or motor system whenever connected inside the cartridge. We recommend connecting the lead wires to the cartridge and headshell before mounting the cartridge on the headshell. Please remember the correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, while Ortofon headshells' PINs diameter is only 1.0 mm.

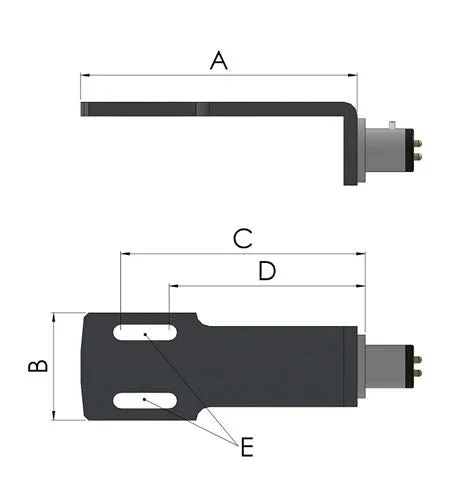

A - Headshell length<br>
B - Headshell width<br>
C - Mounting distance max.<br>
D - Mounting distance min.<br>
E - Screw diameter max.
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Mounting Distance | 38.1 mm - 44.9 mm |
| Headshell Material | Magnesium with Carbon Fiber |
| Weight (without screws) | 16.8 grams |
| Headshell Length | 52.0 mm |
| Headshell Width | 20.0 mm |
