Features
Dual output powers two devices simultaneously from a single chassis
Sweet Spot Tuning (SST) lets you fine-tune output voltage on the fly for optimal sound
4-Terminal Sensing Design (4TSD) ensures precise voltage delivery at the device's DC input
Wide continuous output voltage range of 5–30V DC with up to 6A / 80W combined output
Spread Spectrum Mode for additional sonic fine-tuning
Advanced automation with Apple TV remote compatibility and trigger in/out
Electronic output voltage polarity switch for broad device compatibility
Comprehensive protection: overvoltage, current limiting, and short-circuit safeguards

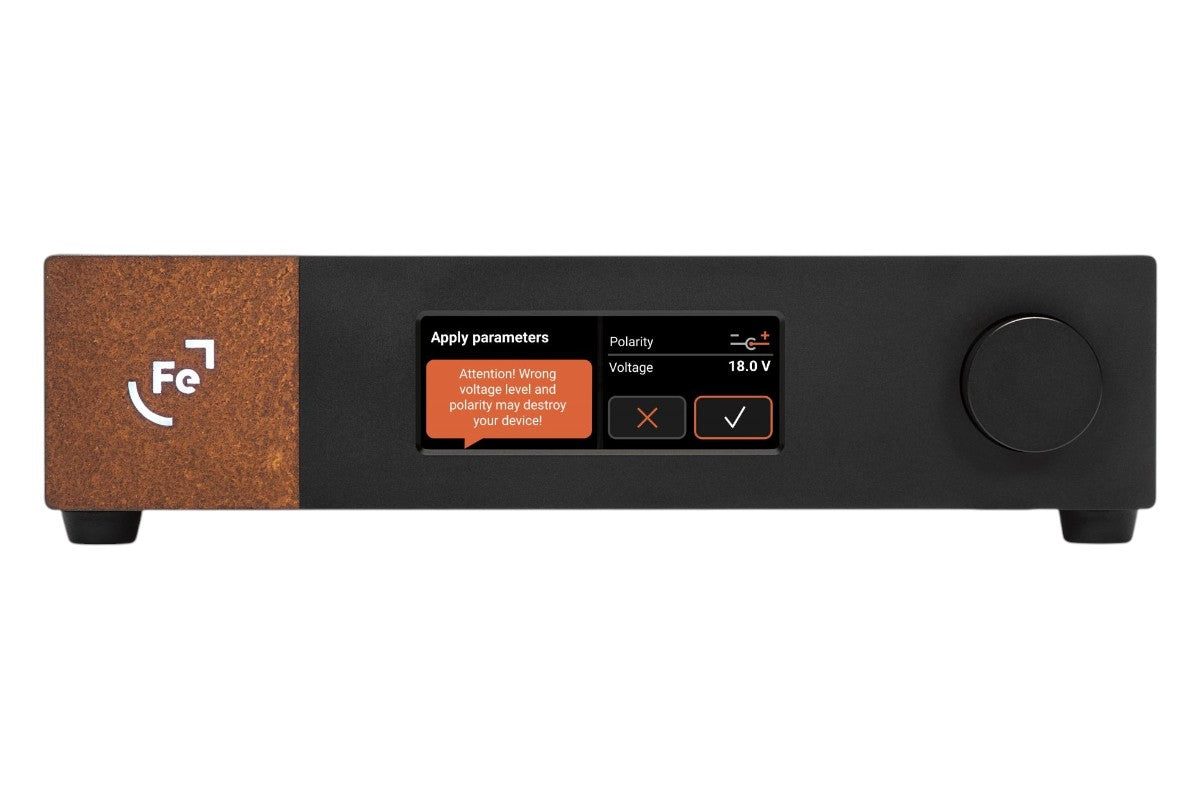

Pre-configured settings for supported devices plus full manual control
What's in the Box?
It made sense for Ferrum to continue the journey up the hifi chain. It brought us OOR, our flagship headphone amplifier, ERCO, our entry level DAC and WANDLA, The Converter. What these products have in common is their power requirements. And one of HYPSOS’ features is its enormous power reserves… Do you see it coming?

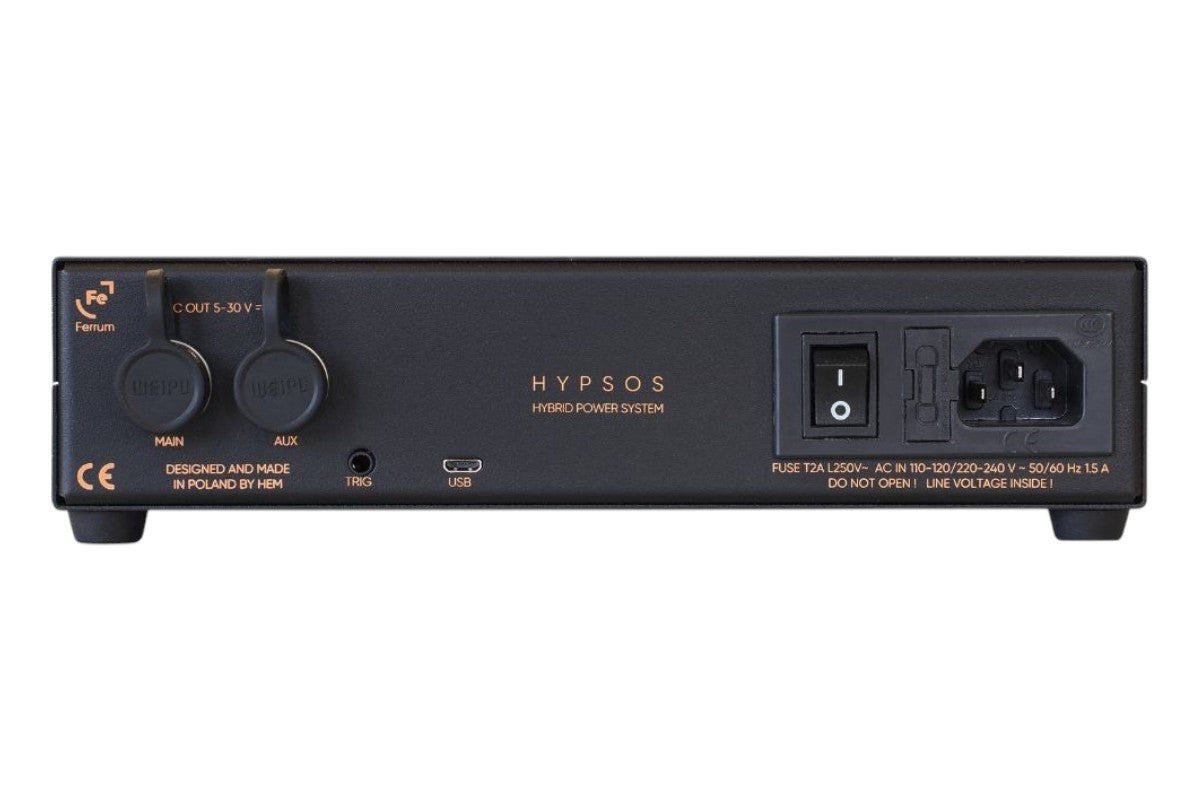

Power reserves are so abundantly available that HYPSOS could, in fact, easily power two devices at the same time, as long as they have the same supply voltage requirements. While we first started offering our Ferrum Power Splitter, we now offer HYPSOS with two power outputs. This means you can now connect two Ferrum devices, for instance OOR and WANDLA (or two other devices with the same power requirements) simultaneously, without the need for another external component and associated cable spaghetti. HYPSOS with double output brings you an extra level of upgradeability at an exciting price point, again proving Ferrum’s journey to change the landscape of high-end audio in relation to affordability is indeed a continuing saga.

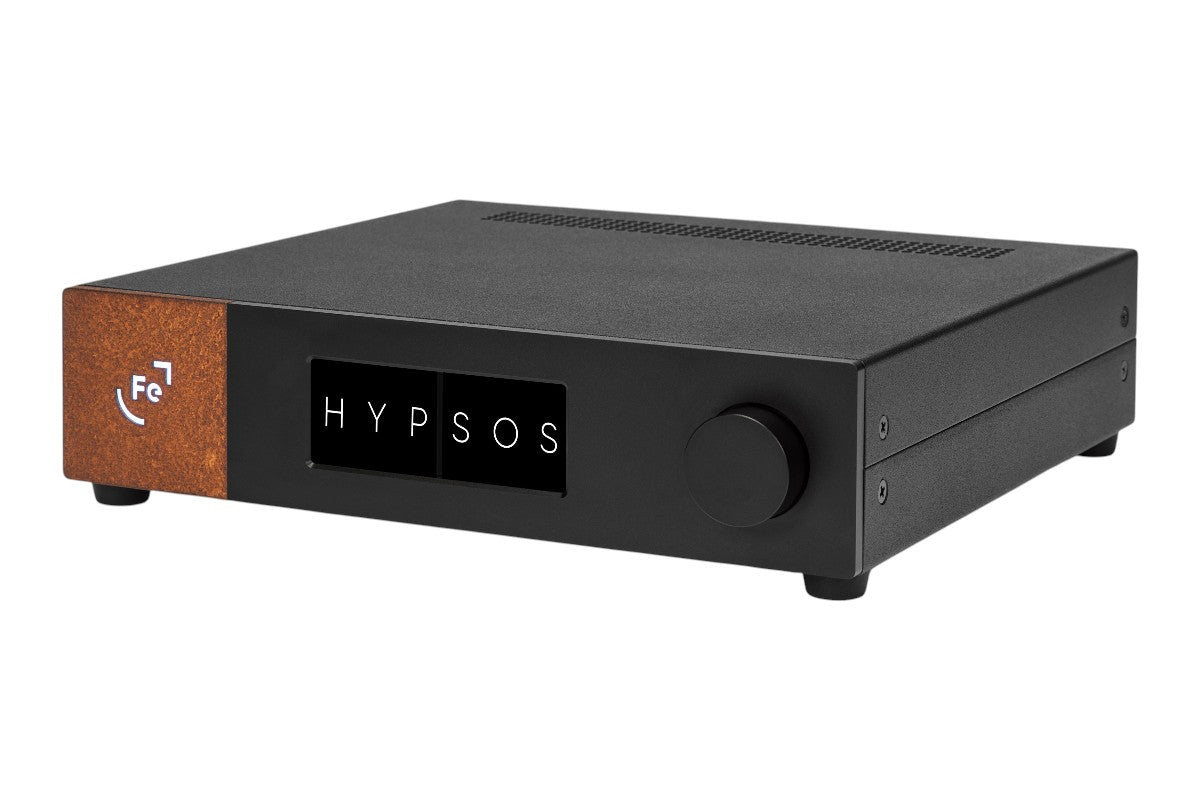

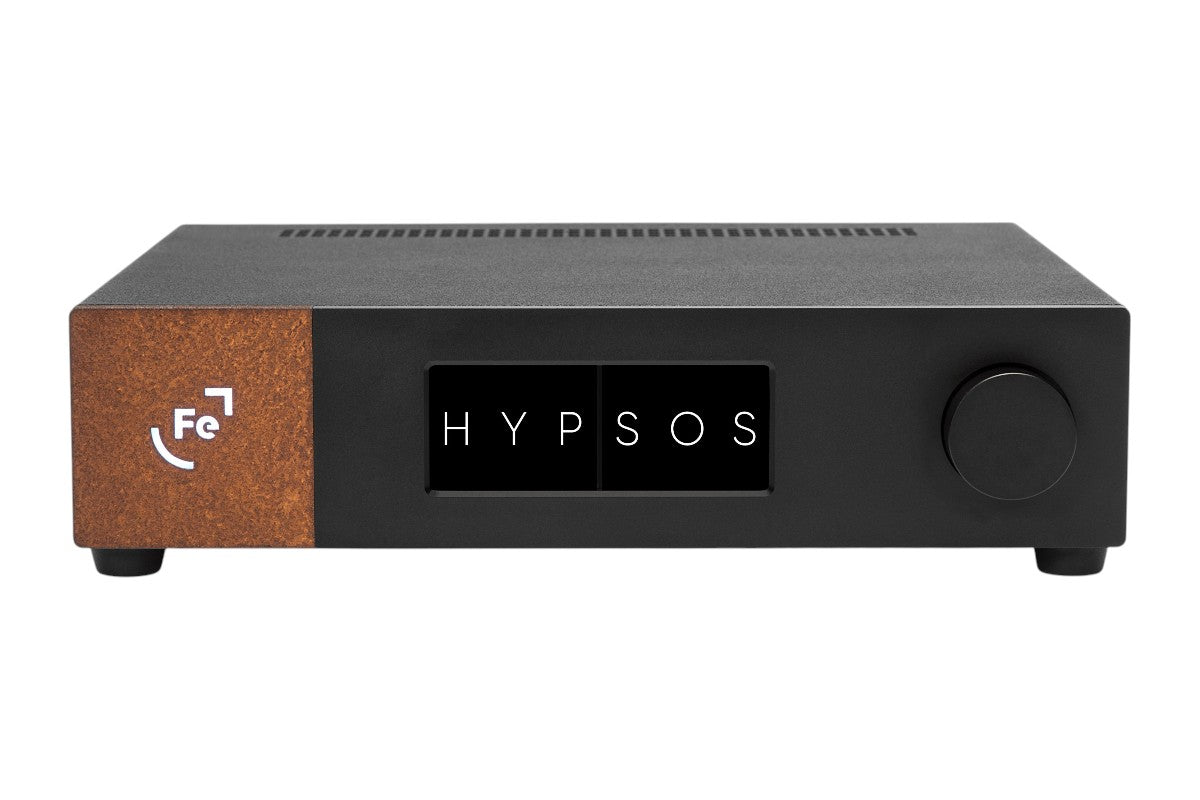

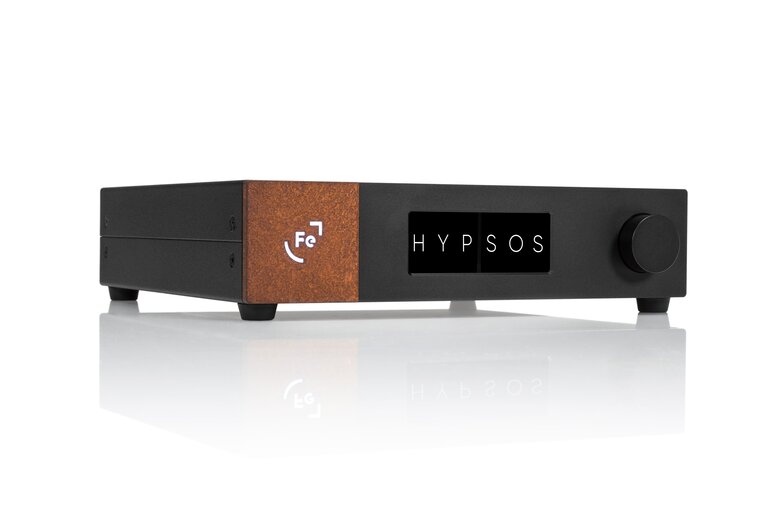

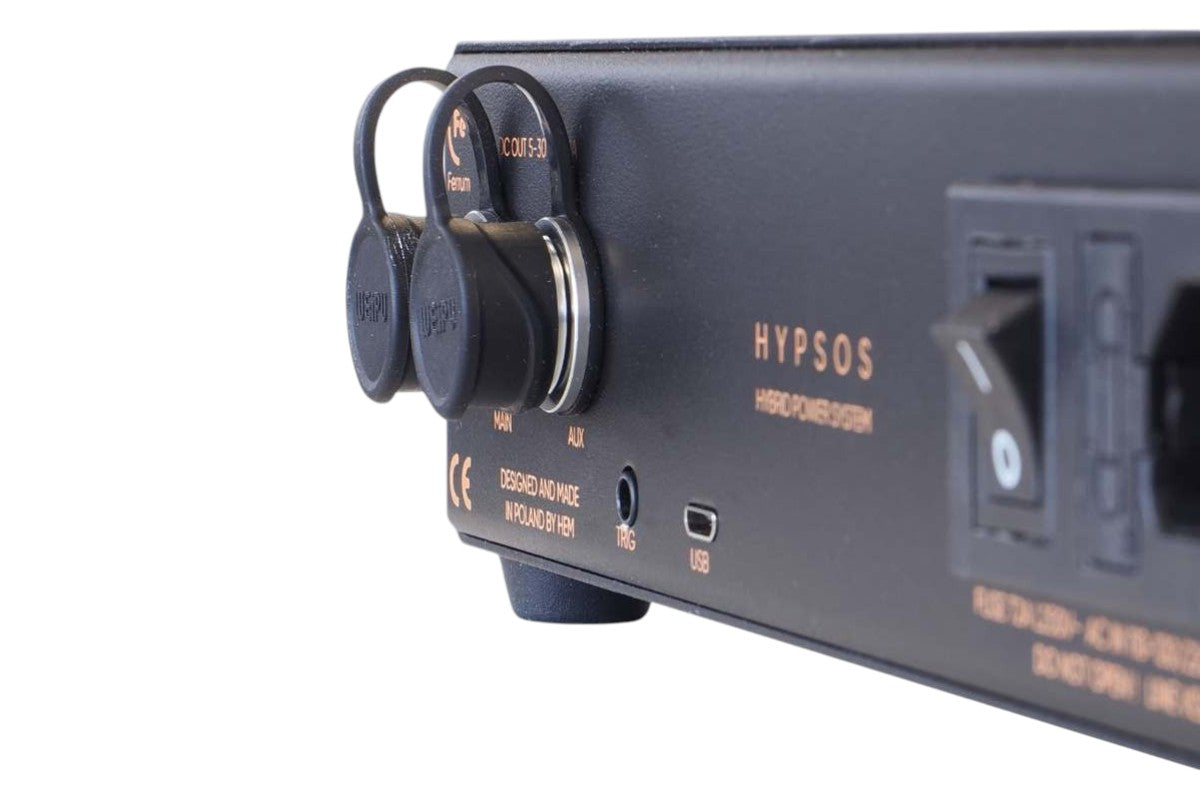

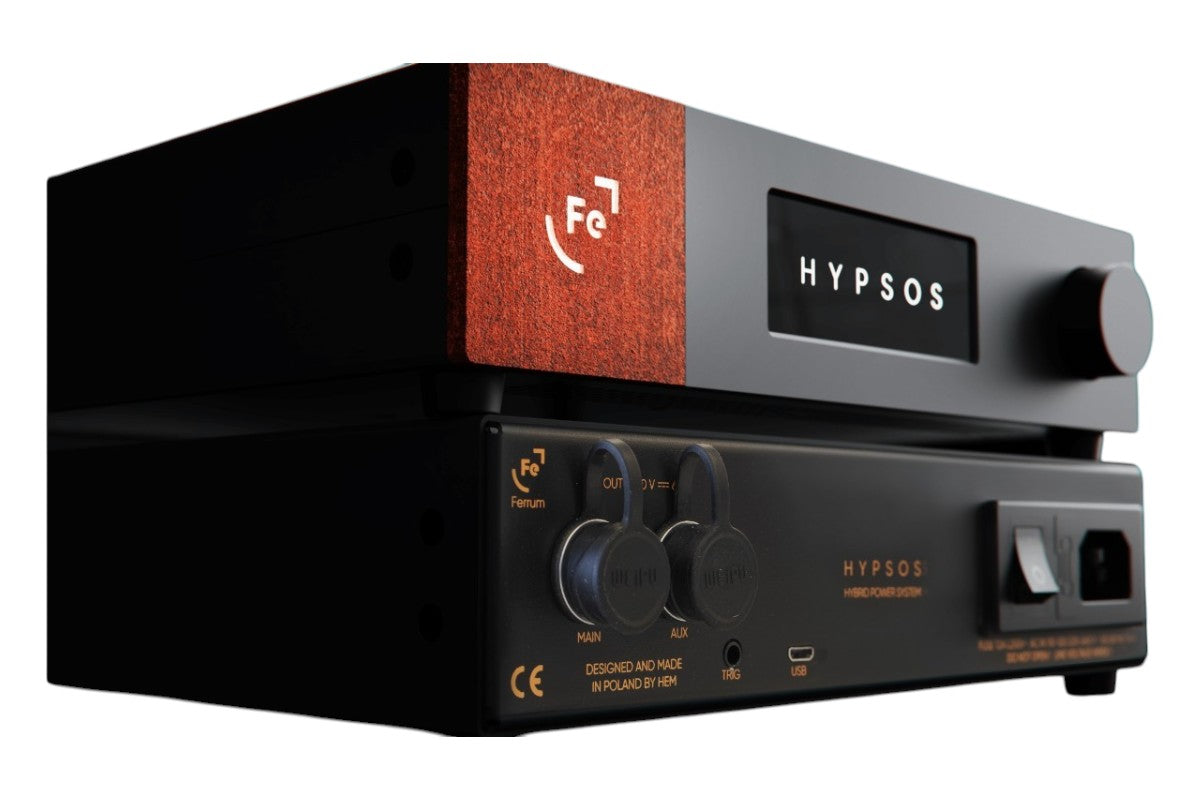

HYPSOS Dual Output
Comes with a high-quality DC power cable fitted to order to connect to the most commonly used DC inputs. Custom cables can be made to order.
Detailed and revealing yet unfatiguing sound
Make your current audio setup perform to its potential. Tweak the sound, modifying the voltage level on the fly, and use the preferred combination of the 4-Terminal Sensing and Spread Spectrum Mode settings.
Hybrid Power System
Linear/switching hybrid design to get the advantages from both techniques - low ripple and noise as well as fast transient response and high efficiency.
Distinct user levels
Using pre-configured settings from the list of supported devices or setting custom parameters manually. Wide continuous output voltage range of 5-30V with up to 6A of current delivered to the load. HYPSOS is as universal a device as it gets.
Sweet Spot Tuning (SST)
Possibility to fine tune the output voltage for the best sound. The voltage level can be safely adjusted on the fly to allow easy comparison testing.
4T Sensing Design (4TSD)
Ensuring the exact voltage level precisely at the point of the powered device DC input terminal - special cable design and feedback to ensure a flat voltage at every moment. This technique eliminates the harmful effects of the cable's resistance, effectively improving transient response.
Advanced Automation
Compatibility with Apple TV remote, Trigger in/out connector; possibility to automate power-up of the devices with standby mode, even without a dedicated trigger connection.
Extremely safe to use
Automatic Transformer Voltage Adjust (ATVA), Electronic Output Voltage Polarity Switch, and overvoltage, current limit, and short protection.
“The Ferrum HYPSOS is a game changer, not only as an improvement over the standard power supplies, but as a versatile addition to many DACs. The HYPSOS really is THE upgrade path to take if you want to hear what your digital front end can produce. “
David Robson, UK. Hifi reviewer at Hifi Pig Magazine.
www.hifipig.com

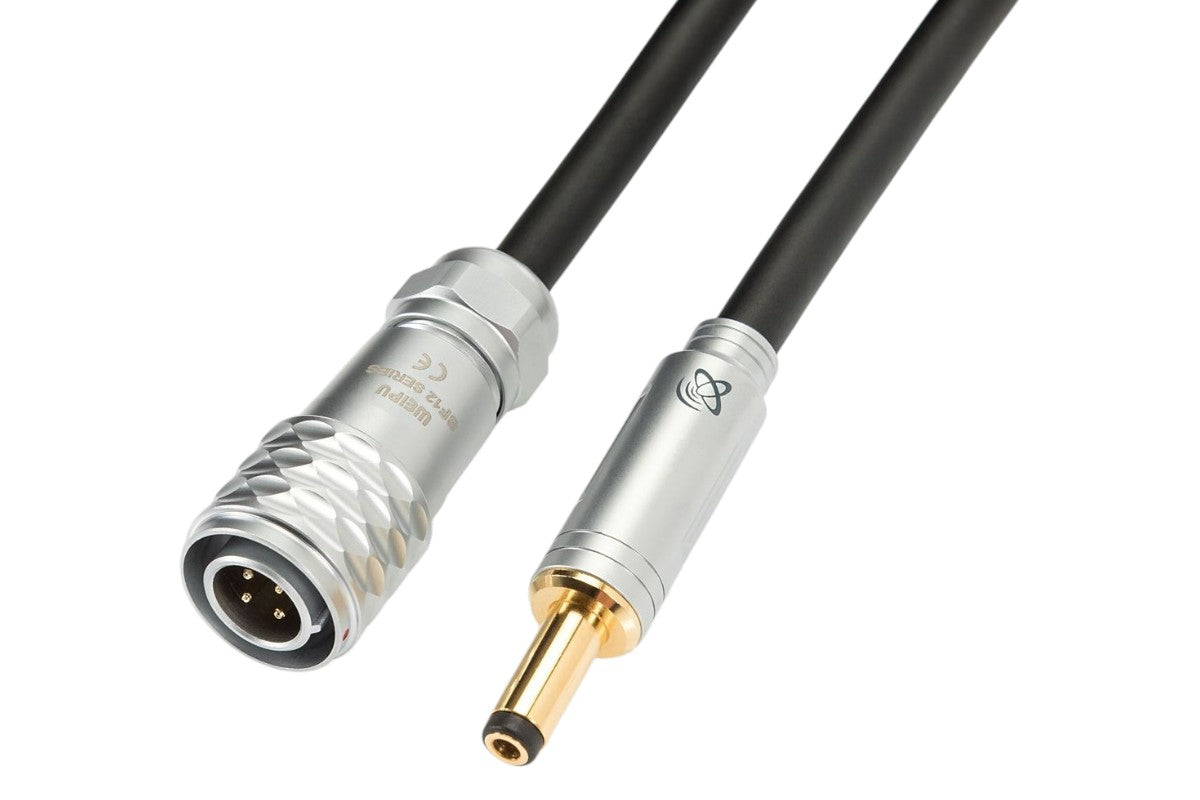

Unique output cable design: two wires delivering the power and two wires providing the feedback to ensure flat voltage at every moment. This technique eliminates the harmful effects of the cable's resistance, effectively improving transient response. The current delivery speed at the powered device's input is significantly improved.
HYPSOS comes with one of the two high-quality DC power cables fitted with a 5,5x2,5mm and a 5,5x2,1mm DC plug, to connect to the most commonly used DC inlets. If you need a different type of DC plug, please contact Feryn Audio.
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Product | Ferrum HYPSOS Dual Output Hybrid Power System |
| Dimensions (W x D x H) | 21.7 x 20.6 x 5 cm / 8.6 x 8.1 x 2 inch (without knob, feet and connectors) |
| Net Weight | 3.05 kg / 6.72 lbs |
| Technical Specifications | |
| Power System Type | Linear/Switching Hybrid Design |
| DC Output Voltage Range | 5 - 30 V |
| Max. Continuous Output Power | 80 W |
| Max. Continuous Output Current | 6 A |
| Dual Output Note | Voltage, current and power specifications are for both outputs combined. Same voltage is shared on both outputs. Current and power are combined from both outputs. 4TSD functionality is only active on the main output. |
| Key Technologies | Sweet Spot Tuning (SST) 4T Sensing Design (4TSD) Spread Spectrum Mode Automatic Transformer Voltage Adjust (ATVA) Electronic Output Voltage Polarity Switch |
| Protection Features | Overvoltage protection Current limit protection Short circuit protection |
| Power Specifications | |
| Power Input (EU/US) | 110 - 120 V AC & 220 - 240 V AC / 50 - 60 Hz |
| Power Input (JP) | 100 V AC / 50 - 60 Hz |
| Power Consumption | @ 230 V AC / 50 Hz and 12 V DC out: No load (idle) – 6 VA ~80 W load – 133.9 VA |
| Primary Winding Fuse (JP) | IEC 5×20 mm, 250 V 3.15 A, slow-blow |
| Primary Winding Fuse (EU/US) | IEC 5×20 mm, 250 V 2 A, slow-blow |
| Connectivity Specifications | |
| Mains Inlet | IEC C14 power inlet, fuse holder, power on/off, two-stage EMI filter |
| Mains Cable Options | EU, UK, AU or US |
| DC Output Cable | 5.5 x 2.5 mm or 5.5 x 2.1 mm DC plug |
| Automation / Remote | Apple TV remote compatible Trigger in/out connector Standby mode automation |
| Additional Information | |
| User Modes | Pre-configured settings from supported device list Custom manual parameter configuration |
