Features
Fully hand-wired, point-to-point signal path delivers pure, transparent signal transmission with no compromise in fidelity
Switchable Triode (TR) and Ultralinear (UL) operating modes allow on-the-fly tuning between silky, harmonically rich warmth and dynamic, high-energy drive
Premium Genalex Gold Lion KT88 output tubes provide a lush, musical presentation with outstanding tonal richness and natural depth
Three impedance-matched output settings (Low: 8–64Ω / Mid: 65–250Ω / High: 251–600Ω) optimize performance across IEMs, dynamic, and demanding planar magnetic headphones
Three headphone output options — 6.35mm single-ended, 4.4mm Pentaconn balanced, and 4-pin XLR balanced — ensure broad compatibility with any premium headphone cable
Dedicated RCA pre-out enables the HA-6A MK2 to serve as a high-quality tube preamplifier for powered speakers or a separate power amplifier
Broad tube-rolling compatibility supports KT88, 6550, KT66, KT150, and EL34-family output tubes for personalized sonic experimentation
Custom silver-plated copper umbilical cable between chassis ensures lossless, low-resistance current delivery for a blacker background
Analog VU meters, 60-second soft-start relay protection, and an aluminum remote control (volume and mute) round out a refined, audiophile-grade user experience
What's in the Box?

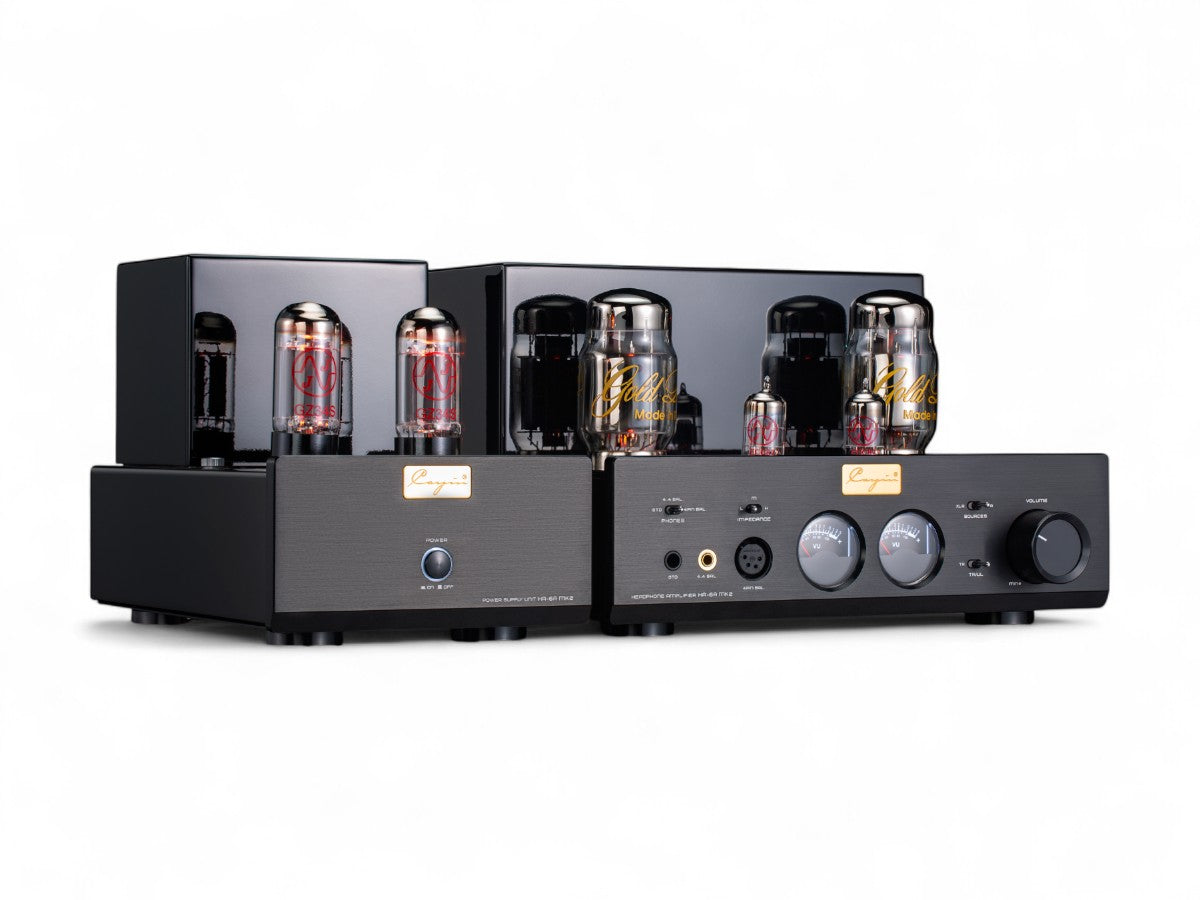

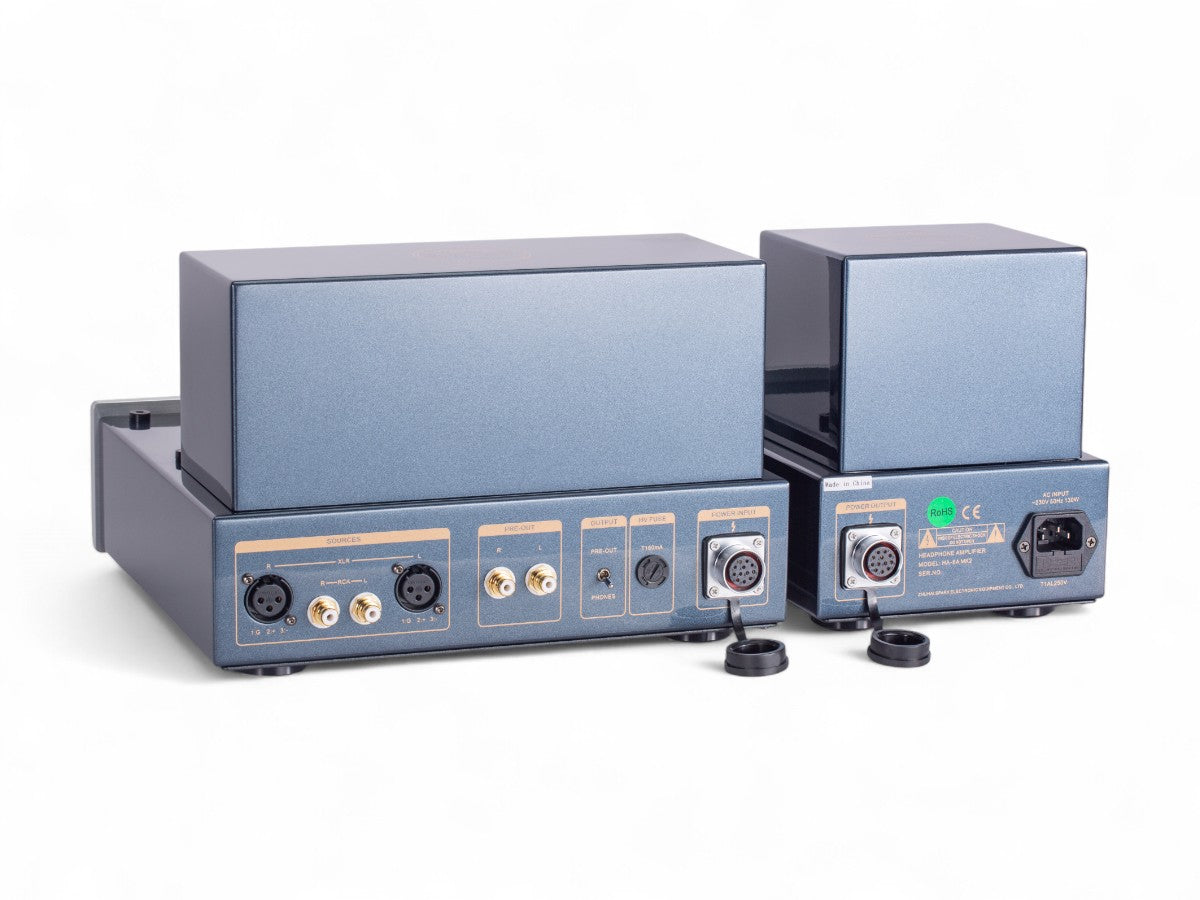

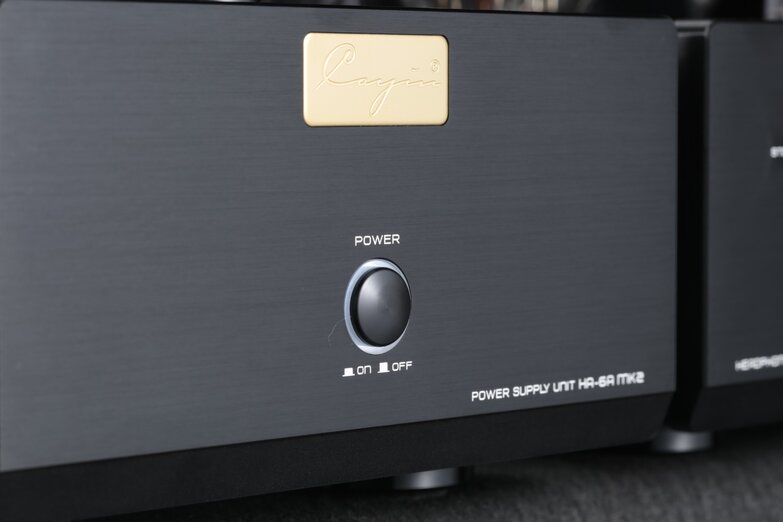

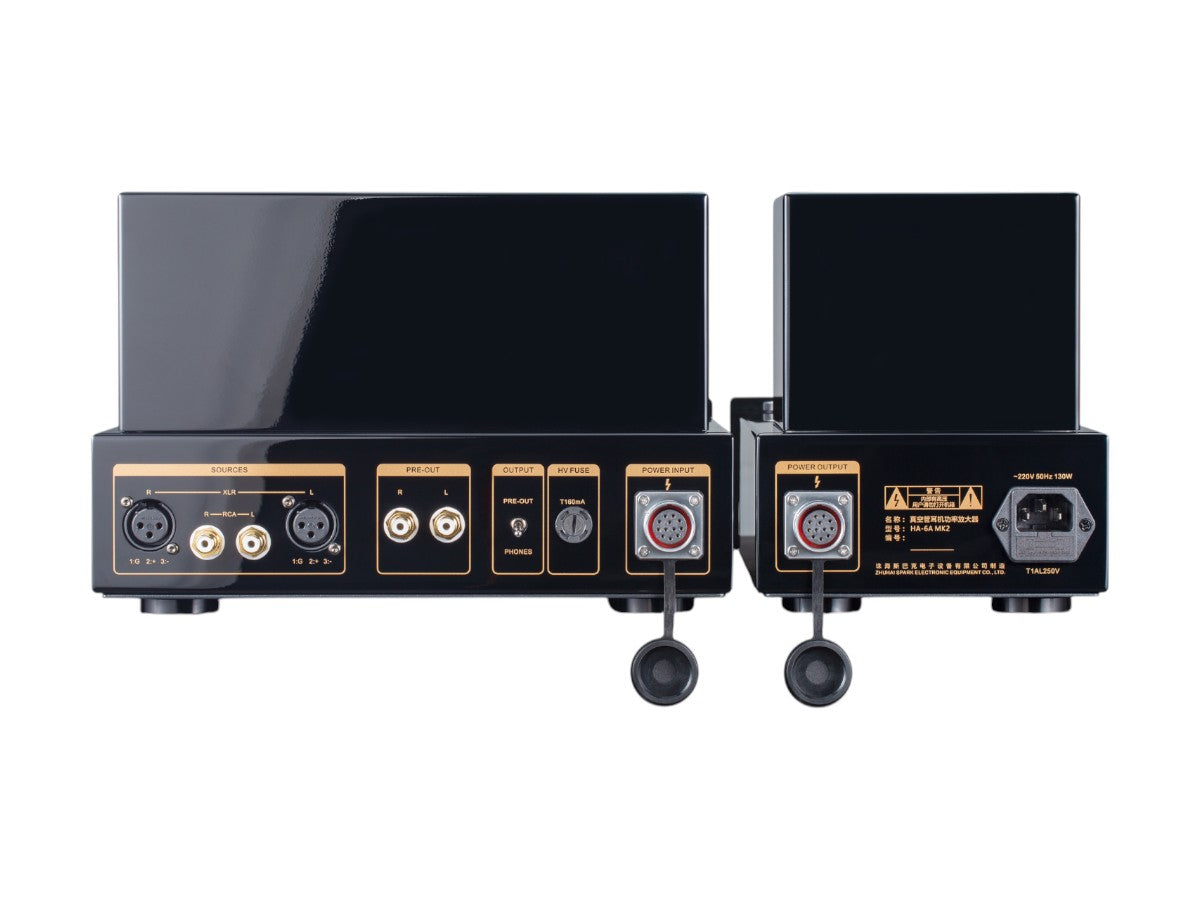

Outboard Power Supply Design Engineered for Pure Performance
Every detail of the design is dedicated to delivering uncompromising sound quality. The outboard power supply adopts a dual-chassis architecture, physically separating the amplification circuit from the power stage. This ensures clean, low-noise energy delivery, free from interference, for a darker background and greater musical clarity.
A multi-stage tube-regulated power supply feeds each amplification stage independently, minimizing ripple, eliminating crosstalk, and enhancing both voltage and current amplification performance. The result is a dynamic, effortless sound that stays true to the original recording.
The dual-box chassis combines high-rigidity construction with advanced damping, isolating vibrations and unwanted noise while enhancing heat dissipation. The result is a cleaner, more refined sound with stable performance and flexible placement options.

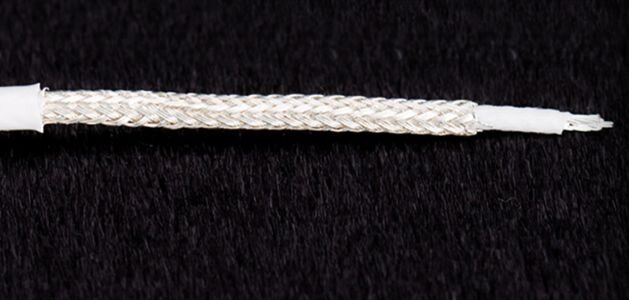

Silver-plated 6N Copper Umbilical Cable
The connection between the Power Supply and Amplifier stage is handled by a custom-designed silver-plated 6N copper umbilical cable. Its ultra-high purity provides exceptional conductivity, minimizes signal loss, and ensures long-term durability creating a vital link that guarantees consistent, high-performance audio.

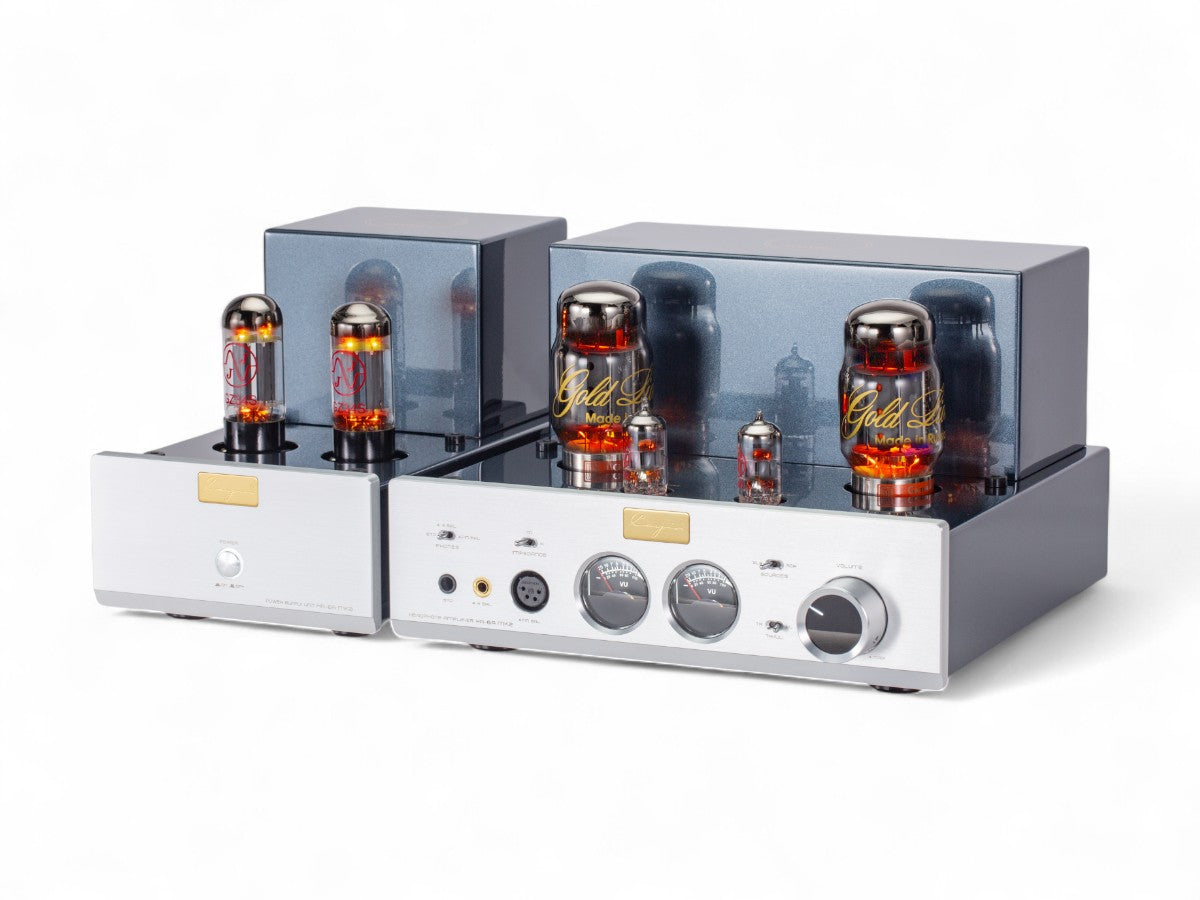

Tube Complement for Exceptional Performance
High-voltage Rectifier
Equipped with two JJ GZ34/5AR4 rectifier tubes, delivering strong and stable current output.
Voltage Amplification Stage
Driven by two JJ 12AU7 / ECC82
dual triodes, providing enhanced signal gain while preserving fine detail and layering.

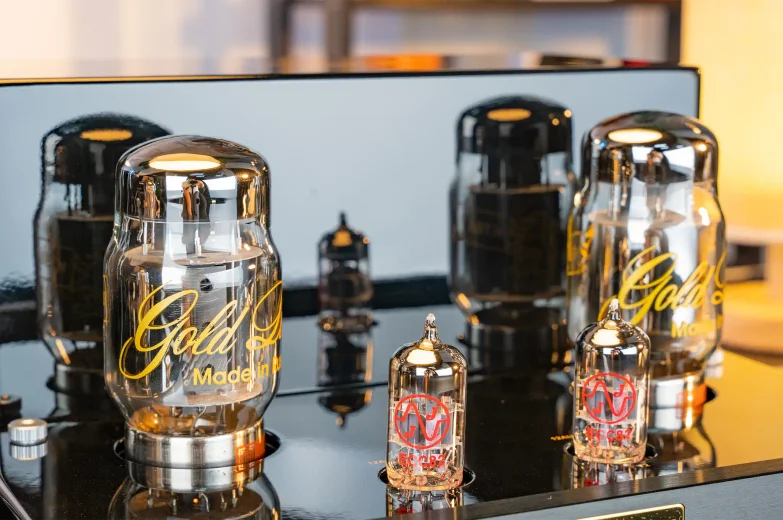

Single-ended Class A Power Amplification
Utilizing a matched pair of Genalex KT88 tubes, faithfully reproducing the natural tonality of music with rich, engaging sound.

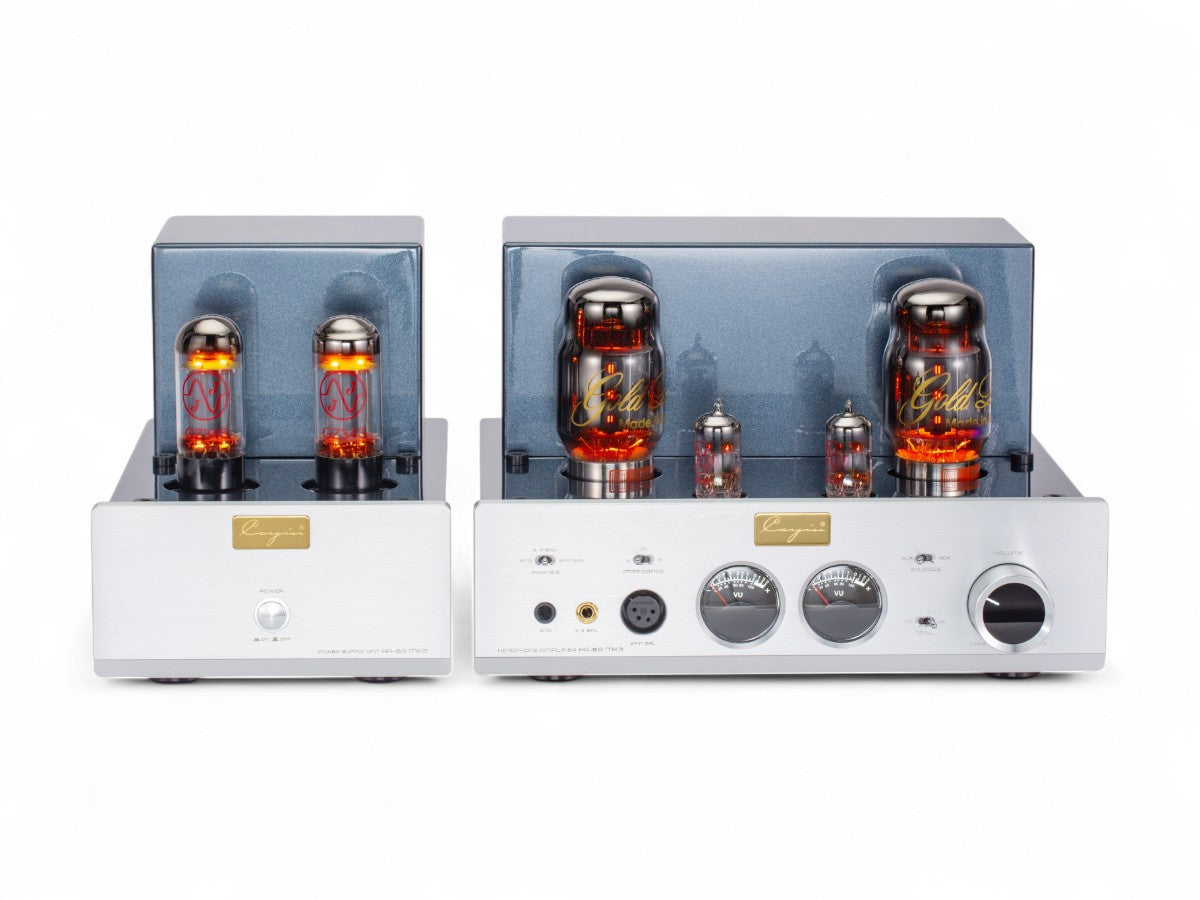

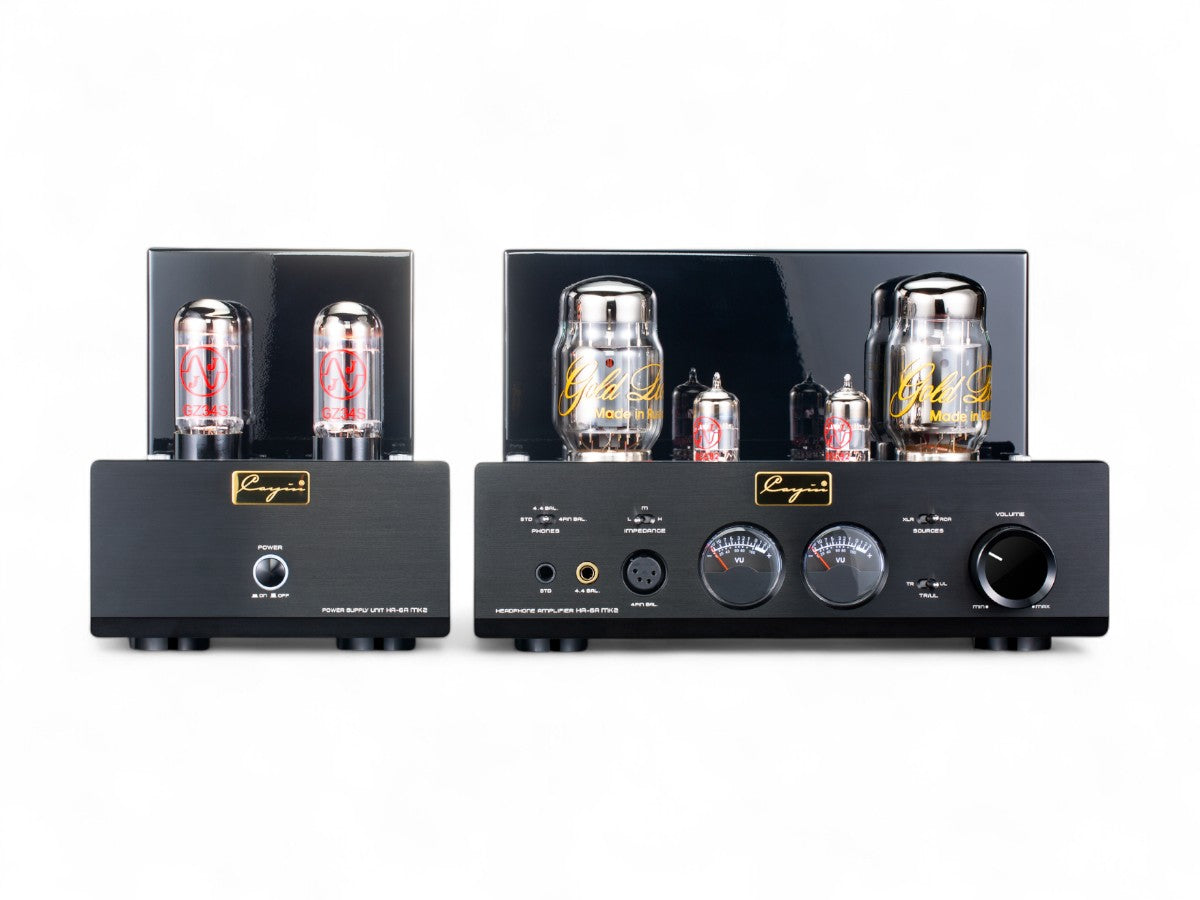

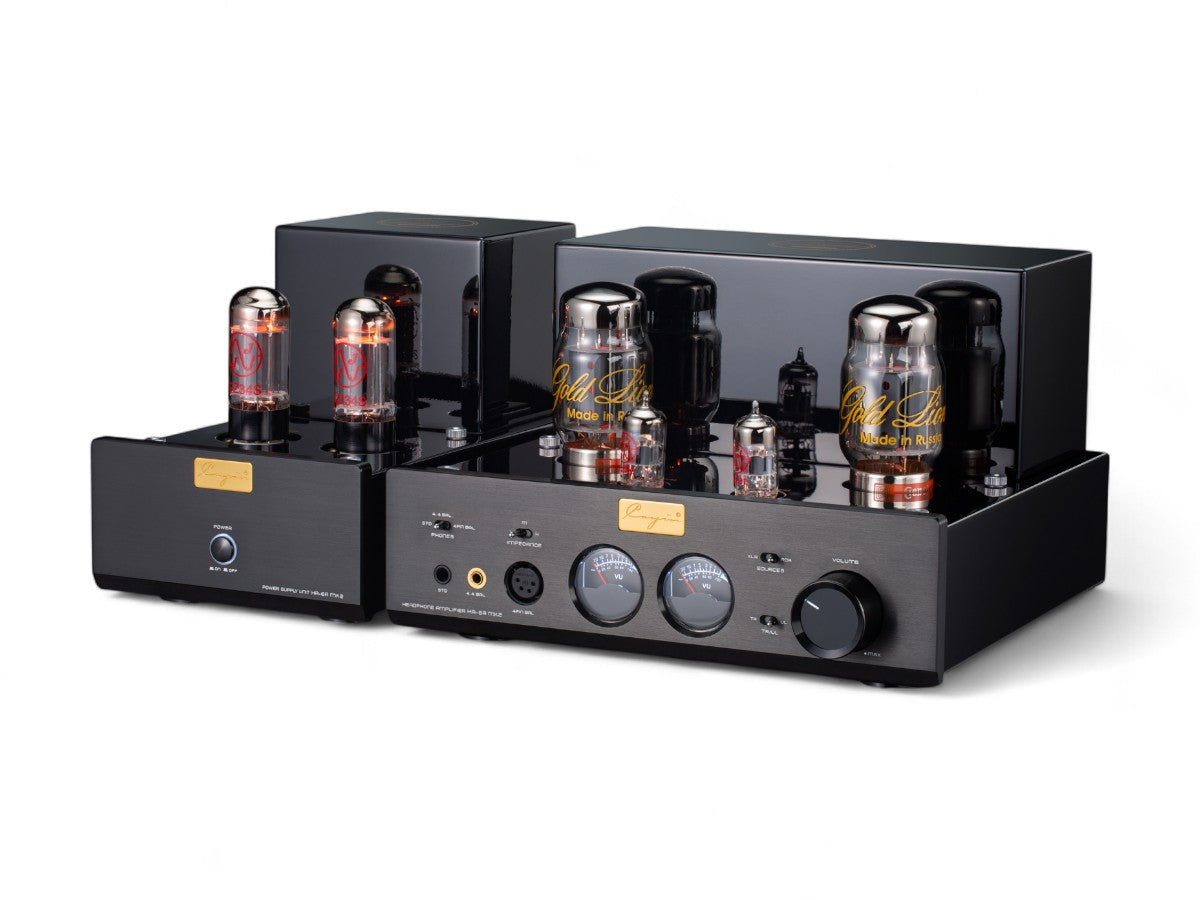

Cayin HA-6A МК2
Single-ended Class A, Pure Tube Amplification
The Cayin HA-6A MK2 is a meticulously engineered single-ended Class A headphone amplifier powered by KT88 output tubes. The driver tubes amplify signal voltage under highly linear conditions, while the KT88 tubes deliver complete, undivided output for maximum musical integrity. Cayin engineers carefully designed the gain circuitry, independently adjusting the operation current of each vacuum tube stage and pairing it with a pure, stable power supply. This ensures the HA-6A MK2 fully expresses the rich tonality and musical depth that single-ended Class A design is renowned for.
With an output of 3000mW + 3000mW (TR mode) and 4500mW + 4500mW (UL mode), the HA-6A MK2 drives a wide range of headphones effortlessly, offering an immersive audio experience that balances technical precision with pure musicality.
Comprehensive Upgrade in Headphone Amplification Circuitry
The headphone amplification circuit has been completely upgraded with high-quality components, delivering breakthroughs in both core performance and user experience. With wide compatibility and enhanced driving power, it can accommodate and power a greater variety of headphones, meeting the demands of diverse listening preferences.
Specifications:
3000mW + 3000mW (TR mode)
4500mW + 4500mW (UL mode)
THD
0.3% (1kHz)
Sensitivity
240mV~820mV
SNR
104dB (A-weighted)
Impedance Matched Headphone Output
Low | Mid | High
In-house designed output transformers provide three sets of impedance-matched outputs to handle different headphone loading accordingly:
- Low (L): 80 ~ 642
- Mid (M): 650 ~ 2500
- High (H): 2512 ~ 6000
Matching headphone impedance should produce a natural sound with well-defined bass reproduction.
Planar Headphones are more sensitive to impedance matching than dynamic headphones. Users can try out different settings after they are familiar with the sound signature of properly matched output.
A higher impedance setting will deliver higher output power because we are driving a harder load. It is completely different from gain control of a solid-state amplifier.

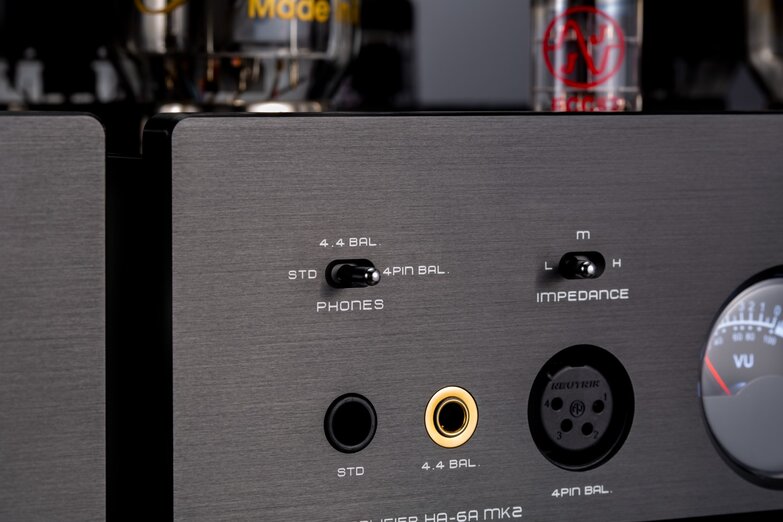

Application-Oriented Output
6.35mm | 4.4mm | 4-pin XLR
The 4-pin XLR output is a full-fledged balanced output, but the 4.4mm headphone output is optimized for a wider range of applications, including high-sensitivity portable headphones and IEMs:
- 4-pin XLR (Balanced):
- UL 4500mW + 4500mW; TR 3000mW + 3000mW
- 4.4mm (Balanced):
- UL 1000mW + 1000mW; TR 650mW + 650mW
- 6.35mm (Single-ended):
- UL 3500mW + 3500mW; TR 2300mW + 2300mW
The 4.4mm Headphone Out optimization has taken low-impedance high-sensitive headphones and IEMs into consideration. We reduced the output and improved the S/N Ratio, making sure the HA-6A MK2 is relevant to a very wide range of Personal Audio applications.
The lower output of the 4.4mm phone out can also serve as a fallback when the system suffers from unidentified hum and interference.

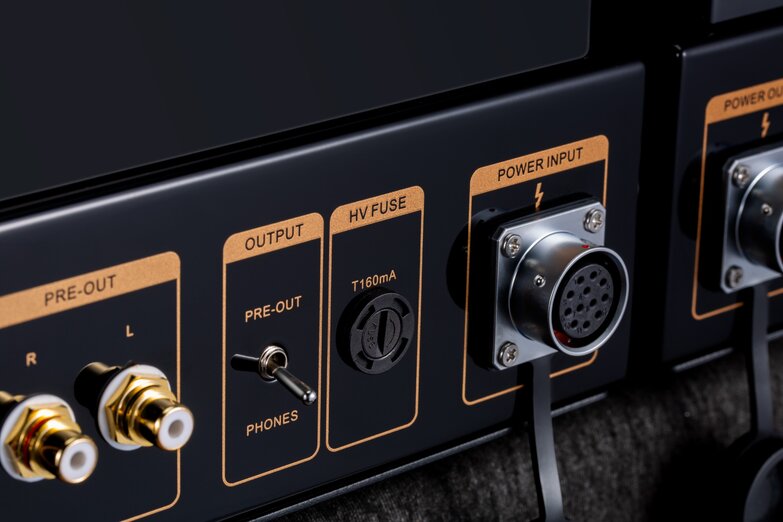

More Than a Headphone Amp-- Now a Preamp Too
The HA-6A MK2 introduces a dedicated PRE-OUT output, elevating it from a headphone amplifier into the centerpiece of your audio system. Connect it to external power amplifiers or active speakers to create a refined desktop or small-scale Hi-Fi setup. With this added versatility, one device now fulfills both your headphone and speaker listening needs.
Dual Operation Mode - Triode | Ultra-linear
The HA-6A MK2 features a front-panel switch that lets you choose between Triode (TR) and Ultra-linear (UL) operation. Enjoy the lush, smooth presentation of Triode mode or the dynamic, powerful performance of Ultra-linear mode - tailored to your music and mood with a single touch.
Triode Mode
Tendering, smooth and elegant Holography with sharp image, suitable for vocals, string music, and mid-range focused genre
Ultralinear Mode
Open, bold, with great momentum. Soundstage will open up, suitable for orchestral, OST, and music with a wide dynamic range
Enjoy the Fun of Tube Rolling Your Sound, Your Choice
The HA-6A MK2 is built for tube enthusiasts, supporting a wide range of compatible vacuum tubes. Swap and experiment freely to match your personal taste or listening environment. Each tube type offers its own sonic character, letting you shape your sound and explore different tonal flavors.

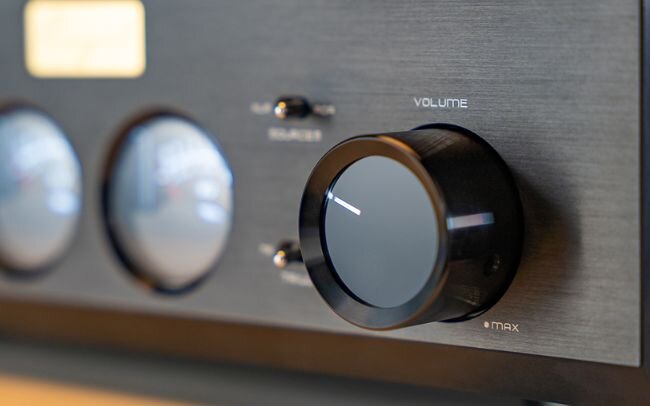

Volume Control
Dual Enhancement with Remote
The HA-6A MK2 features a premium Japanese ALPS potentiometer, delivering smooth, precise, and reliable volume adjustment while preserving signal purity. Every rotation feels natural and controlled, ensuring fine adjustments with minimal distortion and noise.
The HA-6A MK2 features a premium Japanese ALPS potentiometer, delivering smooth, precise, and reliable volume adjustment while preserving signal purity. Every rotation feels natural and controlled, ensuring fine adjustments with minimal distortion and noise.

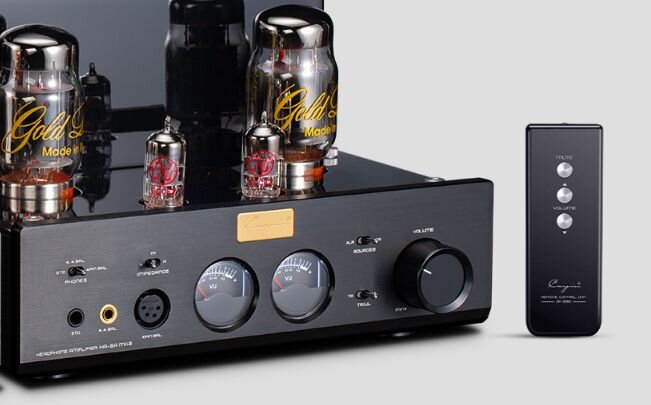

For added convenience, a dedicated remote control lets you adjust volume from a distance without compromising accuracy or sound quality.
All Selected and Matched Vacuum Tubes
With over 30 years of expertise in vacuum tube selection, Cayin ensures the HA-6A MK2 is equipped with premium tubes. Each tube undergoes meticulous hand-testing and matching, as well as strict performance evaluation.

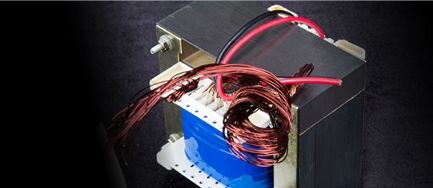

In-house Developed Transformers
As one of the most critical components in a vacuum tube amplifier, Cayin has always insisted on developing high-quality transformers in-house. The custom toroidal power transformer uses a high-purity copper winding design, which produces significantly lower magnetic noise compared to standard transformers. Combined with specialized magnetic shielding and encapsulation techniques, plus additional circuit protection, it ensures minimal noise interference and effectively extends product lifespan.
The specially designed wide-bandwidth El output transformer further reduces signal loss and preserves sonic purity, delivering higher fidelity and more natural sound.
Handcrafted Point-to-Point Wiring
Inside the HA-6A MK2, all electronic components are soldered using classic point-to-point wiring techniques, ensuring low-loss signal transmission. With meticulous layout and strict craftsmanship, the circuit design guarantees complete independence of signal, power, and grounding paths, avoiding interference and enhancing reliability.
Toroidal Power Transformer
Low magnetic noise, high efficiency.
Shielded Transformer Housing
Protects circuits from interference.
Wide-band El Output Transformer:
Minimal signal loss, superior fidelity.
Silver-plated signal leads and wiring: Excellent conductivity ensures stability, reliability, and reduced noise or distortion.

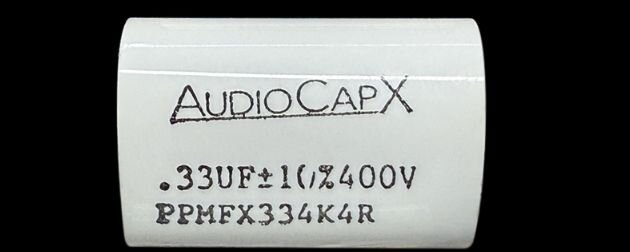

AudioCapX premium coupling capacitors (USA): Accurately isolate DC, improving the precision and stability of audio signal transmission, while enhancing overall tonal quality.

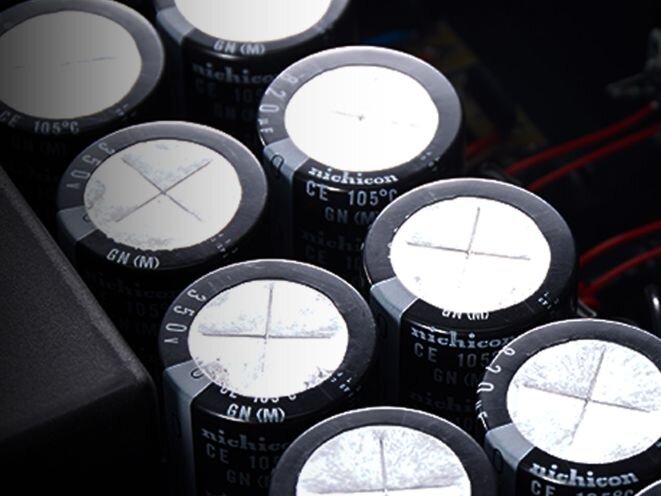

High-grade electrolytic capacitors
(Japan): Provide fast power delivery and filter out ripple current, reducing sonic coloration and minimizing AC interference.

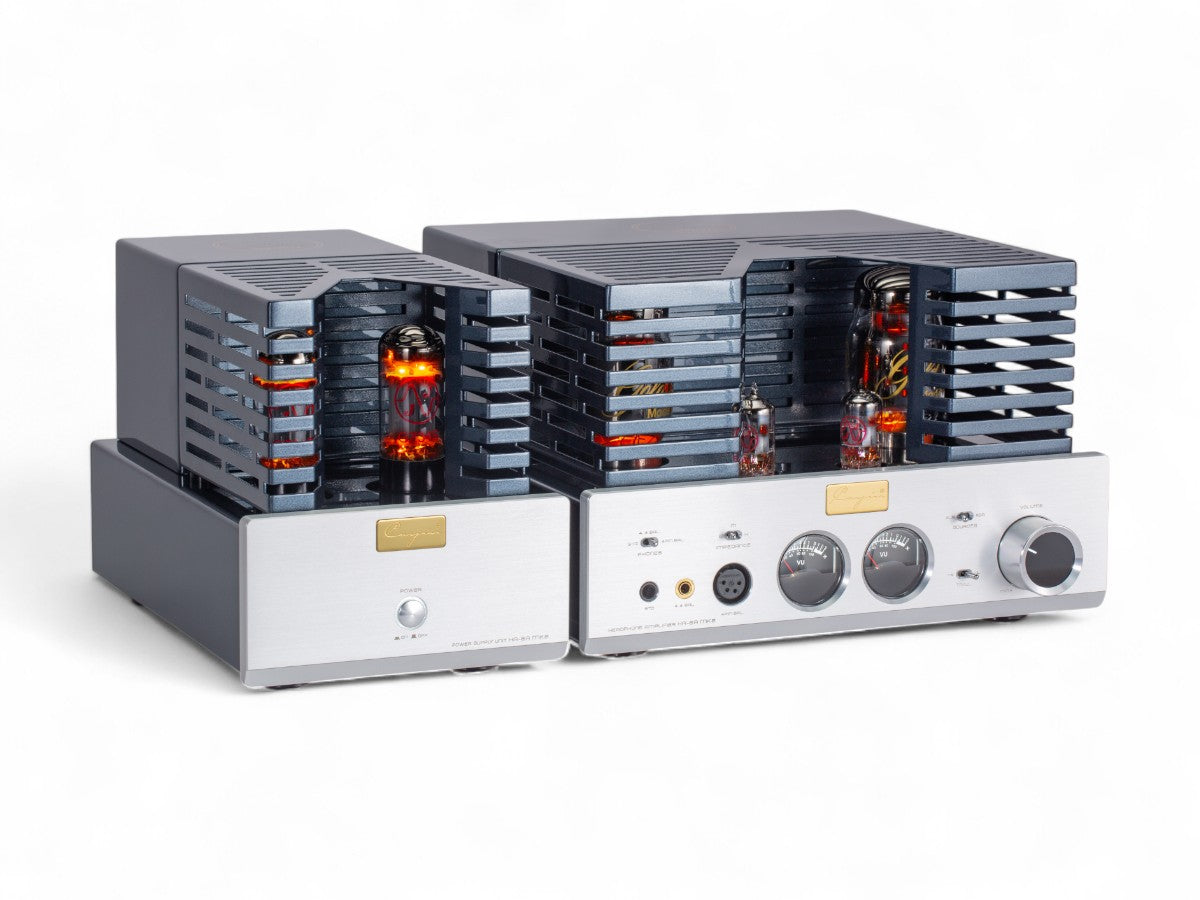

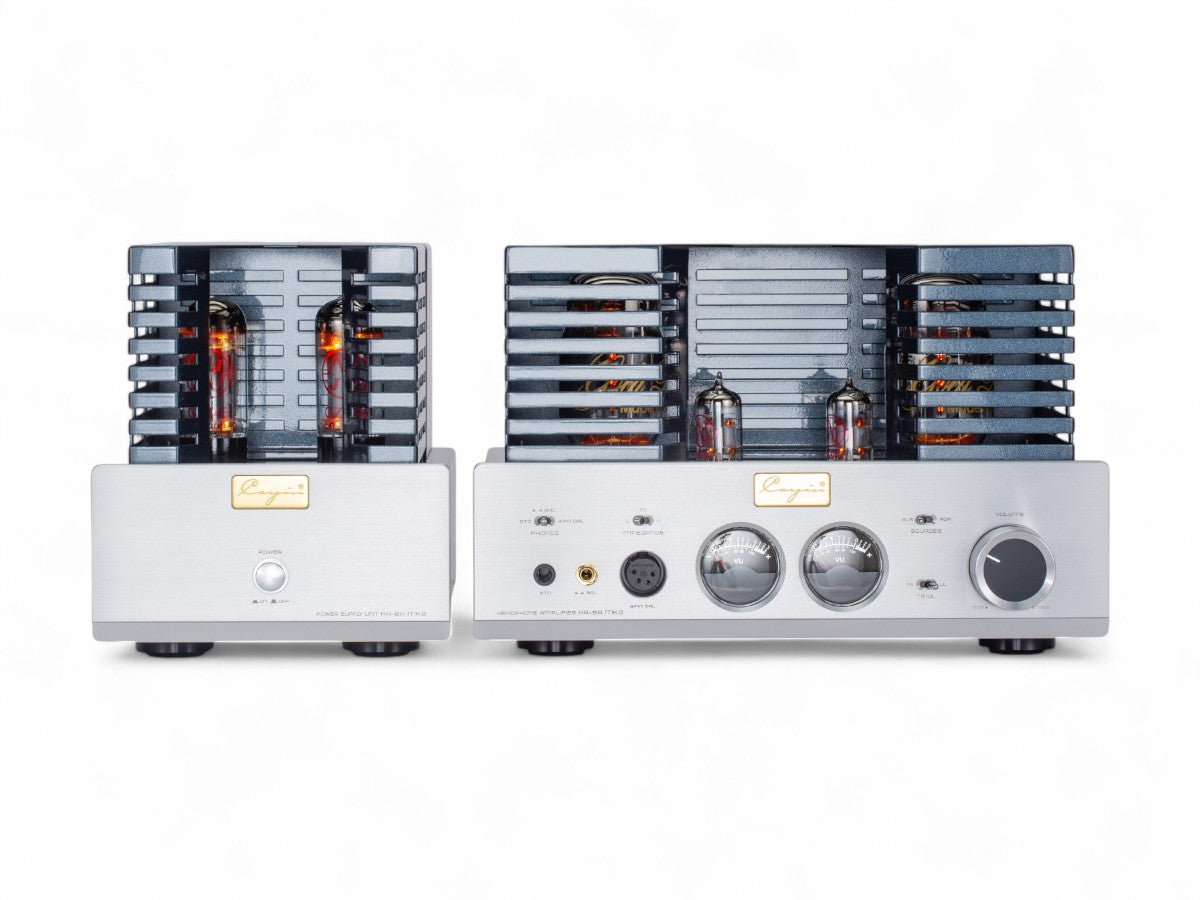

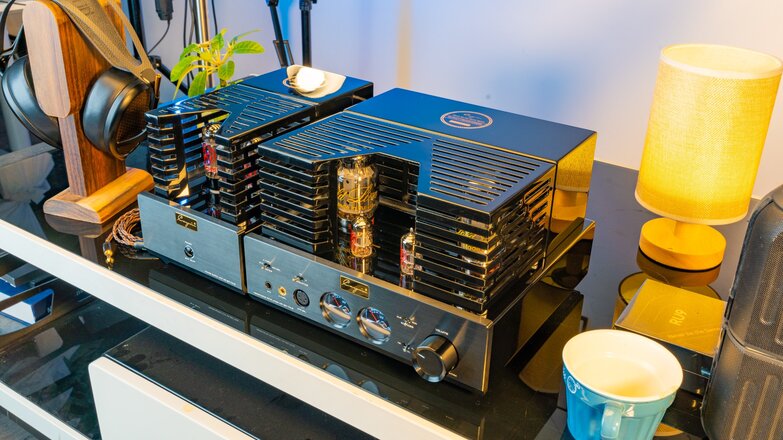

Vacuum Tube Protective Cage
A newly designed tube guard reflects Cayin's refined design language. It not only protects the tubes but also prevents accidental contact with hot tubes during operation.
Thoughtful Design - Crafted with Care

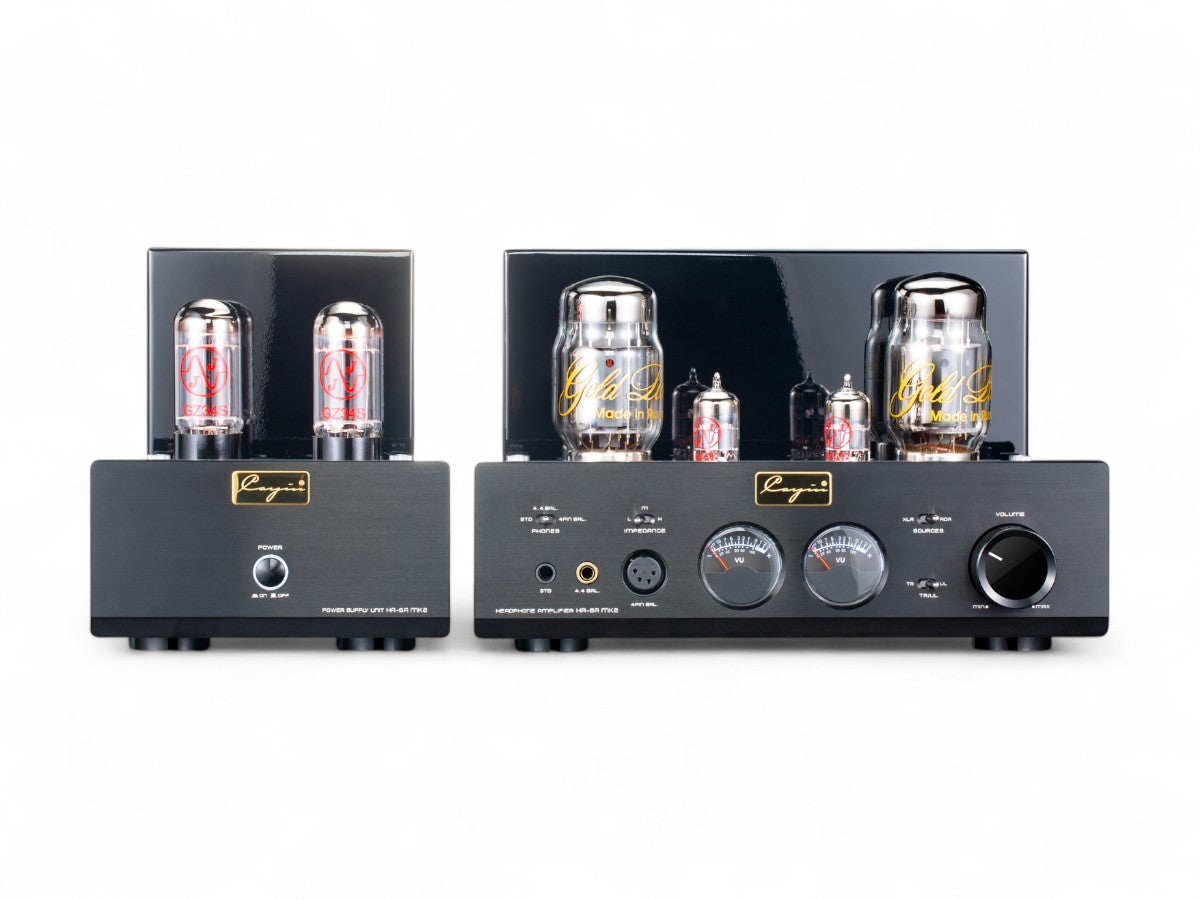

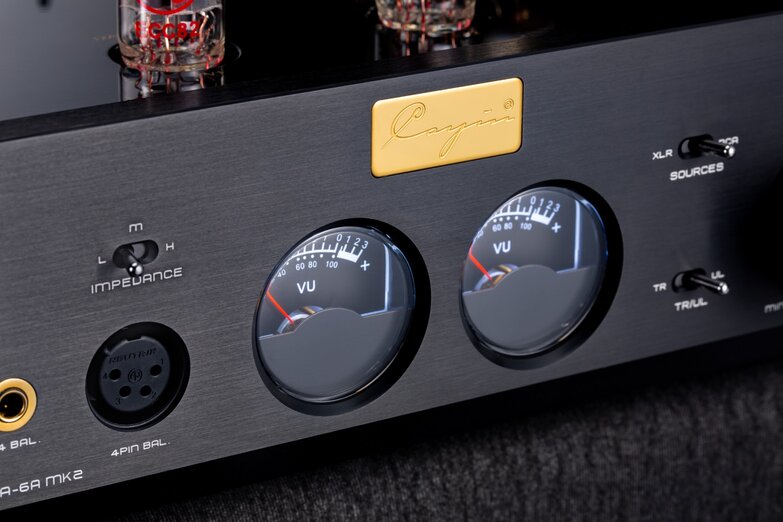

Dual VU Meter Display
Elegant and precise, the dual VU meters blend beauty and functionality, allowing you to enjoy your music while appreciating the charm of fine details.
60-second Soft Start Function
Ensures a silent startup with a delayed warm-up, allowing the tubes to fully stabilize and deliver the best sound performance.
| Parameter | Specification |
|---|---|
| Technical Specifications | |
| Amplifier Topology | Single-ended Class A |
| Output Power | 3,000mW per channel (Triode) 4,500mW per channel (Ultralinear) |
| Output Tubes | 2× Genalex Gold Lion KT88 |
| Driver Tubes | 2× JJ ECC82 / 12AU7 |
| Rectifier Tubes | 2× JJ GZ34 / 5AR4 |
| Design | Dual-chassis, hand-wired point-to-point |
| Audio Specifications | |
| Impedance Settings | Low (8–64Ω) / Mid (65–250Ω) / High (251–600Ω) |
| Output Impedance – Single-Ended | Low 16Ω / Mid 50Ω / High 150Ω |
| Output Impedance – Balanced | Low 32Ω / Mid 100Ω / High 300Ω |
| S/N Ratio | 104 dB (A-weighted) |
| Connectivity Specifications | |
| Headphone Outputs | 6.35mm (SE) 4.4mm Pentaconn (Balanced) 4-pin XLR (Balanced) |

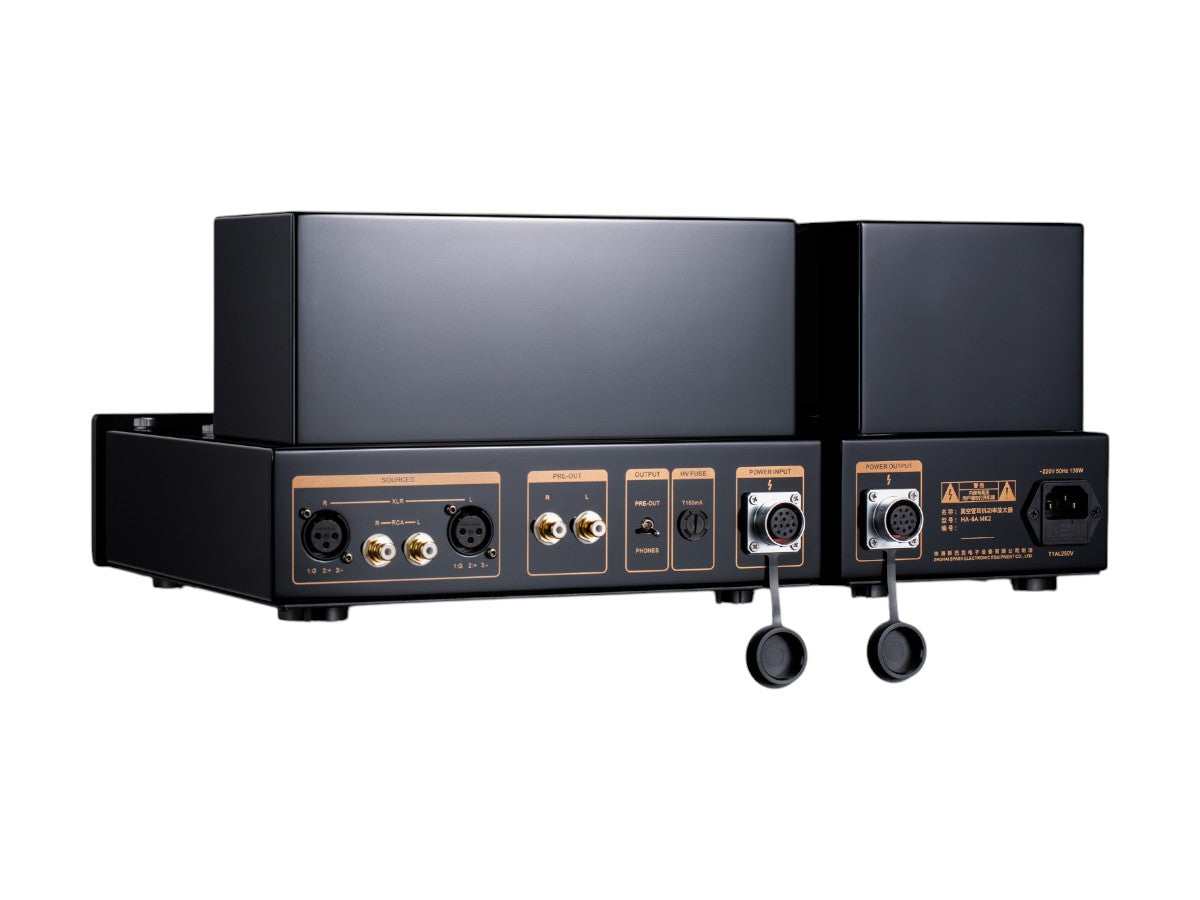

| Analog Inputs | RCA (Unbalanced) XLR (Balanced) |
| Analog Pre-Out | RCA |
