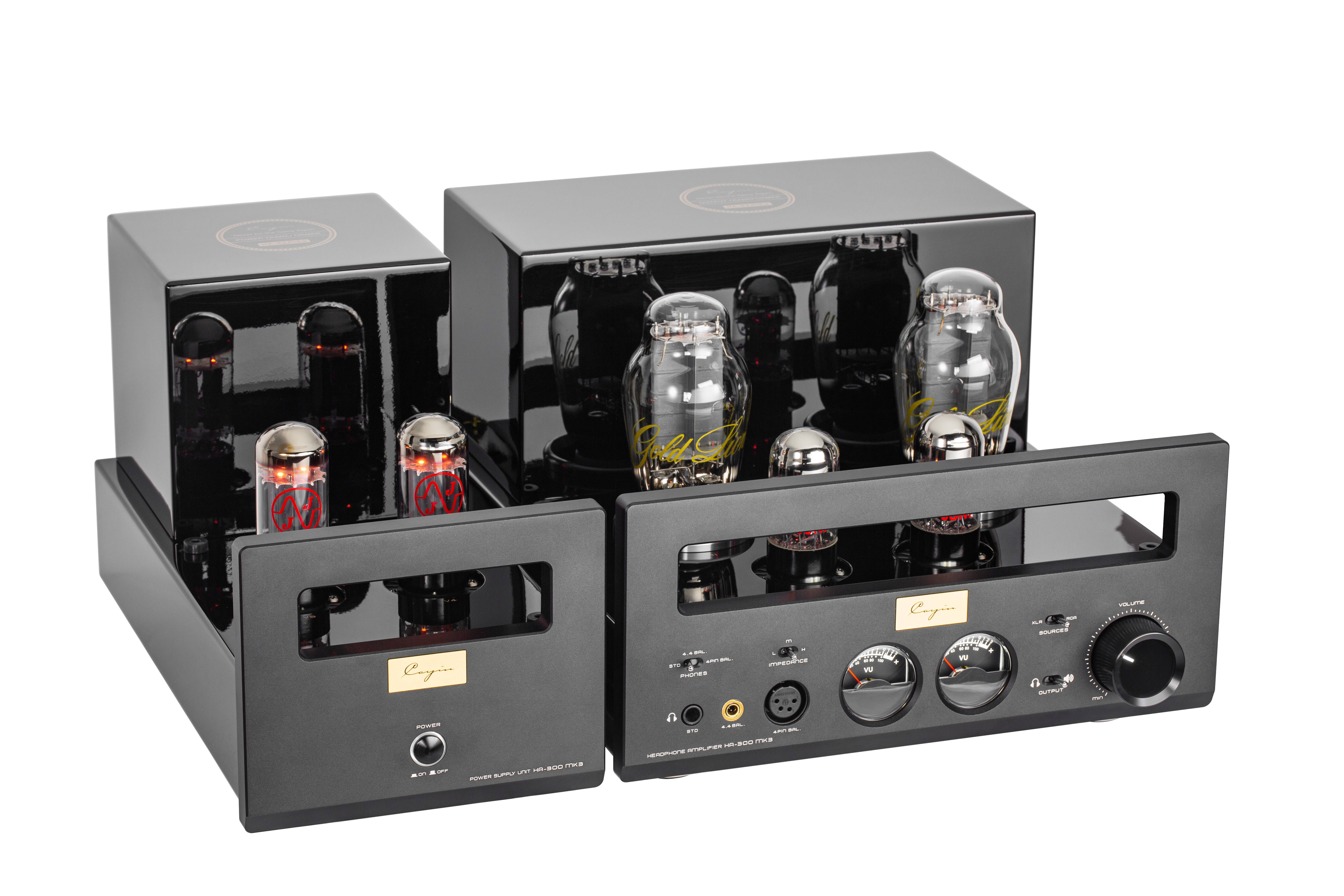

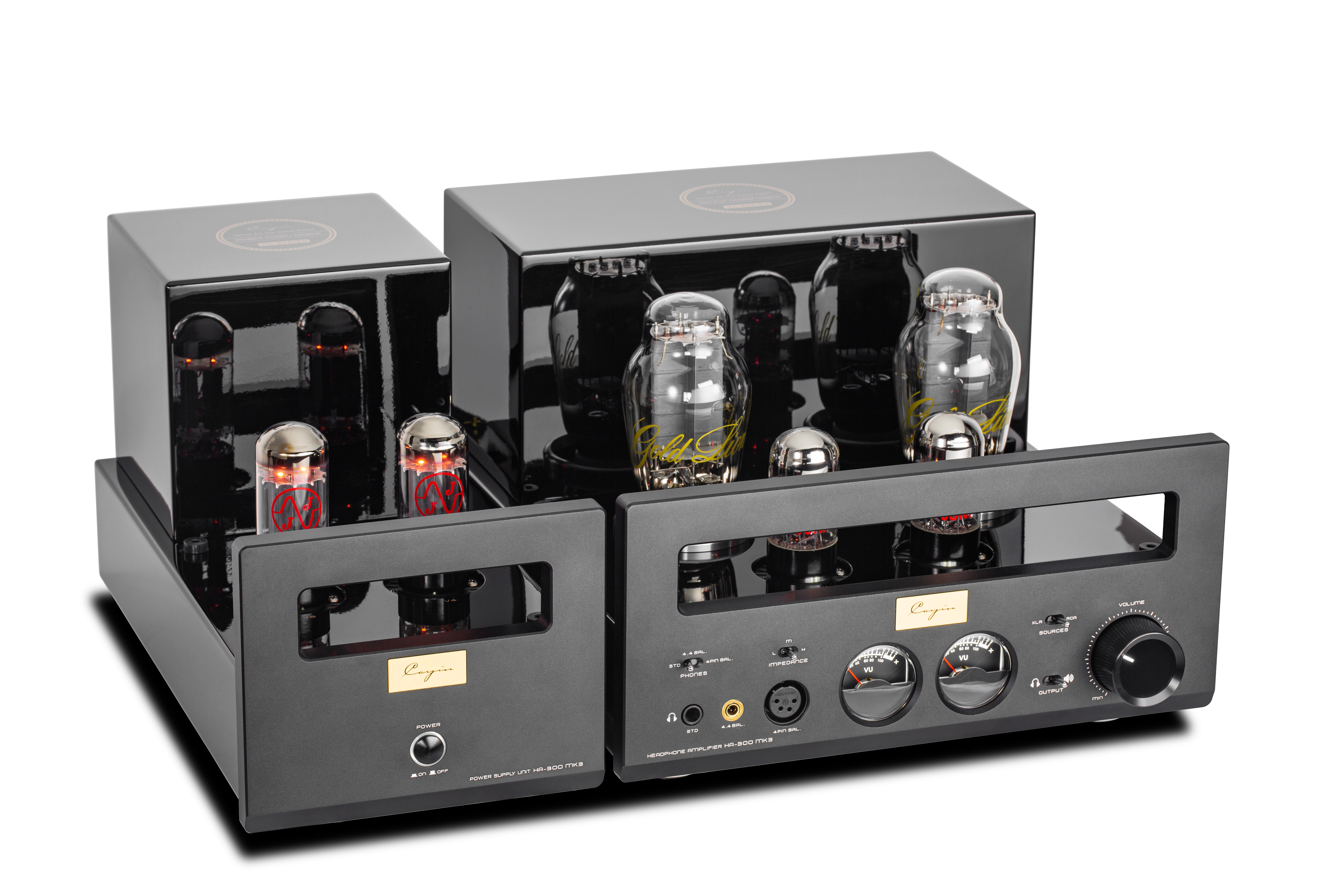

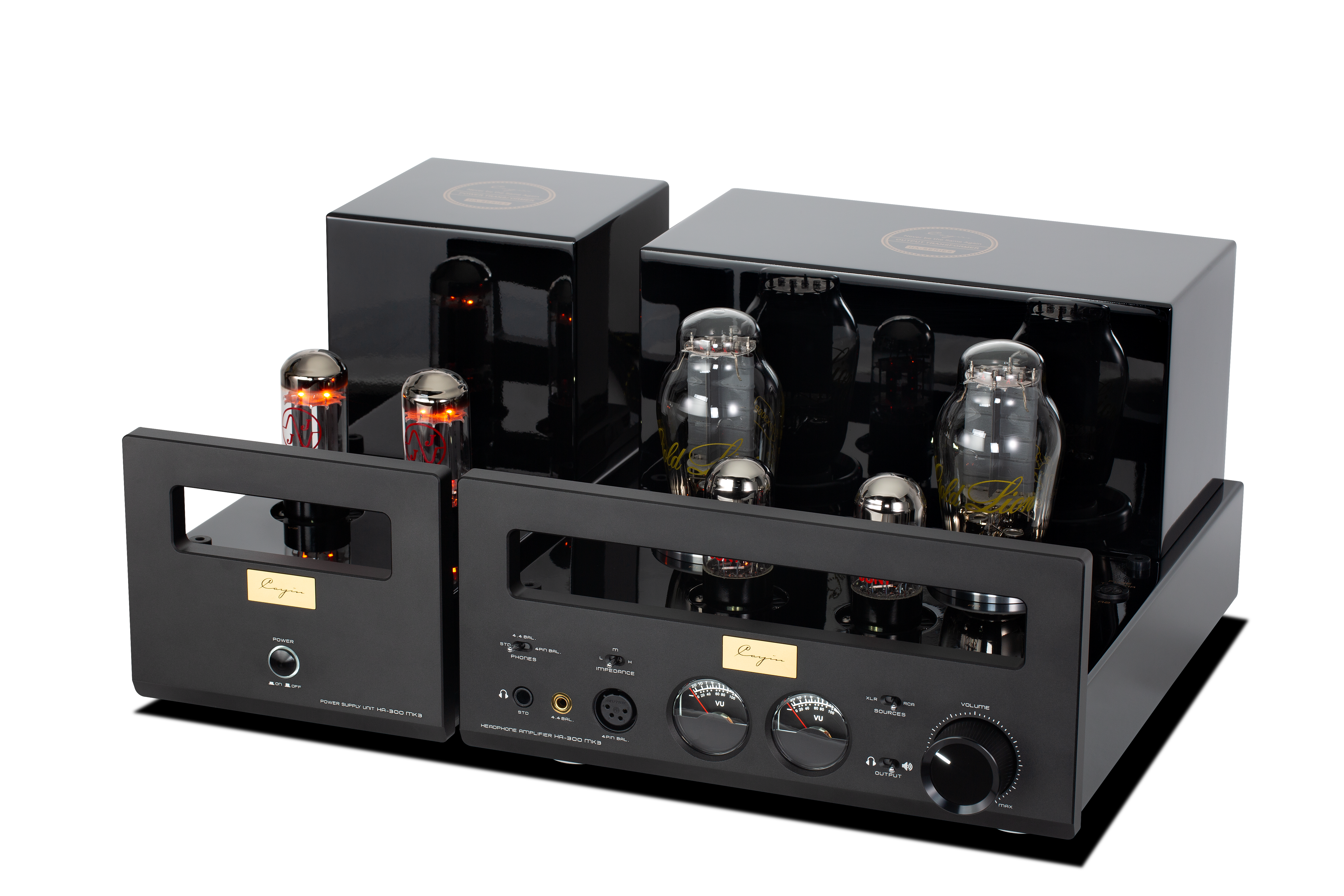

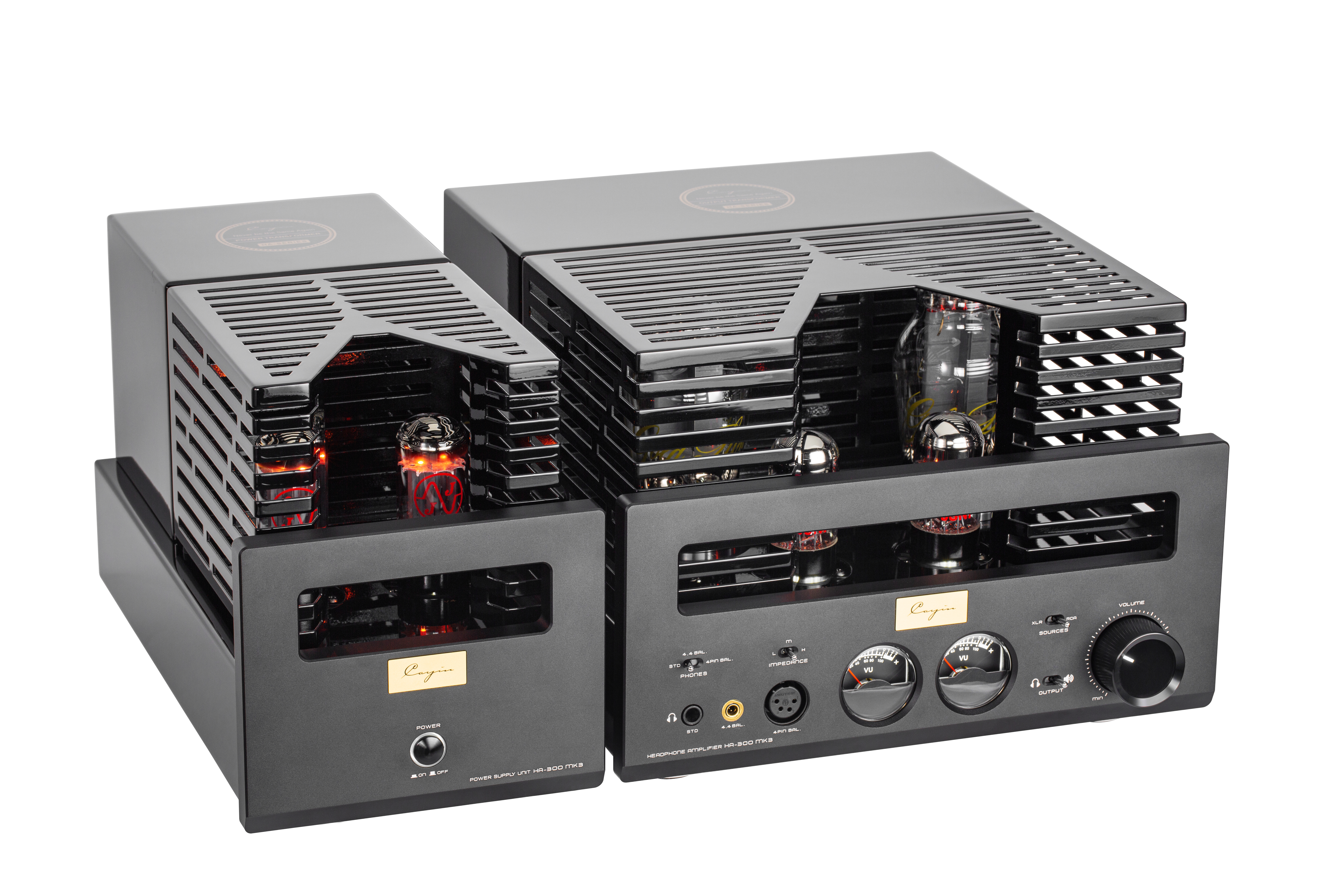

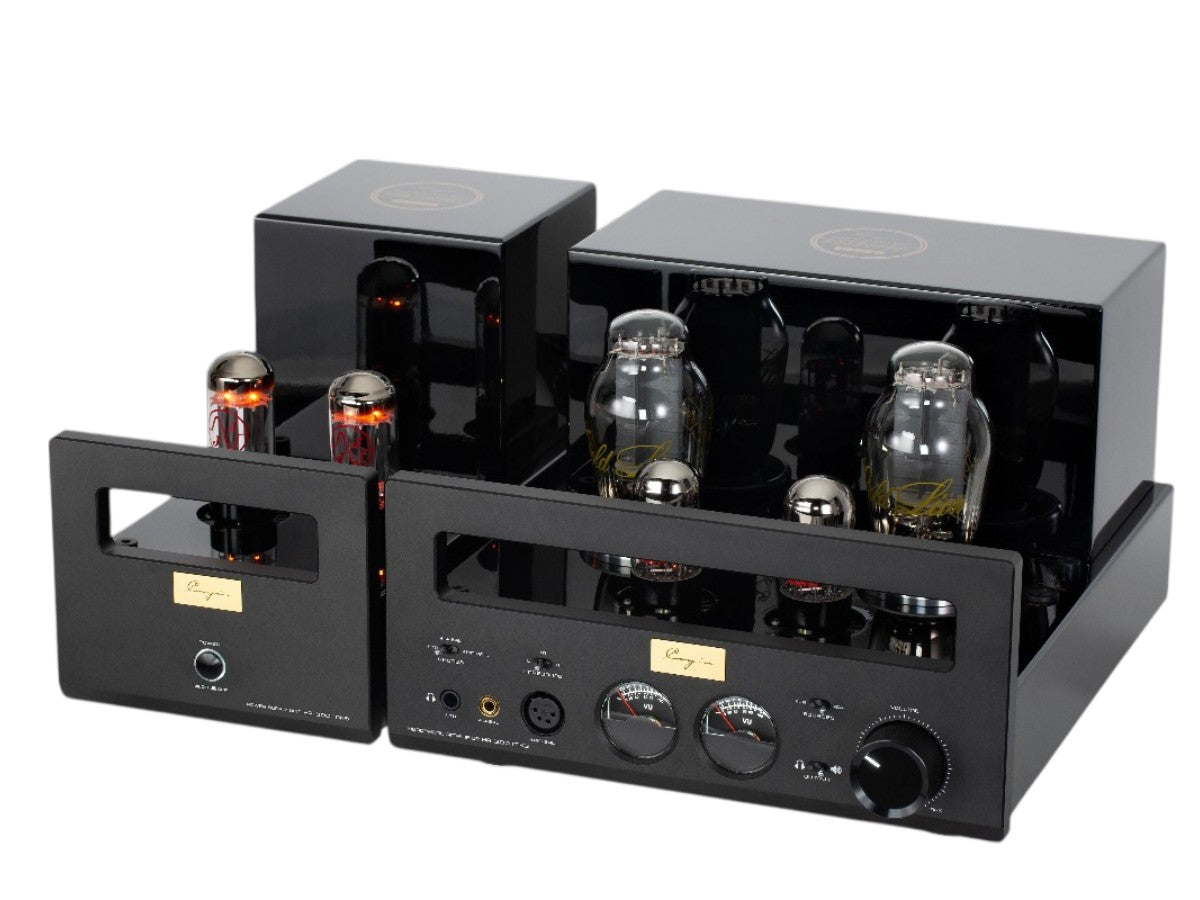

Cayin HA-300 MK3 – 300B SET Tube Headphone Amp
$4,399.00 USDFeatures
Two-box chassis separates the outboard power supply from the amplifier, minimizing electrical interference and delivering the cleanest possible signal
Triple impedance-matched headphone outputs (Low: 8–64Ω / Medium: 65–250Ω / High: 251–600Ω) to optimize performance with any headphone in your collection
Multiple headphone output terminations: 4-pin XLR balanced, 4.4mm balanced, and 6.3mm single-ended
In-house wound EI-core output transformers and toroidal power transformer — Cayin designs and builds every transformer to their own exacting specifications
Point-to-point wiring with silver-plated internal cabling for the shortest signal path and maximum transparency
Also functions as a Class A speaker amplifier [output power – UNCONFIRMED for MK3; MK2 was 8W/ch at 8Ω]
Silica gel shock absorbers between tube sockets and the chassis effectively eliminate 300B microphonics for a quiet, natural background
60-second startup delay circuit protects the circuit and minimizes power-on pop noise
Tube-rolling friendly design supporting popular 300B, 6SN7, and 22DE4 tube families
What's in the Box?
Warranty
HA-300 MK3
- Direct Heated Triode
- Vacuum Tube Headphone / Speaker Amplifier
- Third-Generation Evolution
- A More Immersive Musical Experience
A Comprehensive Upgrade Inside and Out
As the third-generation model in the HA-300 series, the HA-300 MK3 builds on the acclaimed architecture of the MK2 with major advances in components, circuitry, craftsmanship, and industrial design. From sonic refinement to day-to-day usability, every detail reflects Cayin's ongoing pursuit of acoustic excellence.
Pure Single-Ended Class A Design: The Signature Sound of a Flagship Tube Amplifier
The HA-300 MK3 continues the series' classic single-ended pure Class A tube amplifier design, combining premium tubes with a newly upgraded circuit to achieve an exceptional balance of musicality and technical performance.

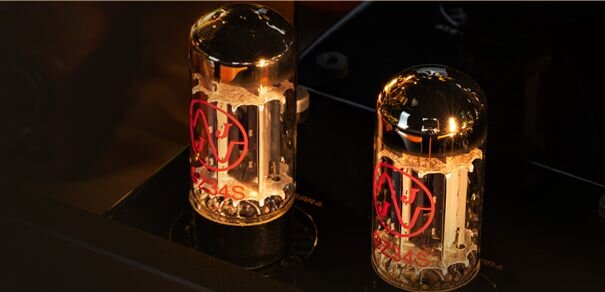

JJ GZ34/5AR4 Rectifier Tubes
The HA-300 MK3 employs two JJ GZ34/5AR4 rectifier tubes and an upgraded tube rectification circuit, delivering improved rectification efficiency while preserving the distinctive appeal of tube-based power supply design. It is also compatible with a selection of equivalent rectifier tubes, allowing users to tailor the amplifier's sonic presentation through tube rolling and enjoy a more personalized listening experience.
Please note that the HA-300 MK2 and HA-300 MK3 feature different power supply designs and are not compatible as standard. Customers who wish to order an HA-300 MK3 power supply for use with an HA-300 MK2 must place a customized order through Cayin.
Third-Generation Circuit Upgrade Preserving the Authenticity of Music

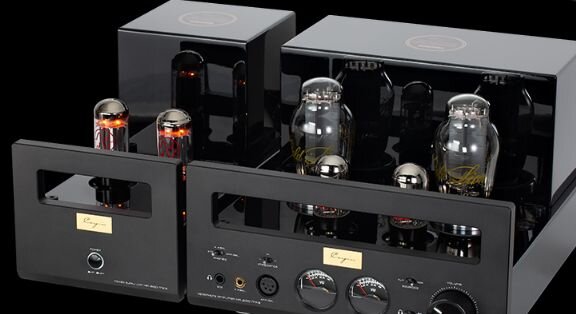

The HA-300 MK3 uses a physically separated power supply and main amplifier chassis, delivering cleaner power and improved isolation from interference.
Built around a new third-generation upgraded circuit, the amplifier retains the unique charm of Cayin's classic single-ended tube topology while enhancing signal transmission efficiency and anti-interference performance.
The voltage amplification stage incorporates a low-noise regulated circuit with independent staged power delivery, preserving the integrity of the original audio signal and reproducing music with greater precision and realism.
In addition, the HA-300 MK3 has been specially optimized for IEM compatibility, making it suitable for a much wider range of headphones than before.
JJ 6SN7 Voltage Amplification Tubes
The JJ 6SN7 tubes provide low noise and high resolution, enabling accurate voltage gain and excellent detail retrieval while laying a clean foundation for the subsequent amplification stages.

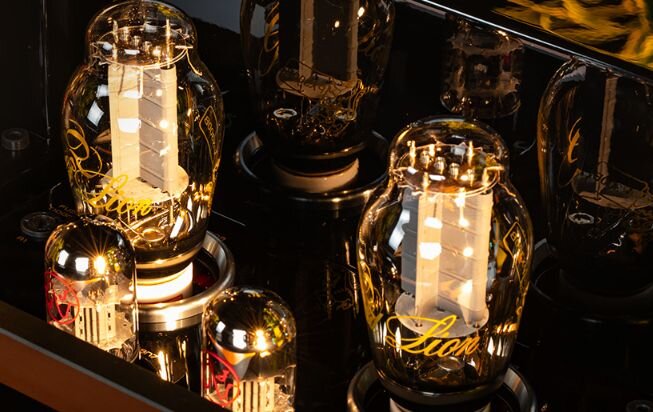

Genalex Gold Lion PX300B Power Tubes
The HA-300 MK3 uses Genalex Gold Lion PX300B tubes in a Single-ended pure Class A output stage. Known for their warm, natural, and richly textured character, these tubes deliver:
- Full and delicate midrange
- Smooth, transparent highs
- Deep, controlled, and elastic bass
The result is a presentation that preserves the emotional core and natural beauty of music.

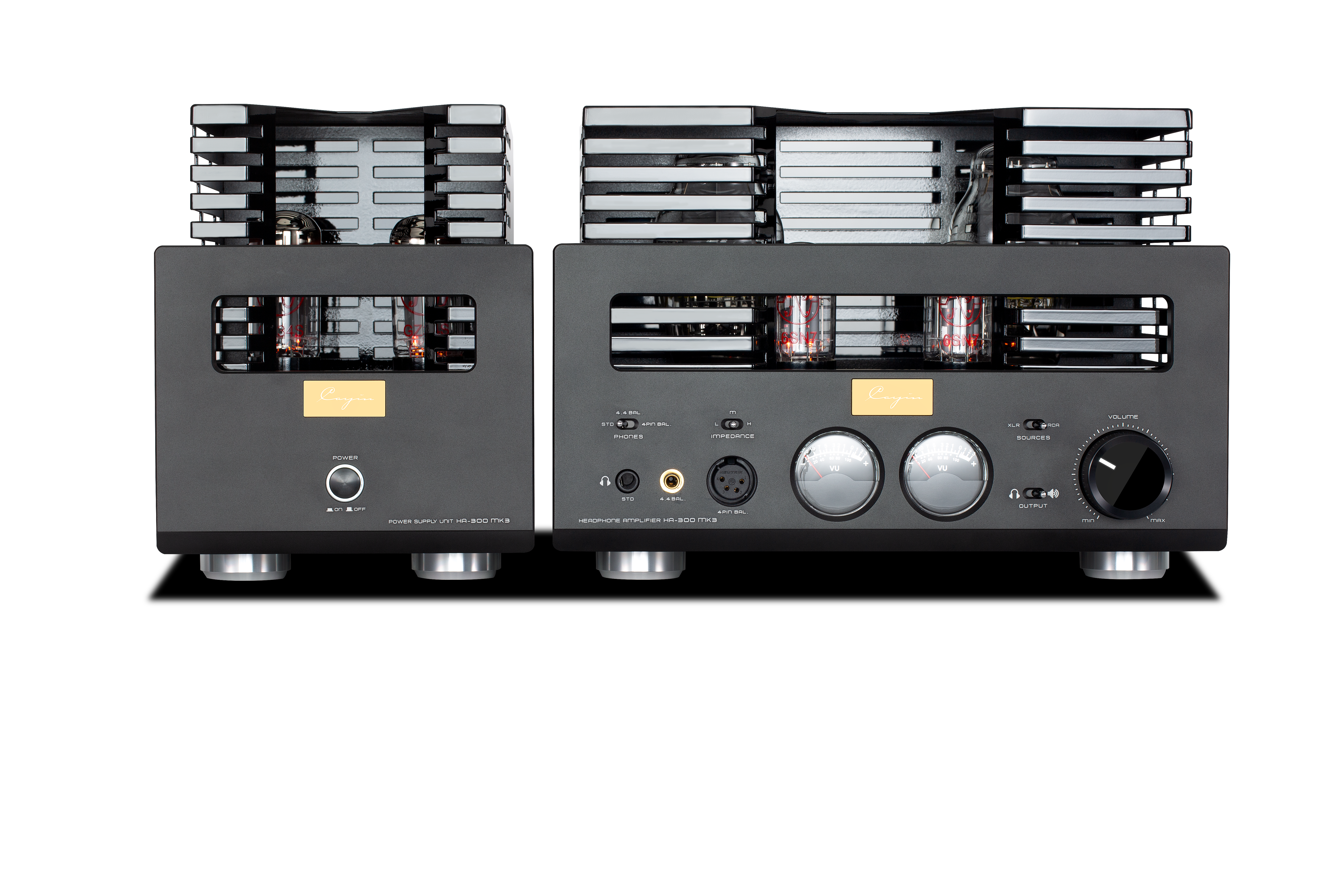

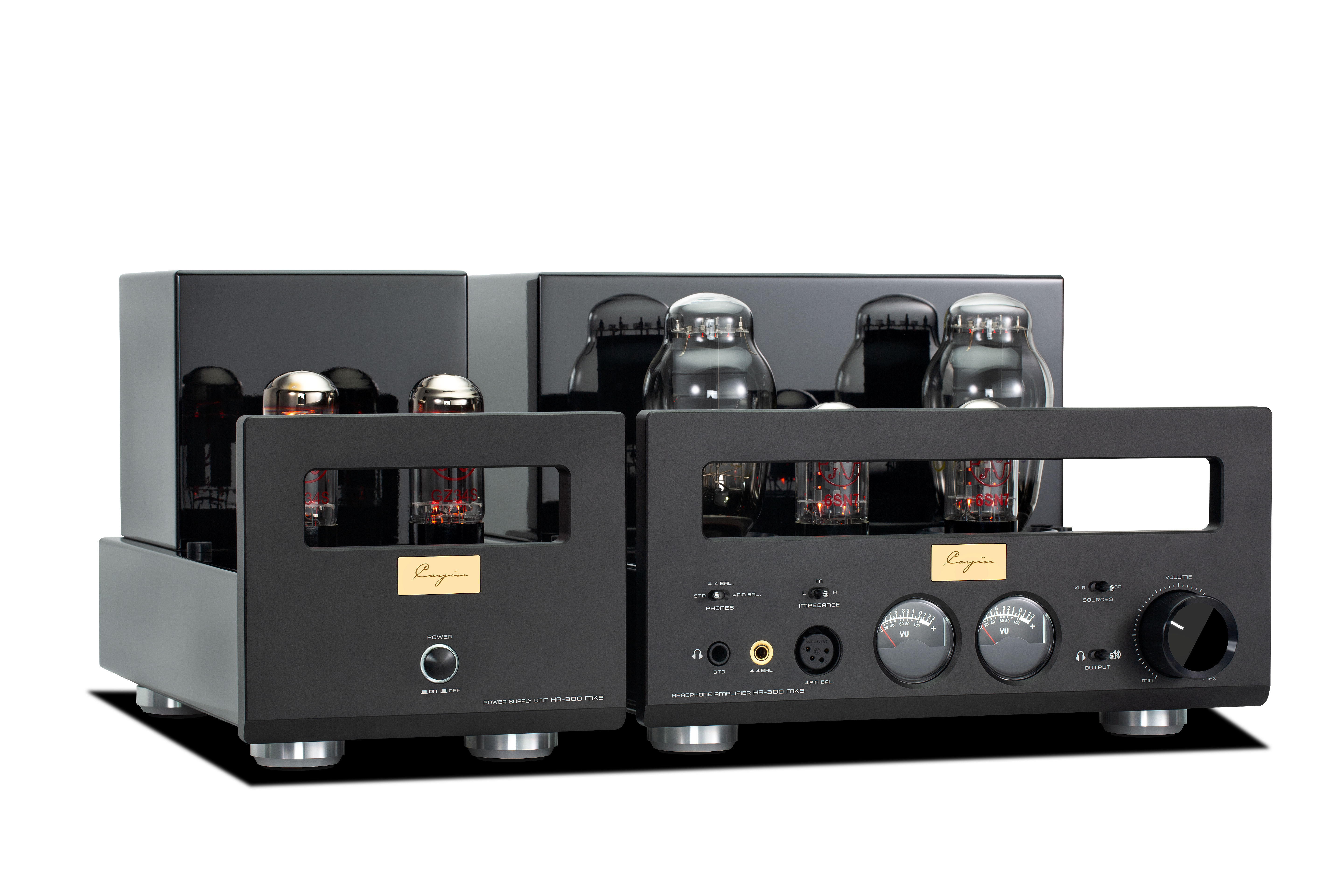

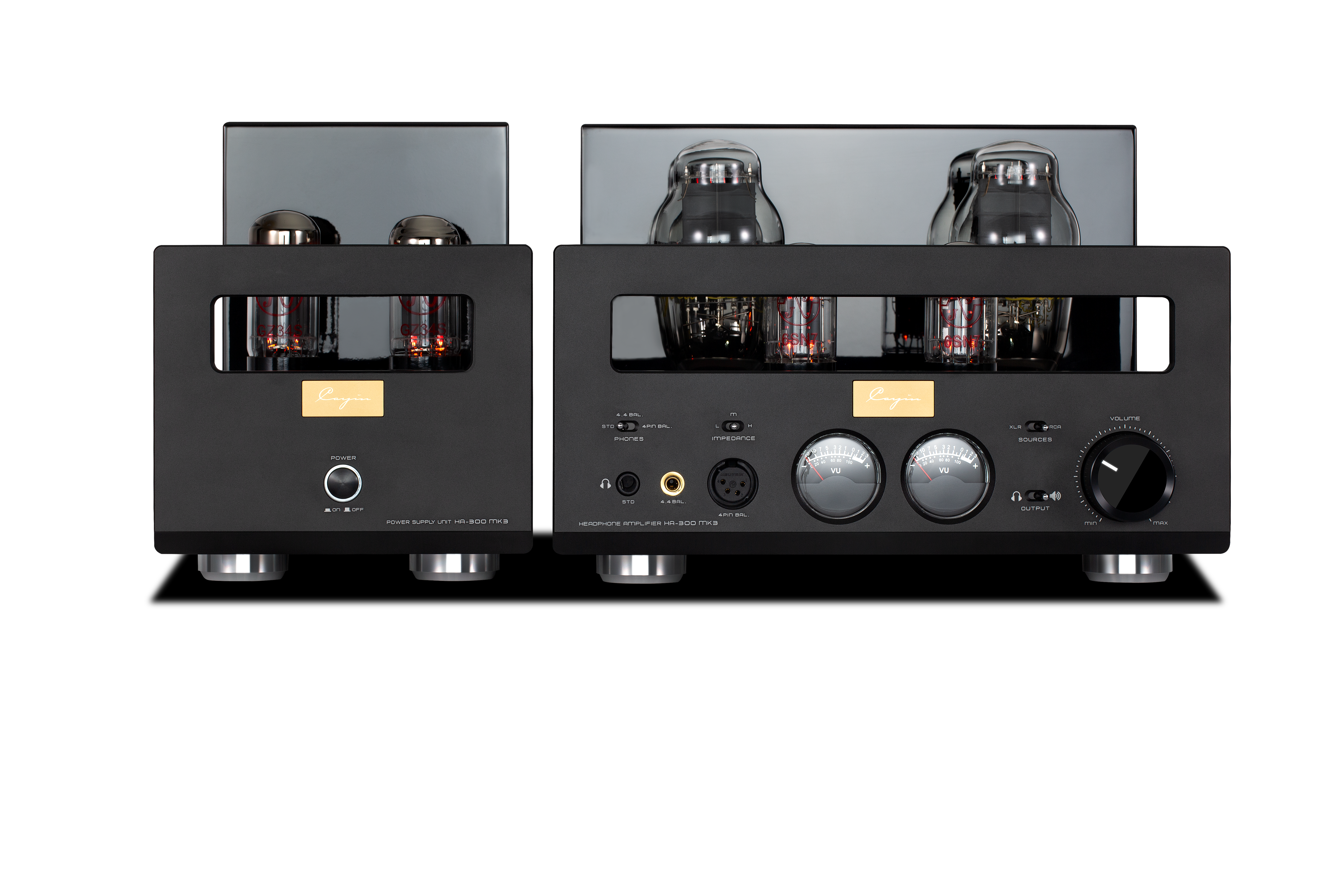

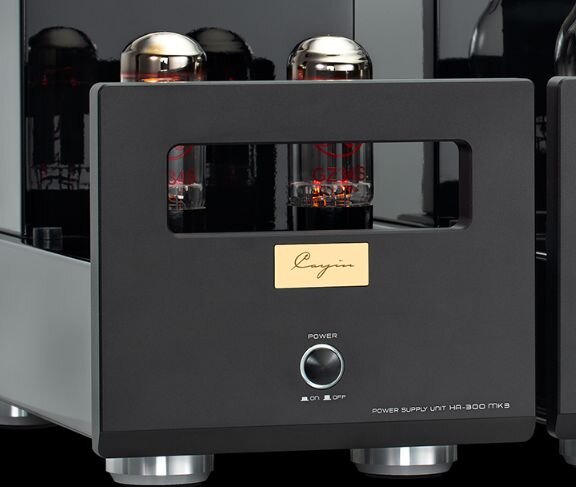

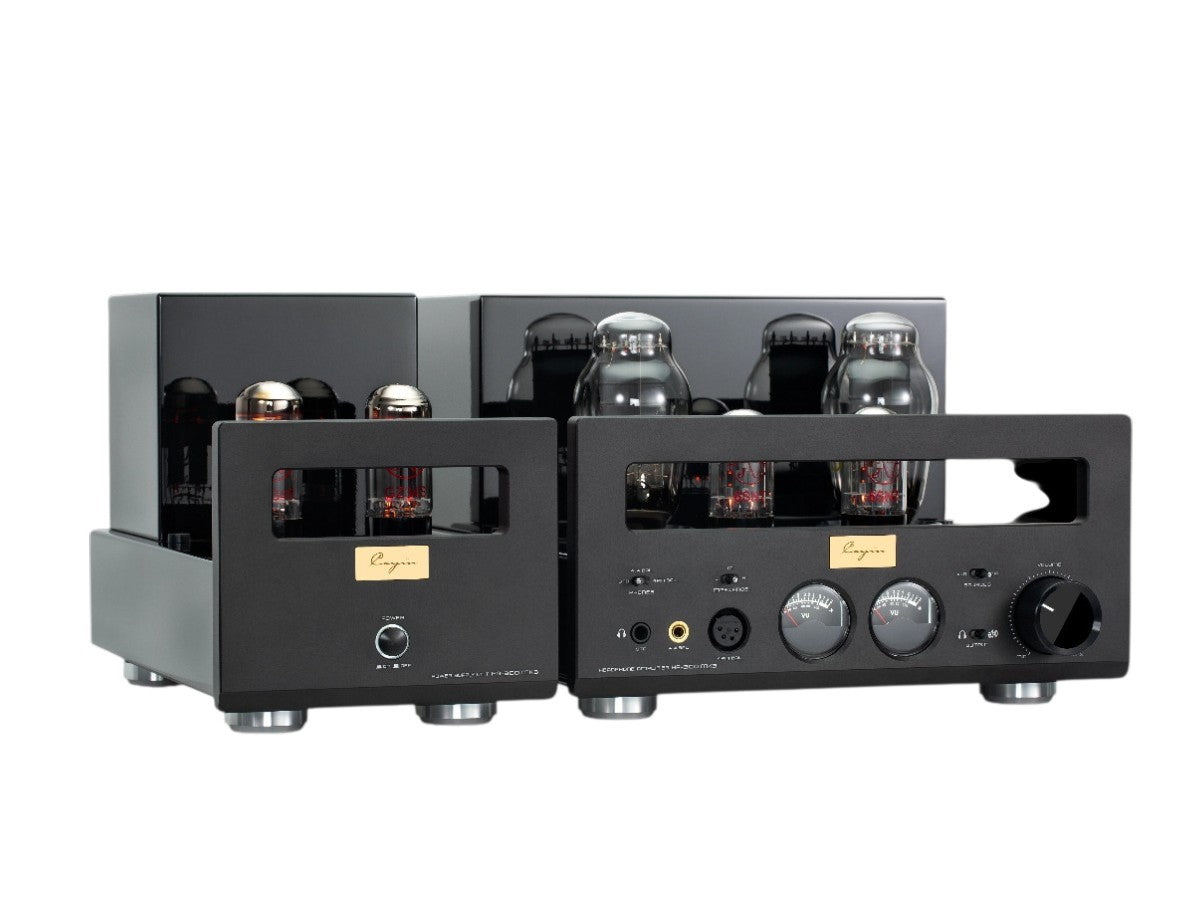

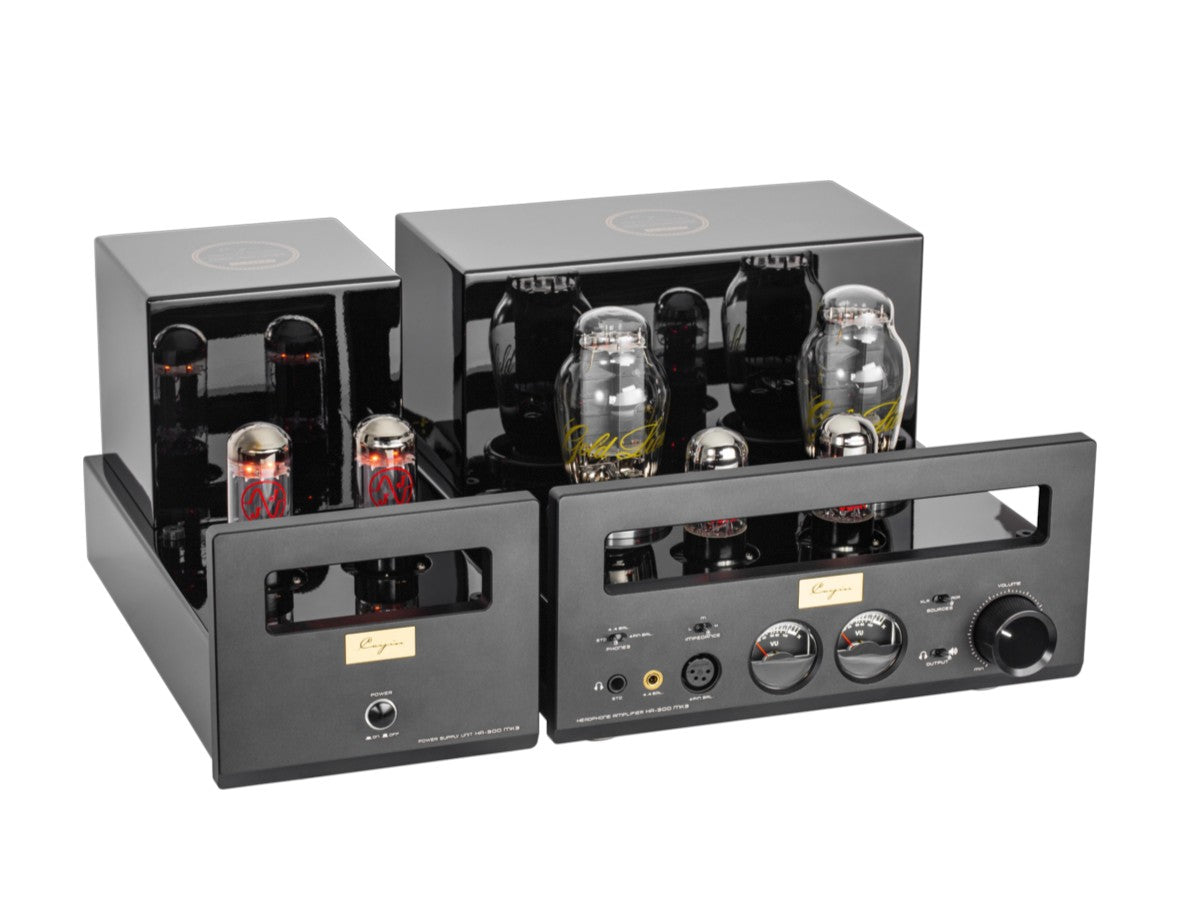

Two-Chassis Construction
The high-rigidity chassis structure helps suppress vibration and improve mechanical isolation, contributing to a higher signal-to-noise ratio and more stable sonic performance. The modular design also makes maintenance, upgrades, and product placement more flexible.

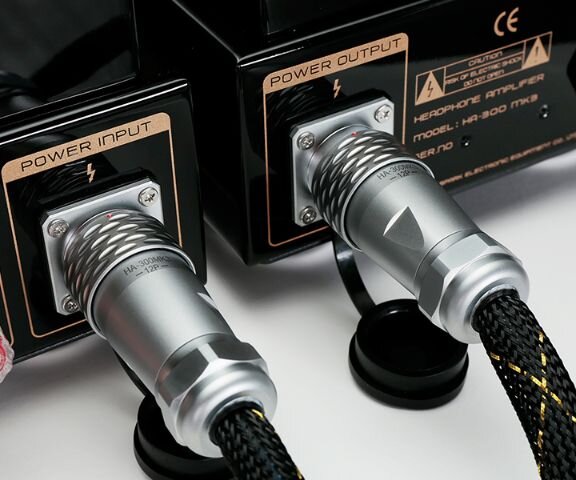

Secure Power Connection
The main unit and power supply are connected via an aviation-grade push-lock connector cable, designed for secure, stable transmission with low loss and protection against incorrect connection. Dust-protected terminals also improve ease of use.
Breakthroughs in Both Performance and User Experience
With greatly expanded compatibility, the HA-300 MK3 offers a wider sensitivity and power range, enabling it to drive everything from low-impedance IEMs to high-impedance full-size headphones. It is engineered to satisfy diverse listening needs with precision. At the same time, key acoustic specifications have been further improved, delivering cleaner signals, finer detail retrieval, and a more immersive listening experience.
- 6500mW+6500mW 4-Pin Balanced Output
- 6000mW+6000mW 6.35mm Standard Output
- <1% (1kHz) Total Harmonic Distortion
- 250mV~1200mV Sensitivity
- 1600mW+1600mW 4.4mm Balanced Output (optimized for IEMs)
Shape the Sound Your Way
All tubes used in the HA-300 MK3 can be replaced with compatible alternatives, giving users the freedom to tailor the sound signature to their own preferences and listening scenarios.
From subtle tonal refinement to dramatic changes in presentation, tube rolling opens the door to a wide range of sonic possibilities and a more personalized listening experience.

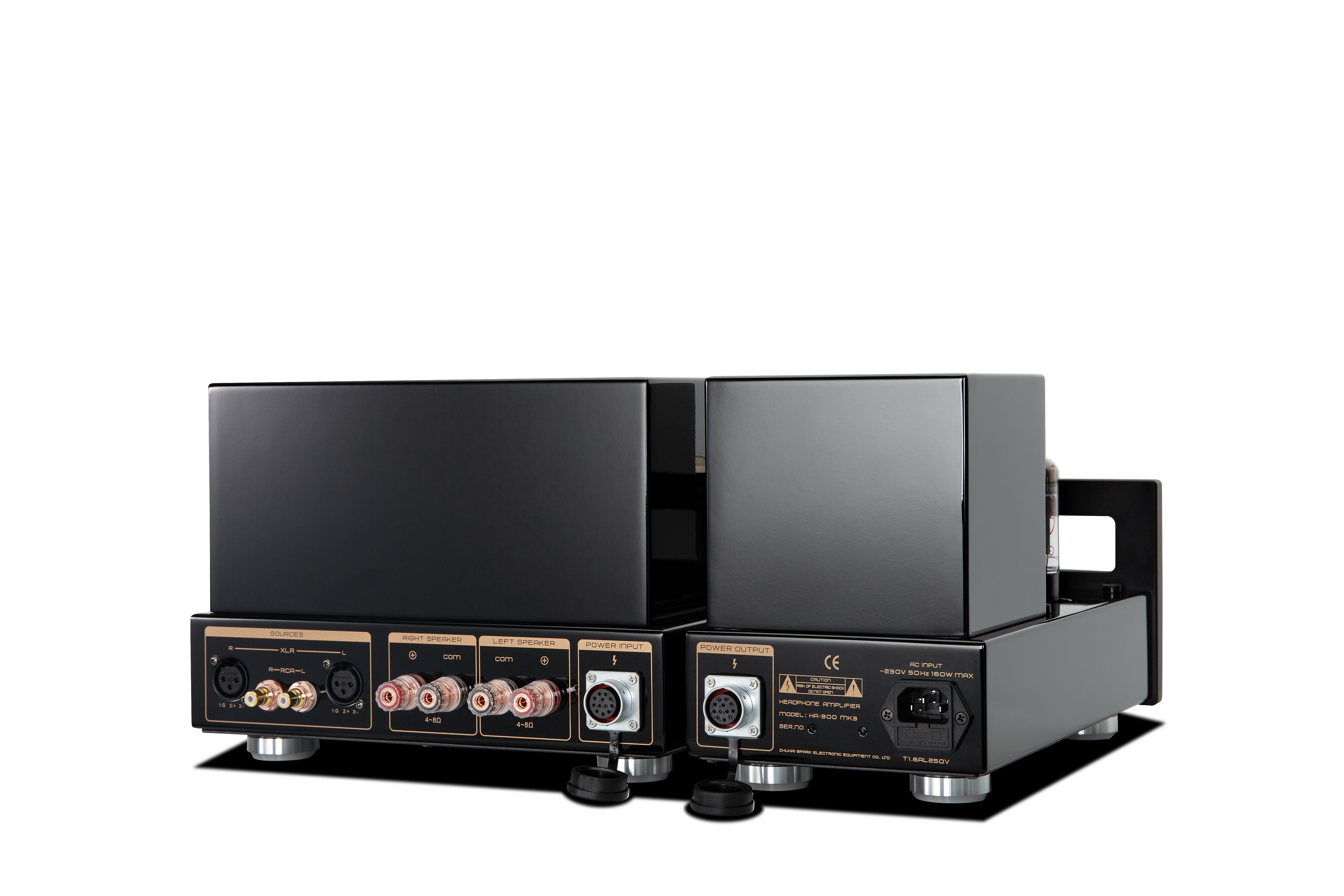

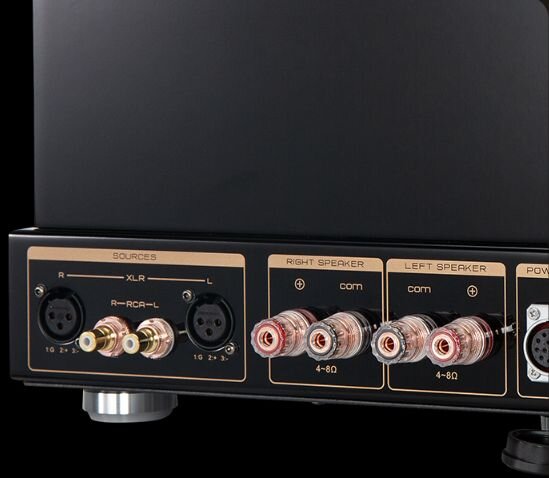

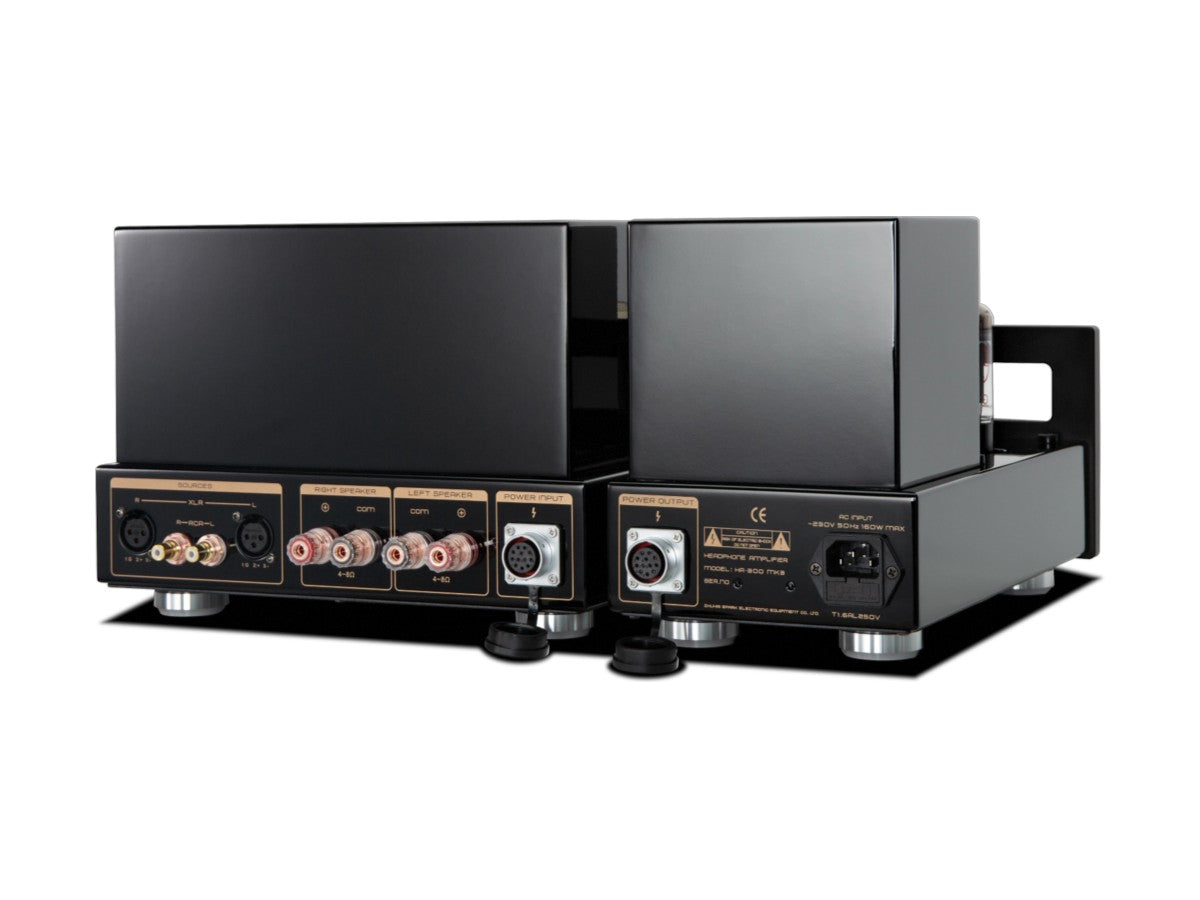

Flexible Inputs and Speaker Output
The HA-300 MK3 also offers:
- 1 pair of XLR balanced inputs
- 1 pair of RCA single-ended line inputs
- 1 set of speaker output terminals
In addition to driving headphones, the amplifier can also power speakers, making it suitable for both desktop audio systems and home listening setups.

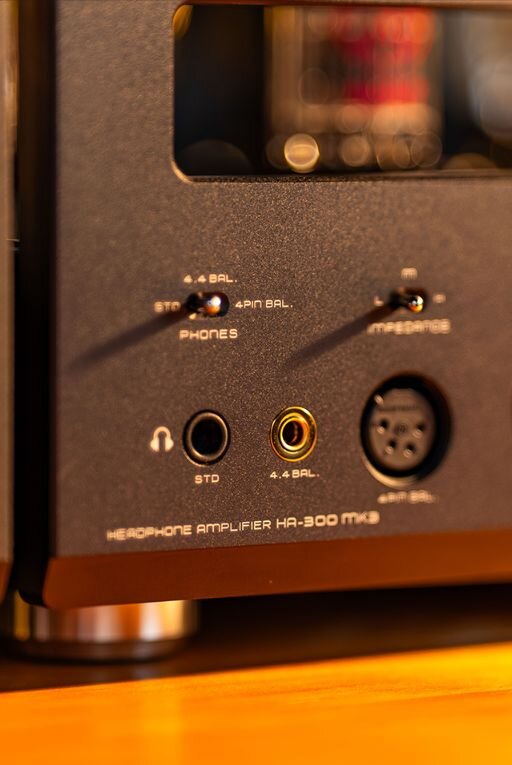

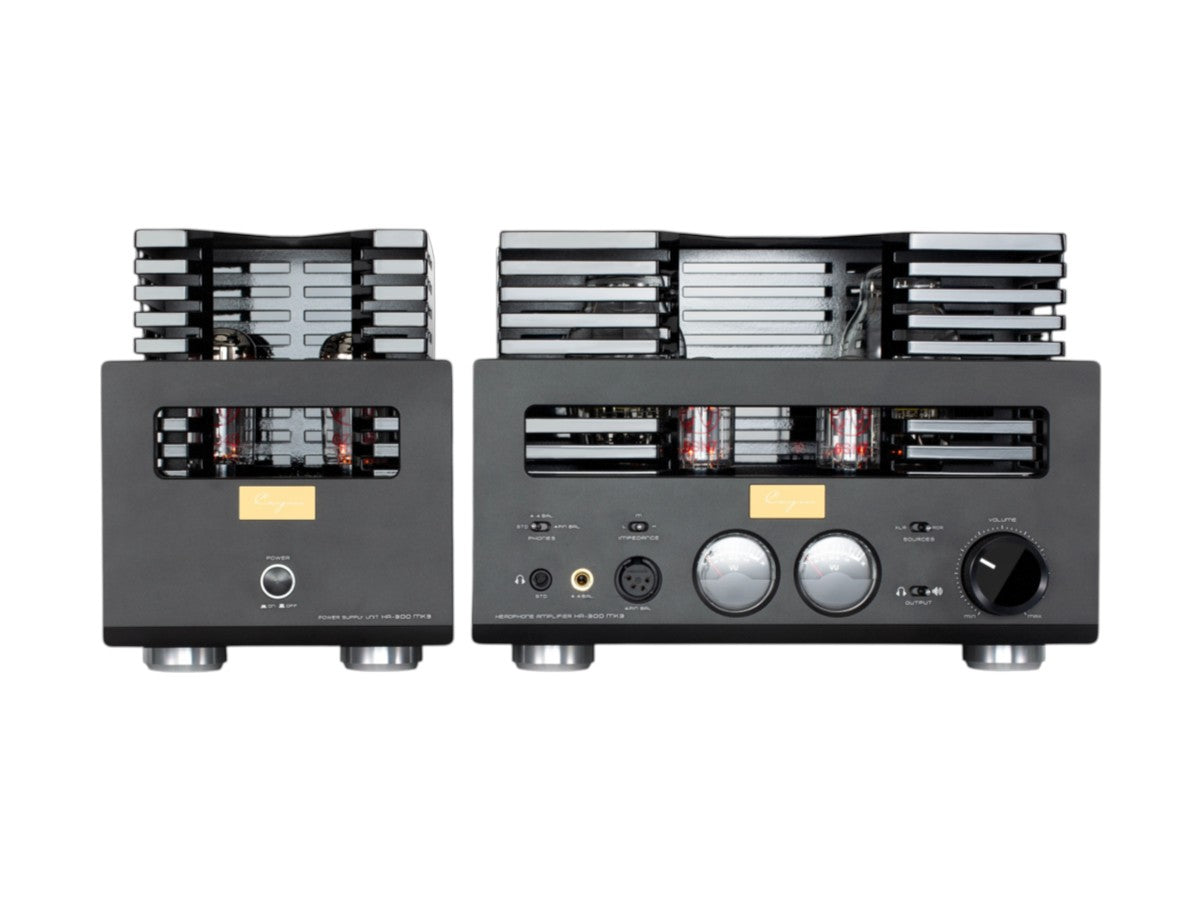

Comprehensive Headphone Outputs
The amplifier features a full range of headphone outputs, including:
- Neutrik 4-Pin XLR balanced
- 6.35mm single-ended
- 4.4mm balanced
All connectors use high-quality components to ensure reliable contact and low signal loss.
It also provides High / Medium / Low impedance selection, allowing precise matching with different headphone types and ensuring optimal performance across a wide range of loads.
Headphone Output Power Rating
- 6.35mm Single-Ended Output: 6000mW + 6000mW; Ideal for medium-to high-impedance headphones
- 4.4mm Balanced Output: 1600mW + 1600mW; Specially optimized for IEMs
- 4-Pin Balanced Output: 6500mW + 6500mW; Ideal for high-impedance flagship headphones
Refreshed Family Design Refined in Every Detail
The HA-300 MK3 introduces a more refined and modern design language.
Cleaner Exterior, Better Heat Dissipation
The updated transformer housing design removes the previous aluminum decorative plates, resulting in a cleaner, lighter visual appearance while also improving internal layout and heat dissipation efficiency.
Fine Sandblasted Finish
The chassis uses a tine sandblasted texture, which feels more delicate than conventional brushed finishes while also offering better scratch resistance, improved wear resistance, and reduced fingerprint visibility.

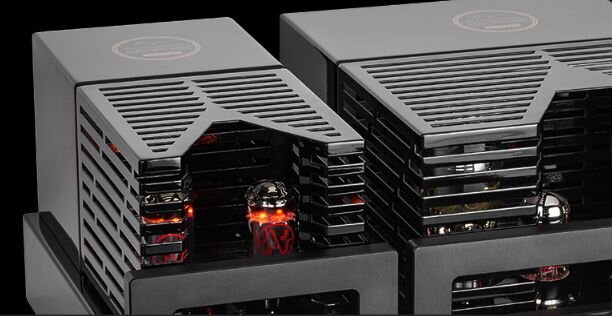

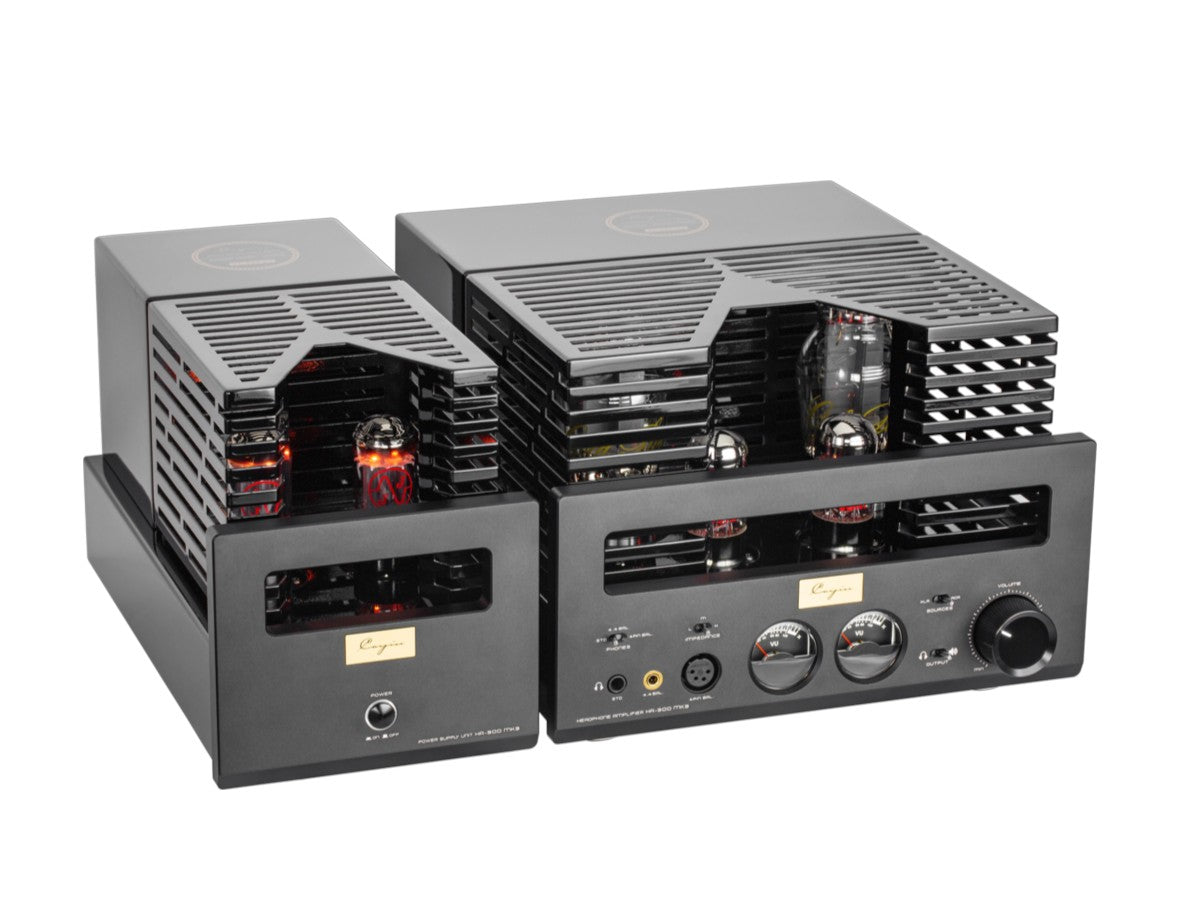

New Tube Cage Design
A newly designed family-style tube cage replaces the traditional wire-frame design, providing stronger protection and a more cohesive visual match with the amplifier. Its plug-in structure also makes tube installation and replacement more convenient.
Refined Decorative Details
Additional touches, such as the sand-textured nameplate and new tube trim rings, enhance the premium appearance while also offering a degree of practical protection.
Premium Components. Meticulous Craftsmanship.
Third-Generation Custom Transformers
The HA-300 MK3 is equipped with a third-generation wide-bandwidth El output transformer and a third-generation toroidal power transformer developed specifically for this model.
Compared with the previous generation, these transformers provide:
- Significantly improved shielding
- Lower power ripple
- Reduced noise interference
- More stable and cleaner power delivery
Their wide-bandwidth performance also enables smooth and accurate reproduction across the full frequency spectrum.
- Shielded Transformer Housing Protects circuits from interference.
- Wide-band El Output Transformer: Minimal signal loss, superior fidelity.

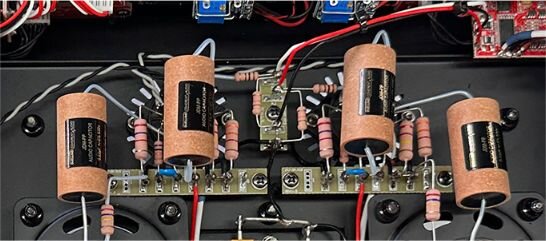

DUELUND Coupling Capacitors
The HA-300 MK3 uses DUELUND coupling capacitors from Denmark, widely regarded as an ideal match for tube amplifiers. Their low distortion, low loss, and excellent signal transmission characteristics enhance detail, layering, tonal texture, and musicality.

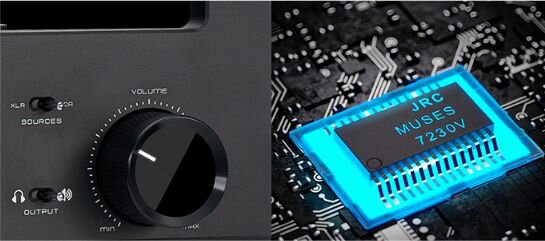

Precision Volume Control
The amplifier combines a JRC MUSES 72320V high-fidelity electronic volume control chip with an ALPS 41-step attenuator, delivering low-noise, low-distortion volume adjustment with precise, smooth level control.

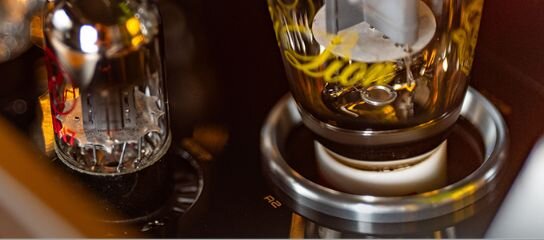

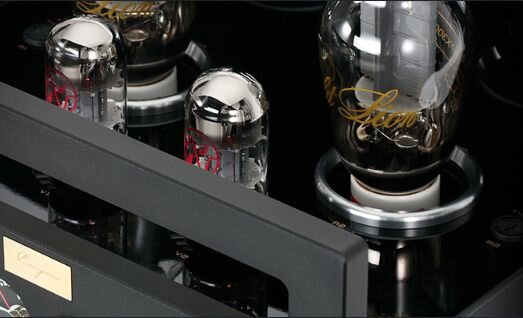

New Gold-Plated Tube Sockets
New premium gold-plated tube sockets provide better conductivity and more stable contact than conventional ceramic gold-plated pin sockets, reducing signal loss while improving durability and installation stability.

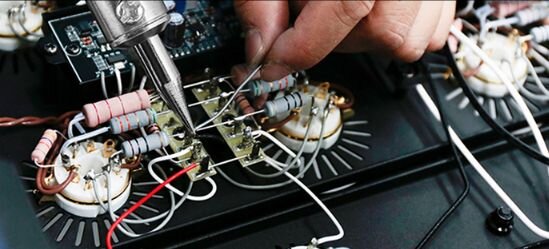

Classic Hand-Wired Point-to-Point Construction
All electronic components in the HA-300 MK3 are assembled using Cayin's classic point-to-point hand wiring technique, ensuring low-loss signal transmission and carefully balanced internal routing.

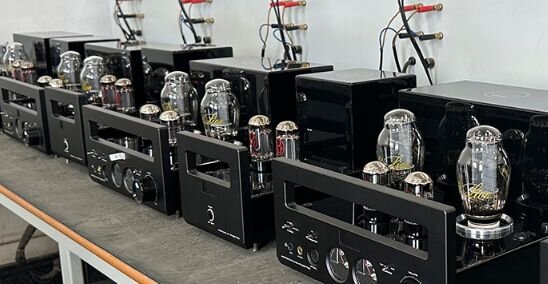

Carefully Selected Matched Tubes
In HA-300 MK3, each tube used is hand-tested, matched, and performance-screened. Each amplifier also undergoes 48 hours of burn-in and listening evaluation before leaving the factory, ensuring excellent channel consistency and long-term reliability.
Thoughtful Features That Enhance Everyday Use

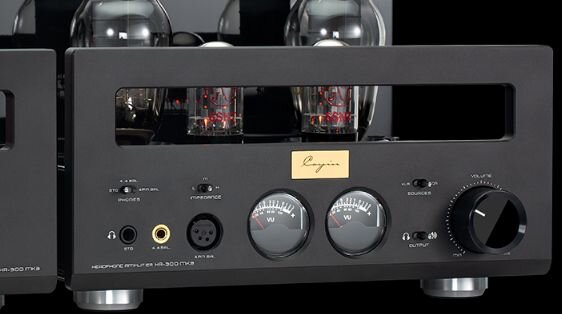

Dual VU Meters
The dual VU meters combine elegance and practicality, adding a visual sense of ritual and refinement to every listening session.
60-Second Startup Delay
A 60-second delayed mute function allows the amplifier to warm up properly after power-on, helping it reach optimal operating conditions before playback begins.
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Design | Two-box (separate amplifier + outboard power supply) |
| Technical Specifications | |
| Amplifier Topology | Class A Single-Ended Triode (SET) |
| Output Tubes | 300B Direct Heated Triode x2 (matched pair) [UNCONFIRMED – specific brand for MK3] |
| Driver Tubes | 6SN7 x2 (matched pair) [UNCONFIRMED – specific brand for MK3] |
| Rectifier Tubes | 22DE4 x4 (NOS) [UNCONFIRMED for MK3] |
| Speaker Output | Class A, 8Ω [wattage UNCONFIRMED for MK3] |
| Audio Specifications | |
| Frequency Range | 10Hz – 45kHz [UNCONFIRMED for MK3] |
| Connectivity Specifications | |
| Headphone Impedance Settings | L: 8–64Ω / M: 65–250Ω / H: 251–600Ω |
| Headphone Outputs | 4-pin XLR (balanced) 4.4mm (balanced) 6.3mm (single-ended) |
| Inputs | XLR balanced x2 RCA single-ended x2 [UNCONFIRMED for MK3] |
