Campfire Audio
Grand Luna Planar Magnetic-BA Hybrid IEMs
$1,399.00 USDFeatures
Two high-frequency custom balanced armatures
Semi-transparent, internally dyed shell in red with brushed stainless steel lid and colorful, flame-treated CA logo

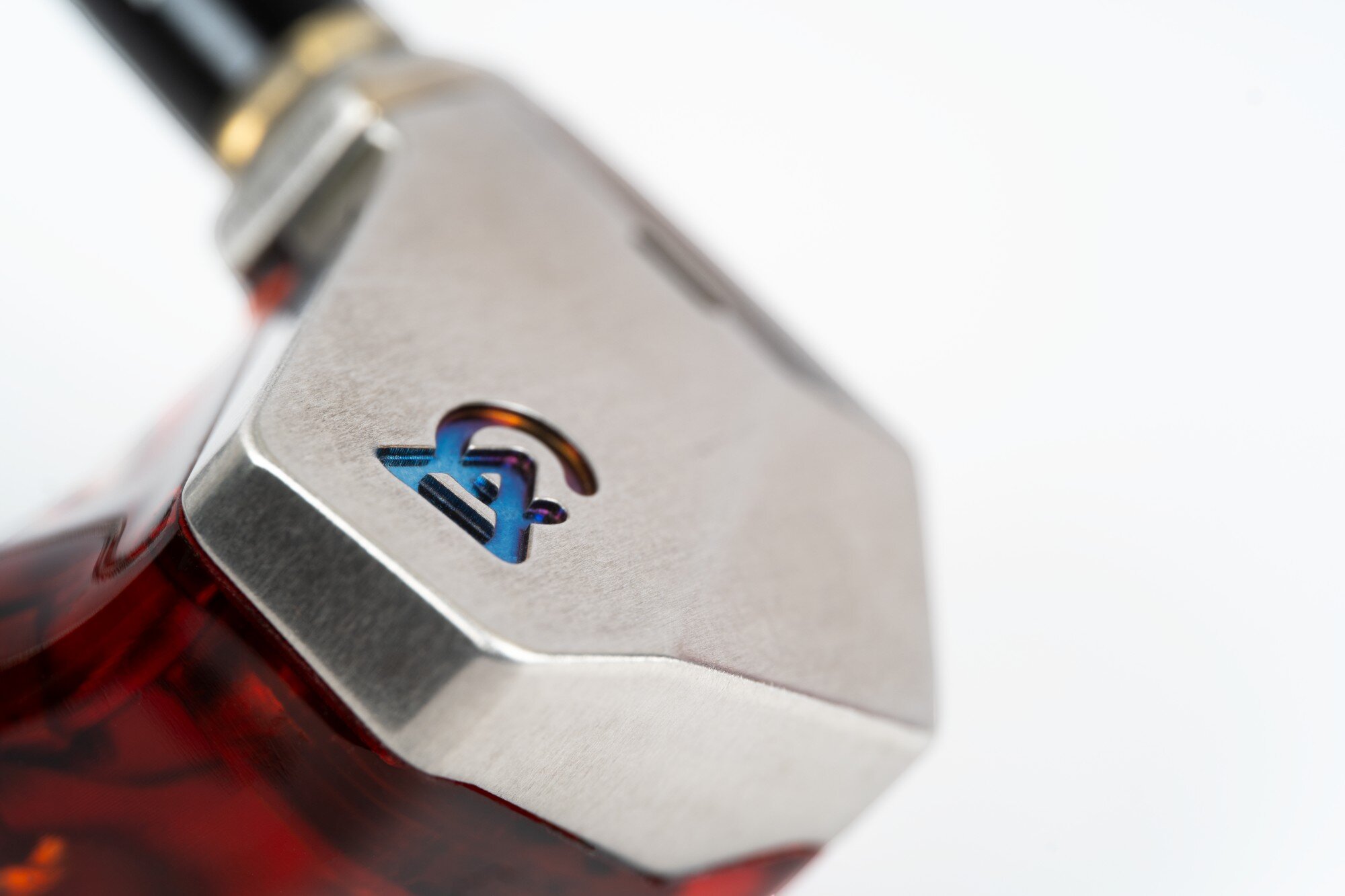

Each lid is flame-treated and brushed by hand to create textured finish and the remaining iridescent logo
New interconnect cable system featuring swappable 3.5mm, 4.4mm, and USB-C DAC terminations
What's in the Box?
Warranty

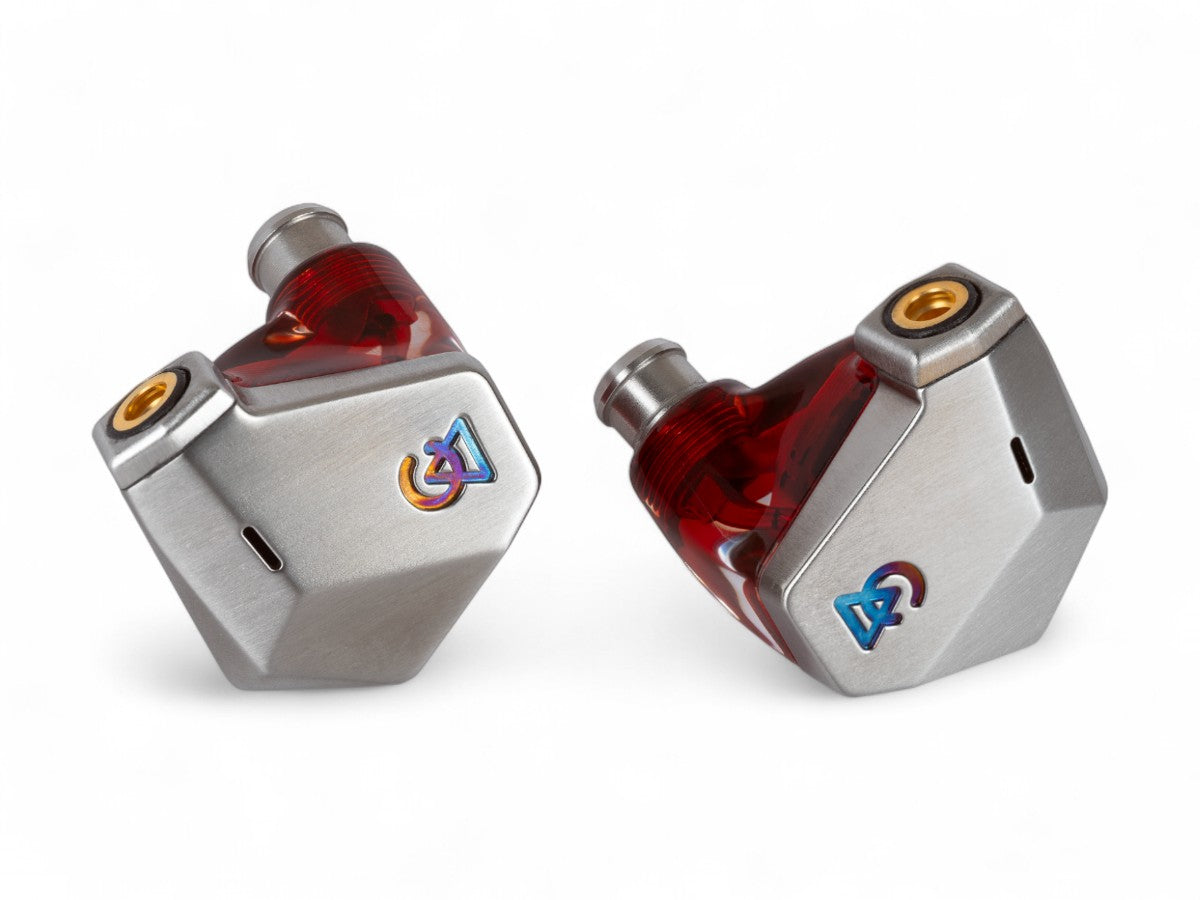

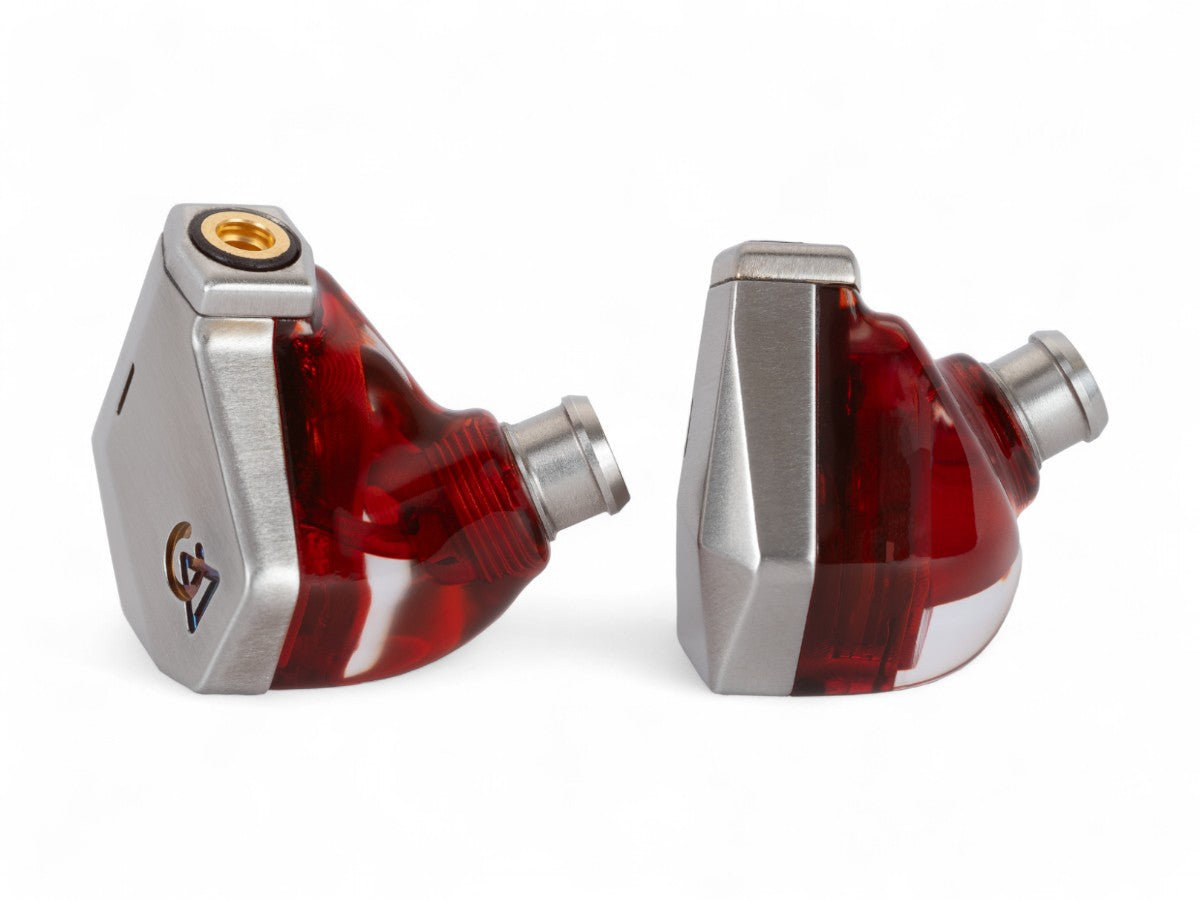

Grand Luna is Campfire Audio's unique and exciting earphone that features an all-new planar-BA hybrid configuration, featuring the next generation 14mm planar magnetic driver with custom two high-frequency balanced armatures. The Grand Luna features a semi-transparent, internally dyed shell in red with a brushed stainless steel lid and colorful, flame-treated CA logo. Each lid is flame-treated and brushed by hand to create a textured finish and the remaining iridescent logo. The Grand Luna will also introduce Campfire Audio's new interconnect cable system featuring swappable 3.5mm, 4.4mm, and USB-C DAC terminations, increasing ease of use and convenience for the user.
Included Accessories

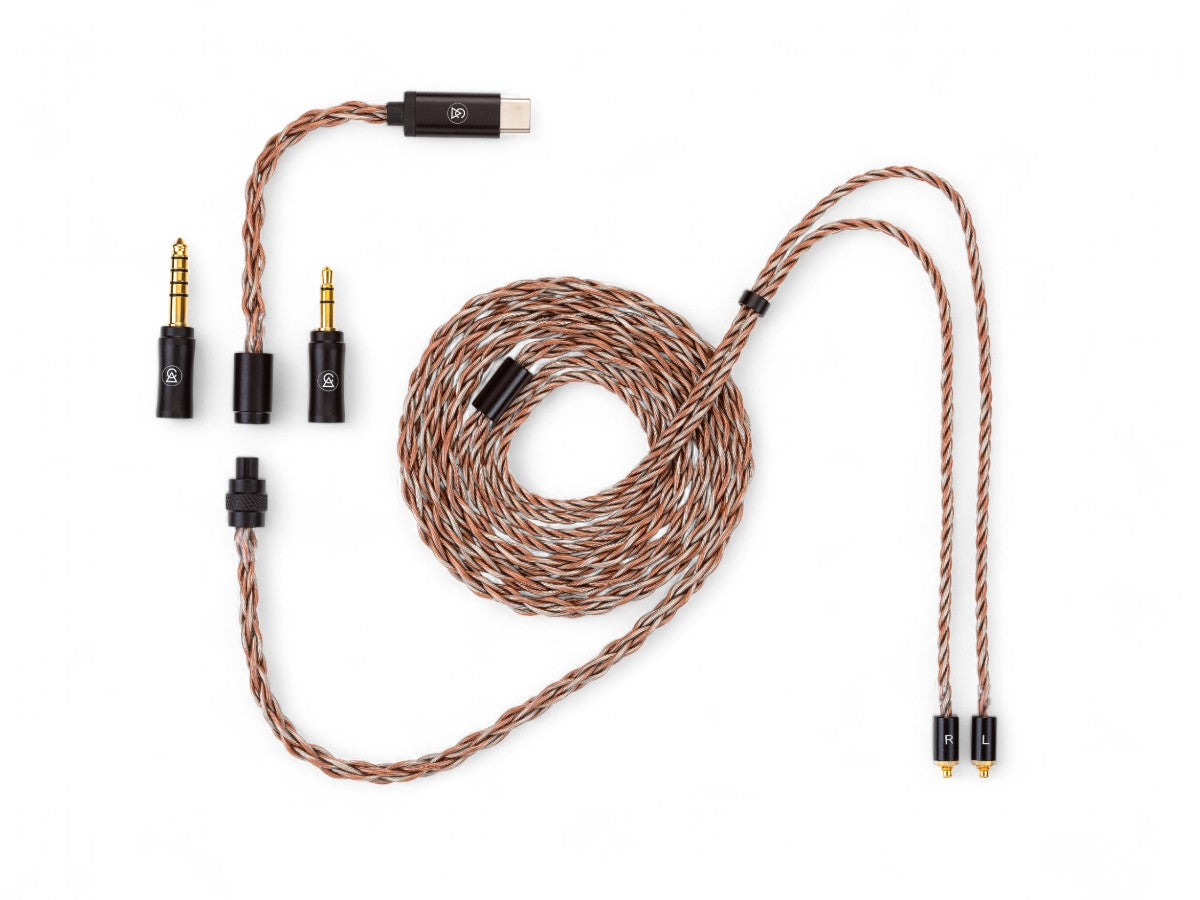

- Interconnect Cable
- 24 awg
- High-purity silver/copper blend
- Individually enameled Litz wire
- Hot swappable 3.5mm, 4.4mm Balanced and Cirrus Logic 43131 Master HiFi USB-DAC terminations
- Compact leather magnet closure case in ‘blood moon red’
- Ear tips:
- Foam (SML)
- Silicone (SML)
- ‘High & Clear’ Silicone (SML)
- Ear tip carrying case (6 pieces capacity)
- Microfiber cleaning cloth
- IEM Cleaning Tool
- CA Lapel pin
| Parameter | Specification |
|---|---|
| Driver Specifications | |
| Driver Configuration | Planar-balanced armature hybrid (3-driver total) |
| Planar Driver | 14mm custom planar magnetic (low/mid frequencies) |
| Balanced Armature Drivers | 2x balanced armature (high frequencies) |
| Driver Innovation | New iteration of Campfire's custom planar technology |
| Housing Technology | AAOI housing (reconfigured from Astrolith) |
| Shell Design | Transparent exterior with internally dyed chambers |
| Faceplate | Brushed stainless steel faceted lid with colorful CA logo |
| Special Finish | Hand flame-treated individually in Portland shop |
| Audio Specifications | |
| Frequency Response | 5Hz - 30kHz |
| Impedance | 13 ohms |
| Sensitivity | 94 dB SPL @ 33 mVrms (1kHz) |
| Total Harmonic Distortion | Less than 0.5% THD |
| Sound Signature | Smoothest, most easy-listening planar tuning |
| Dynamic Range | Incredible dynamic range with superior detail |
| Resolution | High-resolution performance across frequency spectrum |
| Acoustic Geometries | Precision engineered for driver optimization |
| Connectivity Specifications | |
| Connection Type | Detachable MMCX connectors |
| Cable Innovation | New swappable termination cable system |
| Cable Feature | Interchangeable termination options |
| Design Philosophy | Hybrid planar-BA configuration for versatility |
