Genalex
Gold Lion E88CC / 6922 Preamp Vacuum Tube
$125.00 USDPay Over Time
Split your purchase into easy payments.
Fast approval with Klarna.
Select Klarna at checkout to split your purchase into smaller payments.
Features
Suitable replacement for all 6DJ8, ECC88, 6922, E88CC, and 7308 types
Gold-plated pins for superior connectivity and longevity
Manufactured to extremely tight specifications
Highest quality current production E88CC/6922 available
Rigorously tested to meet Genalex Gold Lion standards
What's in the Box?
Warranty

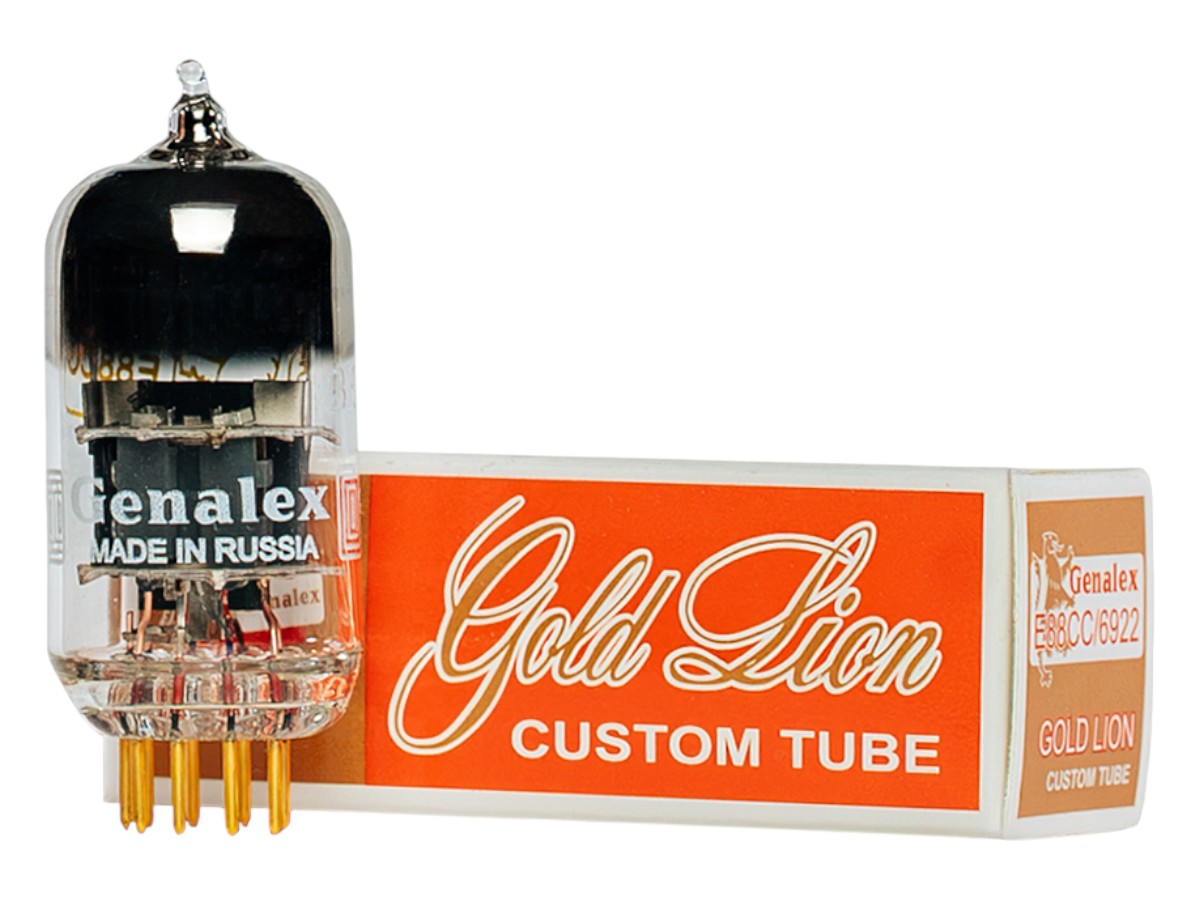

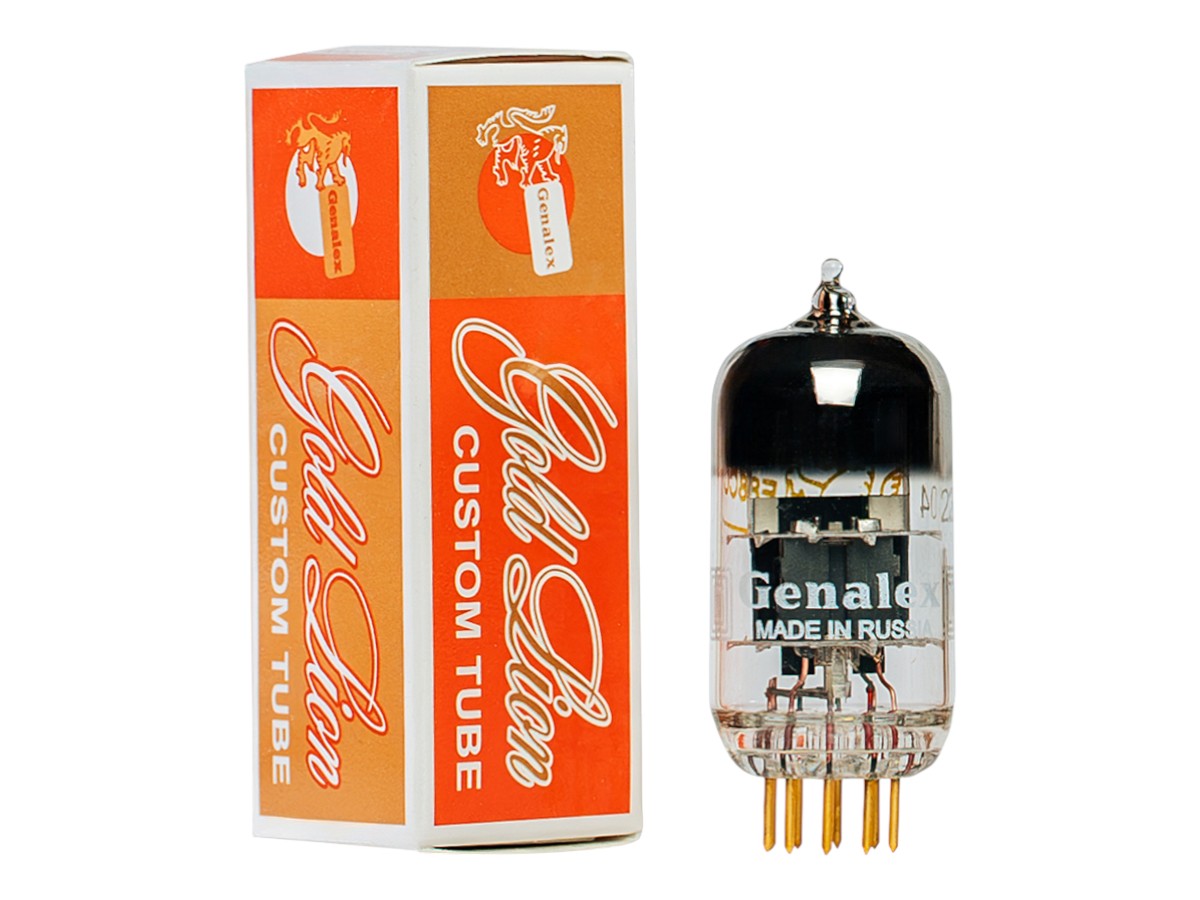

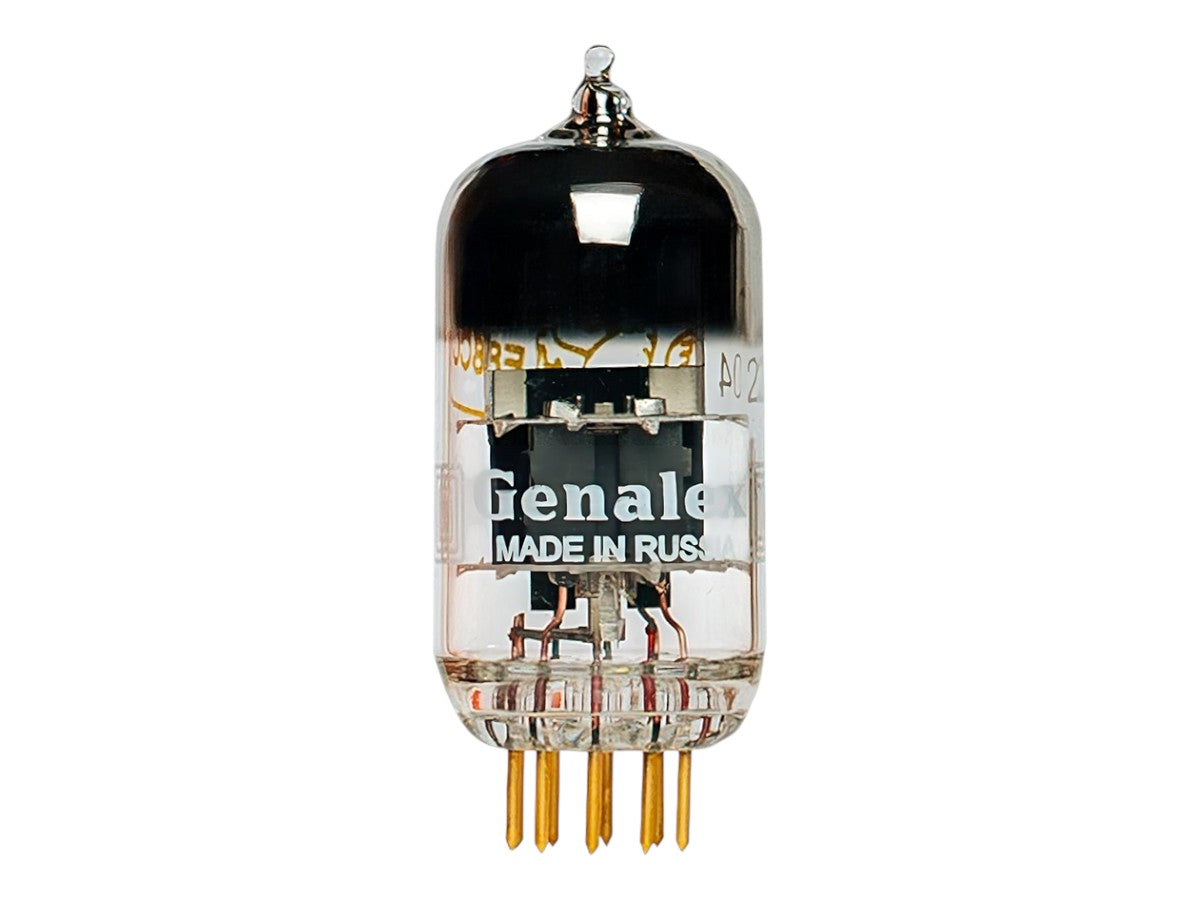

The Genalex Gold Lion E88CC/6922 preamp tube is a premium grade selected small signal twin-triode that is a suitable replacement for all 6DJ8, ECC88, 6922, E88CC, and 7308 types. This tube features gold plated pins and is manufactured to extremely tight specifications, making it the highest quality current production E88CC/6922 available.
The Genalex Gold Lion E88CC/6922 is a premium grade selected small signal twin-triode that is a suitable replacement for all 6DJ8, ECC88, 6922, E88CC, and 7308 types. This tube features gold plated pins and is manufactured to extremely tight specifications, making it the highest quality current production E88CC/6922 available.
To be labeled Genalex Gold Lion, tubes must endure and pass the toughest testing the industry offers.
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Tube Type | 6922 / E88CC (also known as ECC88) |
| Body Height | 49.2mm |
| Item Diameter | 22mm |
| Item Height | 56.3mm |
| Origin | Made in Russia |
| Electrical Specifications | |
| Plate Current (Ia) | Typically 10mA - 20mA |
| Heater Current | 285mA - 335mA |
| Heater Voltage | 6.0V - 6.5V |
| Plate Dissipation (Wa) | ≤ 1.5W |
| Capacitance (Plate to Plate) | 0.09pF |
| Grid Circuit Resistance (Rg) | 1 MΩ |
| Tube Equivalence | Electrically equivalent to 6DJ8 tube |
| Construction Specifications | |
| Filament Design | Noise canceling spiral filaments |
| Internal Structure | Thick structural mica spacers |
| Contact Pins | Gold-plated contact pins |
| Performance Specifications | |
| Sound Characteristics | Smooth, detailed sound with gentle, slightly relaxed top end |
| Noise Performance | Low noise and microphonics |
| Triode Balance | Typically 10% or tighter for Platinum grade |
| Grading System | Platinum, Gold grades based on noise and microphonics |
| Application Specifications | |
| Suitable Applications | Preamplifiers and high-quality audio equipment requiring 6922 tube |
