Furutech

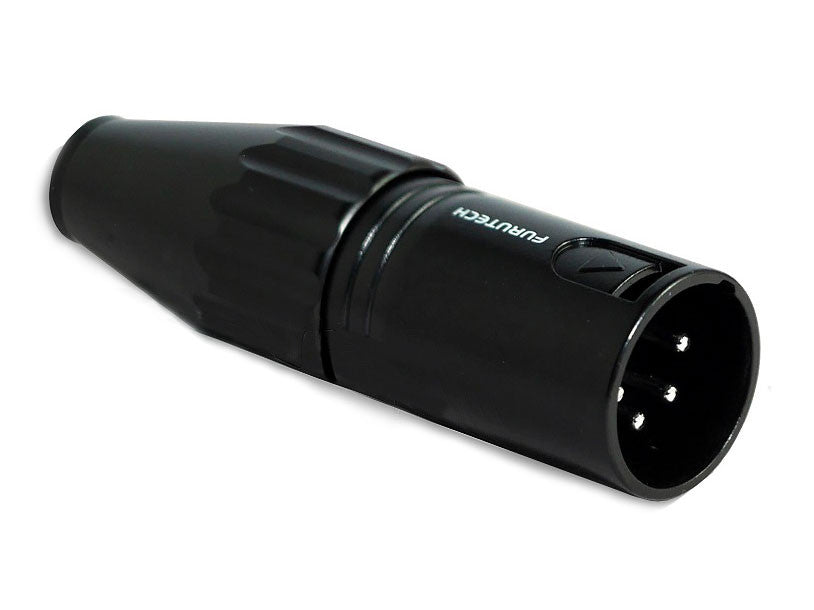

FP-705M (R) 4 Pin Balanced XLR Connector
$36.00 USDPay Over Time
Split your purchase into easy payments.
Fast approval with Klarna.
Select Klarna at checkout to split your purchase into smaller payments.
Features
PBT and fiberglass resin insulation for minimal impedance and high soldering-temperature tolerance
Nonmagnetic Zinc/Aluminum alloy and copper alloy end shell housing
Black painted finish for a refined, understated look
Soldered connections for a secure, high-fidelity termination
Accommodates cable diameters up to 9mm
What's in the Box?
Furutech’s beautifully finished, beautiful-sounding FP-705M(R) connectors feature rhodium-plated α (Alpha) Copper alloy conductors set in a special PBT / fiberglass resin insulation for minimal impedance and for high soldering temperatures. The FP-705M(R) is then finished in black painted housings.
Furutech makes a wide variety of OEM parts known the world over for their quality construction and superb sound. Our engineers examine every part of the signal and power path, no matter how small, and optimize every connection.
Features:
- Main conductor: Rhodium-plated α (Alpha) Copper alloy conductor
- Insulation with PBT and fiberglass Resin
- Housing: Nonmagnetic Zinc/Al alloy and Copper alloy (End shell)
- Connections: Soldered
- Specified for cable diameters up to 9mm
- Dimensions:
- FP-705M: 18.8mm ± 0.1mm diameter x 63.2mm ± 0.1mm overall length
- FP-706F: 19.5mm ± 0.1mm diameter x 64.2mm ± 0.1mm overall length
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| FP-705M Dimensions | 18.8mm ± 0.1mm diameter × 63.2mm ± 0.1mm overall length |
| FP-706F Dimensions | 19.5mm ± 0.1mm diameter × 64.2mm ± 0.1mm overall length |
| Cable Diameter Compatibility | Up to 9mm (both models) |
| Conductor Specifications | |
| Main Conductor | Rhodium-plated α (Alpha) copper alloy conductor |
| Connection Method | Soldered |
| Construction Specifications | |
| Insulation Material | PBT and fiberglass resin |
| Housing Material | Nonmagnetic zinc/aluminum alloy |
| End Shell Material | Copper alloy |
