Sopra N°2 Loudspeaker
$11,499.00 USD3-Way High-end Loudspeakers
Sold Individually
Sopra N°2 is the new epitome of today’s premium loudspeakers. It perfectly combines dynamics, space optimization, and harmonic richness.
Sopra n°2 clearly inaugurates a new era for the “Premium High End” by taking into account new performance criteria. Compact, modern, a pure design, character... all these are essential factors to ensure perfect integration into your interior.

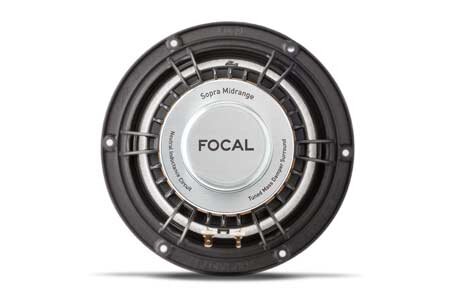

Equipped with the best midrange drivers ever developed by Focal, with the NIC and TMD technologies, Sopra n°2 pushes back the limits of sound reproduction in terms of transparency in a very compact enclosure. Indeed, unlike Utopia, which is extravagant by essence and where size is by no means a constraint, Sopra aims for maximal compactness to ensure easy integration into reasonably sized rooms. Sopra n°2 is perfectly at ease in rooms measuring up to 320ft2 (30m2), and is even ideal for larger rooms measuring up to 750ft2 (70m2).
TUNED MASS DAMPER
Focal's teams have revealed resonances that alter the definition of the suspension connecting the cone to the basket. Previous solutions for increasing the dampening properties of the suspension all increased the mass, consequently altering the definition. The answer came from a technology used in earthquake-resistant skyscrapers, which is also used for the suspension of racing cars. "TMD" technology consists of optimizing the suspension profile, which controls the resonance to drastically reduce distortion and increase the definition of bass and midrange.
NO SACRIFICE OF PERFORMANCE TO AESTHETICS
The design agency, Pineau & Le Porcher, designed Sopra with one rule: no sacrifice of performance to aesthetics. The Sopra line is destined for the most passionate sound enthusiasts. Its design favors performance, whilst bringing together the qualities expected of an object which will be integrated into very elegant interiors and décors. Lacquered or bloodwood finishes are combined with noble materials to create an elegant line. Substantial efforts were made to give the front a tidy appearance, particularly around the speaker drivers, to iron out any aspects that could affect the acoustics or the appearance. Sopra’s very structure is articulated around the intermediate section. This injected polyurethane component allows for the upper and lower cabinets to be inclined for the "Focus Time" (acoustic convergence of the channels).
MASTERING THE CABINET AND CHOICE OF MATERIALS
Made in France, Sopra’s cabinet was designed in Focal's cabinet-making facility in Bourbon-Lancy (Burgundy, France) using the same manufacturing process as for Utopi. The 69mm sandwich-machined front panel uses the same principle as ‘Gamma Structure’ to provide inertia and damping. Its density gives it the inertia necessary to provide a stable mechanical reference for optimal definition. The inside of the cabinet has no parallel side panels, and small Helmholtz resonators have been added to the lower section to prevent vertical standing waves. Focal chose glass as the material for the base of the loudspeaker to provide floor coupling, using spikes, which enabled the fastest propagation time possible, thus eliminating all halo effects in the bass.
NEUTRAL INDUCTANCE CIRCUIT
Stabilising the magnetic field
Since the beginning, we have always had a great interest in the magnetic circuit, an essential aspect of a speaker drive unit. The precision and detail of audio reproduction depend on the stability of the magnetic field. NIC technology (Neutral Inductance Circuit) permits controlling the magnetic field and finally enables mastering it in order to limit distortion. It decreases the effects of distortion and gives the sound a very high-definition and unprecedented dynamic.
INFINITE HORN LOADING
Focal's Beryllium tweeter features an incredibly light and extremely rigid dome that delivers a transparent and dynamic sound. Its main limitation comes from the compression of air in the cavity behind it. But the requirement for Sopra to be compact meant that as much of the cabinet as possible had to be used for the bass. We had to explore other options for loading the tweeter, which led us to come up with the IHL system. The "IHL" system enables the loading of the Beryllium tweeter, respecting the compactness demand of the speaker. The rear wave of the tweeter is delicately and gradually absorbed to avoid any distortion. The treble definition is pushed to the maximum.
DETAILS
The main theme of Sopra is deliberately uncluttered, though it still offers connoisseurs the opportunity to enjoy all the small details. The grille with an incremental meshing motif protects the Beryllium tweeter and gives it a strong identity. This motif is repeated for sealing the curved back panel of the middle section. The terminal board, the thumb nuts, and the adjustable spikes have all been specially designed for Sopra, as have the few visible screws, all of which were manufactured by watchmaking experts.
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Type | Three-way bass-reflex floor standing loudspeaker |
| Dimensions (H×W×D) | 47 × 14 × 21 inches (1190 × 358 × 540mm) |
| Weight | 122 lbs (55kg) |
| Audio Specifications | |
| Frequency Response (±3dB) | 34Hz - 40kHz |
| Low Frequency Point (-6dB) | 28Hz |
| Sensitivity (2.83V/1m) | 91dB |
| Nominal Impedance | 8 Ohms |
| Minimum Impedance | 3.1 Ohms |
| Crossover Frequencies | 250Hz / 2,200Hz |
| Driver Specifications | |
| Woofers | Two 7 inch (18cm) "W" cones with TMD suspension and NIC motor |
| Midrange Driver | 6.5 inch (16.5cm) "W" cone with TMD suspension and NIC motor |
| Tweeter | 1-1/16 inch (27mm) IHL Beryllium inverted dome tweeter |
| Amplifier Requirements | |
| Recommended Amplifier Power | 40 - 300W |
