Cayin

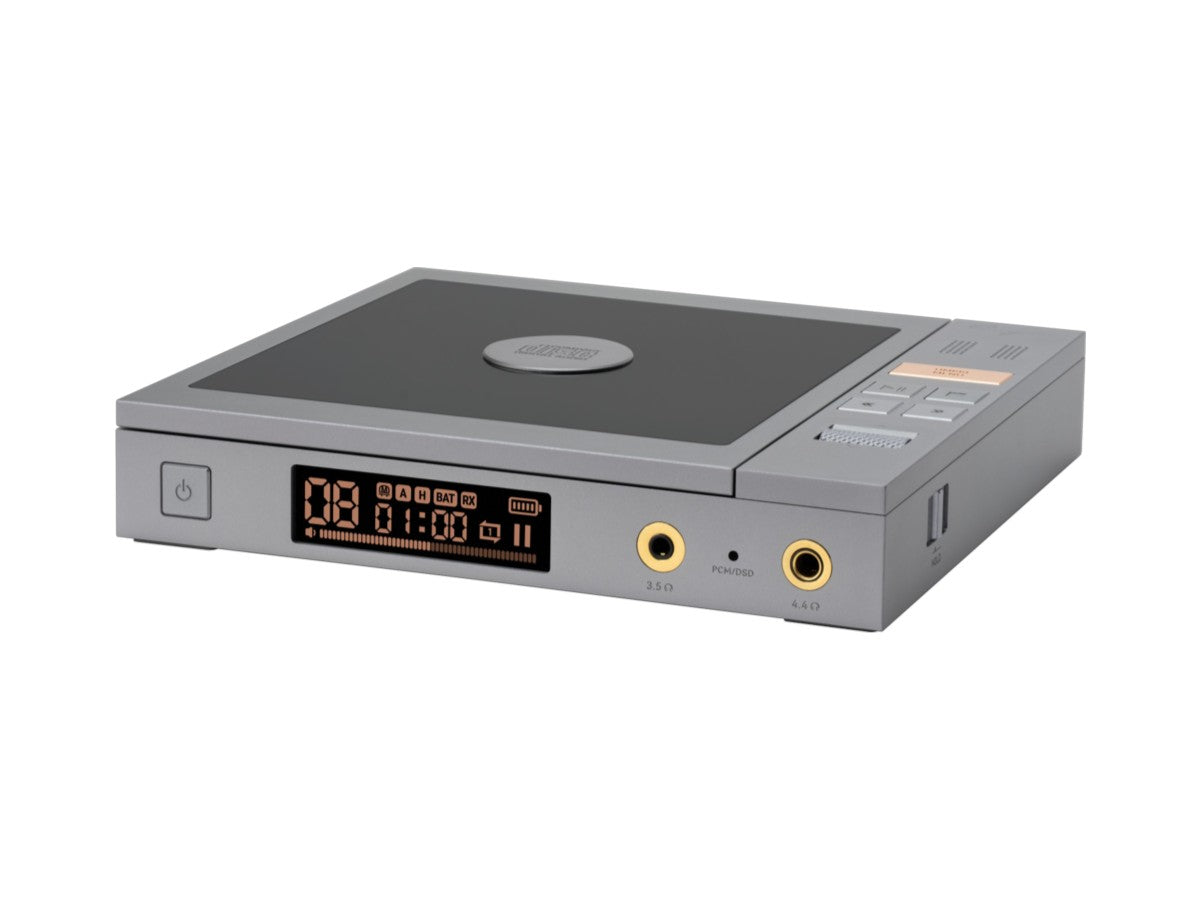

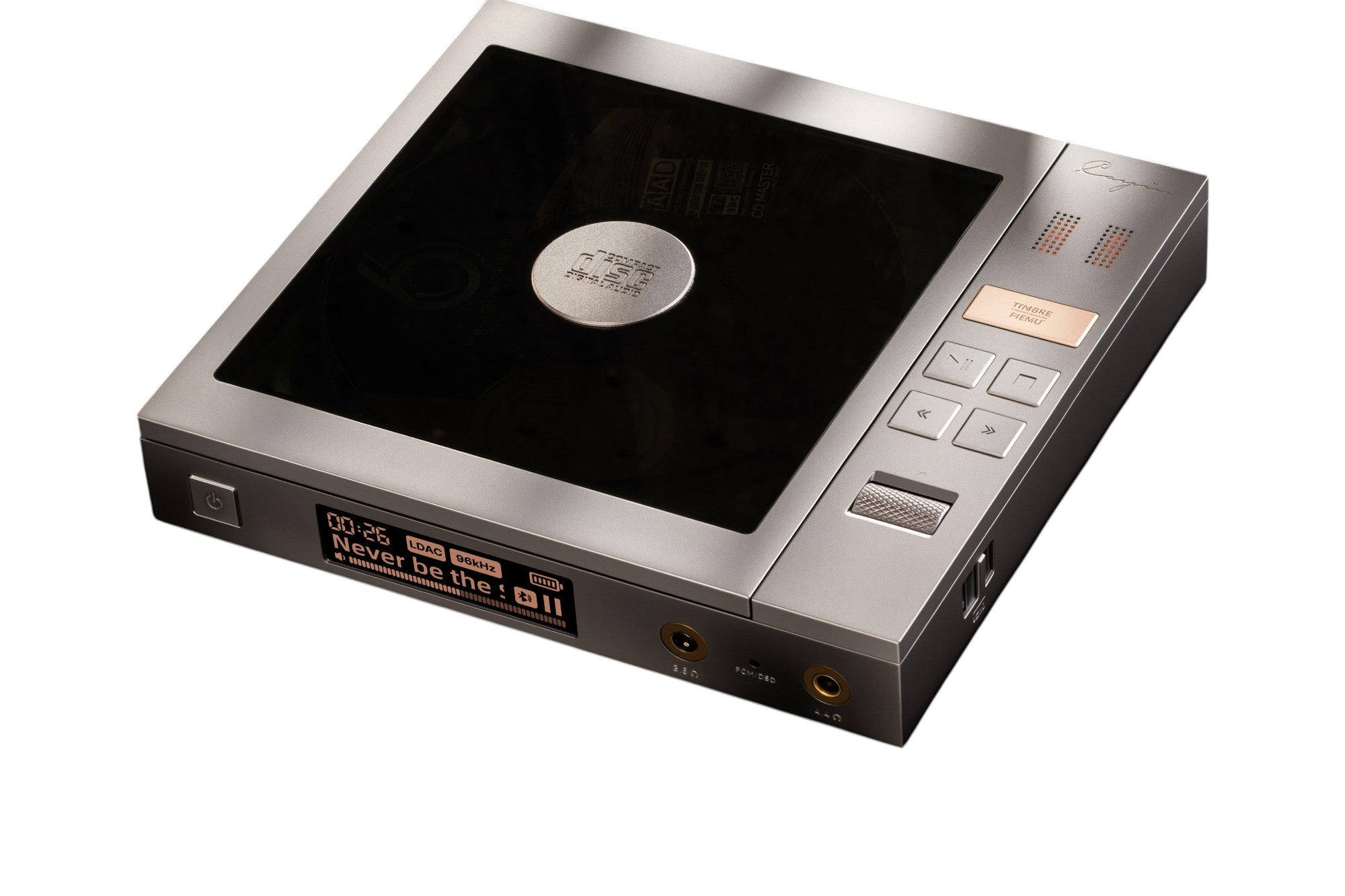

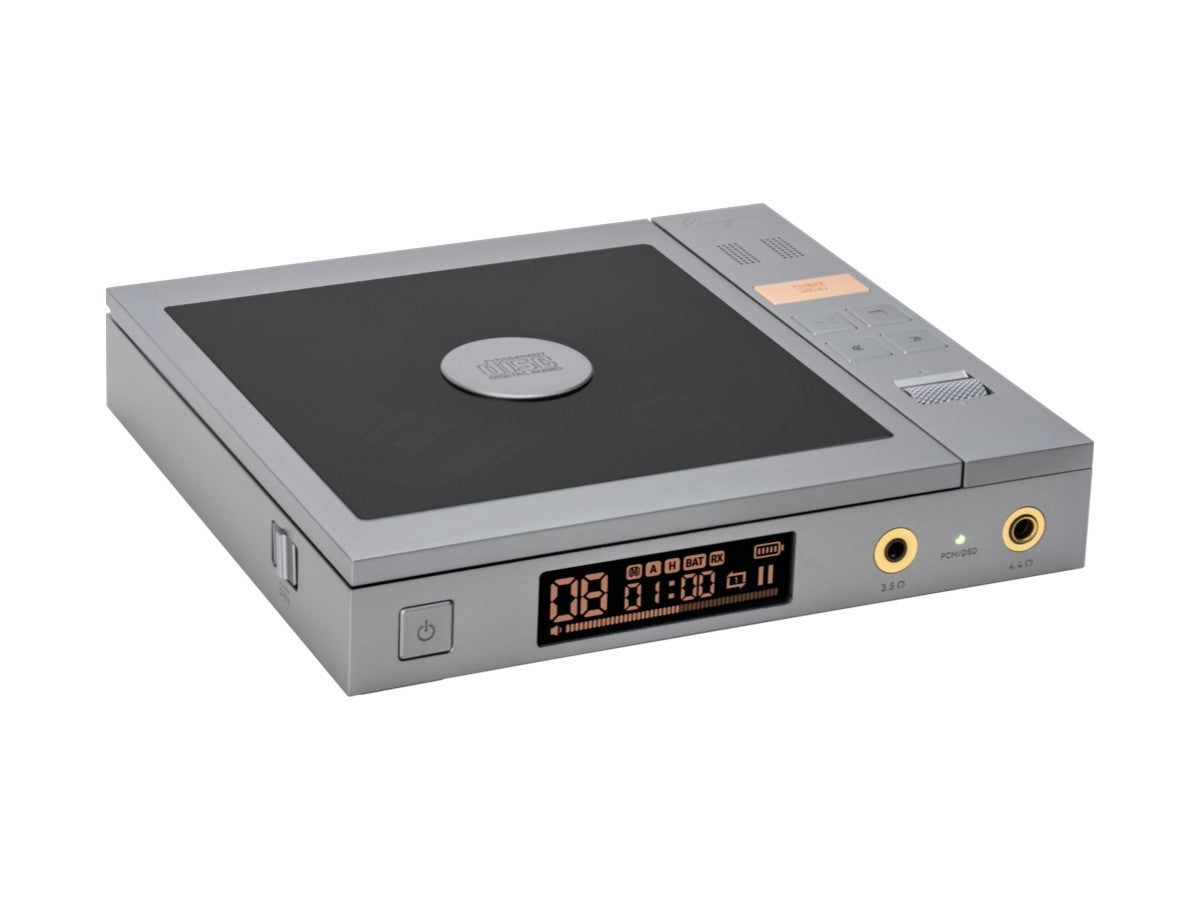

Cayin CP6 – Tube Hybrid Portable CD Player
$699.00 USDFeatures
One-touch switching between Classic Tube, Modern Tube, and Solid-State timbres
Class A / Class AB dual amplifier modes for tailored listening styles
Bidirectional Bluetooth 5.4 (Tx/Rx) with LDAC, aptX Adaptive, and aptX HD support
Dual Cirrus Logic CS4308P DACs in fully balanced 4-channel configuration
Custom anti-shock CD mechanism with lossless CD ripping support
Up to 1300mW output power in DC mode; 7.5-hour battery life with QC/PD fast charging
Compact 720g aerospace-grade aluminum alloy chassis with sandblasted, hard-anodized finish
Cayin Control App for personalized, remote device management
16-core XMOS XU316 USB audio platform for driver-free, cross-platform compatibility
What's in the Box?
Warranty
The Cayin CP6 is a portable CD player, digital transport, USB DAC, and Bluetooth transceiver all in one. It features a matched pair of Raytheon JAN6418 military-grade NOS (New Old Stock) tubes in a dual-channel Class A amplification circuit, letting you switch between three distinct sound signatures at the touch of a button.
Triple Timbre Switching Switch freely between Classic Tube Timbre, Modern Tube Timbre, and Solid-State Timbre — available across headphone output, line output, and Bluetooth — to match different headphones and listening preferences. A dedicated 22V low-noise power supply and DC filament design minimize noise and hum while preserving resolution.
Bidirectional Bluetooth 5.4 Powered by the Qualcomm QCC3083 chipset, the CP6 supports both Tx (transmit) and Rx (receive) modes:
- Bluetooth RX: SBC / AAC / aptX / aptX HD / aptX Adaptive / LDAC
- Bluetooth TX: SBC / aptX / aptX HD / aptX Adaptive
Stable connections, strong interference performance, low latency, and wide codec coverage for high-resolution wireless audio.
Dual Power Modes (DC / Battery)
- Up to 7.5 hours of battery playback, with QC/PD fast charging support
- DC mode boosts output power up to 1300mW
- Ultra-low standby power consumption preserves the battery during long-term storage
Class A / Class AB Dual Modes
- Class A: 1300mW + 1300mW (16Ω) warmer timbre, smoother presentation
- Class AB: 1100mW + 1100mW (32Ω) greater output capability
4-Channel Fully Discrete Balanced Headphone Amplifier Drives headphones from 8Ω–600Ω. The voltage amplification stage uses high-power transistors in a push-pull current architecture for strong current drive and precise control, even with low-impedance loads (8Ω/16Ω).
- Power output stage: four Nexperia PHP15N03LPC high-power transistor pairs in push-pull configuration for high current output, low output impedance, and solid low-frequency response
Custom Anti-Shock CD Mechanism: Precision laser pickup and professional servo system for stable, efficient disc reading with strong error correction. Supports lossless CD ripping for digital archiving of your CD collection.
JAN6418 Tube Vibration Isolation System
- Physical damping: custom tube damping sleeve, shielding cover, and chassis suspension for multi-directional shock absorption
- Circuit stability: interstage feedback with local negative feedback stabilizes the multi-stage tube power supply and filament current
- The combined design effectively suppresses microphonic effects
16-Core XMOS XU316 USB Audio Platform Supports both UAC 2.0/1.0 modes for broad compatibility; driver-free plug-and-play on Windows/macOS/Android/Linux. Asynchronous transmission with a high-precision clock system reduces jitter and isolates computer-side noise.
Dual DAC Architecture Dual Cirrus Logic CS43198 32-bit/8-channel DACs operating in mono mode for fully parallel differential current output. Paired with dual OPA1612 I/V conversion and low-pass filtering stages for ultra-low distortion, low noise, and high linearity. Independent left/right channel operation improves channel separation and soundstage precision.
Fully Isolated Low-Noise Power System
- 7300mAh 3.85V high-voltage Li-ion battery, up to 7.5 hours of playback
- TI BQ25895 charging management IC with intelligent thermal control and charge-and-play support
- Dual LT8334 DC-DC controllers plus TLV61046, TLV62568, and TPS61087 for a high-efficiency, low-heat power supply
- Fifteen LP5907 ultra-low-noise LDO regulators with multi-stage filtering suppress voltage ripple and power supply noise
Fully Balanced Precision Volume Control JRC NJW1195A 4-channel electronic volume controller delivers fully balanced volume control in 0.5dB steps, with excellent channel separation and click-free, transparent operation. Signal switching handled by an onsemi FSA2275 audio switch for clean, lossless switching with pop-noise suppression.
Function
JFET Audio Amplification
I/V Conversion & Low-Pass Filter
Power Output Stage
Smart Charging Management
High-Current Power Supply
Low-Noise LDO Power Supply
DC-DC Regulation
Precision Volume Control
High-Performance Audio Switch
Component
Toshiba 2SK209 JFET
TI OPA1612 low-noise op-amp
Nexperia PHP15N03LPC power transistors
TI BQ25895
Dual LT8334 DC-DC converters
LP5907
TLV61046 / TLV62568 / TPS61087
JRC NJW1195A (4-channel)
onsemi FSA2275
Connectivity
- Input: CD / USB / Bluetooth
- Headphone Output: 3.5mm single-ended, 4.4mm balanced (dual gain)
- Line Output: 3.5mm / 4.4mm
- Digital Output: Coaxial / Optical / Bluetooth TX
Design & Build
- Crafted from 6063 aerospace-grade aluminum alloy with an ultra-fine 180-grit sandblasted finish and hard-anodized coating — smooth to the touch, resistant to fingerprints, wear, and corrosion
- Damped lid stays securely open at any angle for easy disc handling
- Tinted top window reduces direct light exposure without affecting playback; certified Class 1 Laser Product

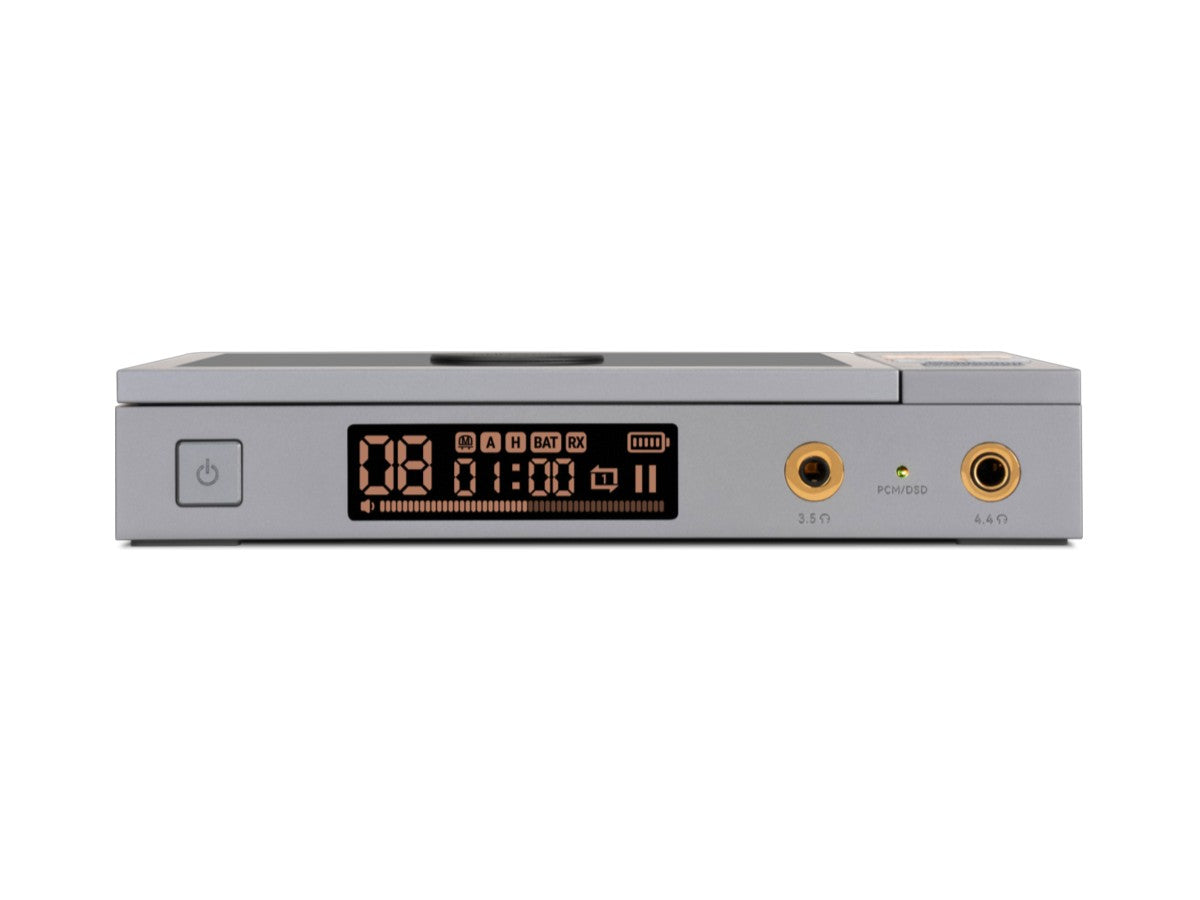

- 2.3-inch high-resolution display with intuitive UI shows playback status, settings, and track info in real time

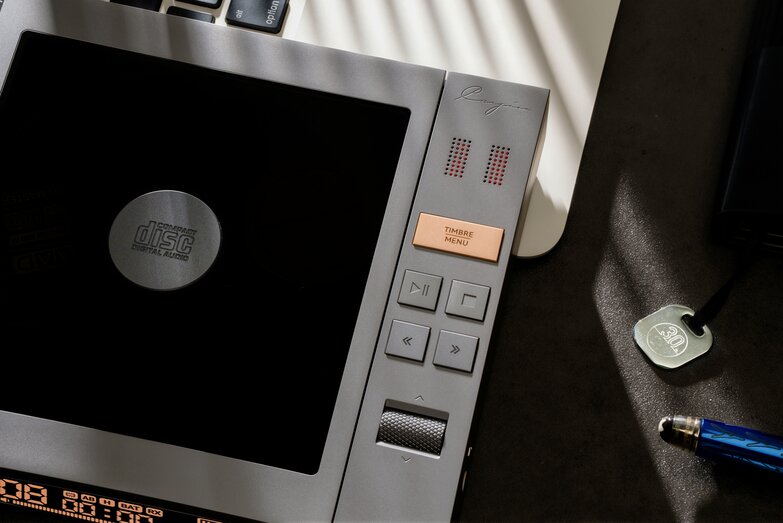

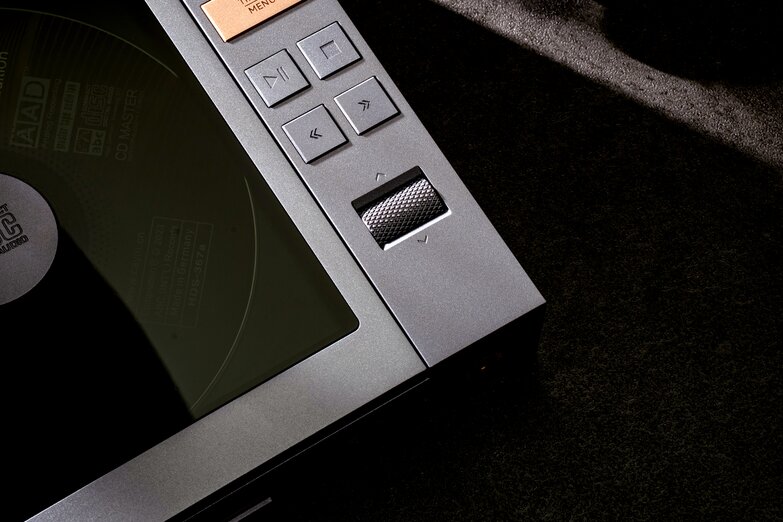

- Intuitive playback/navigation buttons and a finely textured volume wheel for smooth, precise adjustment
- Dedicated Hold switch prevents accidental operation
- Metal mesh tube window offers a view of the warm tube glow during playback while reducing RF interference
- Lightweight and portable at 720g
App Connectivity
Works with the Cayin Control App for deep customization and remote device control. Future firmware updates will continue to expand features and functionality.
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Chassis Material | 6063 aerospace-grade aluminum alloy, sandblasted + hard-anodized finish |
| Weight | 720g |
| Display | 2.3-inch high-resolution screen with custom UI |
| Technical Specifications | |
| DAC | Dual Cirrus Logic CS4308P (32-bit/8-channel, mono mode operation) |
| Tube | Matched pair Raytheon JAN6418 military-grade NOS tubes |
| USB Audio Platform | 16-core XMOS XU316, UAC 2.0/1.0 support |
| Bluetooth | Qualcomm QCC3083, Bluetooth 5.4 (Tx/Rx) Rx codecs: SBC/AAC/aptX/aptX HD/aptX Adaptive/LDAC Tx codecs: SBC/aptX/aptX HD/aptX Adaptive |
| Output Power | Up to 1300mW+1300mW (16Ω) in Class A mode; 1100mW+1100mW (32Ω) |
| Headphone Compatibility | 8Ω–600Ω |
| Volume Control | JRC NJW1195A 4-channel precision electronic volume, 0.5dB steps |
| Audio Switch | onsemi FSA2275 |
| Laser Classification | Class 1 Laser Product |
| Power Specifications | |
| Battery | 7300mAh, 3.85V high-voltage Li-ion; up to 7.5 hours playback |
| Charging IC | TI BQ25895 with QC/PD fast charging |
| Power Regulation | Dual LT8334 DC-DC controllers, TLV61046/TLV62568/TPS61087 |
| LDO Regulators | 15x LP5907 ultra-low-noise |
| Additional Information | |
| Inputs | CD / USB / Bluetooth |
| Outputs | 3.5mm PO (single-ended) / 4.4mm PO (balanced); Line Out (PO/LO); Coaxial/Optical digital out |
