Cardas

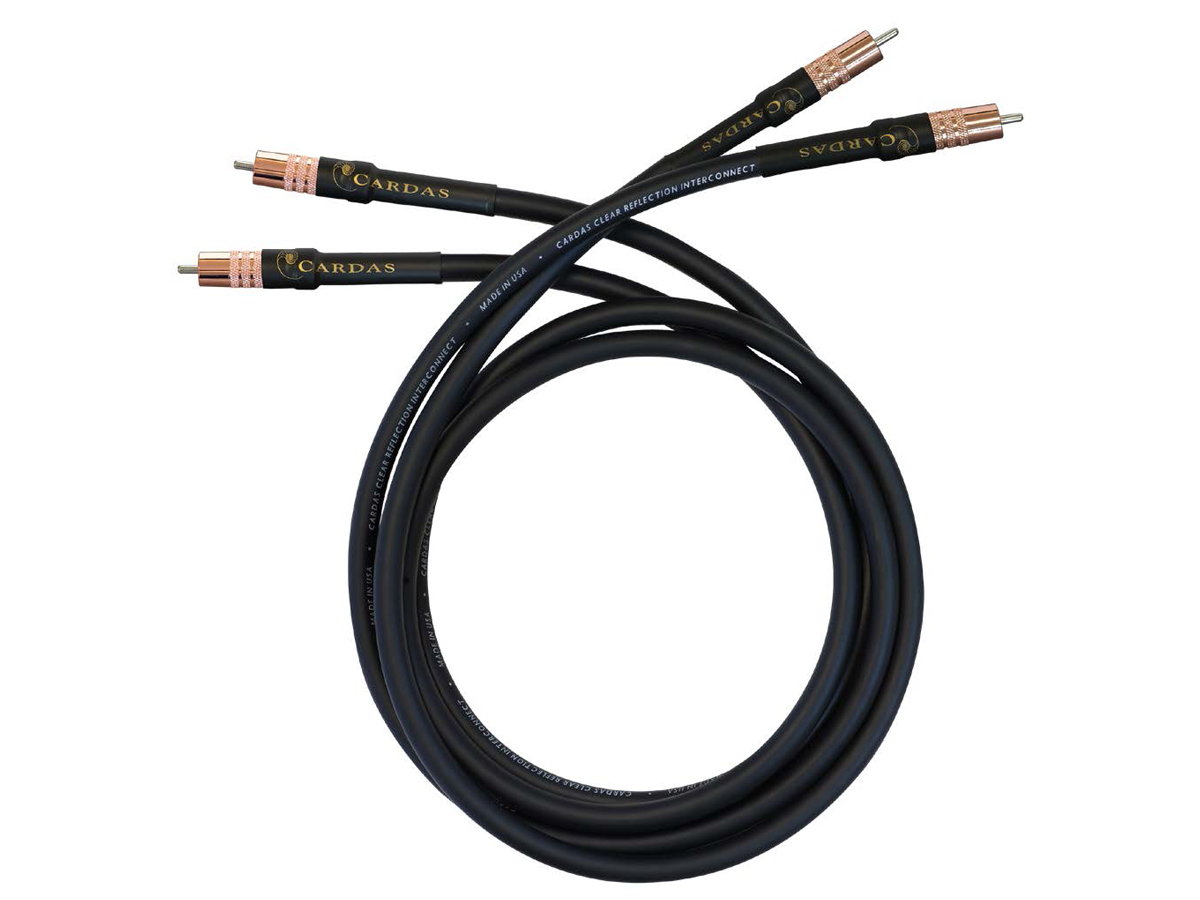

Clear Reflection Interconnect Cable
$1,175.00 USDPerformance
Designed to bring flagship-level performance to real-world systems, this cable has excellent high-frequency extension and speed but is still slightly forgiving. Very neutral and dynamic with pitch black background. Clear Reflection pays homage to the Golden Reference, blending the very best of old with the very best of new. Clear Reflection also introduces a new copper colored SRCA, which matches the black and copper cosmetics from Clear Reflection Speaker cable.
Standard Terminations
Cardas SRCA-CU or CG XLR-CU. Hand terminated in Bandon, Oregon.
Design/Construction
Conductors: Matched Propagation Kevlar core, Grade 1, 99.9999% pure oxygen-free copper with SPN clear coat (Litz), gauge sizes scaled to Golden Ratio proportions. Cross-field layer geometry, insulated in an extruded PFA jacket. Geometry: Suspended air core twisted pair with anti-static LDPE air-tubes bound with carbon impregnated PTFE tape wrap. The outer layer uses PTFE air-tubes scaled 1.618 times larger than the core tubes to suspend the double composite shields of tinned copper and magnet wire away from the signal conductors. Finished in a black ultra soft extruded TPR jacket.
Gauge: 2x25.5 AWG
Outside Diameter: 0.420”/10.66mm
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Product Name | Clear Reflection Interconnect Cable |
| Outside Diameter | 0.420" / 10.66mm |
| Gauge | 2 × 25.5 AWG |
| Outer Jacket | Black ultra soft extruded TPR (Thermoplastic Rubber) |
| Terminations | Cardas SRCA-CU or CG XLR-CU New copper colored connectors matching cable cosmetics |
| Technical Specifications | |
| Conductors | Matched Propagation with Kevlar core Grade 1, 99.9999% pure oxygen free copper SPN clear coat (Litz construction) Gauge sizes scaled to Golden Ratio proportions Cross-field layer geometry Insulated in extruded PFA jacket |
| Dielectric | Extruded PFA (Perfluoroalkoxy) Anti-static LDPE air-tubes PTFE air-tubes (outer layer scaled 1.618× larger) |
| Geometry | Suspended air core twisted pair Anti-static LDPE air-tubes in core Bound with carbon impregnated PTFE tape wrap Outer PTFE air-tubes suspend shields away from conductors Golden Ratio scaling (1.618×) between core and outer tubes |
| Shielding | Double composite shields of tinned copper and magnet wire Suspended away from signal conductors by PTFE air-tubes |
| Performance | Flagship-level performance for real world systems Excellent high frequency extension and speed Slightly forgiving character Very neutral and dynamic Pitch black background Blends best of Golden Reference with modern design Pays homage to Golden Reference heritage |
