Cardas

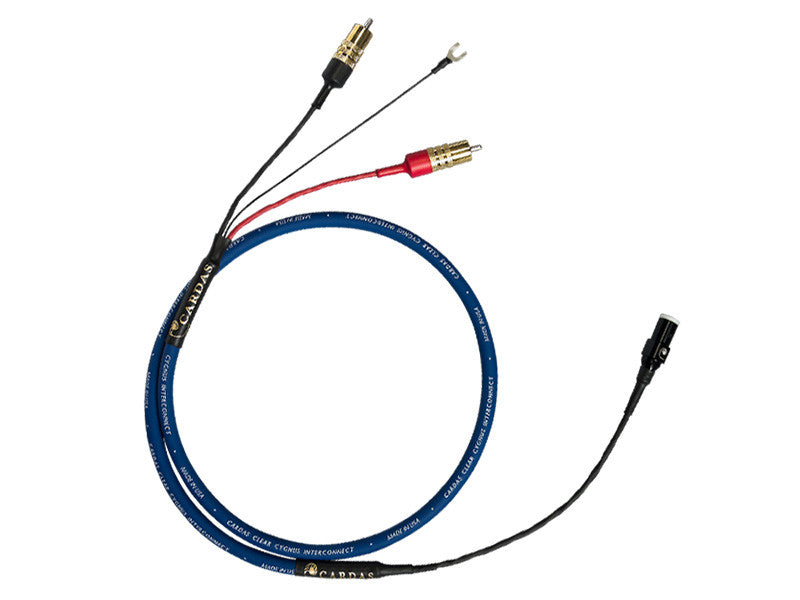

Cardas Clear Cygnus Phono Cable
$655.00 USDFeatures
Matched Propagation Kevlar core with Grade 1, 99.9999% pure OFHC copper conductors
Gauge sizes scaled to Golden Ratio proportions for optimized signal transfer
Star-Quad 4-conductor geometry for superior noise rejection
Anti-static LDPE air-tubes suspend conductors away from the composite shield
Cross-field layer geometry with double-layered PTFE tape wrap insulation
Ultra-soft extruded TPR outer jacket for durability and flexibility
Exceptional low-frequency performance brings analog playback to life
Sold individually for custom system configurations
What's in the Box?
Sold individually.
Cardas Clear Cygnus Phono Cable includes a more economical version of Clear Beyond Interconnect's air-tube suspension. Clear Cygnus is detailed without any hint of harshness and has great low-frequency performance.
Clear Cygnus will help bring your analog to life.
Conductors: Matched Propagation Kevlar core, Grade 1, 99.9999% pure OFHC copper with SPN clear coat (Litz), gauge sizes scaled to Golden Ratio proportions. Cross-field layer geometry, insulated in a double-layered PTFE tape wrapped jacket.
Geometry: Star-Quad 4 conductor, with anti-static LDPE air-tubes bound with carbon impregnated PTFE tape wrap. The outer layer uses PTFE air-tubes scaled 1.618 times larger than the core tubes to suspend the composite shield of tinned copper and magnet wire away from the signal conductors. Finished in an ultra-soft extruded TPR jacket.
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Product Name | Cygnus Power Cable |
| Outside Diameter | 0.500" / 12.7mm |
| Gauge | 3 × 13 AWG |
| Outer Jacket | Flexible TPR (Thermoplastic Rubber) |
| Terminations | Cardas premium power plugs Silver/rhodium plated solid copper contacts Soldered and crimped |
| Technical Specifications | |
| Conductors | Grade 1, 99.9999% pure oxygen free tin plated copper Gauge sizes scaled to Golden Ratio proportions Cross-field layer geometry Insulated in PTFE jacket |
| Geometry | Twisted triad mixed with PVC air tubes Bound with FEP tape wrap Cross-field layer configuration |
| Shielding | Double shielded with tin plated copper and magnet wire |
| Dielectric | PTFE (Polytetrafluoroethylene) with PVC air tubes |
| Noise Filter | Integrated passive noise filter |
| Application | Source equipment, small-to-medium amplifiers Suitable for larger tube-powered amplifiers |
