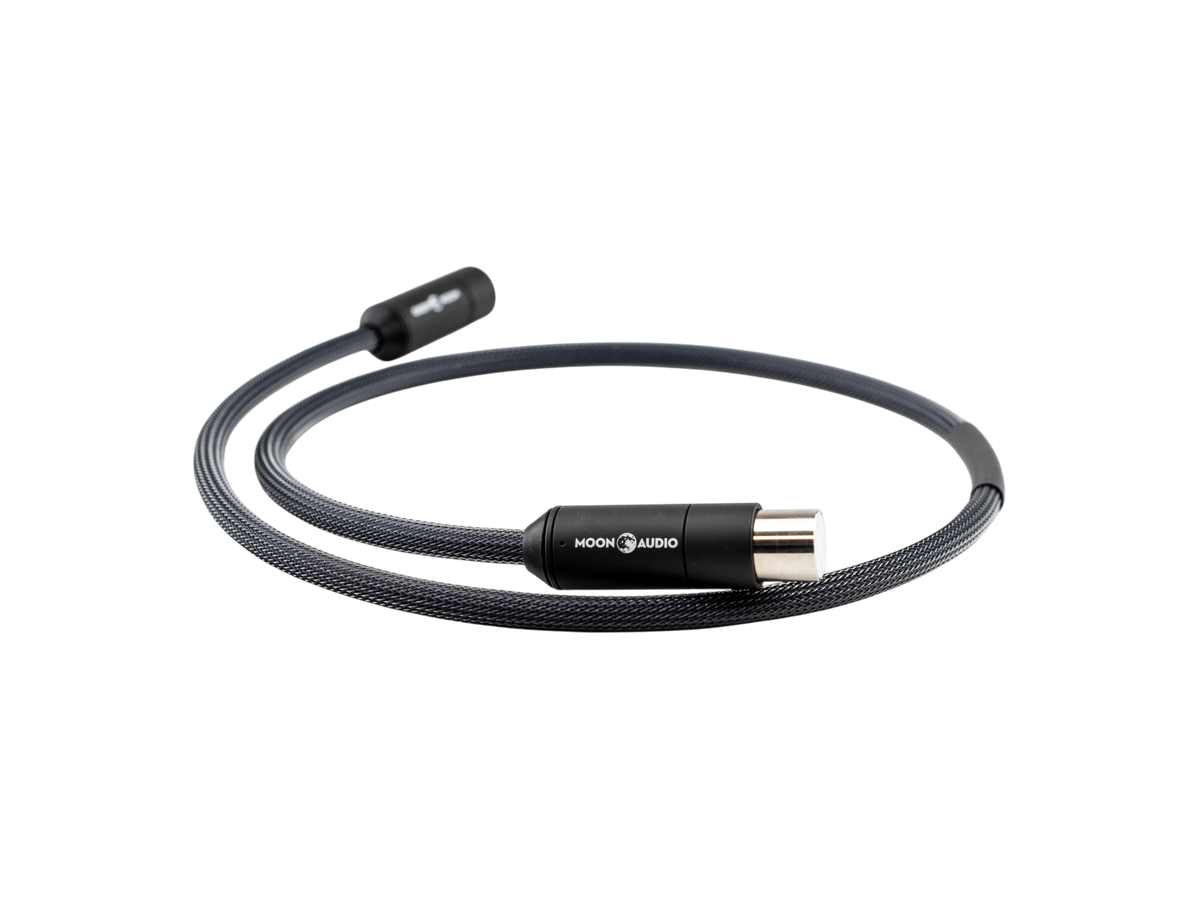

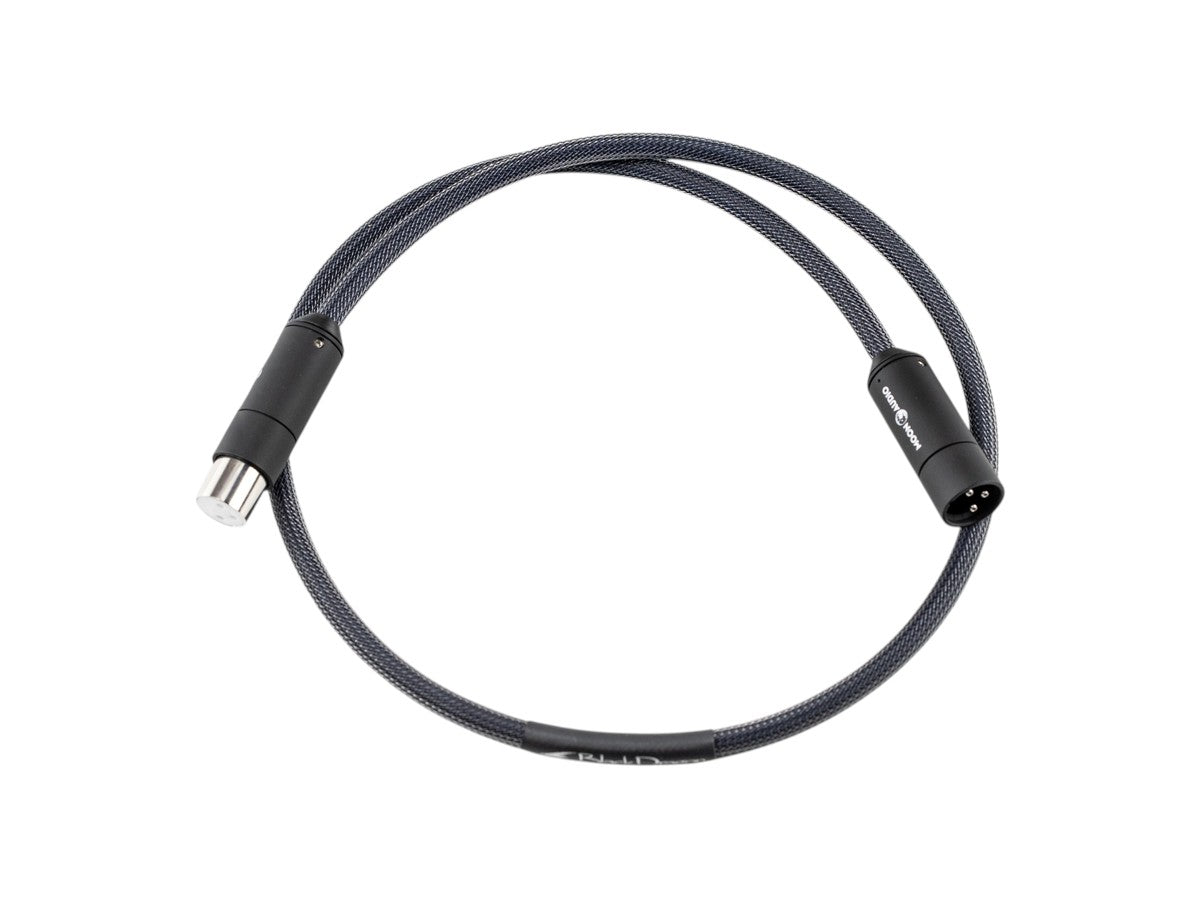

Black Dragon AES Digital Cable
$185.00 USDPay Over Time
Split your purchase into easy payments.
Fast approval with Klarna.
Select Klarna at checkout to split your purchase into smaller payments.
Features
Silver-plated copper conductors with Teflon jacket for a clean, musical signal
Dual shielding: aluminum foil shield plus 100% coverage braided shield
Ideal for connecting a CD Transport or Pro Audio Card (e.g. Lynx) to an outboard DAC
True symmetrical 110-ohm design avoids the signal dropout and impedance mismatch common in analog-equivalent cables
Versatile enough for use in analog systems as well as digital
Several premium XLR connector options available, including Rhodium and Gold finishes
Developed in response to customer demand for a high-end balanced digital solution
What's in the Box?
Warranty

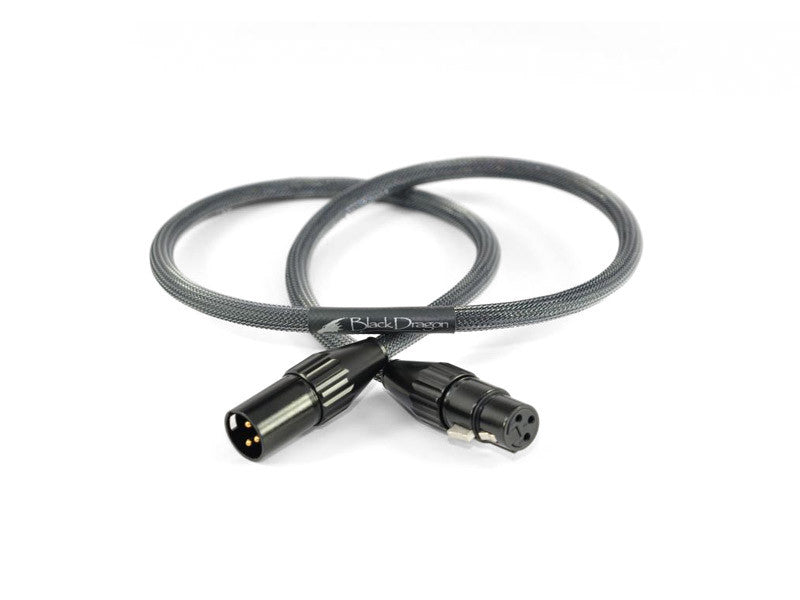

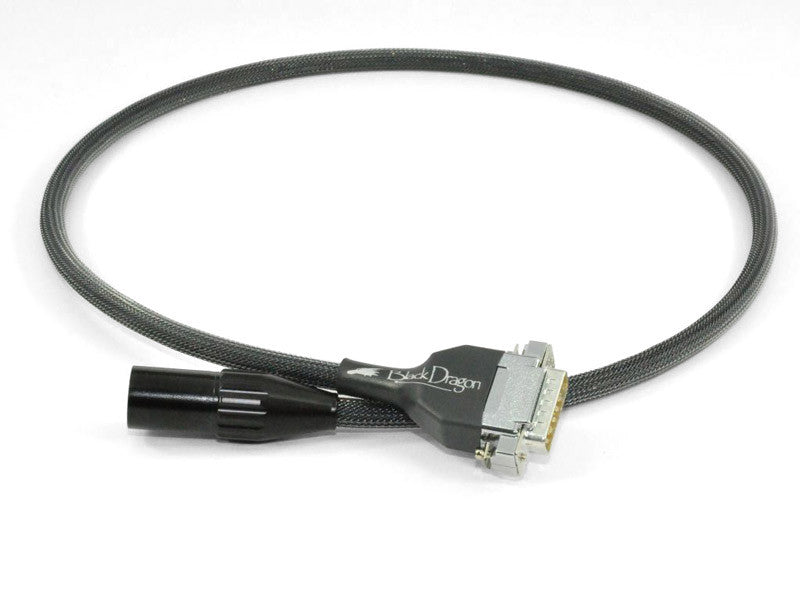

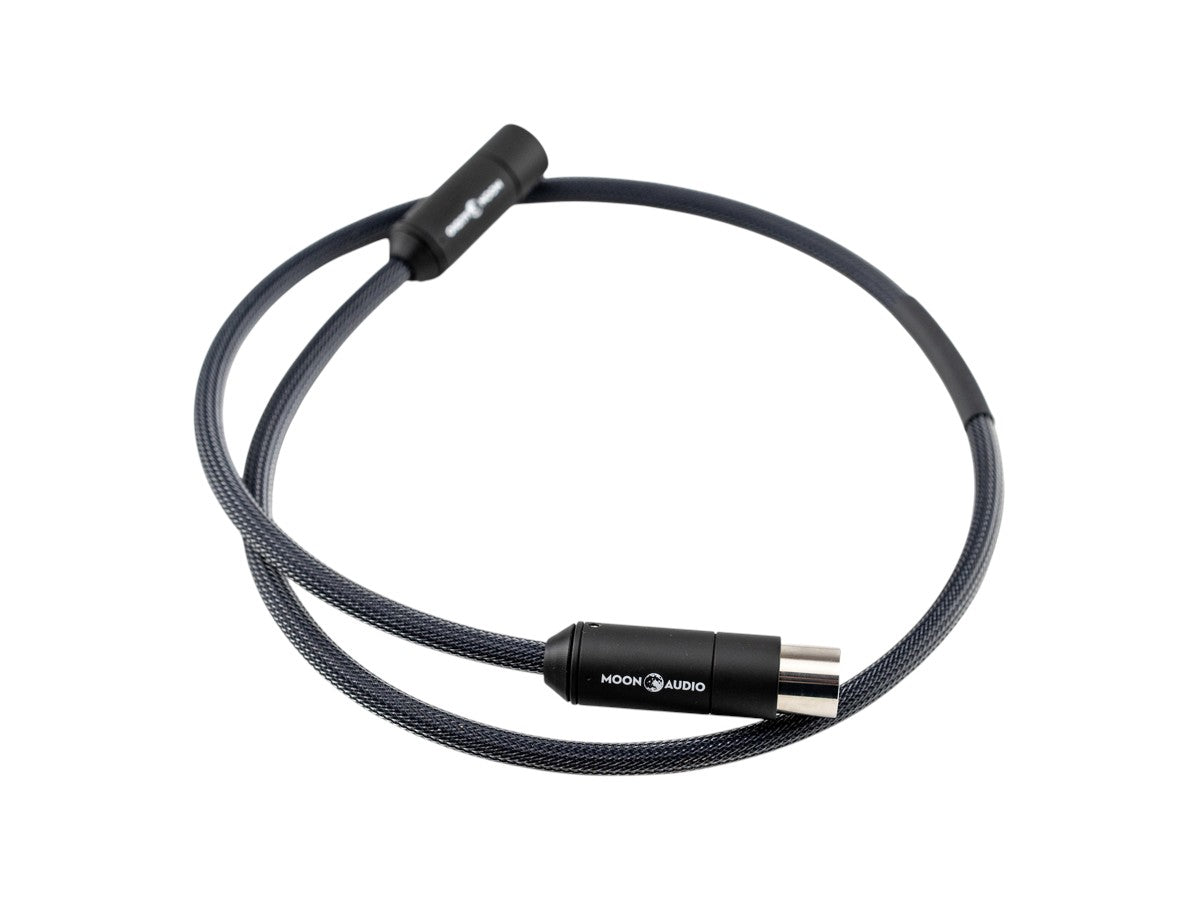

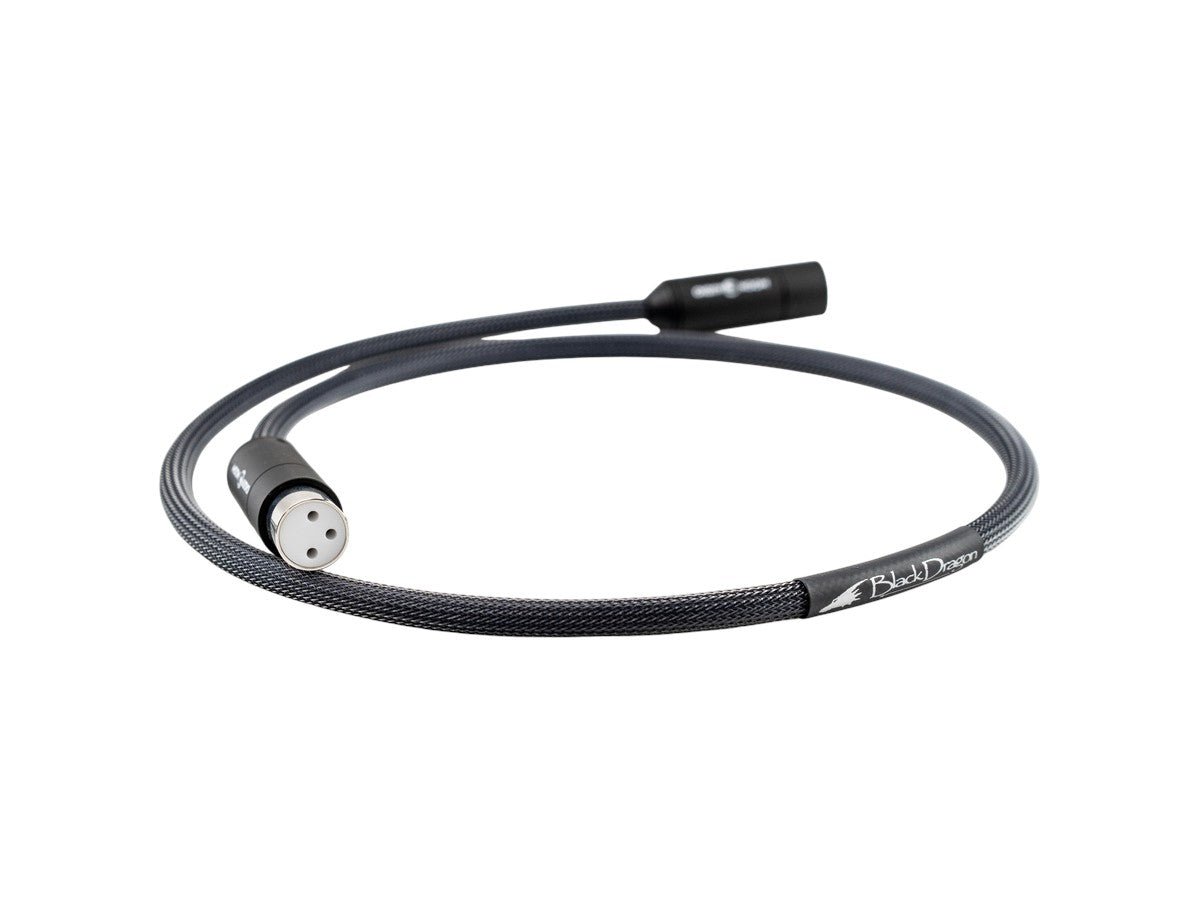

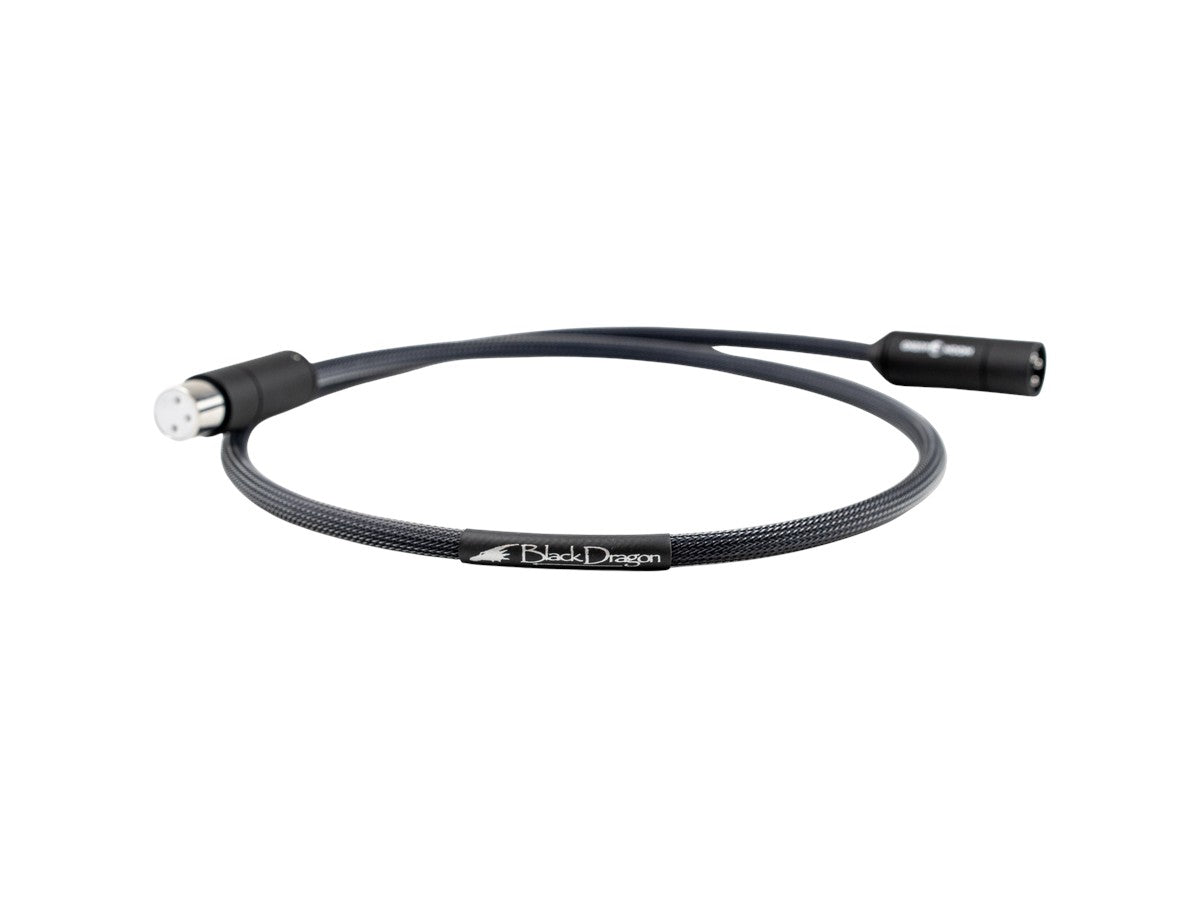

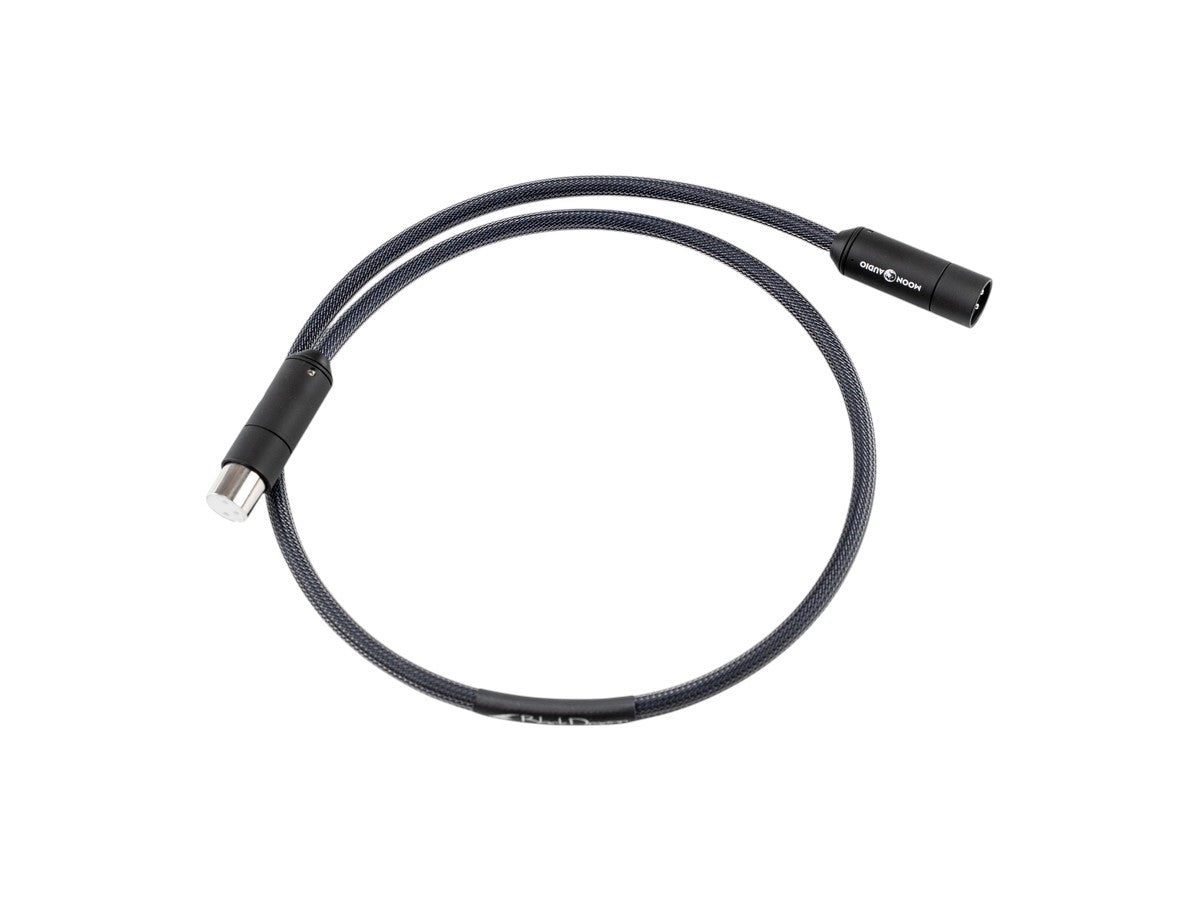

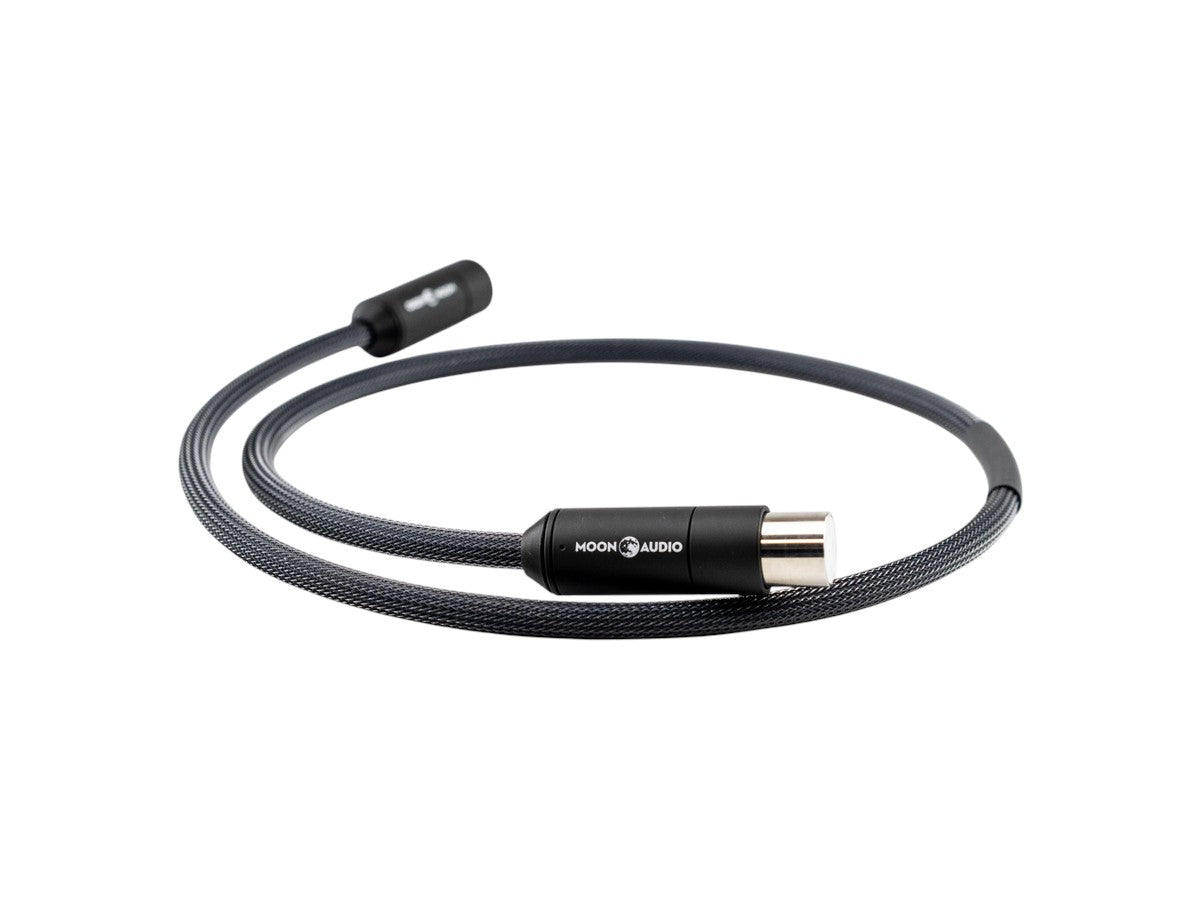

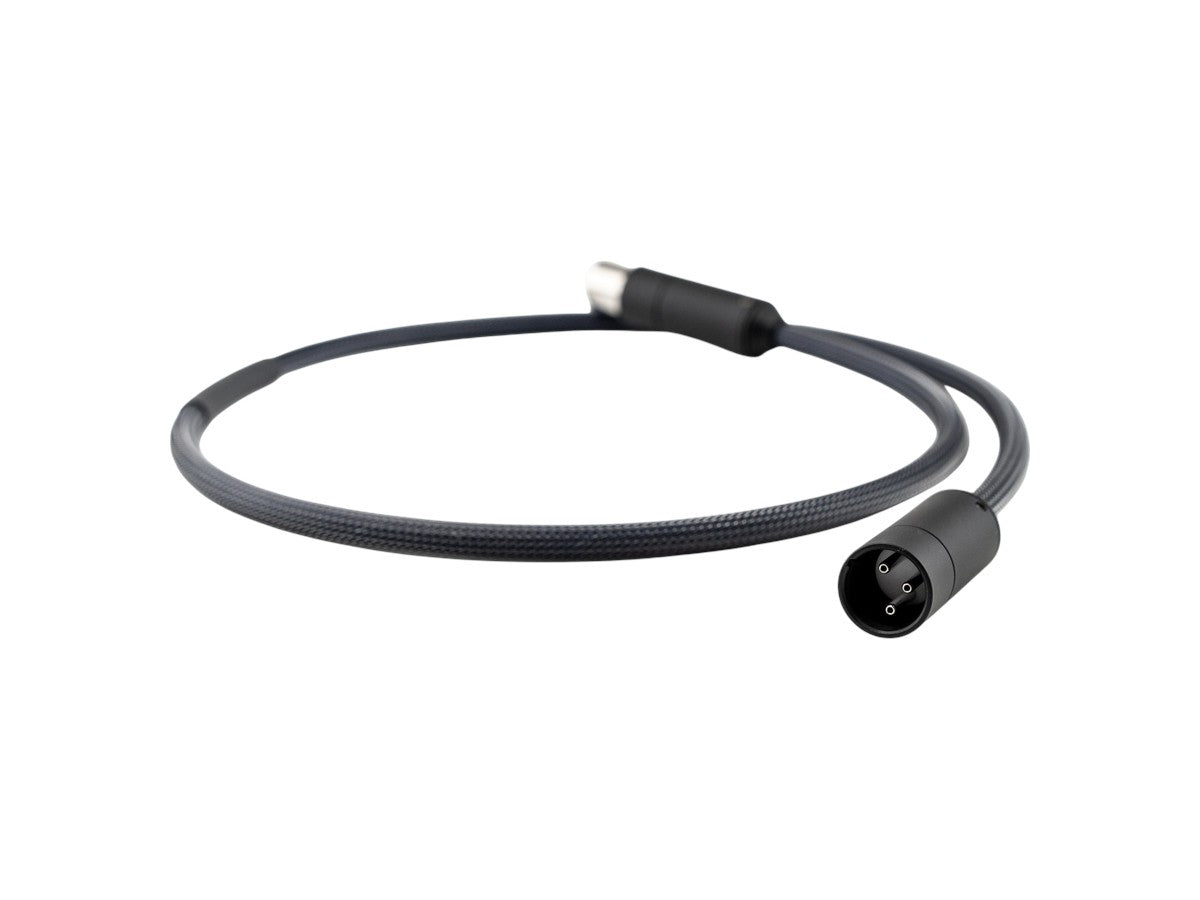

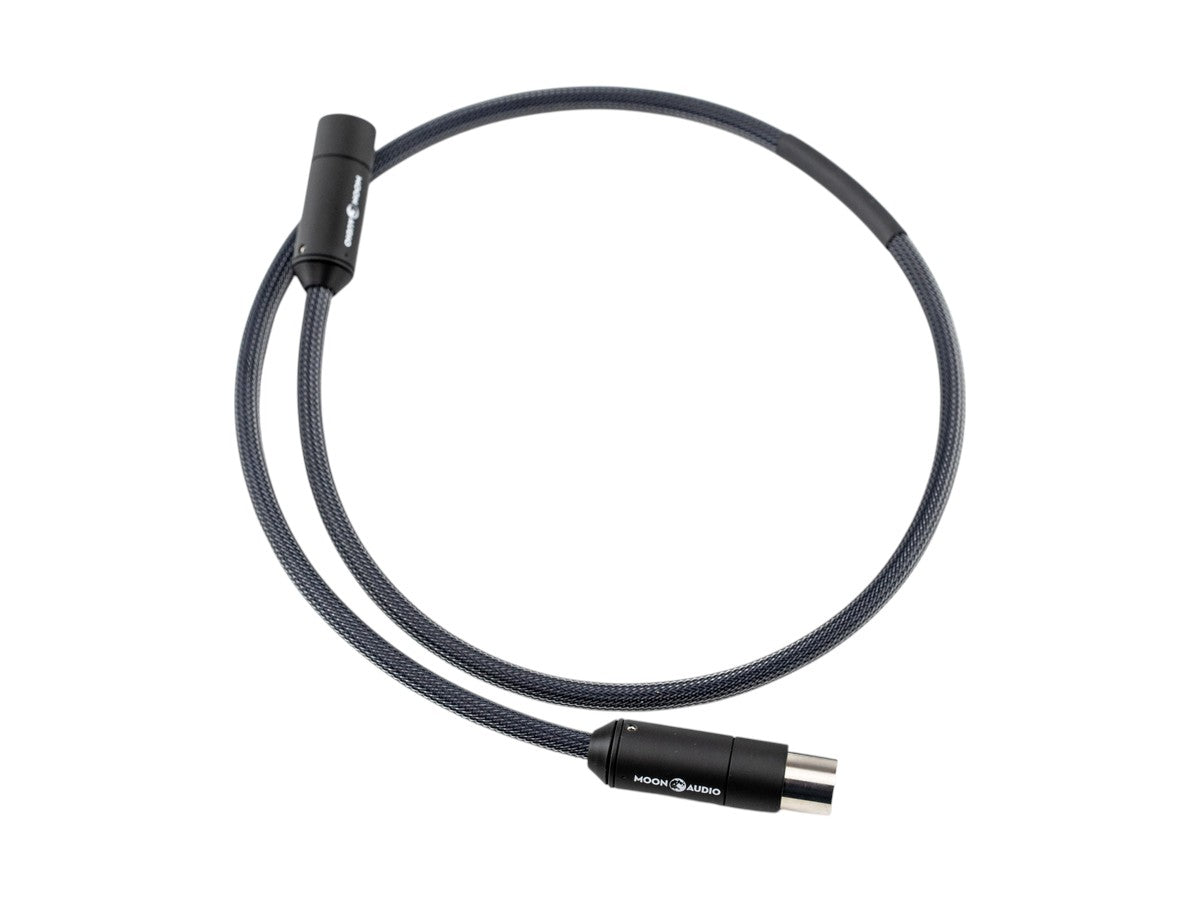

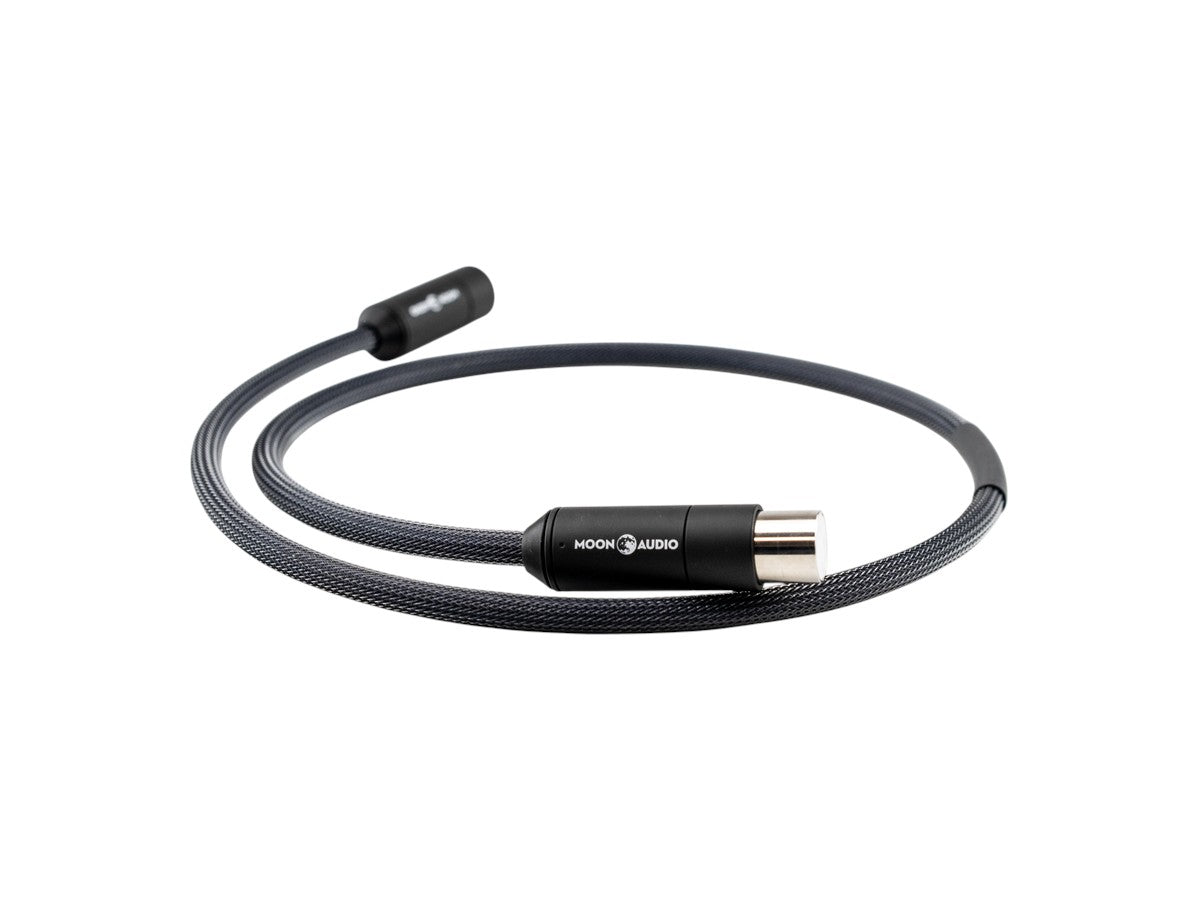

Black Dragon AES Digital Cable
Black Dragon AES Digital Cable for all of your high-end audio digital applications. After many customer requests, we have developed this cable for your balanced digital applications. It features true 110 ohm characteristics, several XLR connector options, Silver Plated Copper conductors, and a fantastic sound!
Quality You Can Trust
Most stock cables are made of poor, ultra-thin conductors with poor geometries, rubber jackets, and other issues that can limit the performance of your equipment.
Dragon Cables are handcrafted from quality materials in Moon Audio's headquarters in Cary, North Carolina. All of our cables are created with ultra-pure, single-crystal silver and copper strands and engineered to provide the cleanest, most musical presentation. Our wire is void of impurities and crystalline boundaries, leaving nothing between you and your music.
Black Dragon Sound Signature
The Black Dragon is our top-of-the-line flagship cable designed to increase musicality and provide a warmer tonality with amazing bass performance. Copper strands increase the boldness by providing more slam and attack. It smooths out and provides a more romantic sound signature. A great way to get lost in the music.
The Black Dragon pairs well with all genres, especially Classical, Blues, Rock & Roll, R&B, and anything with a toe-tapping beat like EDM and Dance music. That being said, the Black Dragon can be paired with many other genres as well. If you love to get lost in the music and want to feel like you are at the performance, then this is the cable for you. Are your headphones a little thin sounding and need more meat on the bones, give the Black Dragon a try. Hear those subsonic frequencies like never before.
Cable Design
The Black Dragon AES EBU Digital Cable is a 110-ohm digital transmission cable. Some uses are to connect a CD Transport or computer's Pro Audio Card, like a Lynx, to an outboard digital-to-analog converter. Our AES/EBU cable utilizes 2 silver-plated copper conductors with a Teflon jacket. It has both an aluminum foil shield as well as a 100% coverage braided shield.
AES Digital
AES/EBU interfaces utilize a symmetrical connection, most often with transformer isolation and an output impedance of 110 ohms. The signal level of this interface is higher than in the consumer SPDIF (3...10 volts). Because AES/EBU digital audio signals are transmitted at high frequencies (around 6MHz), they need to be handled differently from standard analog audio lines. Commonly, analog balanced cabling has various impedance ratings (typically 30 to 90 ohms) and exhibits poor digital transmission performance. The result is signal dropout and reduced cable lengths due to severe impedance mismatching (VSWR) between AES/EBU 110 ohm equipment. AES/EBU signal transmission works for a few tens of meters with a good cable. So while it is not recommended to use the analog equivalent in digital transmission, it is possible to use a 110ohm cable in both analog and digital operation. While we are promoting this cable for Digital purposes, you can also use it in an Analog system.
RCA and SPDIF: Bridging the Gap
It is not recommended to use a 110ohm digital cable with RCAs for an SPDIF connection and vice versa with the 75ohm SPDIF. The SPDIF cable only has 2 conductors and thus can not be used with XLRs. To make the conversion, you need a Transformer to prevent issues with Jitter and Digital Errors. We recommend theĀ Canare 75ohm to 110ohm BNC to XLR adapter.

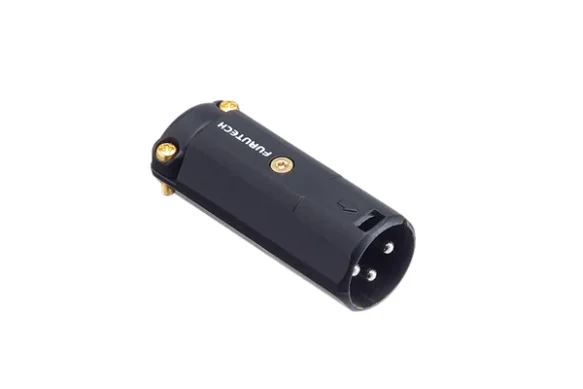

Furutech FP-601M (R) - Male Rhodium XLR

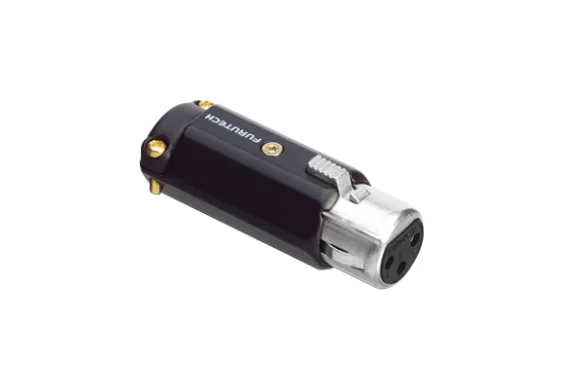

Furutech FP-602F (R) - Female Rhodium XLR

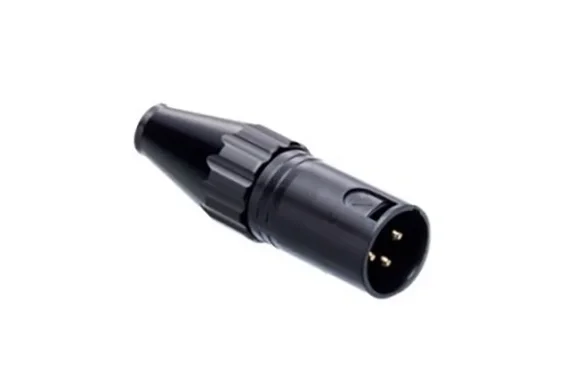

Furutech FP-701M (G) - Male Gold XLR

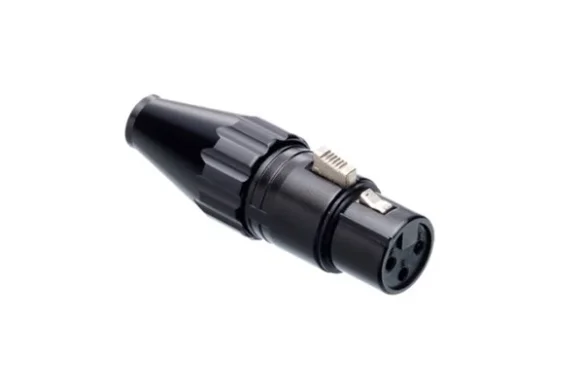

Furutech FP-702F (G) - Female Gold XLR

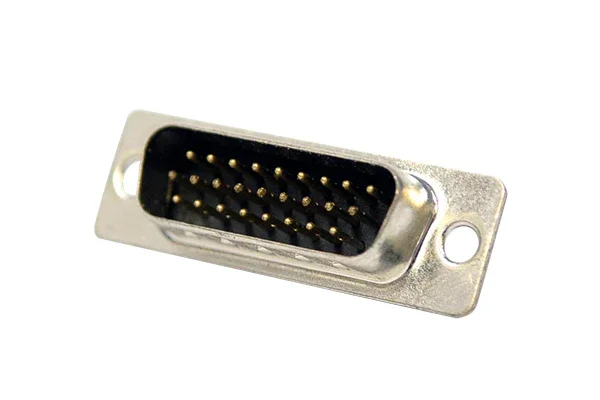

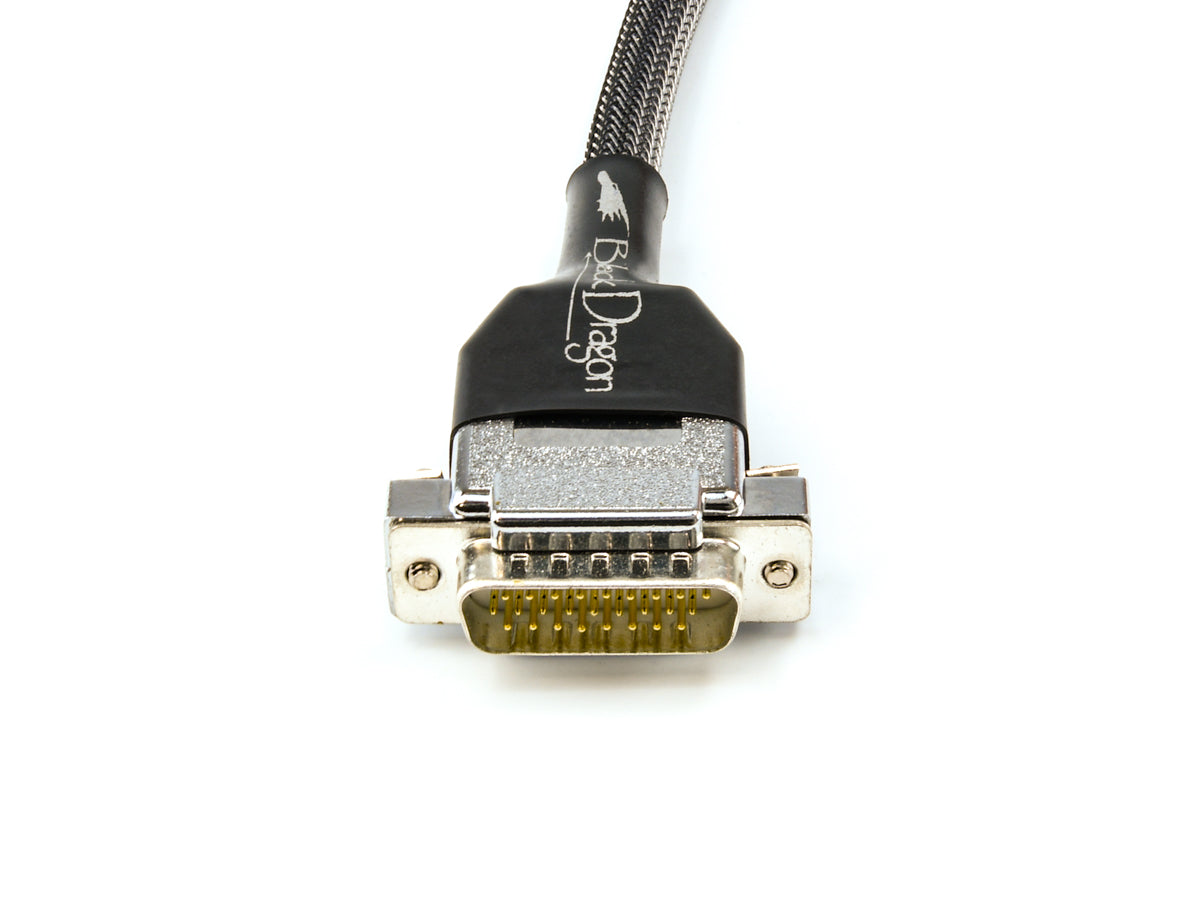

DB-26 digital 26-pin connector
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Product Dimensions / Weight |
122mm / 4.80ā (H) x 444mm / 17.48ā (W) x 356mm / 14.02ā (D) Allow extra depth for cable connectors 14 kg / 30.86 lbs |
| Finish | Black or silver painted machined aluminium with crystal LED display |
| Audio Specifications | |
| Digital-to-Analogue Conversion | dCS Ring DAC and Digital Processing Platform on flex-rigid PCB |
| Upsampling | Multi-stage DXD with switchable DSD (DSD, DSDx2) |
| Filters |
PCM mode: Up to 6 filters per sample rate (trade-off between image rejection and transient response) DSD mode: 4 filters + Filter 5 for improved transient response |
| Crossfeed Settings |
Standard crossfeed dCS Expanse 1 (E1) dCS Expanse 2 (E2) |
| MQA |
Full decoding and rendering of MQA data from Network and USB2 inputs. Final rendering of unfolded MQA data only from other inputs. |
| Technical Specifications | |
| Electronics | StreamUnlimited Stream800 |
| Automatic voltage switching | Yes |
| Digital Inputs |
2 x AES/EBU on 3-pin XLR, 44.1ā192 kS/s (dual AES up to 384 kS/s) 1 x S/PDIF BNC Coax, 44.1ā192 kS/s 1 x S/PDIF RCA, 44.1ā192 kS/s 1 x Toslink Optical, 44.1ā96 kS/s 1 x USB Type B, 44.1ā384 kS/s PCM and DSD, DSDx2 Async Mode 1 x USB Type A for mass storage devices |
| Word Clock I/O |
2 x Word Clock Inputs on 75 Ī© BNC connectors (TTL sensitive) 1 x Word Clock Output on 1 x BNC connector (TTL compatible, output in Master mode) |
| Software Updates | Downloaded via dCS Mosaic Control app |
| Local Control |
dCS Mosaic Control app for unit configuration and playback RS232 interface (via 3rd party automation) Optional dCS Universal Remote available |
| Residual Noise (6V output) | Better than ā113 dB0, 20 Hz - 20 kHz unweighted |
| Spurious Responses | Better than ā105 dB0, 20 Hz ā 20 kHz |
| L-R Crosstalk | Better than ā115 dB0, 20 Hz ā 20 kHz |
