Audio Technica
AT-LP8X Direct-Drive Turntable
$1,299.00 USDFeatures
Direct-drive motor with sensor-monitored speed control for accurate rotation
J-shaped aluminum tonearm inspired by classic Audio-Technica designs from the 1960s and '70s
AT-VM95E cartridge with 0.3 x 0.7 mil elliptical stylus for excellent channel separation
Compatible with all VM95 Series replacement styli for sound customization
VTA (vertical tracking angle) adjustment and subcounterweight accommodate a wide range of cartridges
Plays 33-1/3, 45, and 78 RPM records
25 mm rubber-damped, anti-resonance die-cast aluminum platter with 2.5 mm rubber mat
16 mm MDF box plinth with height-adjustable feet for superior vibration isolation
Video
What's in the Box?
Warranty
AT-LP8X

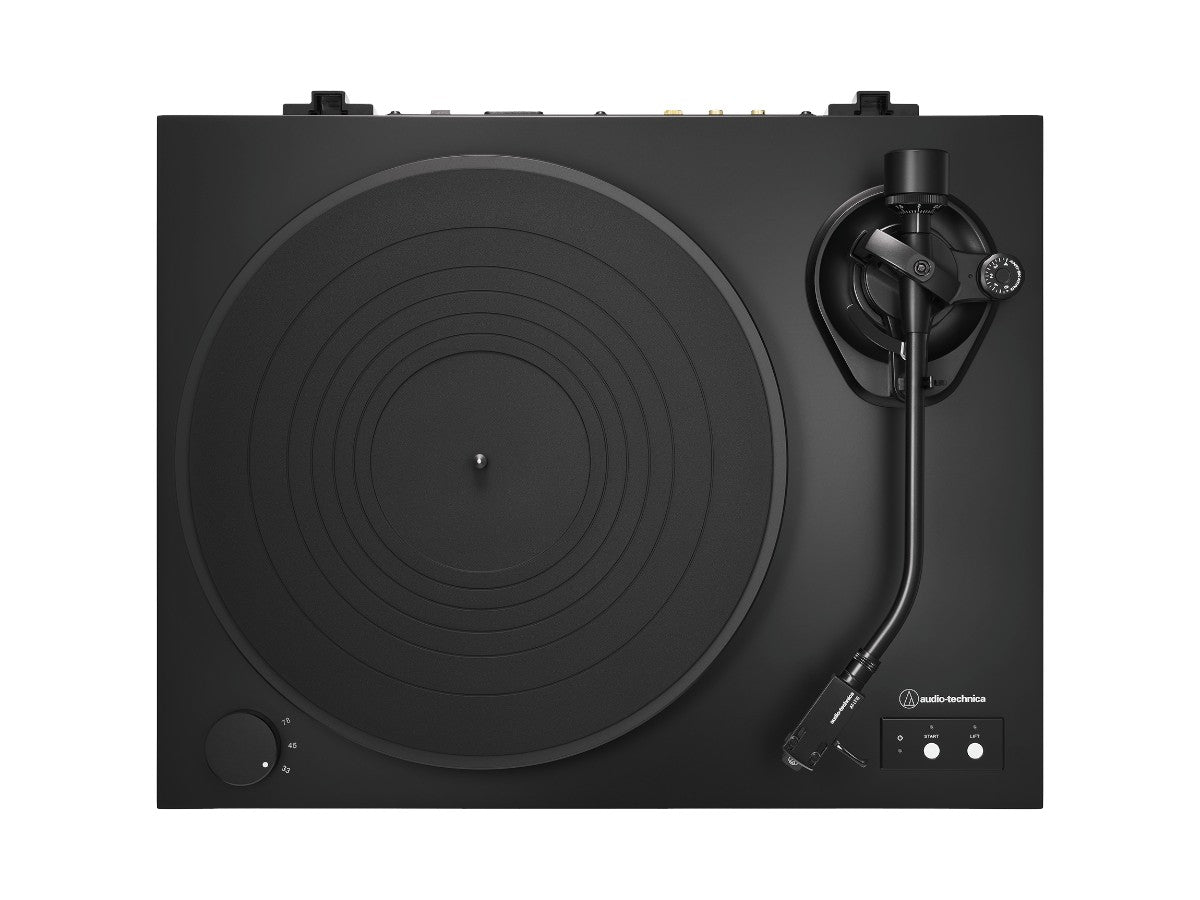

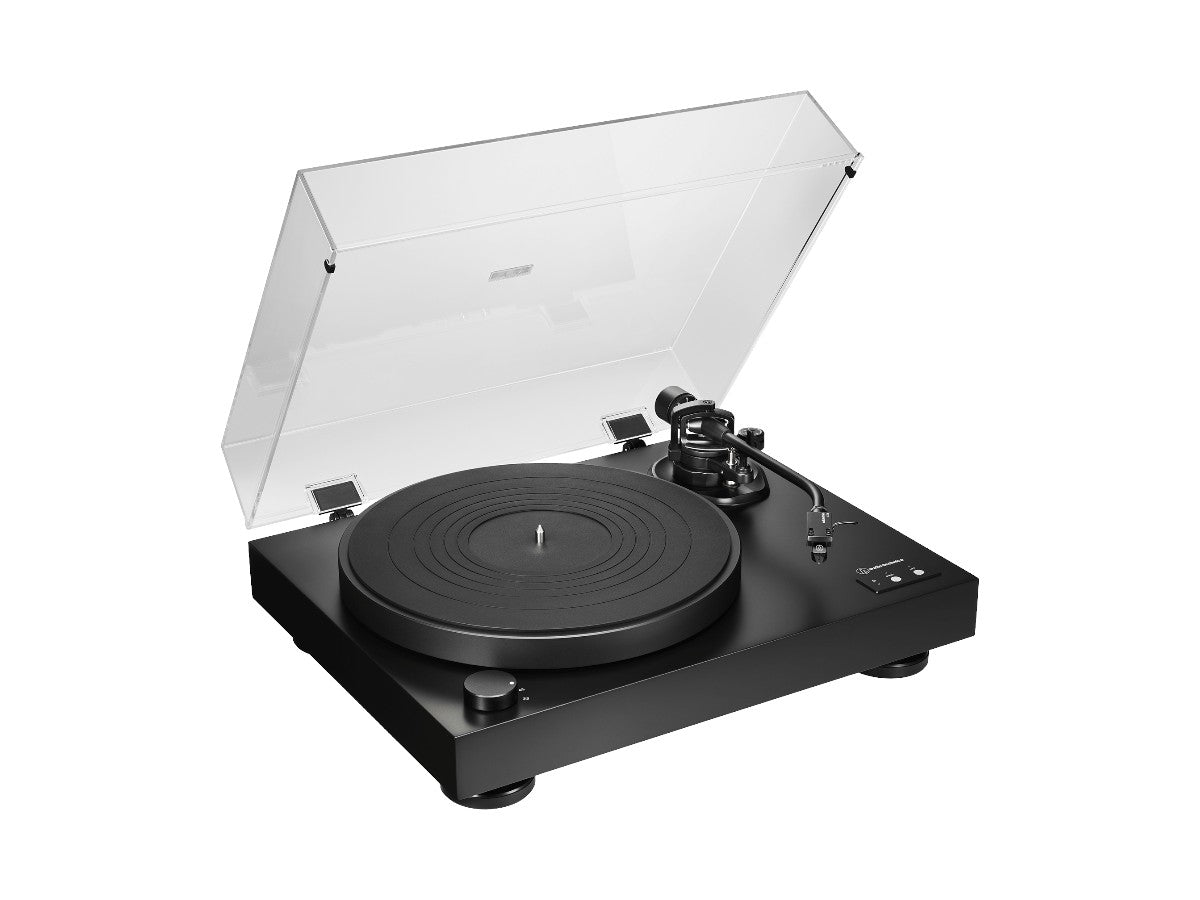

Audio-Technica expands its line of direct-drive turntables with the semi-automatic AT-LP8X, featuring a newly designed tonearm lift that automatically raises the tonearm at the end of a record side and stops the motor.

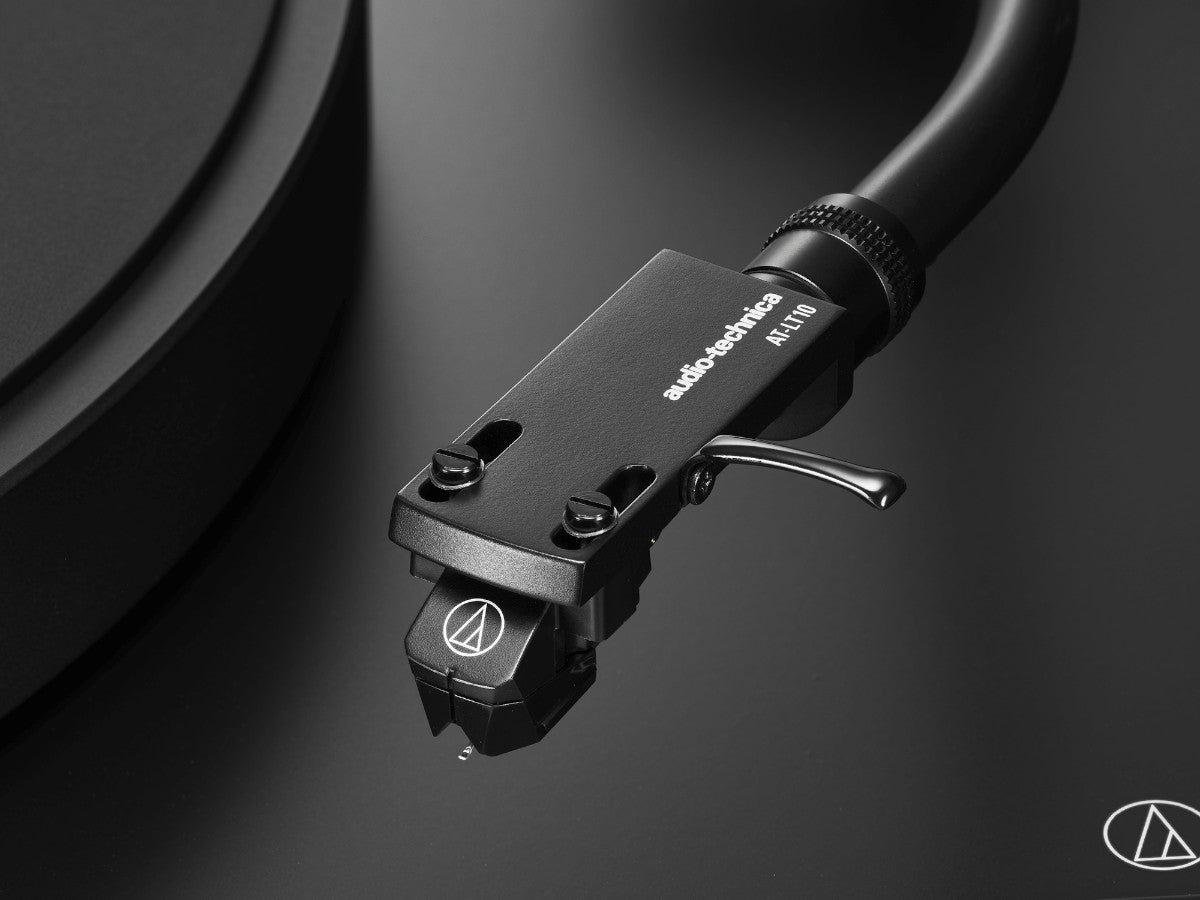

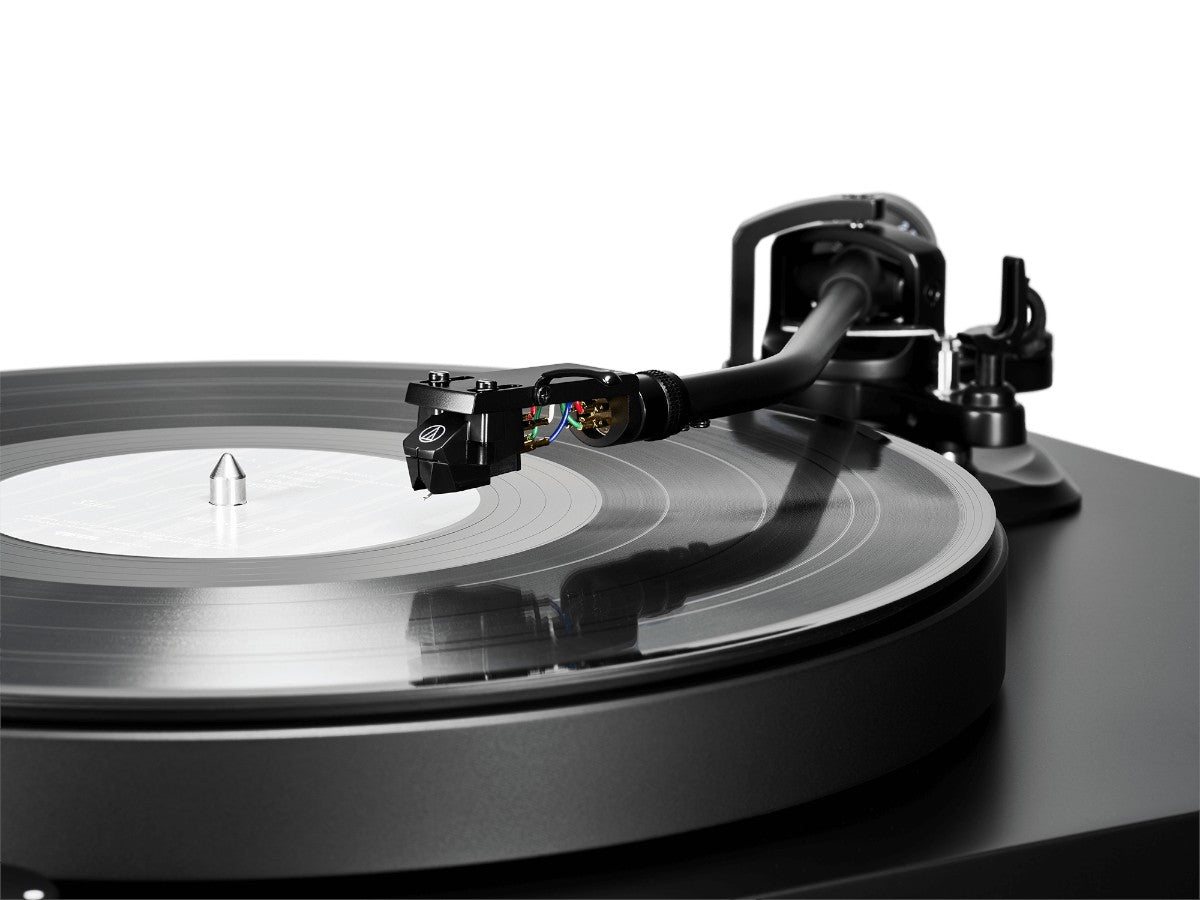

The turntable’s J-shaped aluminum tonearm, inspired by classic A-T models of the 1960s and ’70s, comes equipped with a newly designed AT-LT10 headshell and AT-VM95E BK (black) cartridge with 0.3 x 0.7 mil elliptical stylus, providing excellent channel separation and low distortion for outstanding tonal quality. For easy customization, the stylus can be replaced or interchanged with any of the five additional styli in the VM95 line, and the tonearm’s VTA (vertical tracking angle) adjustment and subcounterweight enable the use of a broad range of other cartridges.
The AT-LP8X plays 33-1/3, 45, and 78 RPM records. Its 25 mm rubber-damped, anti-resonance, die-cast aluminum platter comes with a 2.5 mm rubber mat and is driven by a sensor-monitored motor that ensures a continuously accurate platter rotation speed. The motor and its efficient internal switching power supply are housed within a box plinth constructed of 16 mm MDF (medium-density fiberboard) and equipped with height-adjustable feet for excellent protection against unwanted noise and vibration.

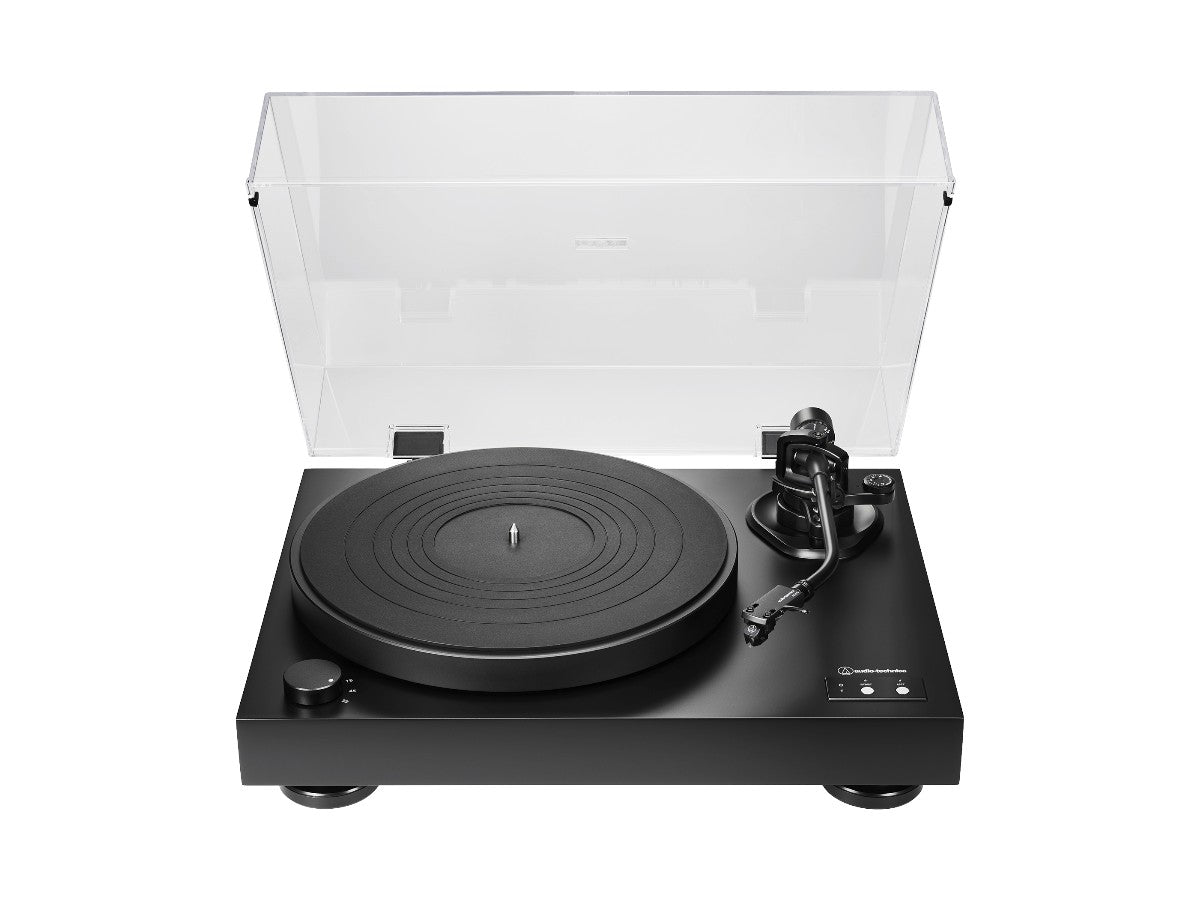

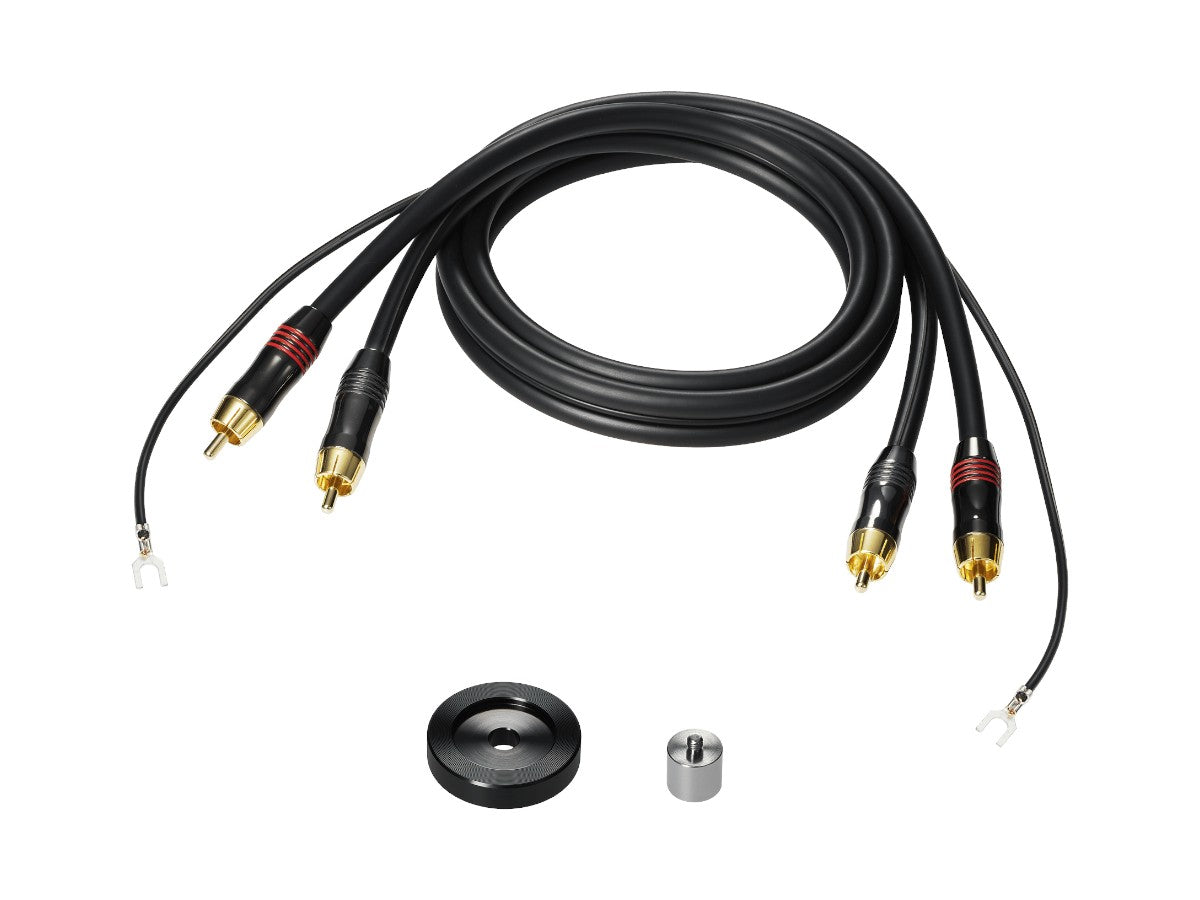

The turntable comes with a detachable RCA output cable (dual RCA male to dual RCA male with ground), 45 RPM adapter, and removable hinged dust cover.
Convenient Listening

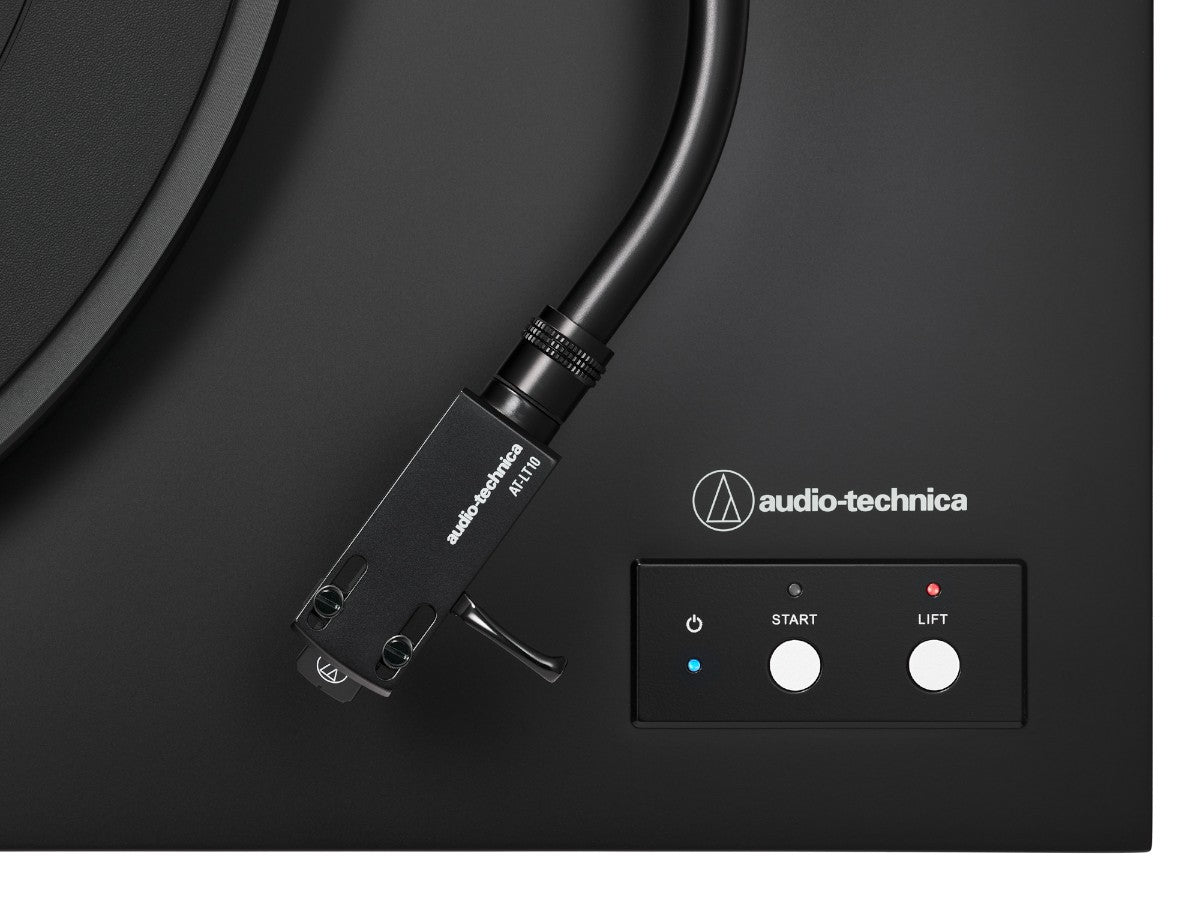

The AT-LP8X’s tonearm lifts automatically at the end of a record, and its motor automatically stops – rare features on a direct-drive turntable. This gives you the freedom to listen casually and not worry about when a record will end.
Refine Your Sound
The turntable’s AT-VM95E cartridge is compatible with any Audio-Technica VM95 Series replacement stylus, making it easy to experiment with different stylus profiles. Upgrade to a higher-quality stylus to enjoy more refined sound or switch to an AT-VMN95SP stylus to play 78 RPM records.
Quiet Performance
The turntable’s robust MDF box plinth, adjustable feet, thick rubber-damped, anti-resonance, die-cast aluminum platter, and 2.5 mm rubber mat work together to temper unwanted noise and vibration so you can enjoy all the detail of your music.
Over 60 Years of Analog Excellence
We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century’s worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.
Features
- Semi-automatic direct-drive turntable with three speeds: 33-1/3, 45, 78 RPM
- Motor features a speed-sensor system to maintain accurate platter rotation speed
- Newly designed low-torque, direct-drive DC servo motor improves wow and flutter performance
- 25 mm rubber-damped, anti-resonance, die-cast aluminum platter with 2.5 mm rubber mat

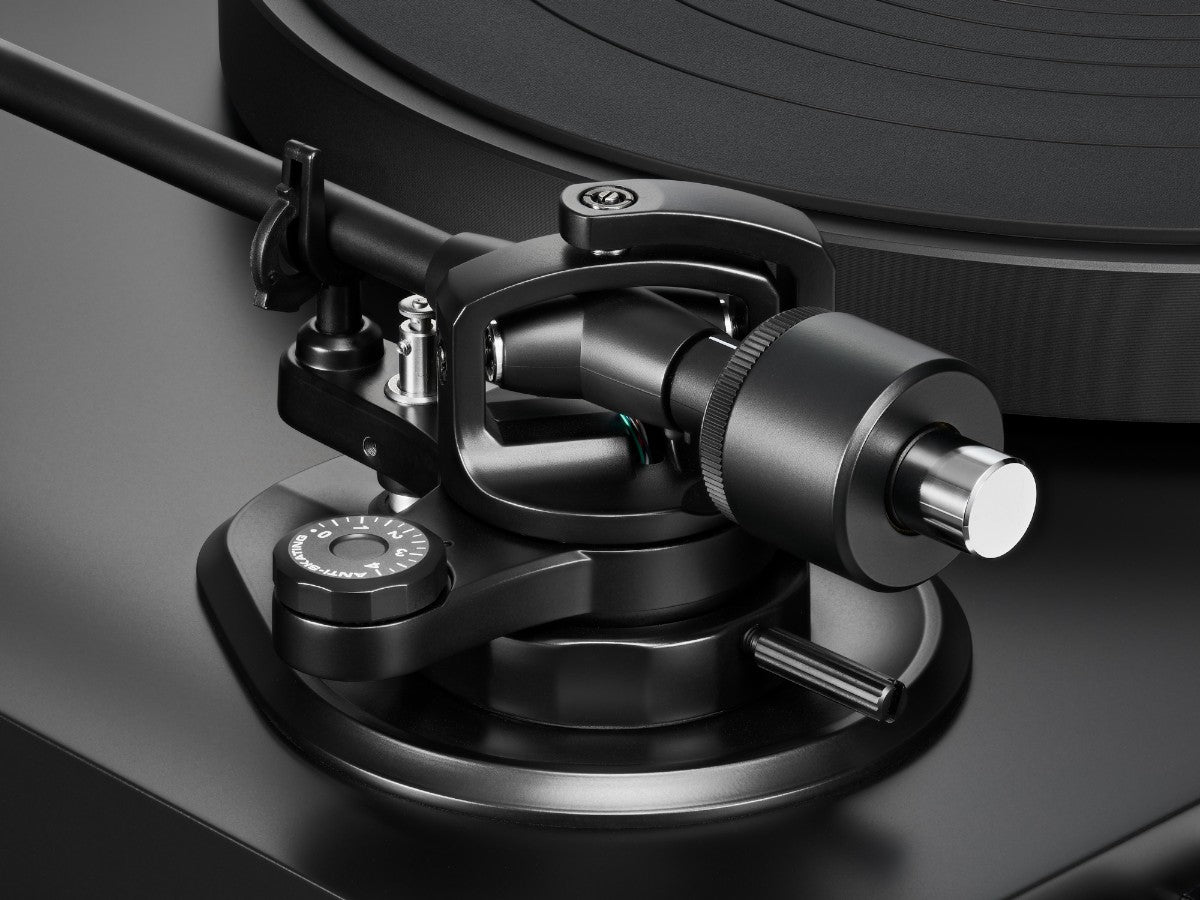

- J-shaped tonearm with adjustable VTA (vertical tracking angle)
- Newly designed tonearm lift automatically raises the tonearm at the end of a record side and stops the motor
- AT-VM95E BK (black) cartridge (0.3 x 0.7 mil elliptical stylus) is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application

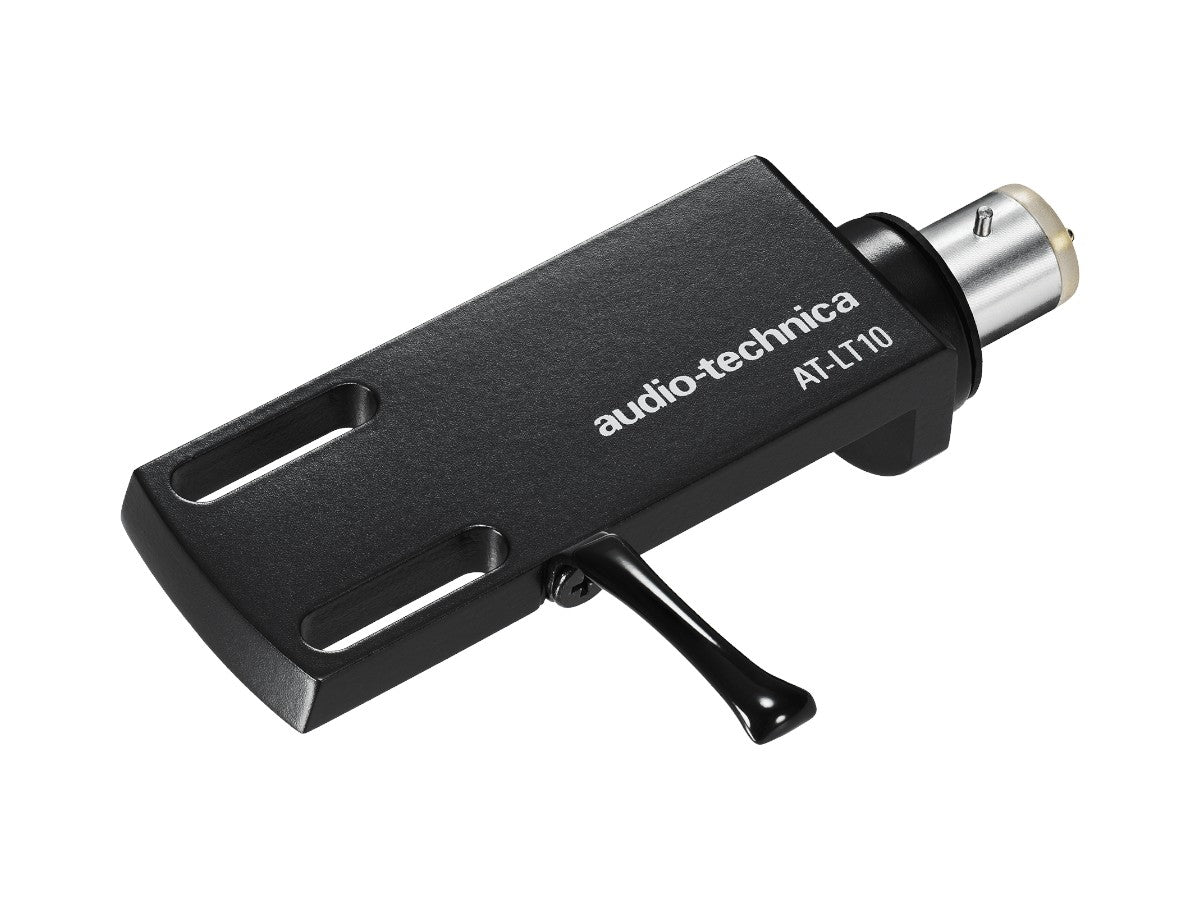

- Newly designed lightweight AT-LT10 headshell

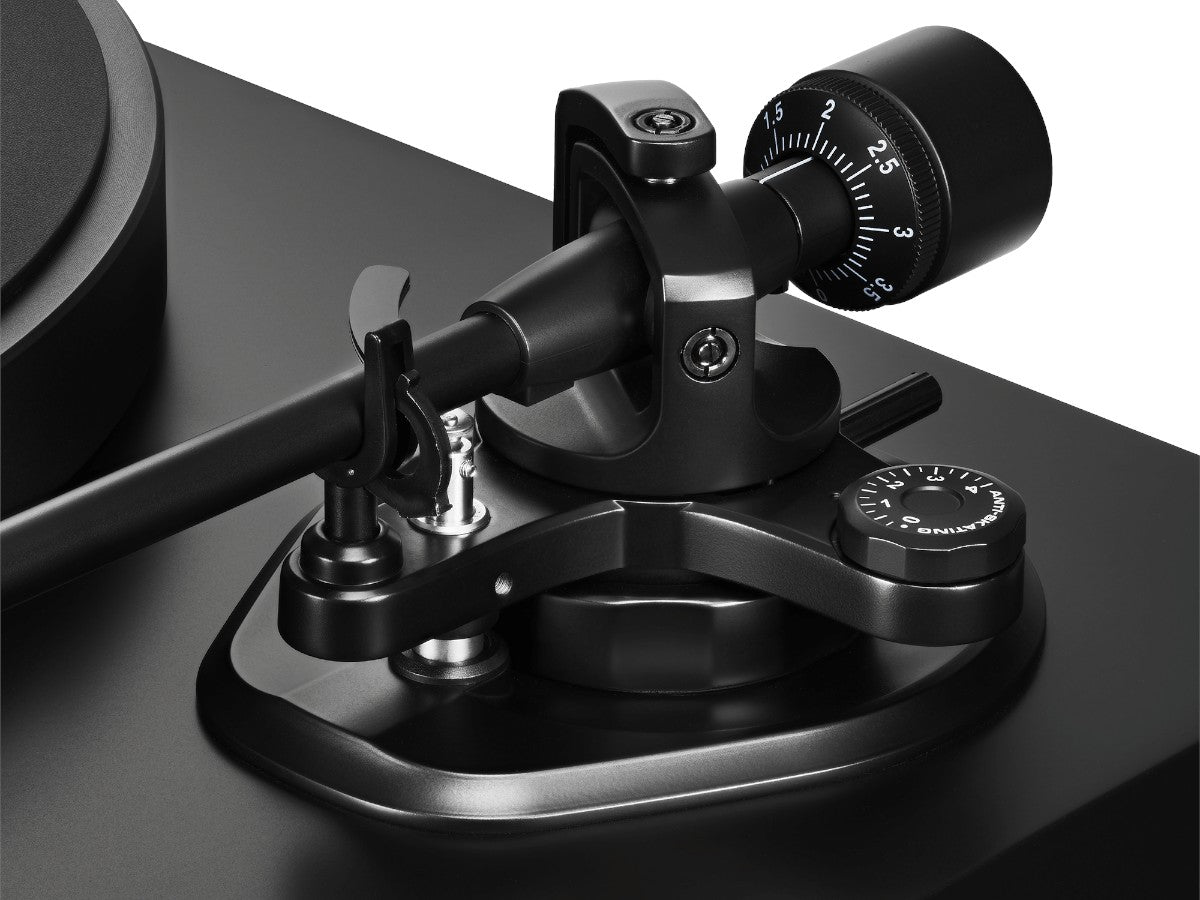

- Included subcounterweight provides an expanded cartridge/headshell weight range of 14.0 g – 23.5 g
- Newly designed internal switching power supply, optimized for audio performance
- MDF (medium density fiberboard) cabinet construction
- Phono-level output provides pure, direct transmission of the cartridge’s signal
- Includes detachable RCA output cable (dual RCA male to dual RCA male with ground), 45 RPM adapter, and removable hinged dust cover
*A dedicated SP cartridge or the replacement AT-VMN95SP stylus is required to play 78 RPM records
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Dimensions | 450 mm (18") × 352 mm (14") × 161 mm (6.3") (W×D×H) |
| Weight | Approx. 10.4 kg (23 lbs) |
| Turntable Platter | Die-cast aluminum, rubber damper |
| Accessories Included | Dust cover Rubber mat Platter Dust cover hinges Counterweight Subcounterweight Headshell (AT-LT10) with VM stereo cartridge (AT-VM95E BK) 45 RPM adapter RCA audio cable (Approx. 1.0 m / 3.3') Power cable (Approx. 1.8 m / 5.9') |
| Technical Specifications | |
| Motor | DC servo |
| Drive Method | Direct drive |
| Speeds | 33-1/3 RPM, 45 RPM, 78 RPM |
| Starting Torque | 1.0 Kgf.cm |
| Braking System | Electronic brake |
| Wow and Flutter | < 0.1% (WTD) at 3 kHz (JIS) |
| Signal-to-Noise Ratio | > 60 dB |
| Tonearm Specifications | |
| Tonearm Type | Static balanced J-shaped tonearm |
| Effective Arm Length | 247 mm (9.7") |
| Overhang | 15 mm (0.59") |
| Tracking Error Angle | Less than 2.0° |
| Stylus Pressure Adjustment Range | 0.0 to 4.0 g |
| Applicable Cartridge Weight | 14.0 to 20.0 g (including headshell) 17.5 to 23.5 g (when using subcounterweight) |
| Cartridge Specifications | |
| Cartridge Type | VM (AT-VM95EBK) |
| Output Level | PHONO: 4.0 mV nominal at 1 kHz, 5cm/sec |
| Replacement Stylus | AT-VMN95EBK |
| Replacement Headshell | AT-LT10 |
| Power Specifications | |
| Power Supply Requirements | 100 to 240 V, 50/60 Hz |
| Power Consumption | 8 W |
| Additional Information | |
| Notes | For product improvement, the product is subject to modification without notice. |
