Features
Newly developed Shibata stylus (R2.7 × r0.08 mil tip radius) for extreme groove-tracing accuracy
Dual PCOCC moving coils positioned at the cantilever's fulcrum for high channel separation
Highly efficient magnetic circuit (adapted from the AT-ART20) for strong output voltage and realism
Cartridge body of aluminum base, titanium housing, and elastomer undercover for resonance control

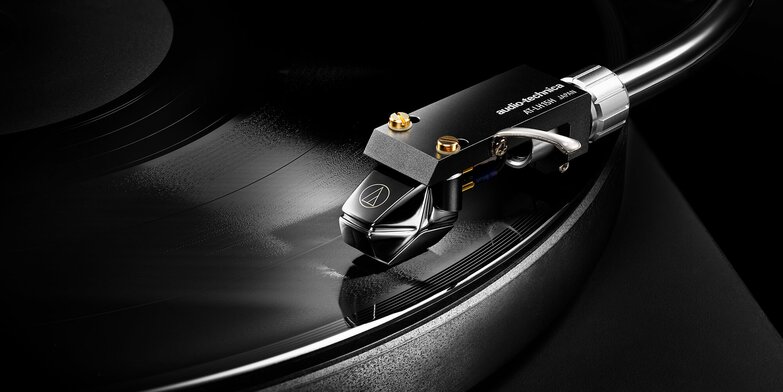

Threaded mounting holes for easy installation to a headshell or integrated tonearm
Designated an Audio-Technica Excellence Product
Handcrafted in Japan
What's in the Box?
Warranty

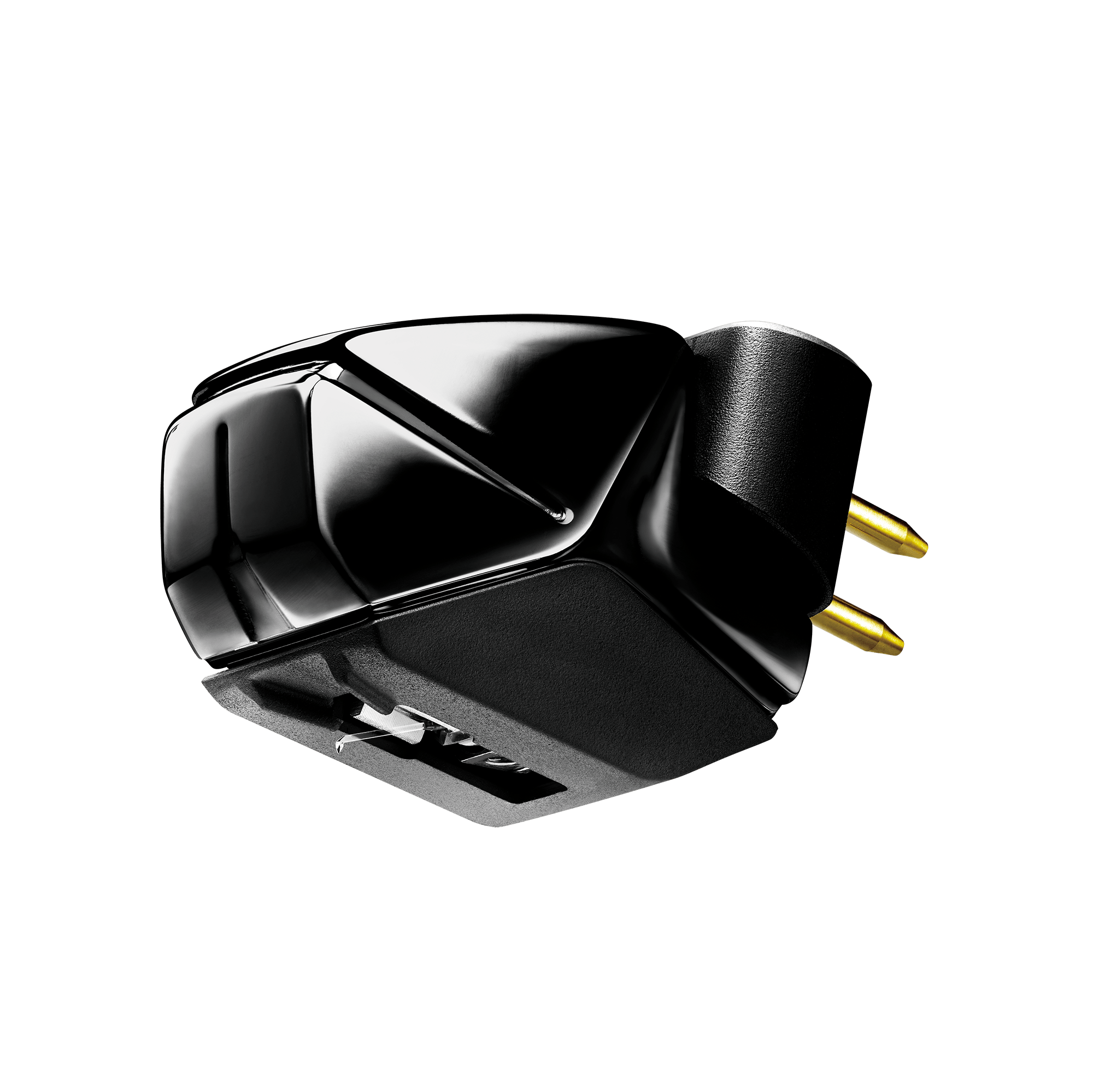

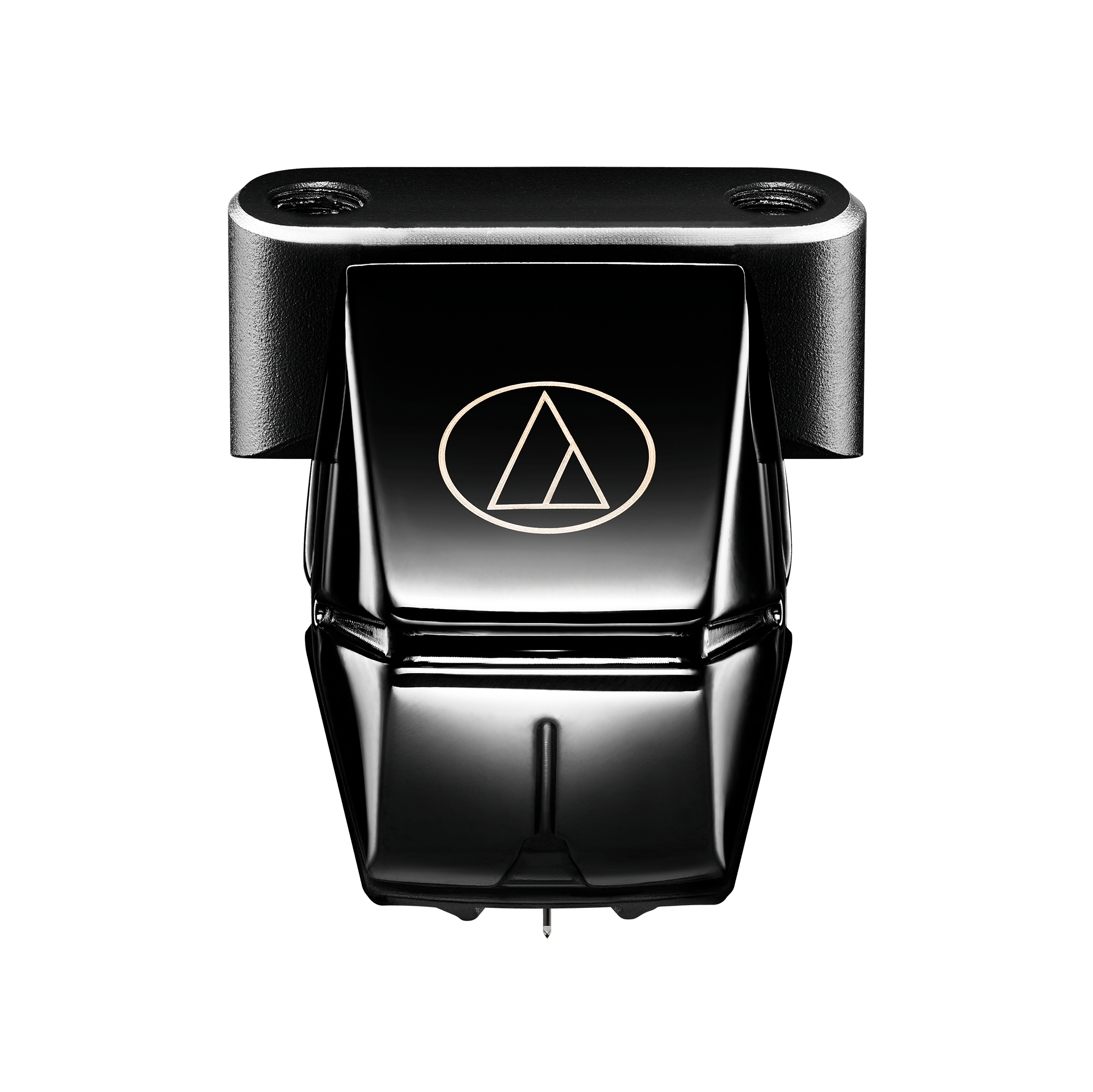

The AT-MCD1, Audio-Technica’s flagship iron-core moving coil cartridge, is one of the finest phono cartridges ever produced, designed to surpass even the outstanding expressiveness of our limited-edition AT-MC2022 60th anniversary model.
The AT-MCD1 has been designated an Audio-Technica Excellence Product, a recognition that identifies products that meet our highest standards of high-fidelity performance.
With its unified stylus-cantilever, formed from a single lab-grown diamond, the AT-MC2022 offered exceptional responsiveness and transparency, establishing a new benchmark for analog playback. The AT-MCD1 inherits that one-piece diamond construction but further reduces the mass of the cantilever and adopts a newly developed Shibata stylus (R2.7 × r0.08 mil tip radius) that traces the record groove with extreme accuracy. This seamless, high-purity structure enhances the precision of converting mechanical vibrations into electrical signals, achieving a higher integration of detail, density, speed, and smoothness.
The cartridge’s dual moving coils provide high separation and wide response for clear sound localization with minimal distortion. Its highly efficient magnetic circuit creates strong magnetic flux density and output voltage, further enriching the presence and realism of the sound image. A carefully crafted cartridge body, consisting of an aluminum base, titanium housing, and elastomer undercover, disperses unwanted resonance, while threaded mounting holes make the cartridge easy to install to a headshell or integrated tonearm.
Built around its diamond core structure, the AT-MCD1 naturally reproduces everything from the faintest nuance to powerful dynamic expression, presenting sound in which image contours and spatial depth emerge vividly. By retrieving even the most delicate signals without loss, sound rises smoothly from silence, and the texture of instruments and the lingering resonance of harmonics are conveyed with striking realism. The unbroken purity of the AT-MCD1’s diamond construction delivers ultra-low noise and outstanding resolution while staying true to the anniversary model’s philosophy, faithfully drawing out every detail in the original recording.
Please Note: AT-MCD1’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.

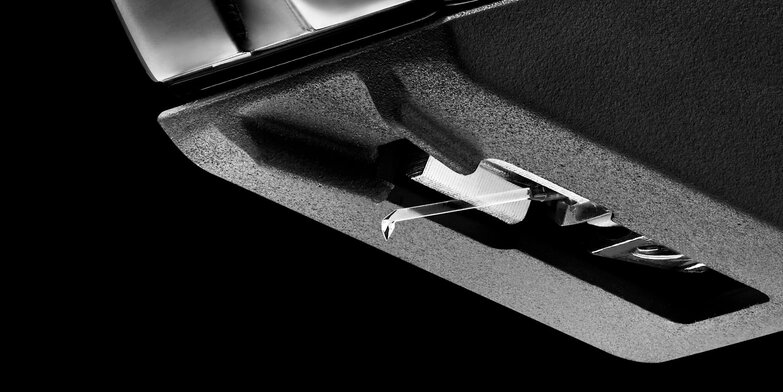

Unified Diamond Stylus-Cantilever
The AT-MCD1’s unified Shibata stylus (R2.7 × r0.08 mil tip radius) and 0.22 mm square diamond cantilever are formed from a single, lab-grown diamond. This unique construction eliminates the distortion caused by conventional bonding of the stylus to the cantilever, allowing for a purer transmission of the vibration from the record groove to the coils.

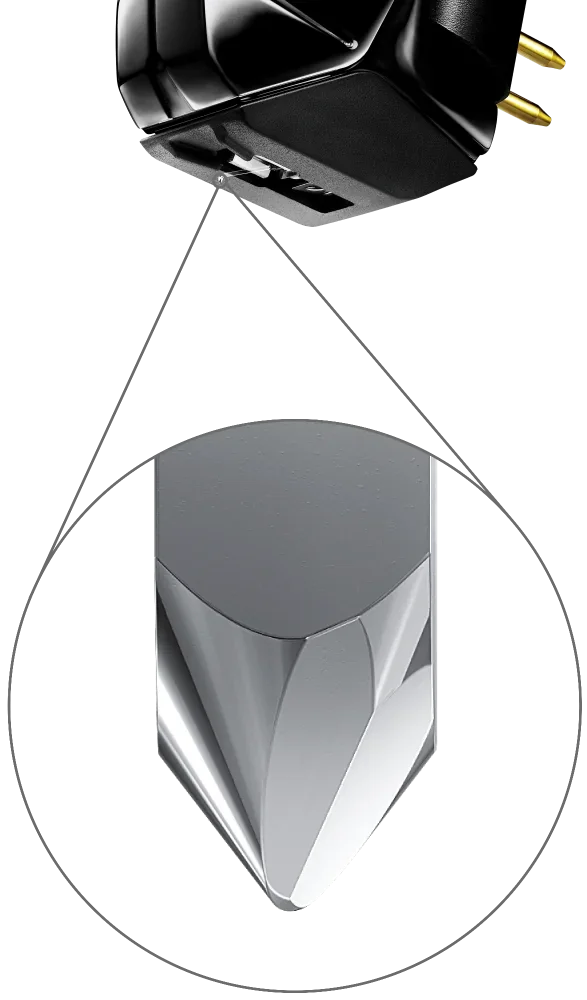

New Shibata Stylus
The AT-MCD1 features a Shibata stylus tip that’s been specially developed for this cartridge. With an R2.7 × r0.08 mil tip radius, the stylus can pick up the finest details from a record groove, resulting in stunningly lifelike audio reproduction.

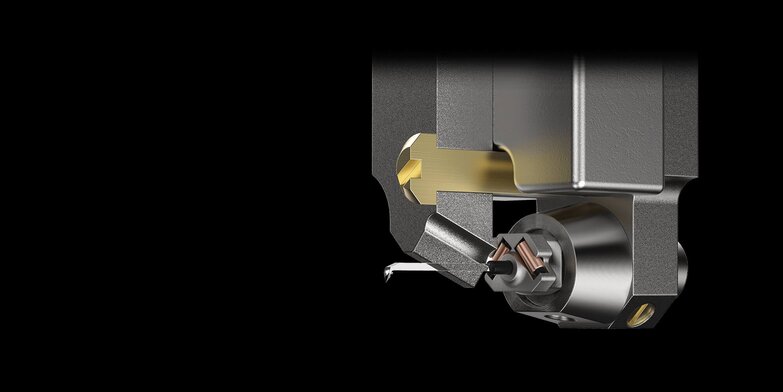

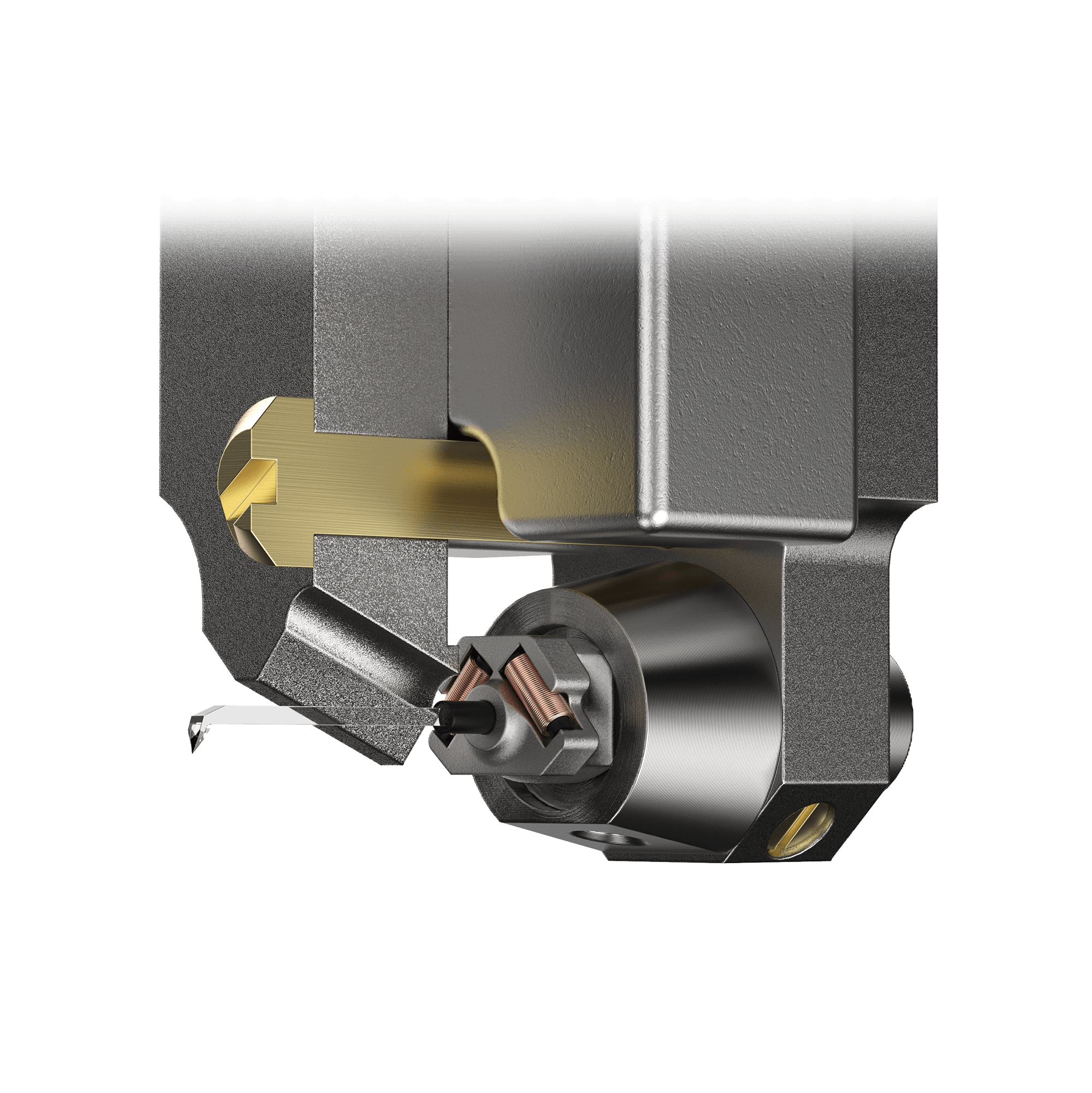

Moving Coil Construction
The AT-MCD1 adopts the highly efficient magnetic circuit originally developed for the AT-ART20, which generates strong magnetic flux density and output voltage for exquisite sonic realism. Two independent PCOCC moving coils, positioned at the cantilever’s fulcrum, ensure pure signal transmission for each channel.
What the Pros are Saying
"Not surprisingly, then, this cartridge, as only a very few in my experience have managed, sounds just about like it’s not there. In my world that’s the goal. I don’t want to hear any character, which is not the same as saying it “lacks soul” or is short of “musicality” or any other timbral, textural or transient quality that is an identifiably characteristic given a positive euphemistic spin."
- Michael Fremer Tracking Angle
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Type | MC |
| Dimensions | 17.3 mm (0.68") × 17.7 mm (0.70") × 26.7 mm (1.1") (H × W × D) |
| Weight | 9.5 g (0.34 oz) |
| Cantilever | 0.22 mm (0.0087") square diamond |
| Stylus Shape | Shibata (integrated cantilever type) |
| Stylus Curvature Radius | 2.7 × 0.08 mil |
| Threaded Hole | M2.6 × 2 |
| Technical Specifications | |
| Frequency Response | 20 to 50,000 Hz |
| Channel Separation | 28 dB (1 kHz) |
| Vertical Tracking Angle | 20° |
| Tracking Force | 1.7 to 1.9 g (1.8 g standard) |
| Recommended Load Impedance | ≥ 100 ohms (when head amplifier connected) |
| Coil Impedance | 12 ohms (1 kHz) |
| DC Resistance | 12 ohms |
| Coil Inductance | 25 μH (1 kHz) |
| Output Voltage | 0.55 mV (1 kHz, 5 cm/sec.) |
| Output Balance | 0.5 dB (1 kHz) |
| Static Compliance | 21 × 10⁻⁶ cm/dyne |
| Dynamic Compliance | 15 × 10⁻⁶ cm/dyne (100 Hz) |
| Product Information | |
| Model | AT-MCD1 |
| Description | Dual Moving Coil Stereo Cartridge |
| Country of Origin | Japan |
| UPC | 4961310166373 |
| Warranty | 3 years |
| MSRP | $11,000.00 |
| Packaging Specifications | |
| Unit Carton Quantity | 1 |
| Unit Carton Dimensions (L × W × H) | 6.77" × 5.28" × 3.35" |
| Case Pack Quantity | 1 |
| Case Pack Dimensions (L × W × H) | 4.17" × 7.2" × 8.74" |
| Case Pack Weight | 1.15 lb |
| Unit Carton Weight | 0.64 lb |
| Additional Information | |

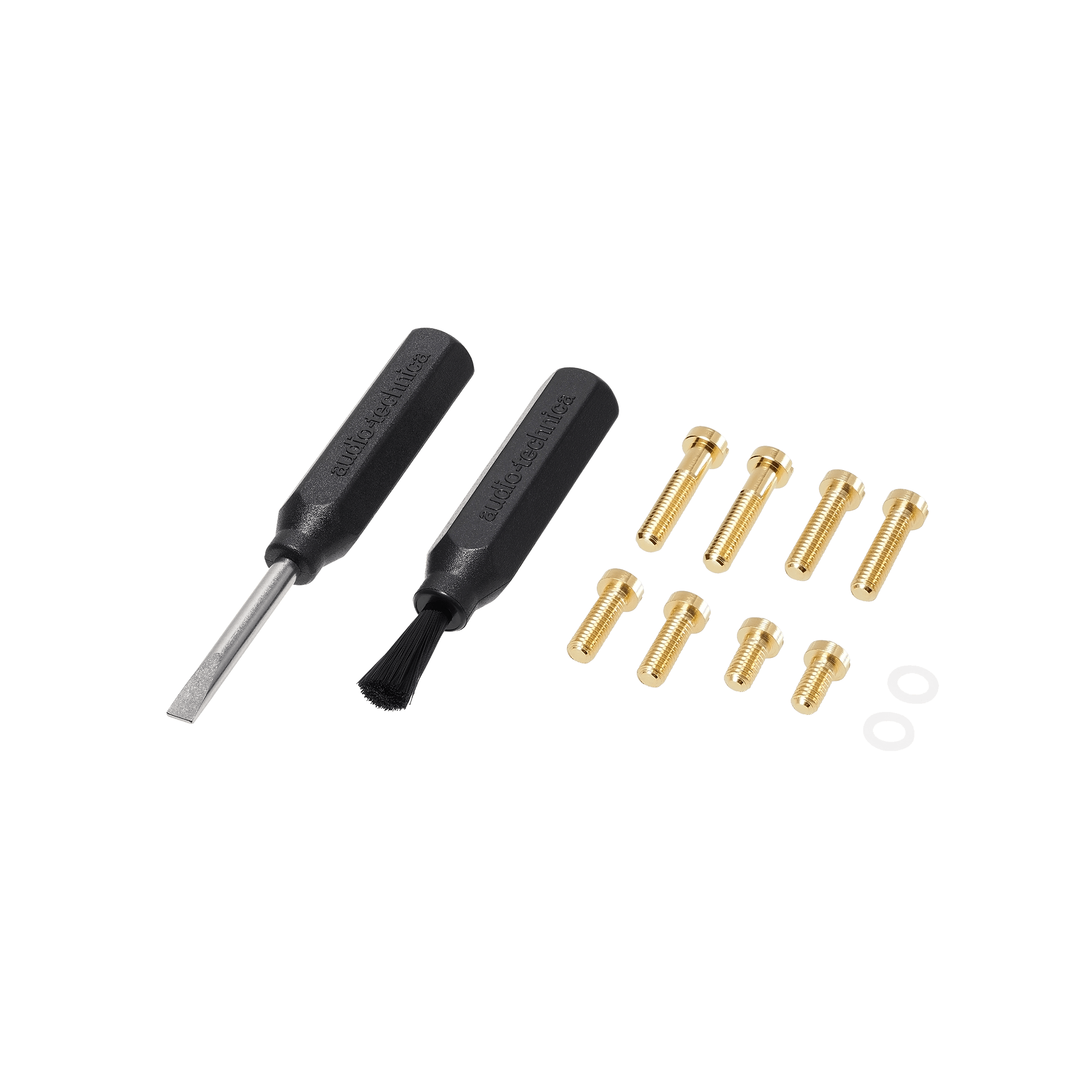

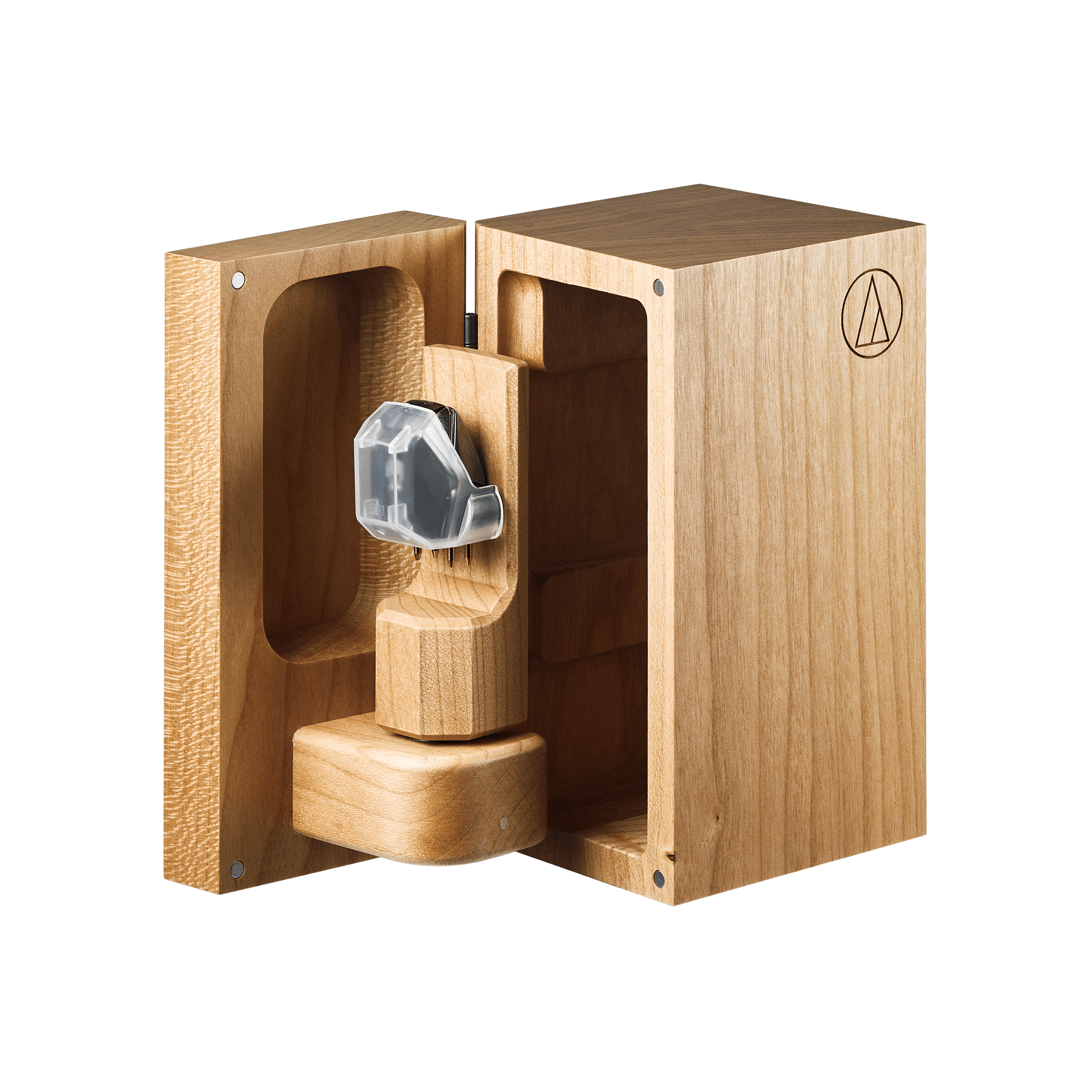

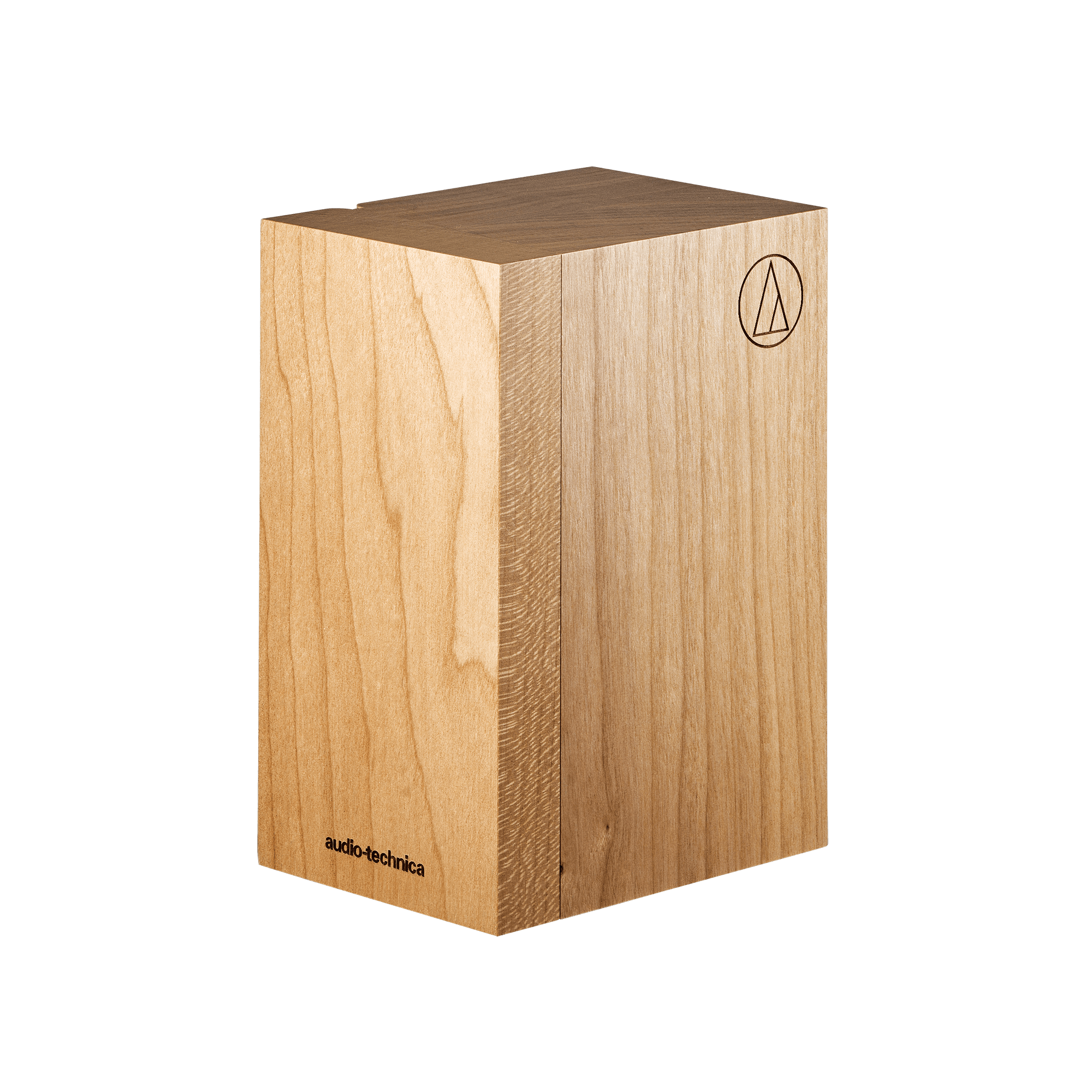

| Accessories Included | Non-magnetic screwdriver, brush, washer × 2, cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm × 2, 12.0 mm × 2), protector, case (wooden box) |
| Notes | Washers × 2 and 8.0 mm screws × 2 are used to secure the cartridge at the time of purchase; keep these after removing the cartridge from the imitation headshell. The product is subject to modification without notice for product improvement. |
