Absolute Headphone Amplifier

$4,999.00
In Stock

Manley Labs is proud to announce the release of a stunning design: the Absolute Headphone Ampli… More details

Manley Labs Absolute Headphone Amp at RMAF2019 | Moon Audio

1
  • Questions?Questions?
  • Authorized Dealer - Trusted Since 2003Authorized Dealer
  • Roon Tested30 Day Returns
  • Free ShippingFree Shipping
1

Manley Labs is proud to announce the release of a stunning design: the Absolute Headphone Amplifier. Brimming with functionality, this new art piece from Manley Labs is as enthralling musically as it is handsome visually.

With over three years of development in its creation, Manley has drawn from its 30 years of experience in conceptualizing and developing each precise element of this multi-talented unit. This masterpiece embodies high-performance flexibility for every person to be able to custom compose sonic performance reliably, repeatedly, or even spontaneously. Artistic expression with sound!

Oh, and by the way, it is also a Line-Level Preamplifier!

“…the Manley Absolute seems to simply work with every headphone you plug into it. Planars, dynamics, sensitive, power hungry, they all achieve a similarly high-degree of sound quality that make this a truly flexible option.”

Grover Neville, InnerFidelity | July 2019
absolute headphone amplifier

Details

There are fifteen independent controls available, each of which was exhaustively developed for convenient adjustability and aural variety. Two selectable stereo RCA jack pairs receive the input signals. Even these RCA jacks are of our own design. Teflon® insulated and gold plated, we have been producing these excellent RCA jacks since the mid-1990s. The volume is controlled on the facia by the sexy front thumbwheel and also by the included Radio Frequency remote control, both of which operate a precision stepped relay ladder matrix attenuator in half dB steps. The RF remote can be operated anywhere in the home, even through walls or cabinetry, especially useful when using the unit as a stand-alone preamplifier. Next to the front volume control wheel you’ll find the Mute switch to instantly kill the signal. Spinning the volume wheel all the way to minimum also mutes the signal. There is also a user-adjustable Headphone Overload Protection System which declares maximum output level to protect precious headphones and your ears!

And you know how maddening it is to try to listen to a mono LP record on headphones - which is why we have provided a MONO switch!

absolute headphone amplifier close up


In case your source needs some correction or if your own ears do not hear equally, we have included a Balance Control which can swing the signal up to 72dB either way. In its center detent position, this special balance control is completely out of the circuit. Also to be able to execute some sonic authority over what is handed to you in a given recording or to just make your headphones sound nicer (to you!) we have provided historically proven pleasing and gentle Tone Controls - and these Baxandall Bass and Treble equalizers can be completely bypassed at the push of a button. Try them! We think you really will enjoy having the choice to enliven and enrich your sonic experience.

Along those lines, the Variable Feedback control allows you to control the amount of overall negative feedback applied to the amplifier from 0dB, or no Global Negative Feedback, to 10dB of NFB. Negative Feedback in electronics is when a small portion of the output signal is re-introduced back to the input signal to provide a more stable and beneficial corrective result. This control is very useful when determining how “tight” you want your amplifier to sound. For example, a simple female vocal with minimal percussion can sound more intimate with very little feedback, but a complicated symphony orchestra passage may sound better positioned with more feedback. Applying different amounts of negative feedback can also affect the slew rate and apparent “speed” of the sonic character. Other aspects for which to listen include placement, forward or relaxed, darker vs shimmering, or punchy vs mellow. Feel free to play with this knob and listen for the not-so-subtle diversity that altering the amount of feedback provides. It’s one of our favorite circuit tricks and we’ve been pulling this one for decades!

remote control for Manley Absolute amp


Switching Topology

We’re pretty sure we originated this concept in the audiophile world back with the Manley SE/PP 300B power amplifiers and it’s only because we have our own in-house magnetics department that we are able to devise such complaisant output transformers that can accommodate such radical demands. The Absolute Headphone amplifier features custom hand-wound air-gapped dual-mode MANLEY IRON® output transformers, designed and manufactured at the Manley Labs factory in California. Interestingly, the output tube stage can be switched on-the-fly between all-triode Push-Pull to Single-Ended topology. This completely alters the harmonic structure from odd-order to even-order and basically halves the output power again providing yet another spicy ingredient to flavor the sound.

Additionally, with a push of a button, these transformers cycle through three ranges of output loads accommodating headphones from 12 to 600 Ohms or greater. Choose between three sets of outputs: the expected 1/4" TRS Headphone Jack, a 4-pin XLR Balanced Stereo Output for your high-end balanced headphones, and a set of stereo RCA outputs to use this component as your line-level preamplifier in your existing hifi system. The Bypass Thru Mode sends RCA Input 1 directly to the RCA Outputs, when in STANDBY mode. Useful, as your main audio system sources can drive either playback system without having to change upstream cabling.

The Absolute Headphone amplifier incorporates our own innovative purpose-designed-for-audio High Voltage switched-mode power supply. All super-low impedance DC rails are fully regulated and worlds quieter than any linear supply we have ever encountered. The resulting sound is fast and dynamic with a deep punchy bass, deadly-quiet inky blacks, and superior headroom.

The 6AQ5 or EL90 is the vacuum tube used in the output stage of the Absolute Headphone amplifier. It is well suited for our purposes in a headphone amplifier. The tube is configured as a triode due to the low power requirements needed for headphone use. This tube is widely available from well-known manufacturers such as RCA and GE. The tubes can be ordered as a matched quad and for ease of use the tubes do not require biasing. Simply plug them in and forget ‘em!

Two Chassis Colors

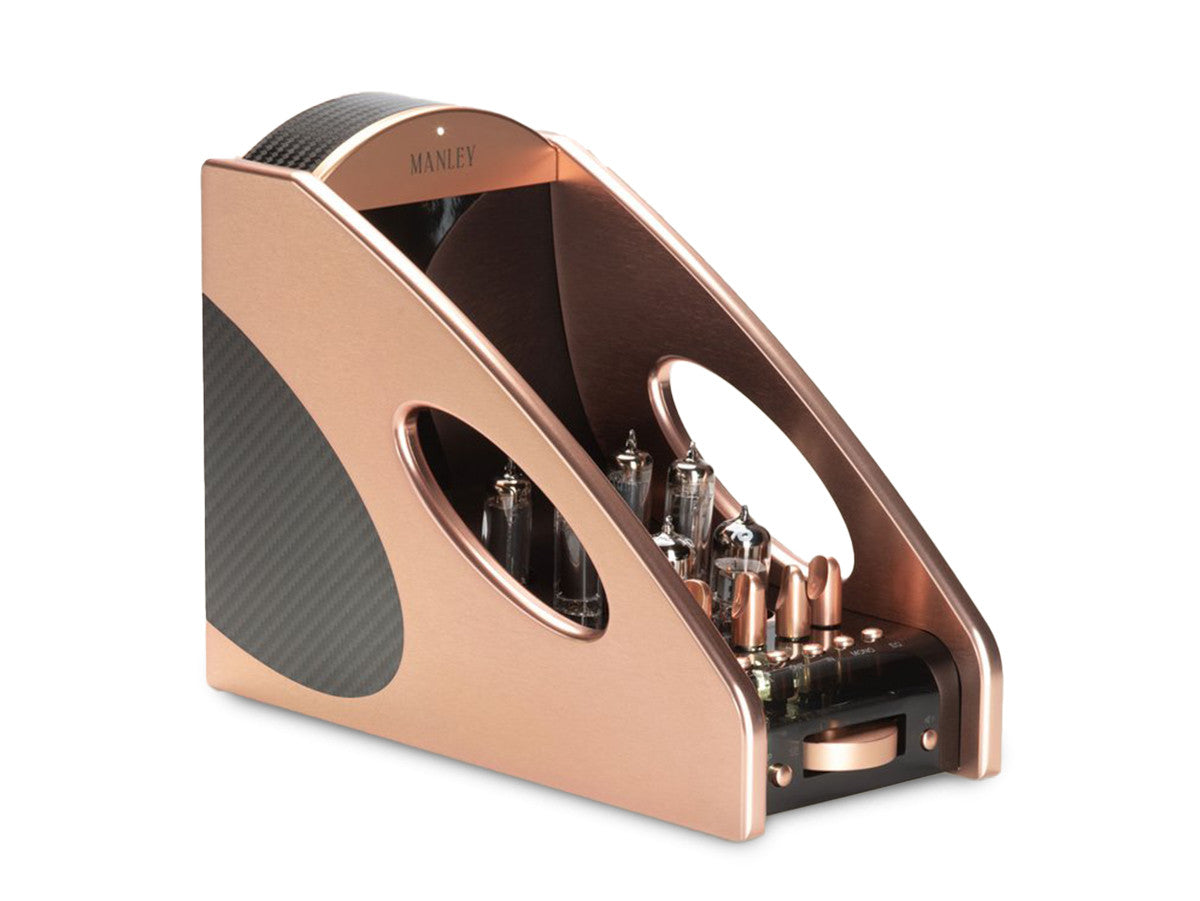

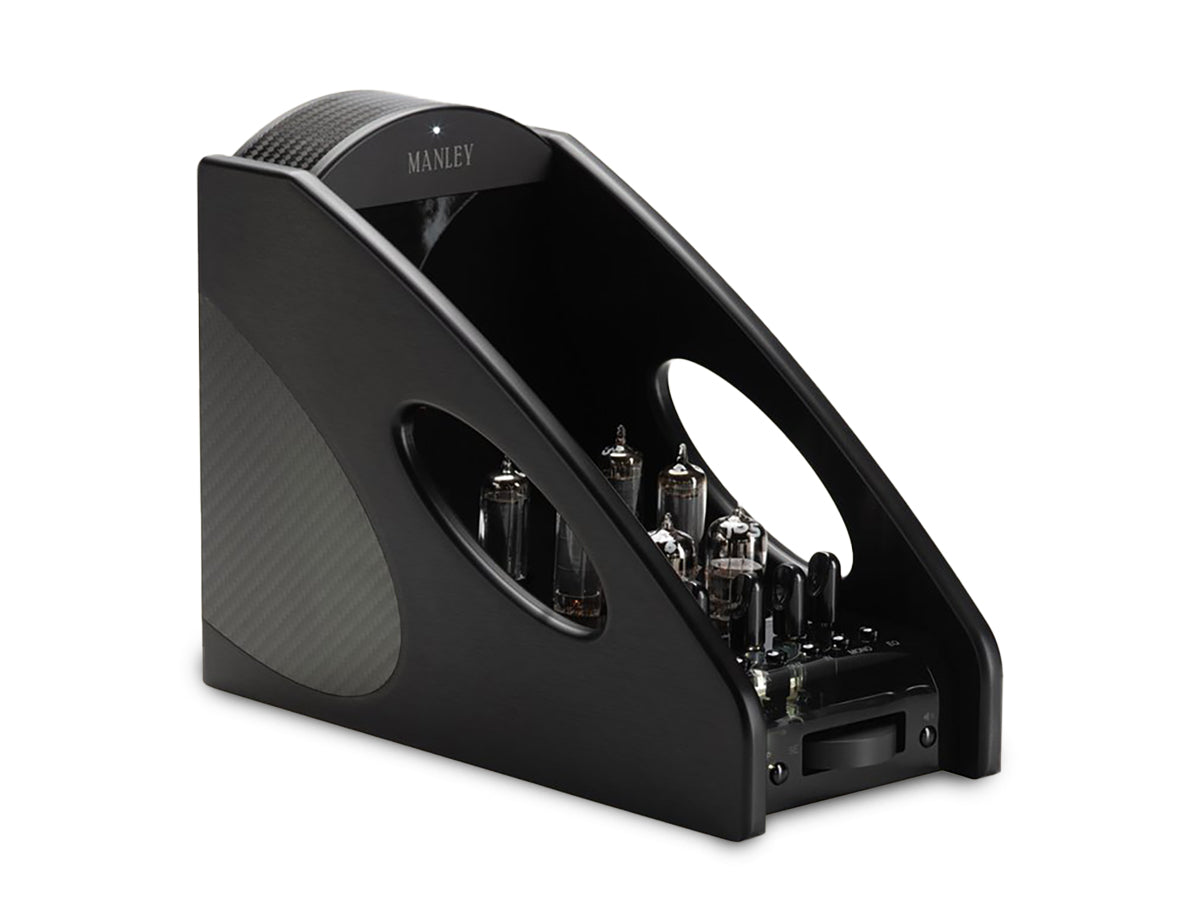

Absolute offers the solid billet chassis for the Manley Absolute Headphone Amplifier in two color options: Black and Copper.

remote control for Manley Absolute amp
remote control for Manley Absolute amp


With its universal power supply allowing it to operate anywhere in the world, robust build quality and breathtaking audio playback, the Absolute Headphone amplifier is at home absolutely anywhere, from a cozy listening room, to your bedside, on your office desk, or as a reliable workhorse in a professional recording studio. Conductive plastic pots and film caps are just some of the fine components utilized, proven over decades of loyal use. Manufactured completely to stringent standards in California, USA, crafted by hand, by American workers, the Manley Absolute Headphone Amplifier certainly makes for a formidable player in today’s headphone listening arena.

This very unusual and visually striking audio sculpture was brought to life by Manley’s team of engineers including Mitch Margolis (of Manley STEELHEAD fame) and our lead engineer, Humberto Rodriguez, finalizing the amplifier and bringing it to life and into production - in America, of course!

“Headphone listening is not new to us; we have been producing personal headphone playback systems aka “Cue Mixers” for recording studios around the globe for well over twenty years. In the HiFi world, our legendary Manley Neo-Classic 300B Preamplifier has become a total cult classic with headphone listeners since the mid-1990’s. Reaching forward, we wanted to produce an extraordinary sounding headphone amplifier chock-full of features and sonic variety for the audiophile, at a price that wouldn’t break the bank either. I know you’re going to Absolutely LOVE this exciting creation of ours.”

EveAnna Manley, President and co-founder of Manley Labs

FREQUENTLY ASKED QUESTIONS

Q: For the input tubes, may I try the 5751 instead of the 12AX7 tubes?

A: One customer said, "I am finding the Absolute has even better focus and timbre with the 5751. ...there are some good JJ5751s currently made. True, I am using some Sylvania GP but the 5751 in general has a very good focus to the sound, with good layering and a solid bass impact."

Zia warns, however, "I think in general I like the sound of the 5751 over a 12AX7. However in the Absolute headphone amp the lower gain of the 5751 drops the overall sensitivity of the amp and it does not reach acceptable volume levels with a standard 1VRMS device such as an iPhone, especially with max FB and PP."

So the answer is, yes you can try 5751 tubes in place of the 12AX7 input tubes but you will not have as much gain, so be aware of that! If you have an abundance of input level drive, no worries.


Press and Reviews

Inner Fidelity Review
Inner Fidelity

by Grover Neville
Feb. 2020

Hi-Fi News Review
Hi-Fi News

by Ken Kessler
Mar. 2020

Hi-Fi PlusReview
Hi-Fi+

by Steven Stone
Apr. 2020

Technical Features

Amplifier Topology
Triode Vacuum Tube Output Stage, Switchable Topology Single-Ended or Push-Pull
Vacuum Tubes
2 x 12AX7 (ECC83), 4 x 6AQ5A (EL90)
Inputs
2 x RCA (Input 1 & Preamp Output = Pass-Thru when amplifier is in Standby or Off)
Input Impedance
50 kOhms (Pass-Thru= 300 kOhms)
Maximum Input Level
7.7 VAC RMS (+20 dBu)
(Conditions: XLR output, PP mode, 16 ohm load, VOLUME max, EQ out, 1kHz sine wave)
Volume Control
Precision Stepped Relay Attenuator 0.5dB per step
63dB total attenuation – Volume setting to minimum = MUTE
Outputs (transformer coupled)
1 pair RCA- Unbalanced (Preamp Output)
1 x TRS ¼” JACK – Unbalanced
1 x 4 PIN XLR- Balanced
XLR-pin outs
Left Channel Pin 1= Signal (+)
Pin 2= Signal (-)
Right Channel Pin 3= Signal (+)
Pin 4= Signal (-)
Unit Dimensions
11.5 x 5.5 x 8.2” (LxWxH)
Unit Weight
12 lbs
Shipping Weight
13.5 lbs
Packing Carton Dimensions
17 x 11 x 15”
Accessories
Supplied with Remora RF remote control

Performance

Gain
Load 16 ohm: 12 dB (Min FB), 3 dB (Max FB)
Load 62 ohm: 17 dB (Min FB), 8 dB (Max FB)
Load 200 ohm: 22 dB (Min FB), 13 dB (Max FB)
(Conditions: XLR output, PP mode, VOLUME Max, EQ out, 1kHz sine wave)
Input Sensitivity
600 mV AC RMS for an output of 100 mW
1.9 VAC RMS for an output of 1W
(Conditions: XLR output, PP mode, FB 12:00 o’clock, 16 ohm load, 1kHz sine wave, VOLUME max, EQ out)
Output Impedance
Switchable: Low 12-50 Ohm, Mid 50-200 Ohm, High 200-600 Ohms
Maximum Output Power
1W into 12 Ohms BW 22Hz-22kHz
Variable Feedback Control (FB)
MIN 0dB
MAX 10dB
(Conditions: BAL output, PP mode, 16 ohm load, VOLUME max, EQ out)
Signal to Noise Ratio
83 dB (1kHz sine wave, 100mW output, BW 22Hz-22kHz)
(Conditions: BAL output, PP mode, FB 12:00 o’clock, 16 ohm load, VOLUME max, EQ out)
Noise Floor
-80 dBu BW 22Hz-22kHz
-85 dBu A-Weighted
(Conditions: BAL output, PP mode, FB 12:00 o’clock, 16 ohm load, VOLUME MAX, EQ out)
Channel Crosstalk
-71 dB (1kHz sine wave, 100mW output, BW 22Hz-22kHz) Left Channel
-72 dB (1kHz sine wave, 100mW output, BW 22Hz-22kHz) Right Channel
(Conditions: BAL output, PP mode, FB 12:00 o’clock, 16 ohm load, EQ out)
Balance Control Channel attenuation
Left Channel= 72dB (1kHz sine wave, 100mW output, BW 22Hz-22kHz)
Right Channel= 72dB (1kHz tone, 100mW output, BW 22Hz-22kHz)
(Conditions: BAL output, PP mode, FB Min, 16 ohm load, EQ out)
Frequency Response
Push-Pull= Flat 10Hz – 20 kHz (-1dB @ 40 kHz)
Single-Ended= 20Hz – 20 kHz (-0.5dB @ 10Hz, -1dB @ 50 kHz)
(Conditions: BAL output, 100mW output, FB @ 12:00 o’clock, 16 ohm load, EQ out)
Distortion
Push-Pull= 0.16% THD+N (BW 20Hz-22kHz)
Single-Ended= 1.0% THD+N (BW 20Hz-22kHz)
(Conditions: BAL output, PP mode, 1 kHz sine, 100mW output, FB @ 12:00 o’clock, 16 ohm load, EQ out)
Power-Up Sequence
Soft Start, 30 second mute-controlled
Operating Mains Voltage
90-250 VAC, 50-60Hz, universal works worldwide
Power consumption STANDBY mode
0.5W, Max Power = 80W
Heat Rise above ambient temperature at rear panel
25ºC or 44ºF
Heat Rise above ambient temperature at side panels
15ºC or 26ºF
