JH Audio IEM Stock Cables for 4 pin Connections

$100.00
In stock

This JH Audio IEM stock cable was developed, made and customized by Moon Audio to fit JH Audio and Astell & Kern IEMs with the 4 pin connection.

Customized options include:

  • Color

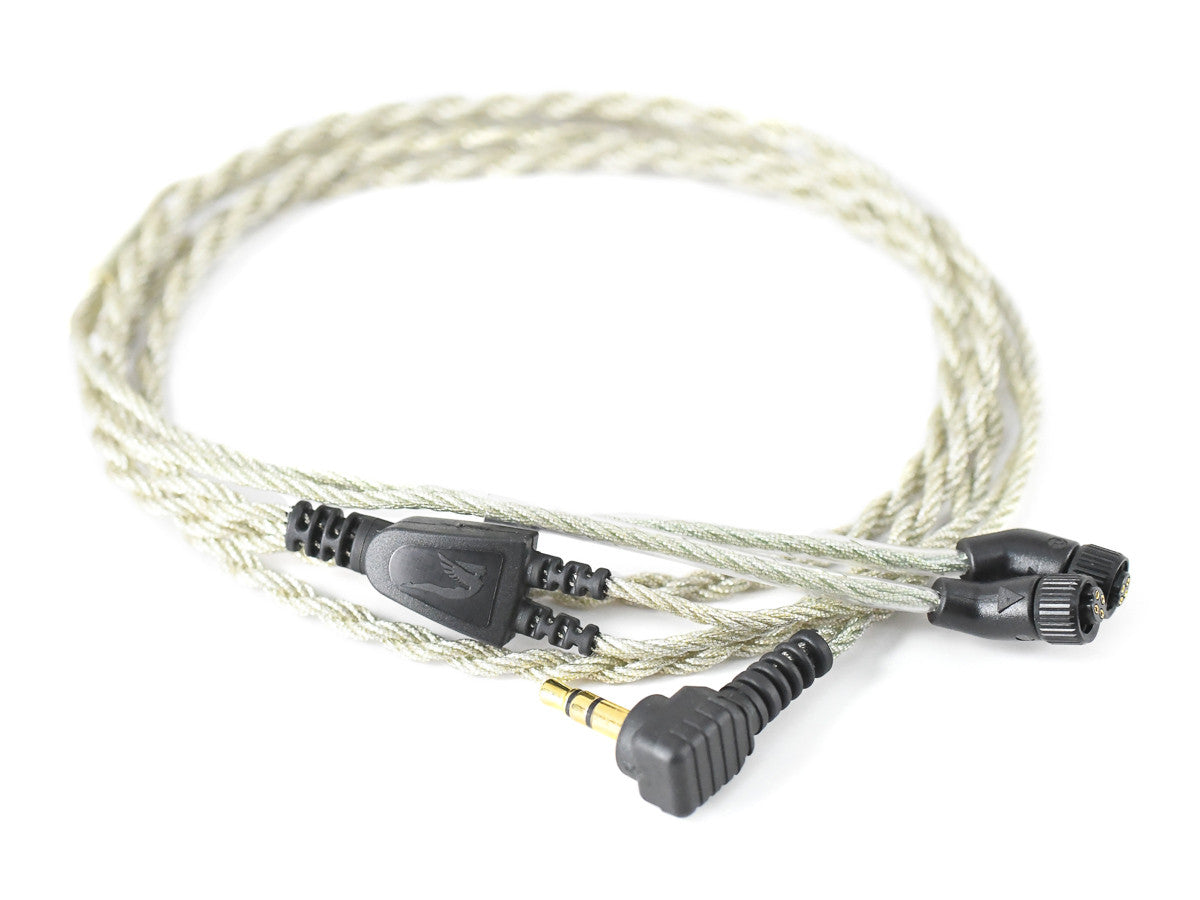

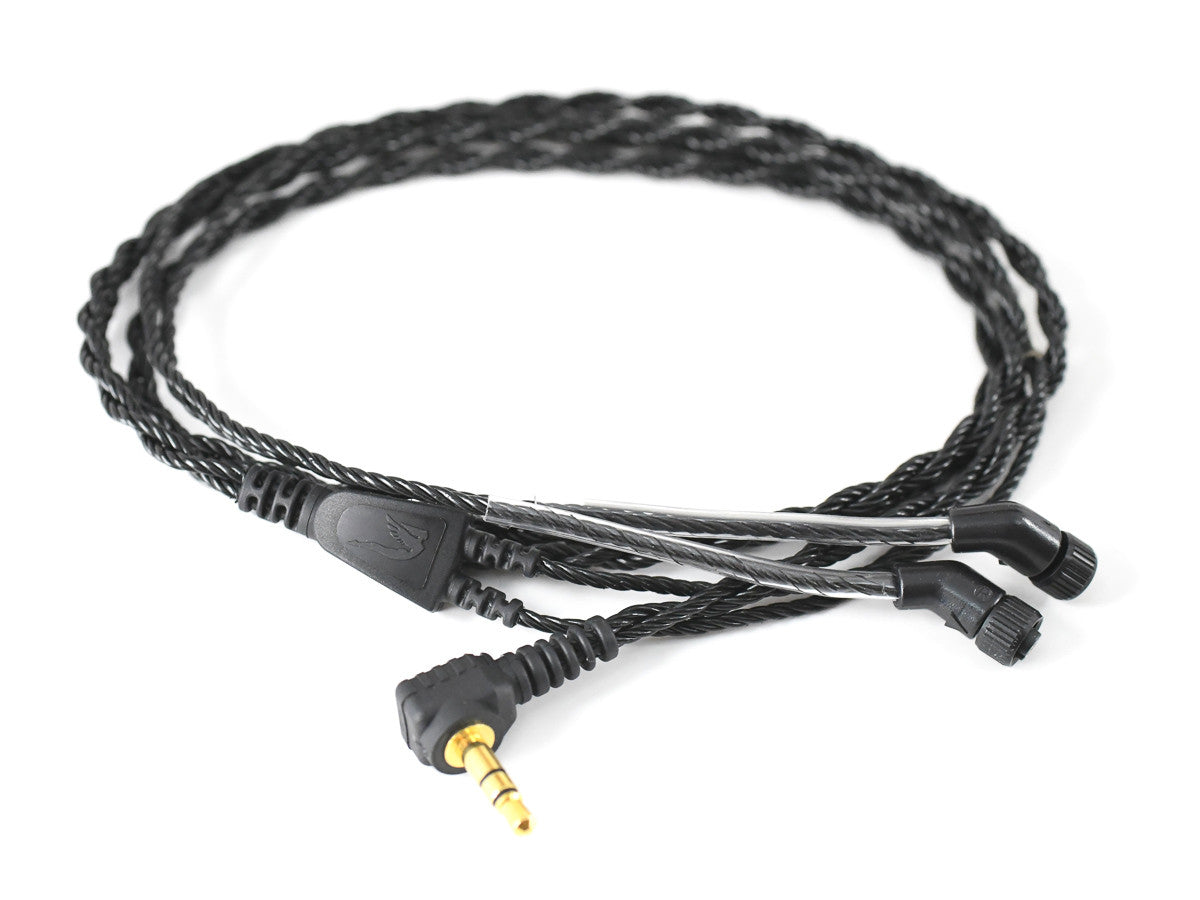

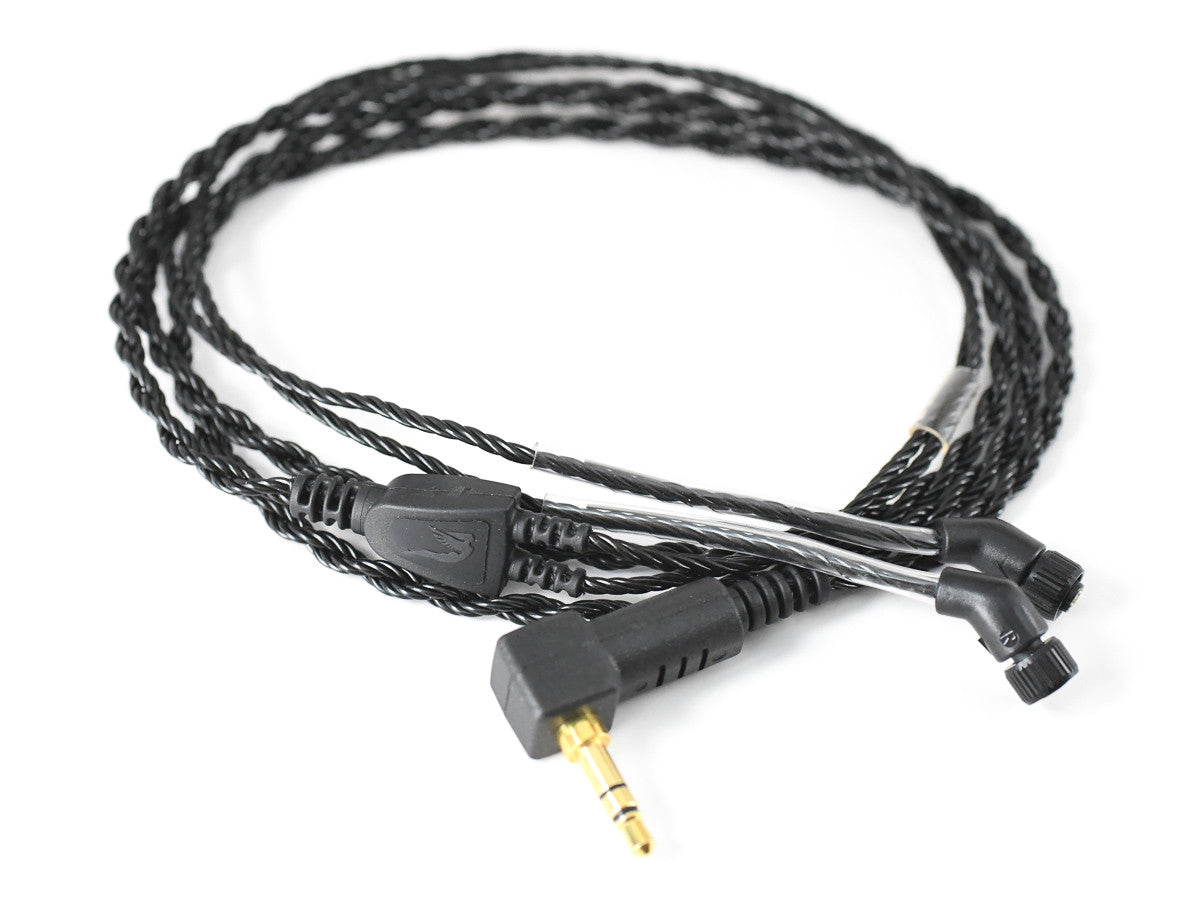

  • Connector Style either the smaller Pro Style 3.5mm or the Standard Larger 3.5mm with deep neck for phone cases
  • No Bass Pod Included

Design

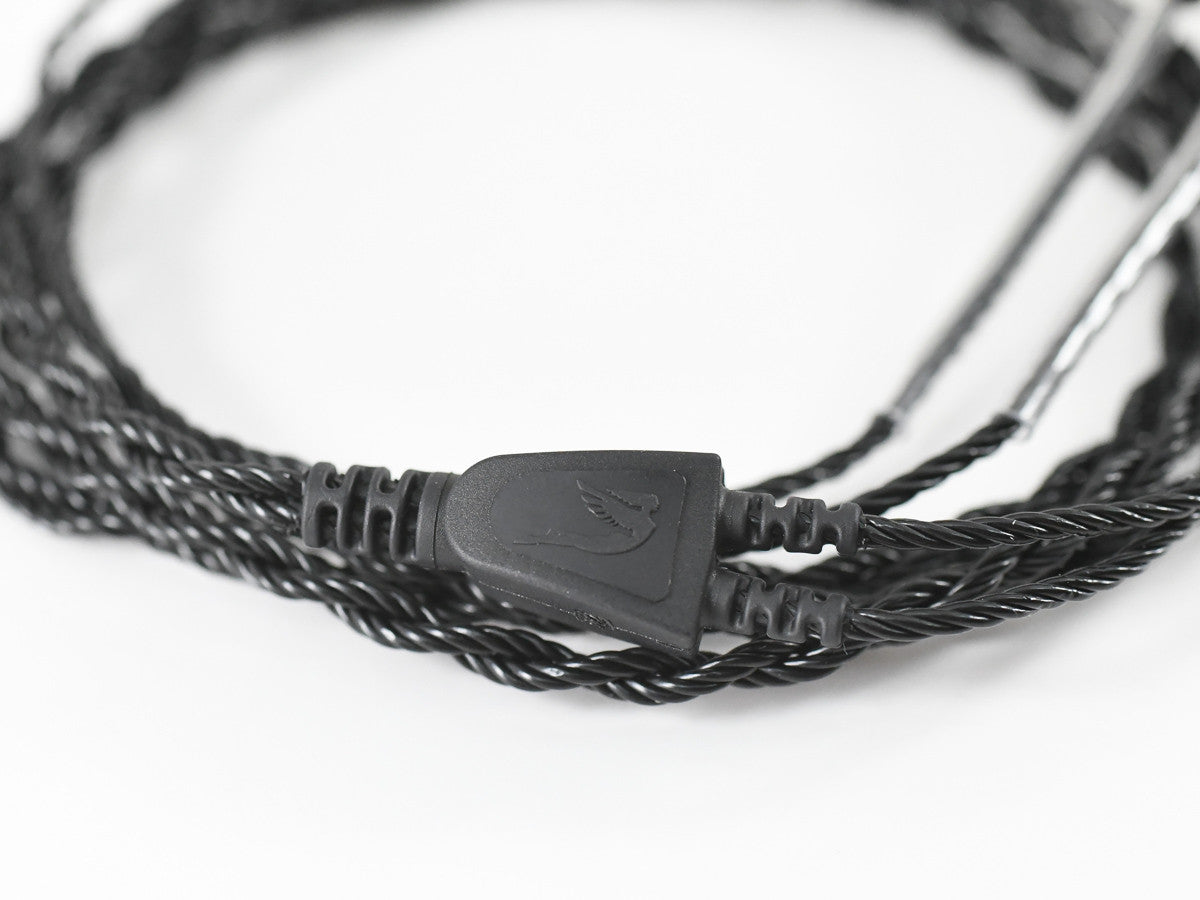

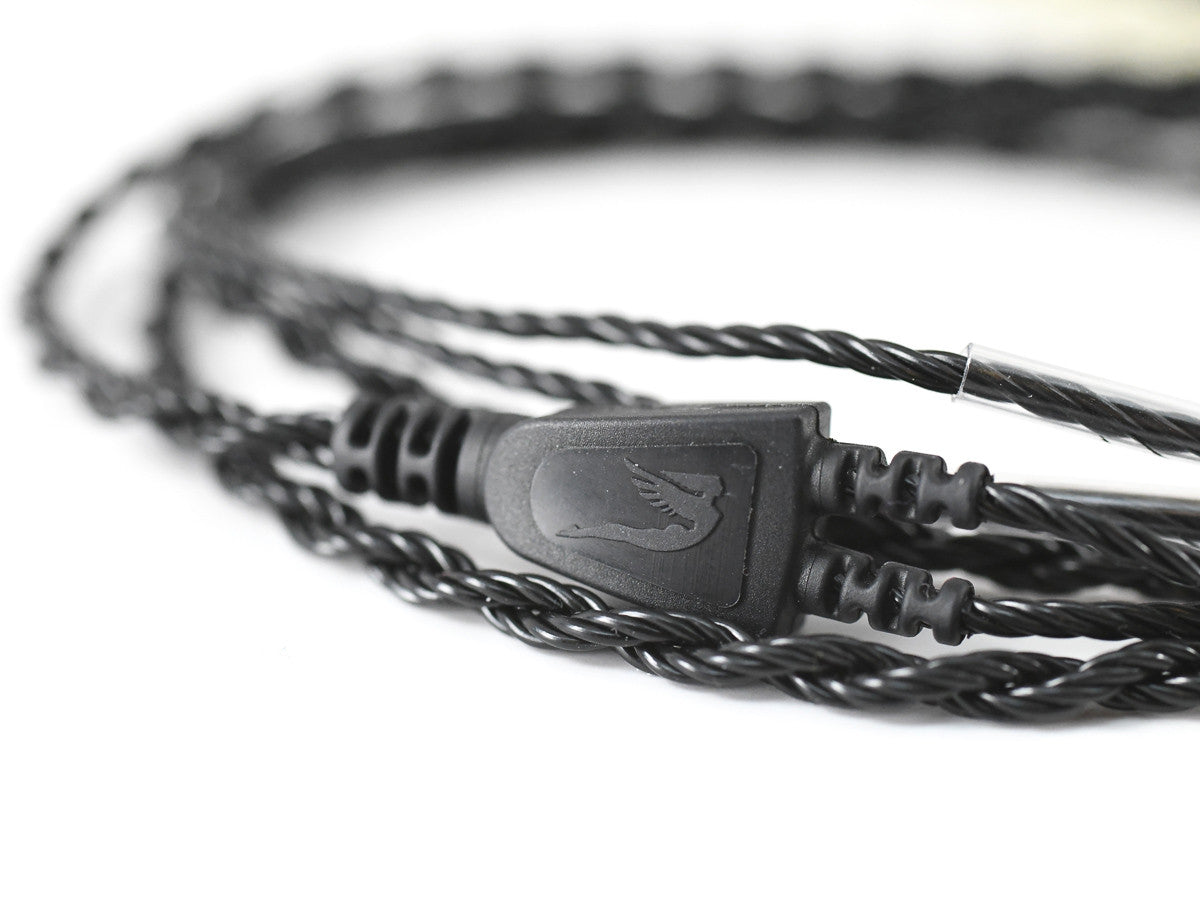

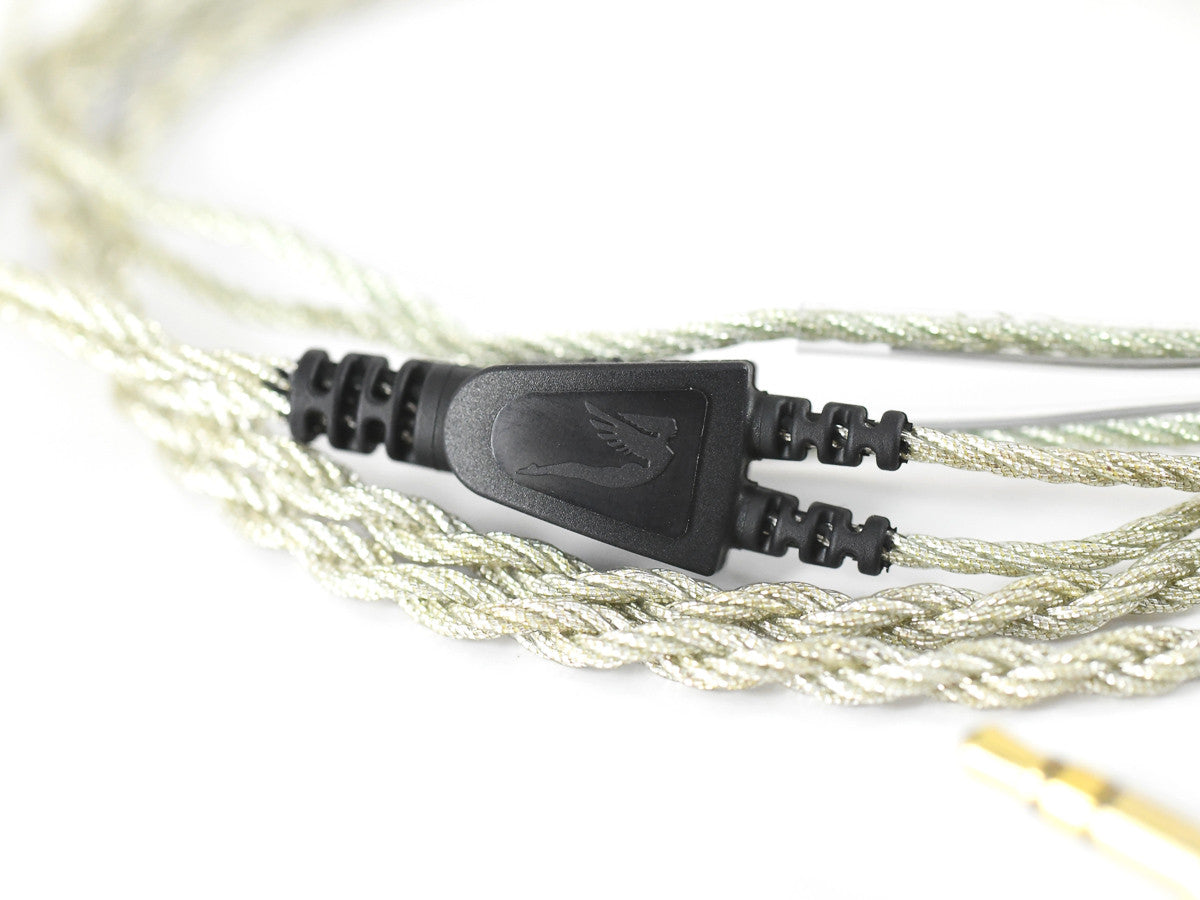

The JH Audio stock cable is made of silver plated tinsel wire. This is not to be confused with the silver plated copper design in the Black Dragon IEM headphone cable V2. These also Do Not have the Bass Pods.

Redesign of the JH Audio connections & IEM sockets

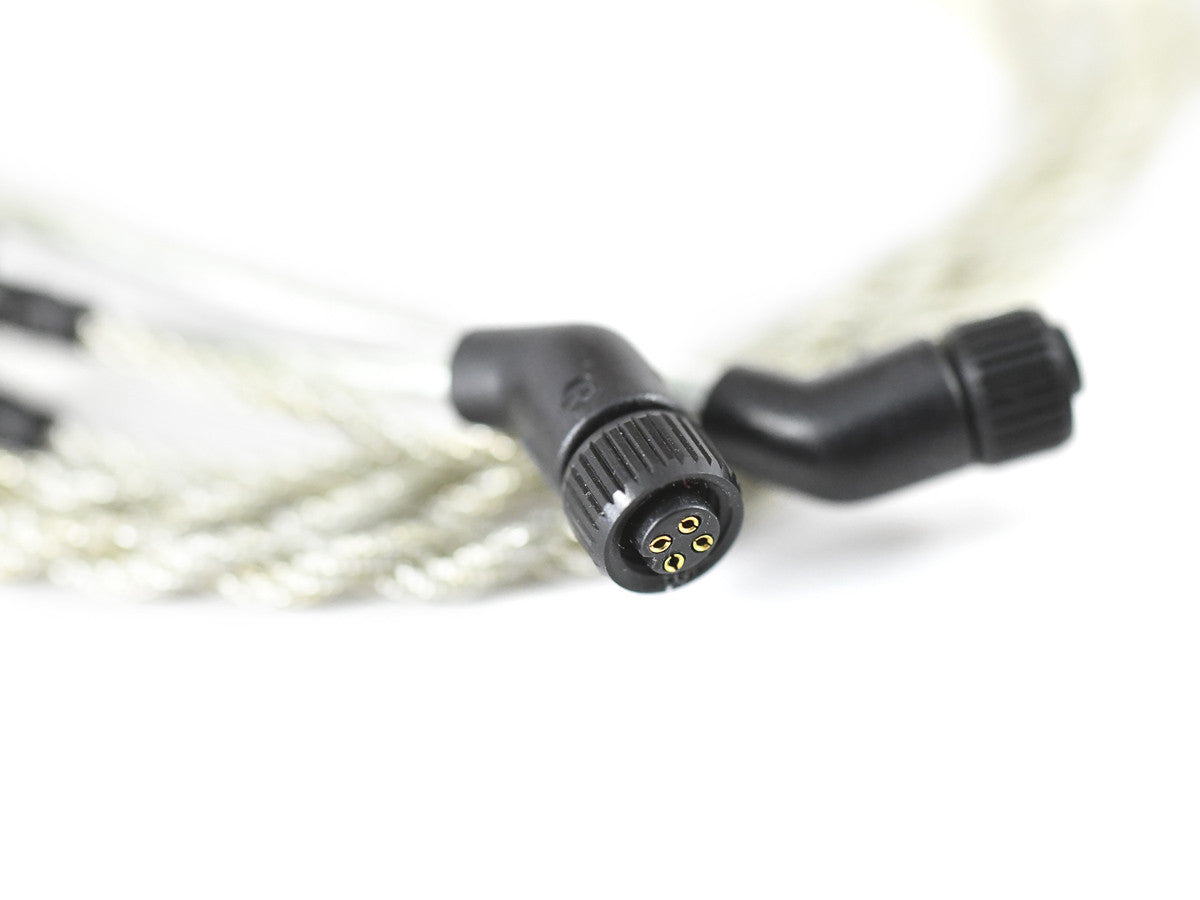

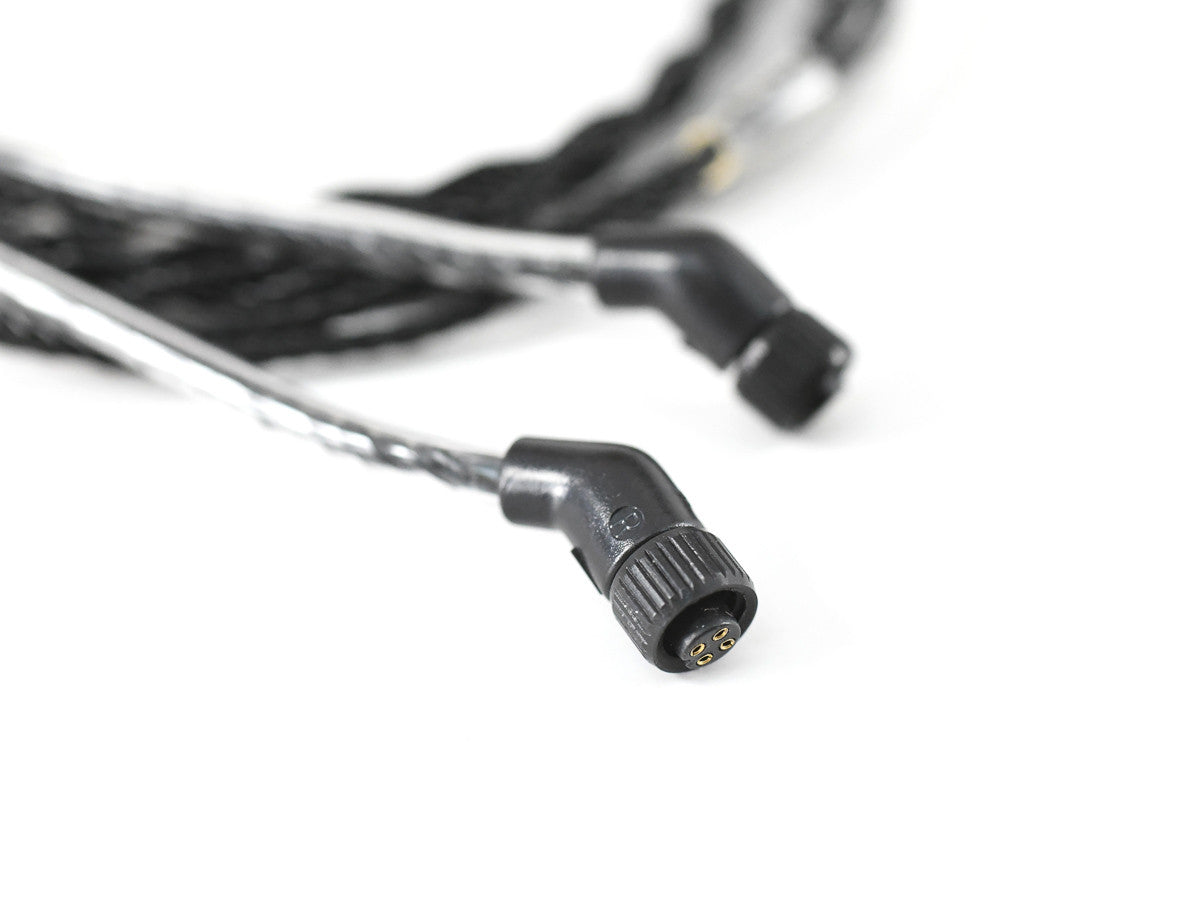

The cable connections and IEM sockets of the JH Audio 4pin connection style IEMs were redesigned by Moon Audio. The Astell & Kern and JH Audio IEMs with the 4-pin connection style include the Angie, Angie II, Rosie, Roxanne, Roxanne II, Layla, and Layla II. This 4pin connection socket upgrade has improved the durability of the connections & sockets for long term use & enjoyment.

First, we improved the threaded locking section and the nut as we are now using anodized aluminum for durability and better tolerance. The male and female pins utilize a proprietary metal combination called ARCAP.  It is essentially a high yield copper-based metal that does not contain iron so it is not magnetic. It also has very high tensile strength and it is resistant to chemical corrosion. This is very important for those of you who will use the cable and IEMs at the gym or on stage if you are in a band as it will be much more durable and resistant to flex failure from constant movement and wear.

The pins now are also gold plated provide better tolerances and tracking.

Cable Options

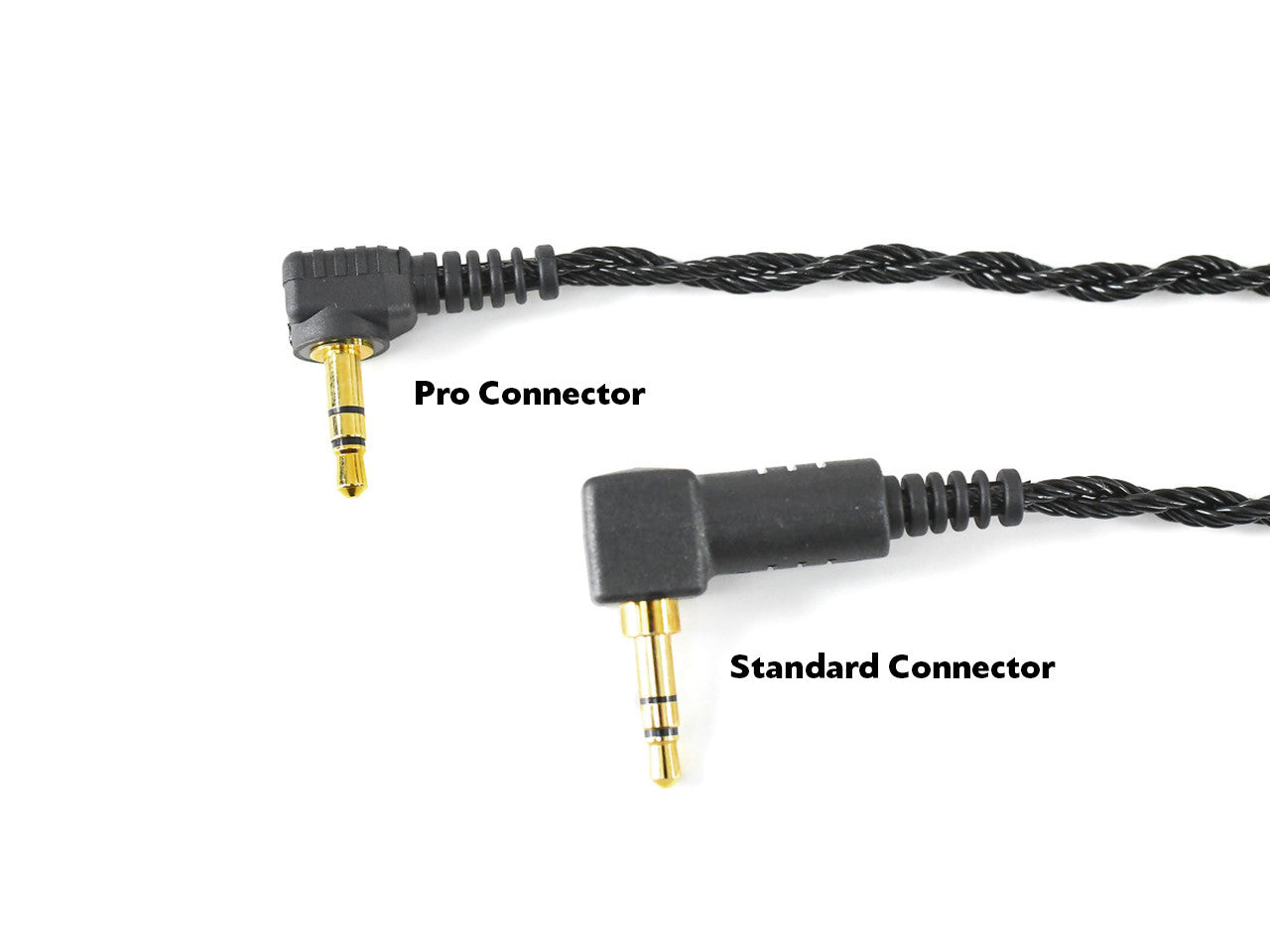

Bass pods are not available on remaining cables. Connector options include 3.5mm Standard or 3.5mm Pro. The Pro versions are smaller with a sleeker profile while the Standard connectors are larger and more durable.

Specifications

Material
Silver Plated Tinsel
Construction
Braided
Connection
4-Pin
Pins
Non-magnetic Gold Plated ARCAP

Compatible 4-Pin IEMs

JH Audio JH Audio
All custom IEMs with 4-pin connection including: Roxanne, Angie, 13v2, 16v2, Lola, and Layla

4.0 / 5.0
3 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
1
1
0
0
Good sound but built in defect cuts the wires after a while
I was told this had been fixed so I ordered new cables but the same old defect is there. The wire that's used to shape the cable around the ears is cut so it's sharp at the end. Over time it scrapes the coating off the wires and then through the wire itself. (I purchased through JH Audio) ?This time I removed about 1cm of the clear plastic tubing and bent the wire back up so the tubing is now between the sharp end and the cable itself. it scratches my ear but at least it won't cut the cables this time. Too bad for such an expensive item.
October 23, 2018
Great quality
JH Audio stock cables used to be terrible, I had to change mine twice in 1 year but these new cables are very nicely built.

In terms of sonic, I haven't noticed any dramatic change but they are very sturdy and look like they gonna last a very long time.
April 23, 2017
Excellent cable for your JH Audio iems
I bought this cable because I had problems with original connectors.

This cable is a clear upgrade from previous version.
August 24, 2016
