How to Install & Setup IsoAcoustics GAIA Isolators on Audio Speakers

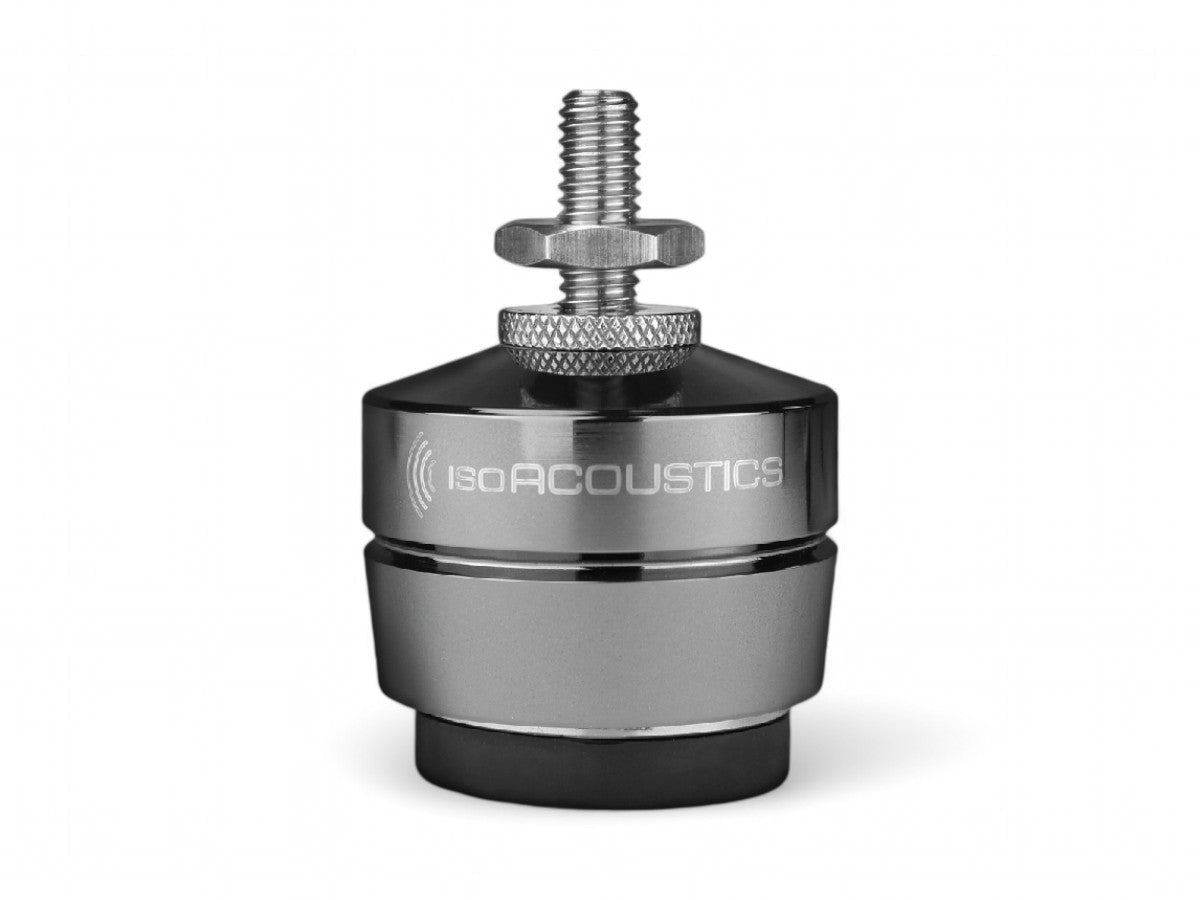

Gaia III isolators are constructed of machined Stainless Steel and designed to s… More details

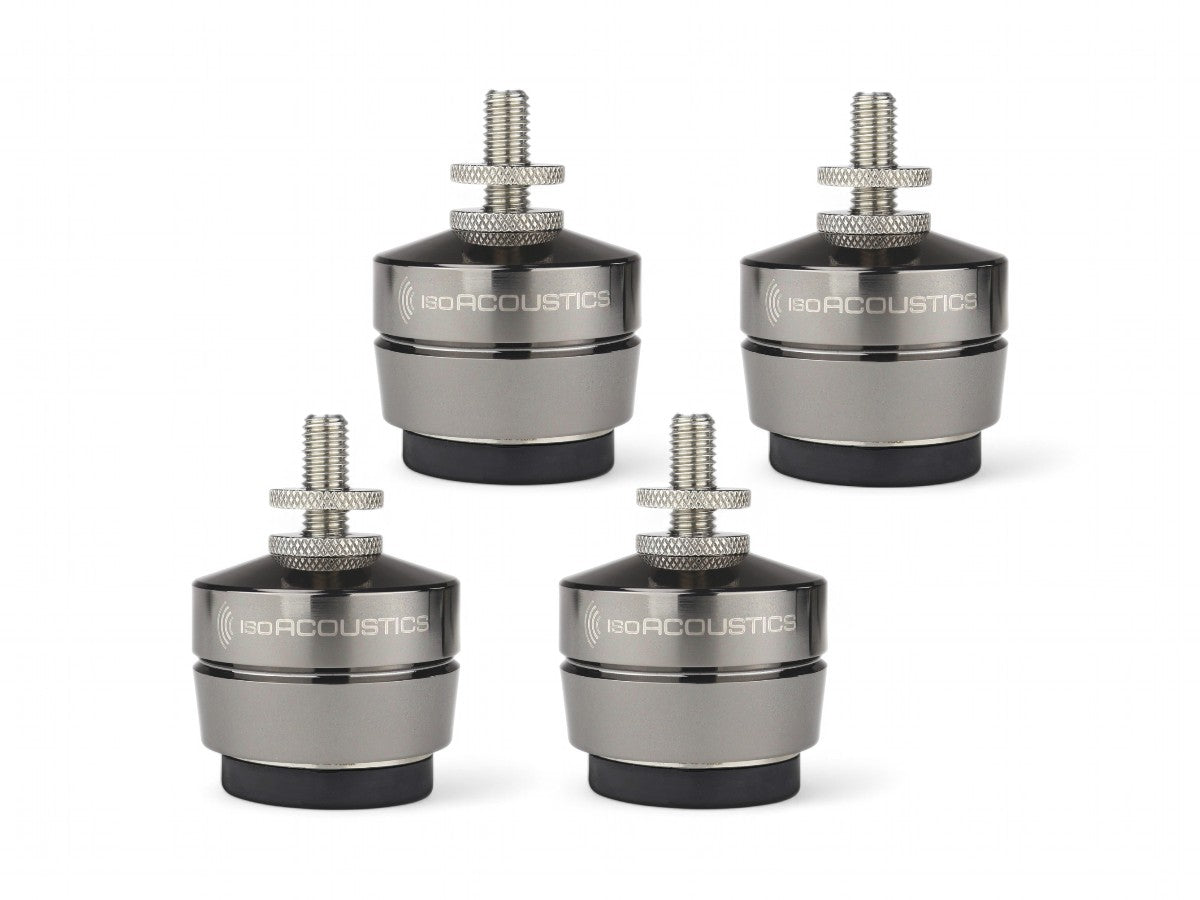

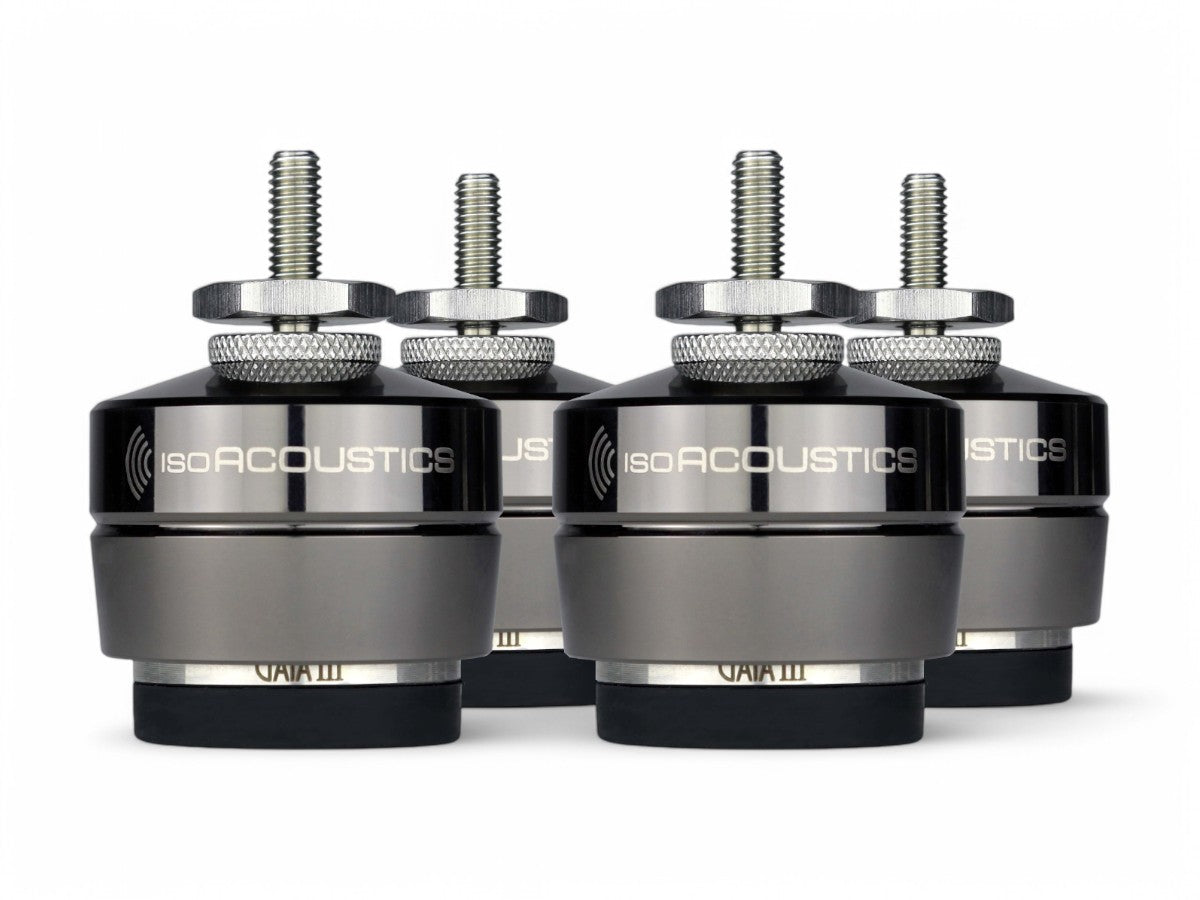

The Gaia III speaker isolators are sold in singles or a pack of 4 which includes enough for 1 Speaker.
Gaia III isolators are constructed of machined Stainless Steel and designed to support 70 lbs or less per pack. IsoAcoustics’ patented design provides a high degree of speaker isolation while resisting lateral movement and oscillations, to maintain alignment with the listening position. Internal reflections from the hard supporting surface are attenuated resulting in greater sound clarity and openness.
The GAIA isolators are machined units that incorporate IsoAcoustics’ patented design to provide a high degree of speaker isolation, while resisting lateral movement and oscillations, to maintain alignment with the listening position. Internal reflections from the hard supporting surface are attenuated resulting in greater sound clarity and openness.
Designed for floor standing speakers and subwoofers weighing up to 70 lbs (32 KG), the GAIA III will provide more openness and clarity. Structural borne noise is greatly reduced while internal reflections from the hard-supporting surface are attenuated resulting in greater sound clarity and openness.
Optimal results are achieved by installing the GAIA isolators with the logo facing the listening position, or rotated 180 degrees, to align the isolators with the speaker’s motive forces. The GAIA III provides a high degree of isolation while resisting lateral movement and oscillations to maintain alignment with the listening position. Lift and place the speakers into position as the GAIA lower isolators will adhere to the supporting surface.
The sound stage blossoms to open up a three-dimensional image of natural, spatial sound.
The GAIA’s are threaded into the base of the speaker or subwoofer to replace the existing spikes or feet. Threading the GAIA’s into the base of the speaker creates a strong connection with the speaker. With the top of the GAIA housing connected with the speaker and the bottom of the GAIA connected to the supporting surface, all of the energy is then managed by the GAIA’s internal isolator.
The GAIA III includes thread adaptors for sizes M6-1.0, M8-1.25 and ¼”-20. Alternative thread size adaptors are available upon request through IsoAcoustics distributors.

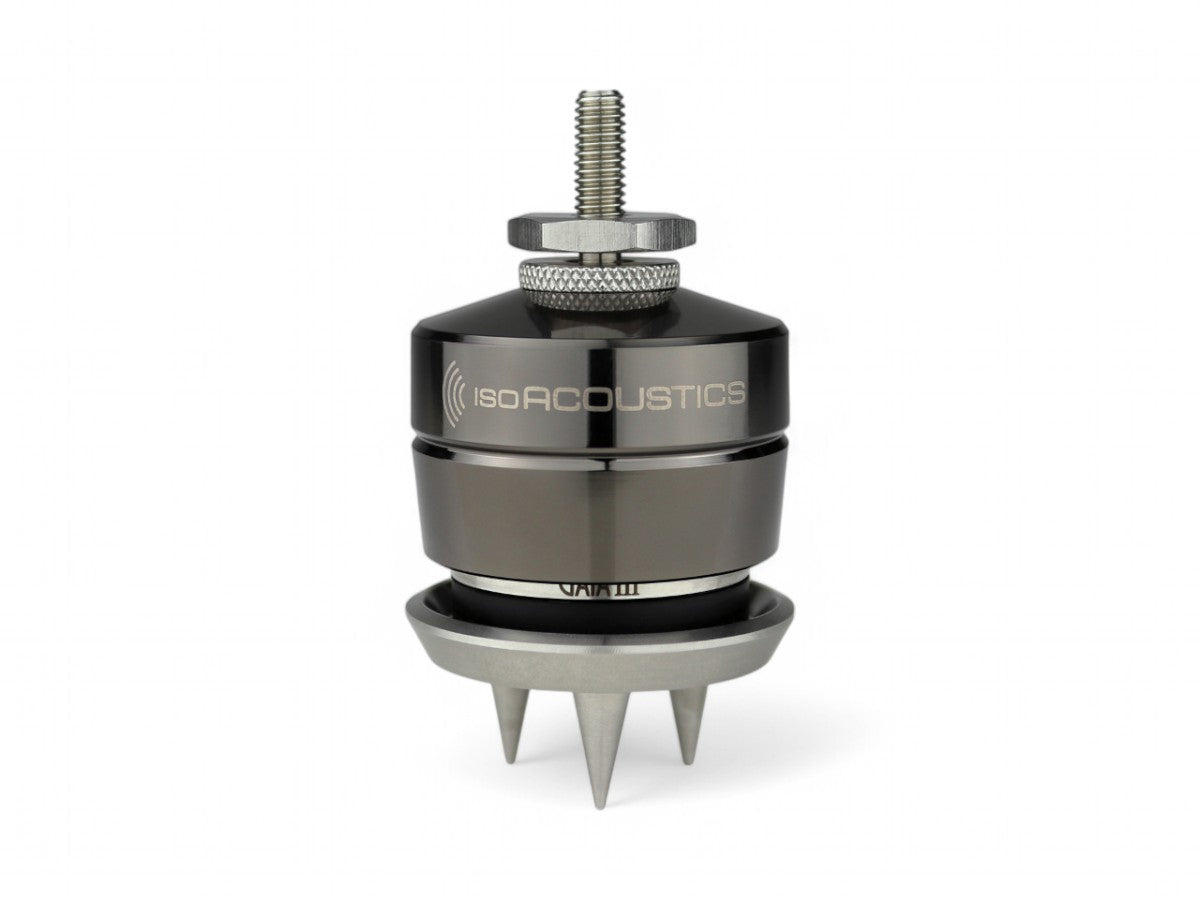

Designed to maintain stable support on carpet, the optional Carpet Spikes work with the GAIA III isolators to provide improved performance with thicker pile and carpet under pads.
Designed for a wide variety of floor standing speakers with a maximum weight of 70lbs (32kg). Alternative threaded studs provided in M6, M8, and ¼ -20.
