Focal
Alpha 80 Evo Speaker
$629.00 USDSold Individually
PROFESSIONAL LOUDSPEAKER FOR LOW FREQUENCIES
ACTIVE 2-WAY

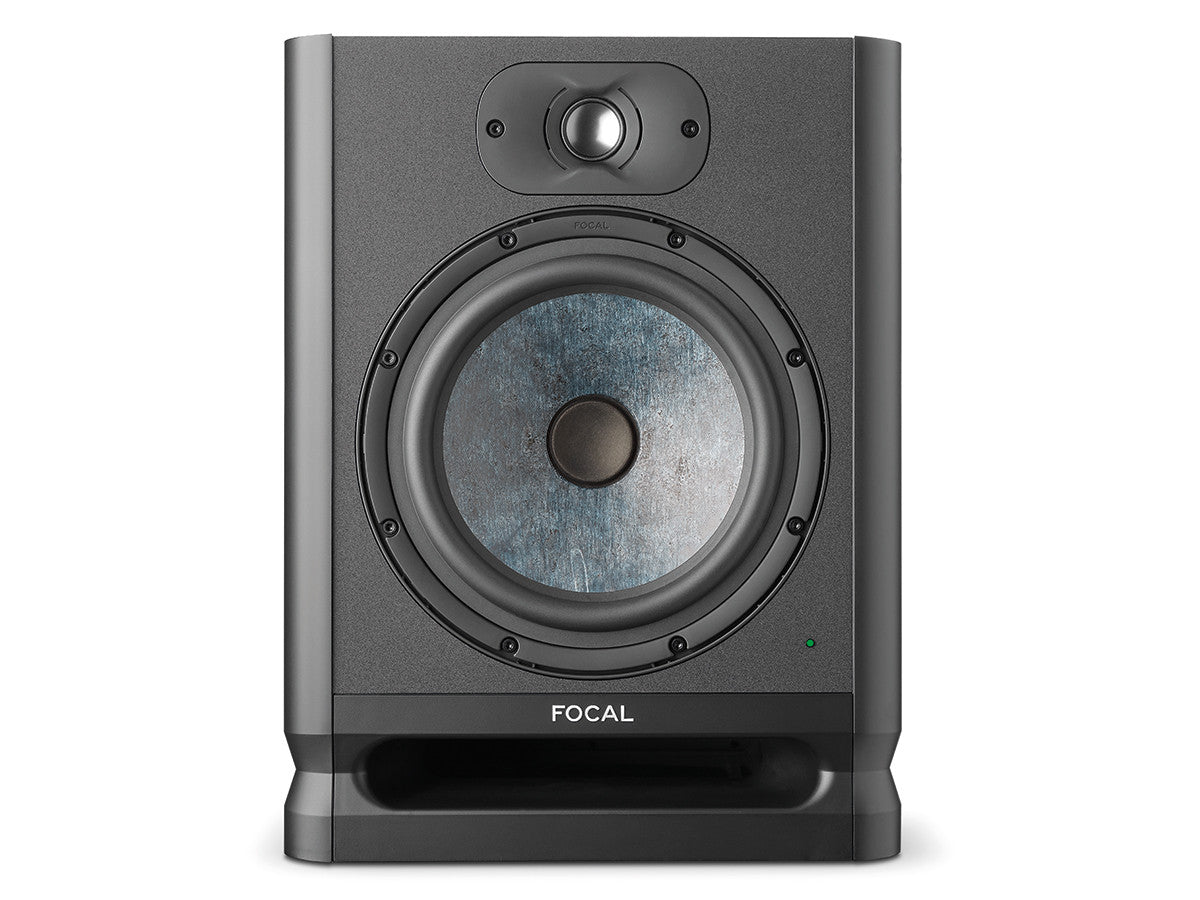

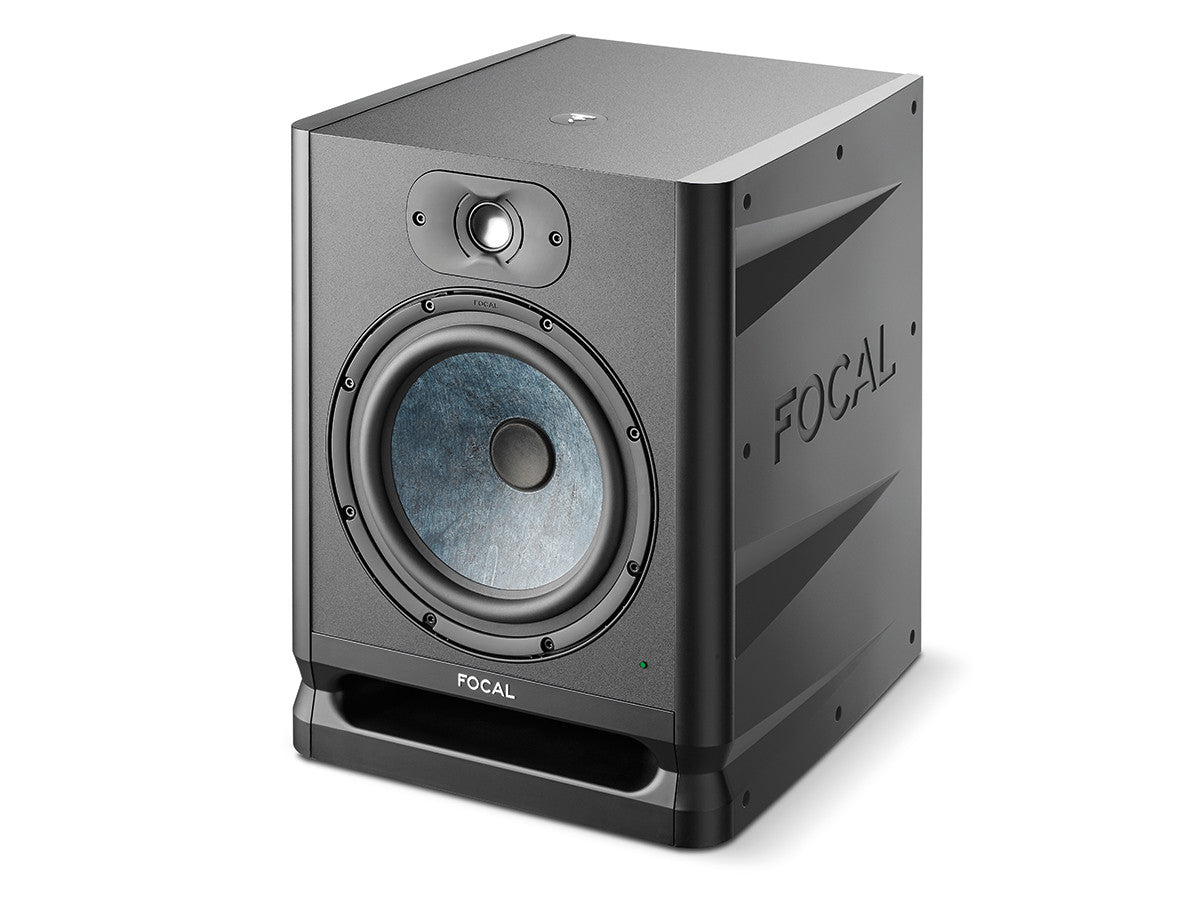

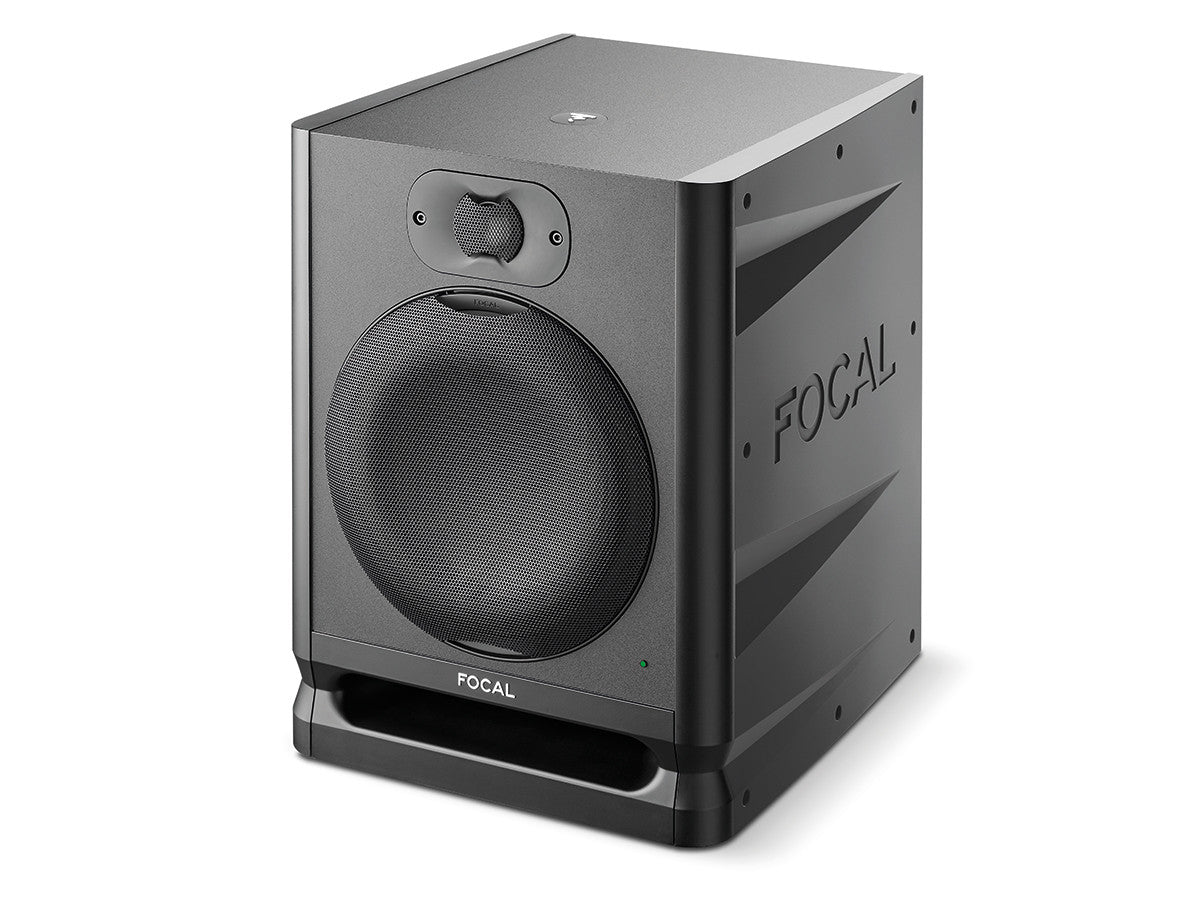

Flagship line Alpha 80 Evo is particularly recommended for professionals seeking high volumes and a rich sub-bass extension. This monitor has a 1” (25mm) aluminium inverted dome tweeter and a woofer with a Slatefiber cone, made in France by Focal. Its large laminar vent allows you to significantly limit noises and its dual amplification offers a frequency response from 38Hz to 22kHz (+/- 3dB).. Alpha 80 Evo is characterised by excellent dynamics, an impressively neutral tonal balance and multiple features (inserts for wall mounting, automatic disengageable stand-by, etc.). The Alpha Evo monitors are made from a 5/8” (15mm)-thick MDF enclosure and incorporates internal braces to ensure the enclosure's high rigidity, even at the highest levels of sound pressure.
| Parameter | Specification |
|---|---|
| Physical Specifications | |
| Dimensions with 4 rubber feet (HxWxD) | 15.35x11.65x13" (390x296x330mm) |
| Weight | 21.6lbs (9.8kg) |
| Construction | 0.6" (15mm) MDF |
| Finish | Black vinyl and paint |
| Availability | Sold Individually |
| Audio Specifications | |
| Frequency Response (+/- 3dB) | 38Hz - 22kHz |
| Maximum SPL | 106dB SPL (peak @ 1m) |
| Woofer | 8" (20cm) Slatefiber cone |
| Tweeter | 25mm (1") with aluminium inverted dome |
| Amplifier Specifications | |
| Medium and Low Frequency Amplifier | 80W |
| High Frequency Amplifier | 35W |

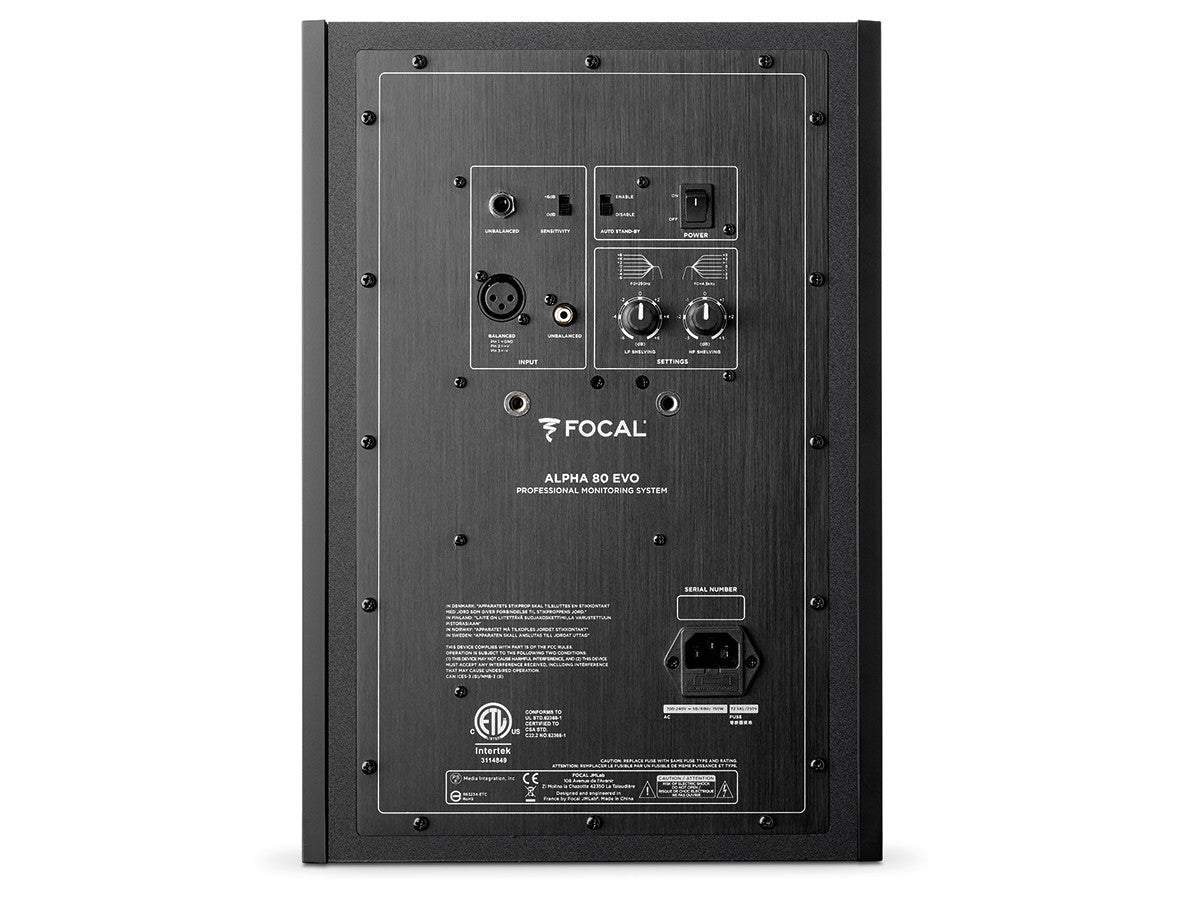

| Connectivity Specifications | |
| Input Connectors | TRS: symmetrical 10kOhms XLR: symmetrical 10kOhms RCA: asymmetrical 10kOhms with compensated sensitivity |
| Sensitivity | Adjustable, 0 or +6dB |
| Level Midrange/Bass (0 - 250Hz) | Adjustable, +/-6dB |
| Treble Level (4.5 - 35kHz) | Adjustable, +/-3dB |
| Power Specifications | |
| Power Supply | 100 - 240V~ (T2AL fuse/250V) |
| Connection | IEC socket and detachable power cable |
| Automatic Stand-by Mode | After around 15 minutes of no use by signal detection >6mV |
| Stand-by Consumption | < 0.5W |
| Controls and Indicators | Power on/off switch on rear panel On and off LED - Stand-by LED |
